Model Frigidaire FFHT1814WW5 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

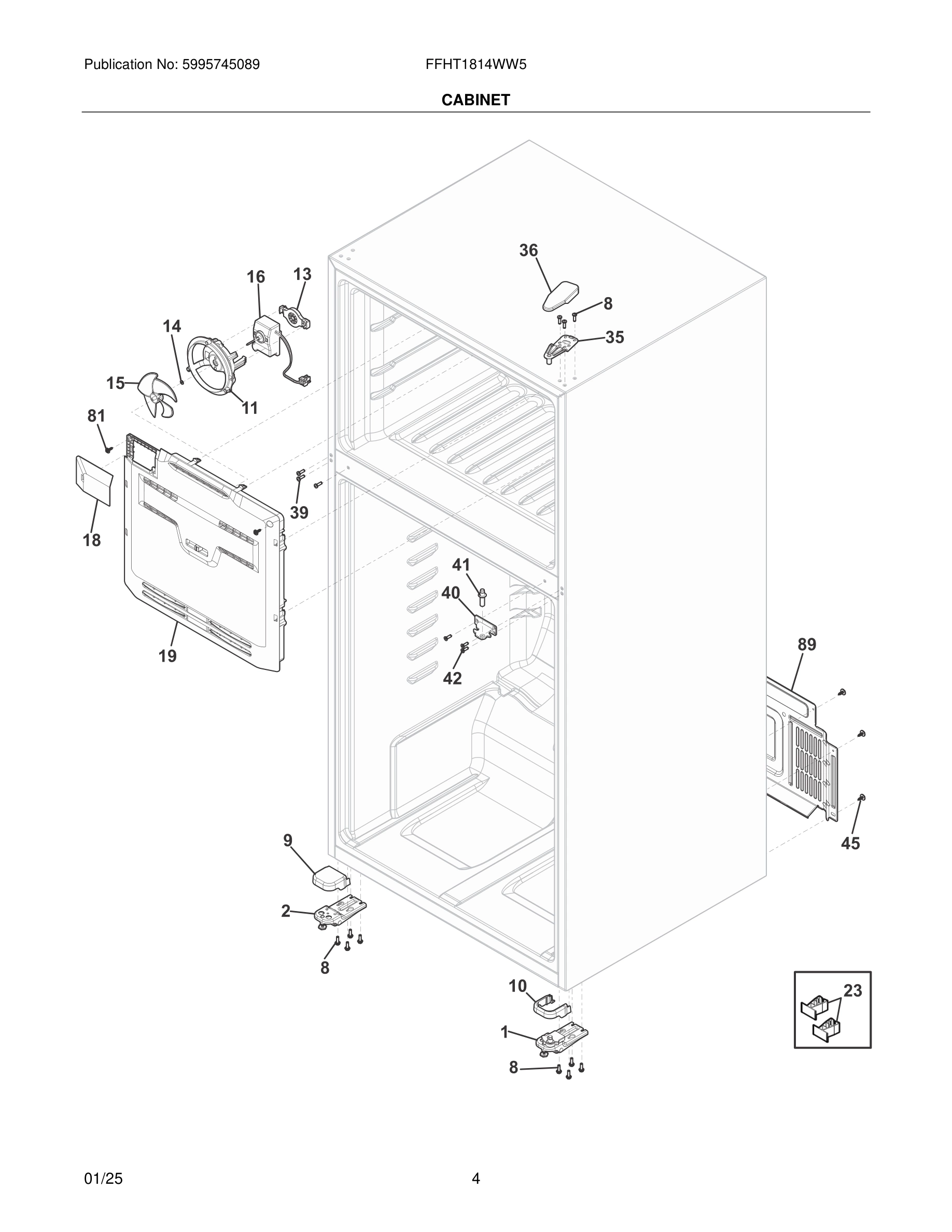

05 - CABINET

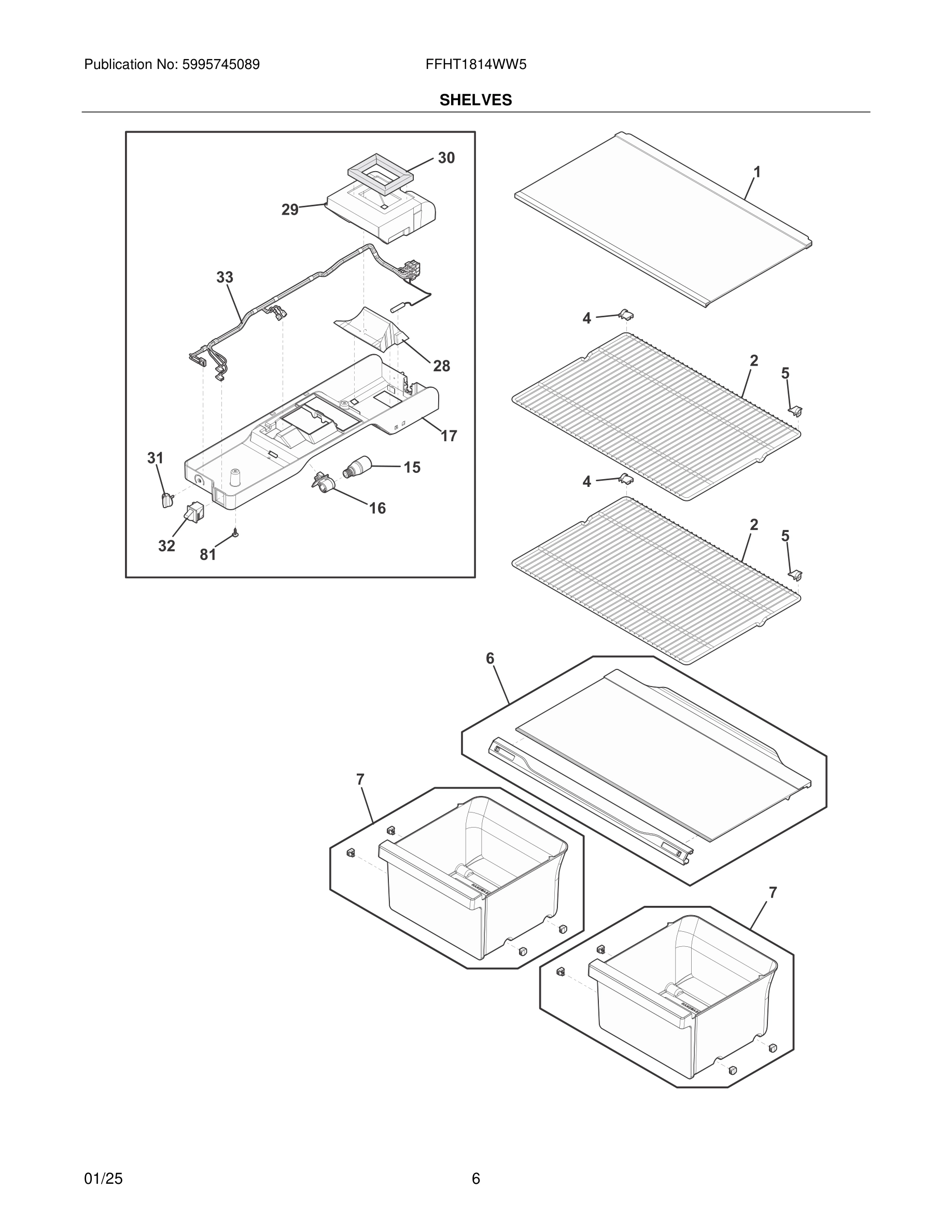

07 - SHELVES

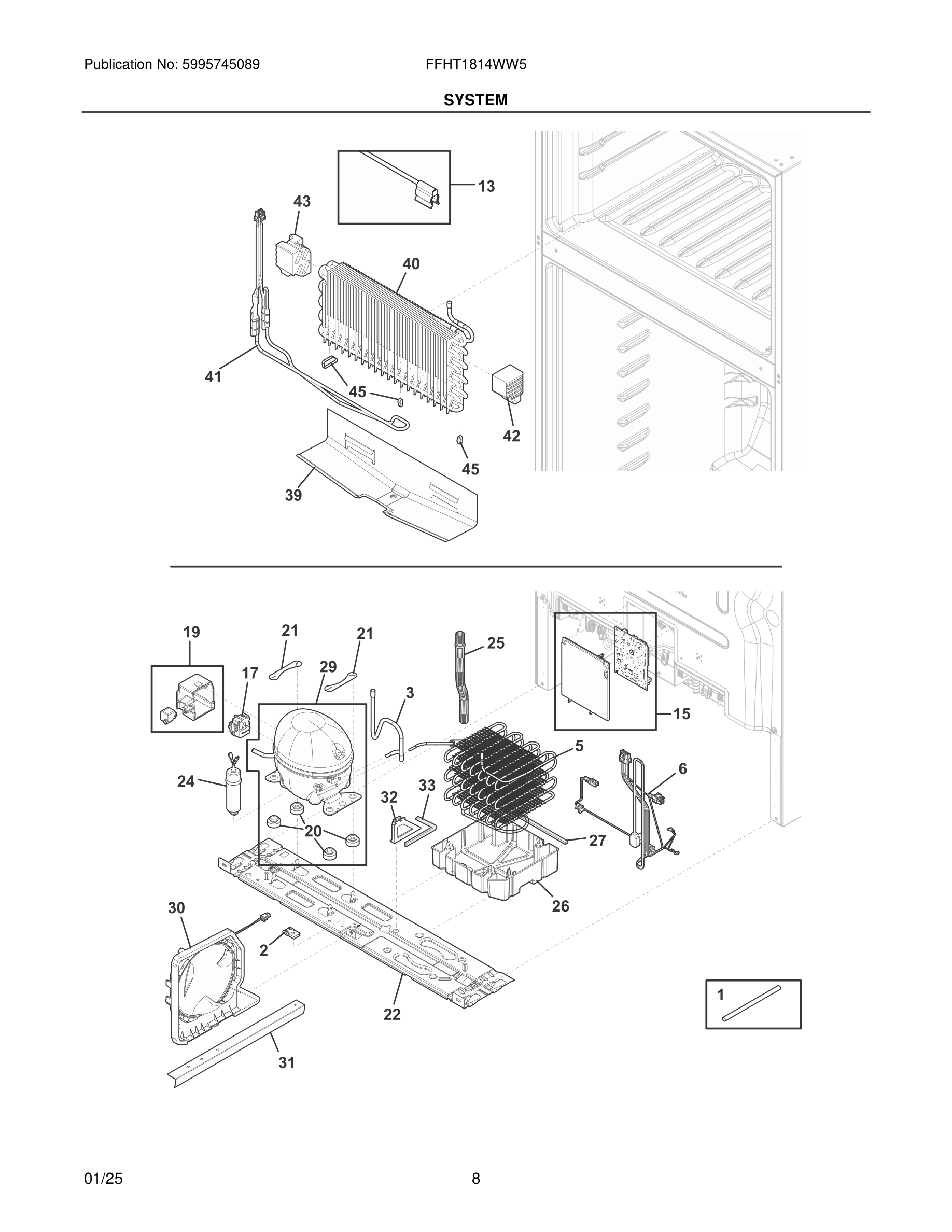

09 - SYSTEM

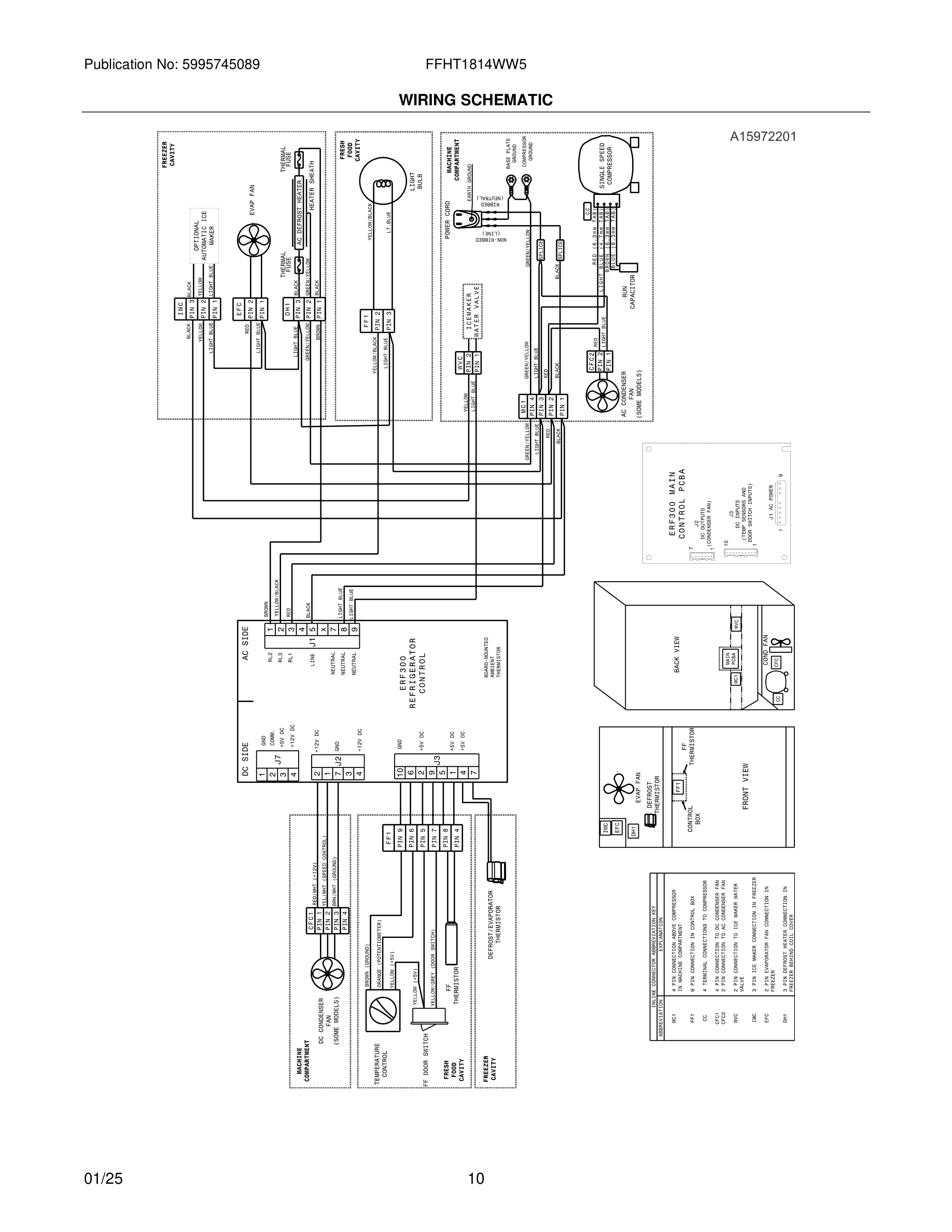

10 - WIRING SCHEMATIC

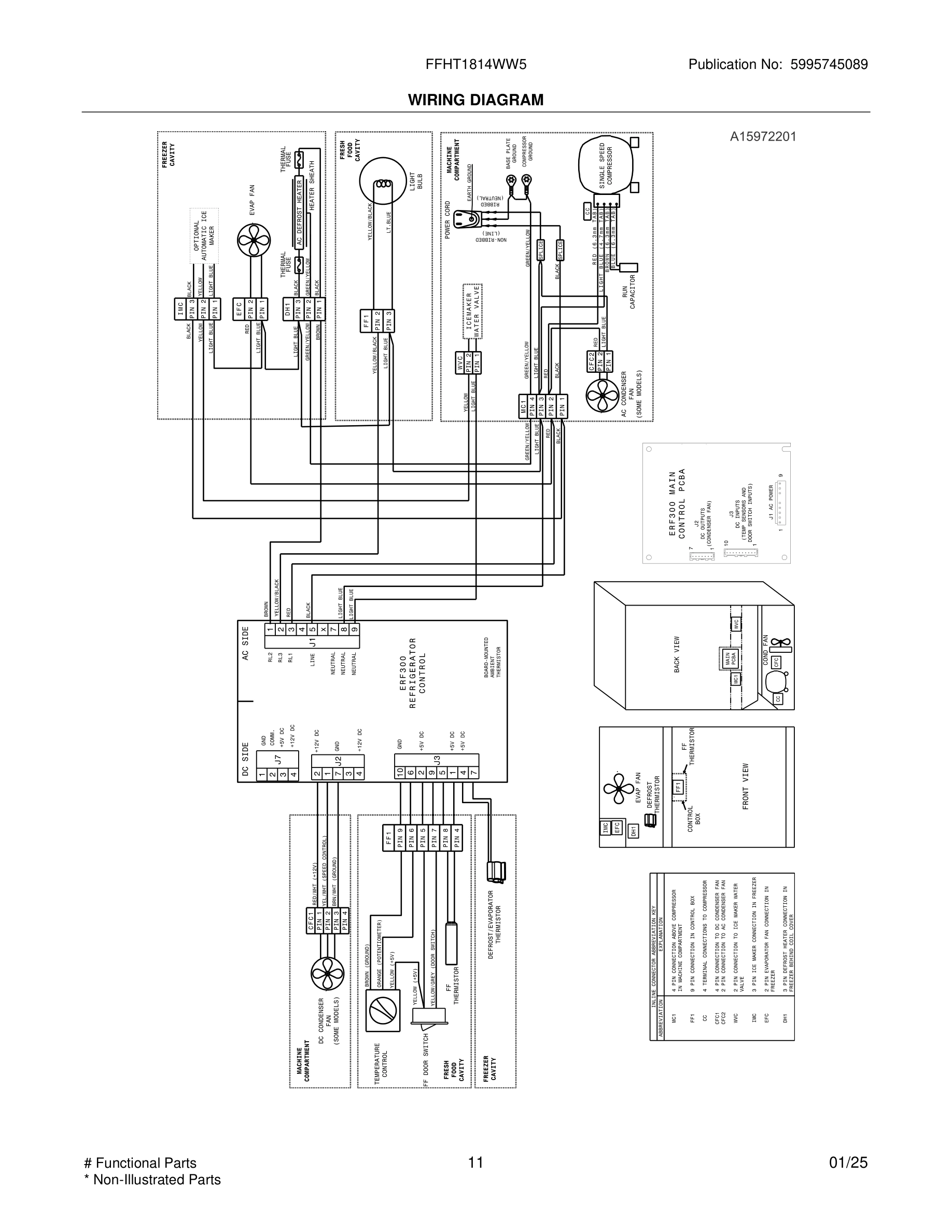

11 - WIRING DIAGRAM
Common parts from model Frigidaire FFHT1814WW5 REFRIGERATOR
1
Badge, Frigidaire, white WCI 5304511144 Contact Us For Availability
1
Shelf Assembly, freezer, glass, w/trim WCI 5304519660 Contact Us For Availability
2
Hinge Assembly, bottom, LH WCI 5304519776 Contact Us For Availability
4
Clip, wire shelf, LH WCI 5304522258 Contact Us For Availability
5
Clip, wire shelf, RH WCI 5304522259 Contact Us For Availability
6
Bin, door, white, freezer WCI 5304519702 Contact Us For Availability
6#
Harness, wiring, machine compt. WCI 5304519649 Contact Us For Availability
7
Bin, door, 6", white, refrigerator WCI 5304522123 Contact Us For Availability
8
Screw, hex wsh hd quad, M5 x 16 WCI 5304522279 Contact Us For Availability
8
Bin, door, 4", white, refrigerator WCI 5304519703 Contact Us For Availability
9
Bearing, hinge, white WCI 5304519757 Contact Us For Availability
9
Cover, hinge, white, lower, non hinged WCI 5304519777 Contact Us For Availability
10
Cover, hinge bearing, white WCI 5304519747 Contact Us For Availability
11
Shroud, evaporator fan WCI 5304519752 Contact Us For Availability
12
Screw, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
15
BULB, light, E17/12 LED WCI 5304522314 Contact Us For Availability
16#
Motor, evaporator fan, blower WCI 242219206 Contact Us For Availability
18
Cover, I/M Connector WCI 5304519662 Contact Us For Availability
19
Cover Assembly, evaporator, w/frz slide WCI 5304519654 Contact Us For Availability
24#
Capacitor, run, 12uF WCI 5304528894 Contact Us For Availability
25
Tube, drain extension WCI 5304519743 Contact Us For Availability
28
Diffuser, control box, bottom WCI 5304522317 Contact Us For Availability
30#
Fan Assembly, condenser, w/shroud-foam WCI 5304522173 Contact Us For Availability
32
Baffle, drain pan, air block WCI 5304519745 Contact Us For Availability
32#
Switch, door/light, white WCI 5304520495 Contact Us For Availability
33
Seal, foam, air block WCI 5304519751 Contact Us For Availability
33#
Harness, wiring, control box, w/temp sensor WCI 5304522320 Contact Us For Availability
35
Hinge, door, upper WCI 5304519646 Contact Us For Availability
39
Trough, evap drain WCI 5304519679 Contact Us For Availability
40
Hinge, door, white, center WCI 5304519647 Contact Us For Availability
40#
Evaporator, assembly WCI 5304522324 Contact Us For Availability
41
Pin, center hinge, door WCI 5304519642 Contact Us For Availability
41#
Heater, defrost WCI 5304522325 Contact Us For Availability
42
Support, evaporator, RH WCI 5304522326 Contact Us For Availability
43
Support, evaporator, LH WCI 5304522327 Contact Us For Availability
45
Screw, hex hd, #8-18 x 5/8 WCI 241500305 Contact Us For Availability
81
Screw, hx wash hd, M4.2 x 12 WCI 5304519765 Contact Us For Availability
89
Access Cover, rear WCI 5304522114 Contact Us For Availability
× ![]()
