Model Electrolux FFHT1425VW02 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

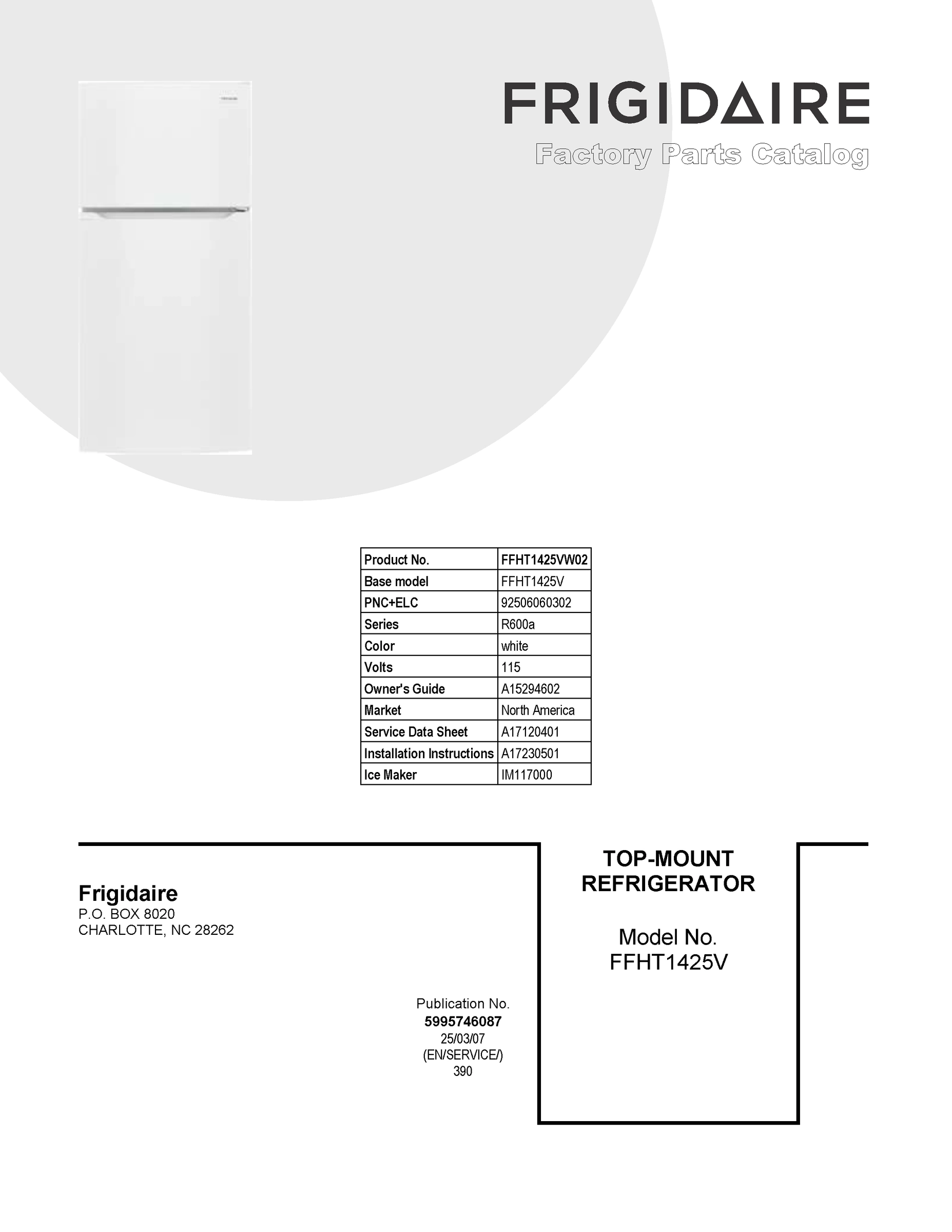

01 - COVER SHEET

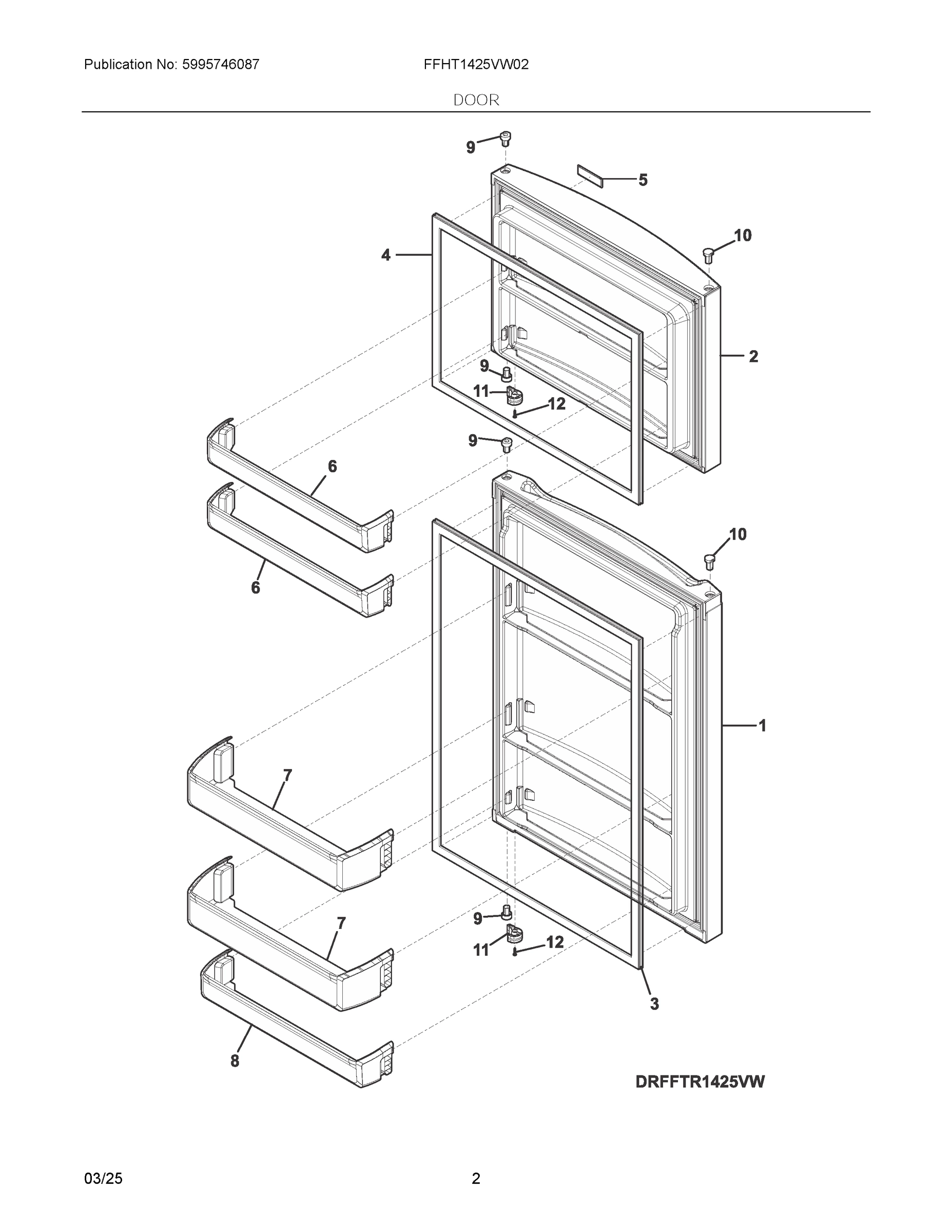

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING DIAGRAM
Common parts from model Electrolux FFHT1425VW02 REFRIGERATOR, TOP MOUNT
1
DOOR ASSEMBLY, FRESH FOOD, WHITE WCI 5304520455 Contact Us For Availability
1
BRACKET ASSEMBLY, BOTTOM HINGE, RH, STOP/FOOT WCI 5304520629 Contact Us For Availability
2
DOOR ASSEMBLY, FREEZER, WHITE WCI 5304520456 Contact Us For Availability
2
BRACKET ASSEMBLY, BOTTOM, LH, W/FOOT-ROLLER WCI 5304520630 Contact Us For Availability
3
GASKET, DOOR, FRESH FOOD WCI 811988584 Contact Us For Availability
3
SHELF ASSEMBLY, GLASS, FRESH FOOD WCI 5304520483 Contact Us For Availability
4
SUPPORT, DELI DRAWER WCI 5304520484 Contact Us For Availability
5
BADGE, FRIGIDAIRE, WHITE WCI 5304511144 Contact Us For Availability
7
DRAWER ASSEMBLY, CRISPER WCI 5304520487 Contact Us For Availability
8
SCREW, TRILOB, M5 X 16 WCI 811949401 Contact Us For Availability
9
SENSOR, TEMPERATURE WCI 5304520944 Contact Us For Availability
9
BEARING, HINGE, WHITE, DOOR WCI 5304520460 Contact Us For Availability
11
HOOK, AUTO CLOSER, WHITE, DOOR WCI 5304520462 Contact Us For Availability
11
SUPPORT, EVAPORATOR, RH WCI 5304520499 Contact Us For Availability
12
SCREW, PF AB PFZ PH, 3.5X1.27X32 WCI 808337903 Contact Us For Availability
12
SUPPORT, EVAPORATOR, LH WCI 5304520500 Contact Us For Availability
13
HOUSING, CONTROL BOARD, MAIN WCI 5304520501 Contact Us For Availability
15
PC BOARD, CONTROL, MAIN, PROGRAM WCI 5304526091 Contact Us For Availability
15
BLADE, EVAPORATOR FAN WCI 811699602 Contact Us For Availability
16
MOTOR, FAN, FRZ EVAPORATOR WCI 809069207 Contact Us For Availability
17
ELECTRICALS, COMPRESSOR, TH1111Y WCI 5304520509 Contact Us For Availability
18
CLAMP ASSEMBLY, CABLE WCI 242535801 Contact Us For Availability
19
COVER, ELECTRICALS WCI 242563302 Contact Us For Availability
20
GROMMET, COMPRESSOR WCI 811978901 Contact Us For Availability
22
TAPE, AIR DUCT, ALUMINUM FOIL, REAR WCI 5304520474 Contact Us For Availability
22
COMPRESSOR, JIAX TH1111HY WCI 8588087948440 Contact Us For Availability
23
POWER CORD, ELECTRICAL, SERVICE WCI 5304520505 Contact Us For Availability
24
CAPACITOR, RUN, COMPRESSOR WCI 5304520510 Contact Us For Availability
26
COVER, ELECTRICAL, & WATER INLET, OPTIONAL IM WCI 5304520475 Contact Us For Availability
27
CONTROL BOX WCI 5304520490 Contact Us For Availability
27
DRAIN PAN, COMPRESSOR MTD WCI 5304534928 Contact Us For Availability
29
BASE ASSEMBLY, COMPRESSOR WCI 807822703 Contact Us For Availability
30
HEATER, DEFROST, EVAPORATOR WCI 5304520507 Contact Us For Availability
32
SWITCH, DOOR/LIGHT, WHITE WCI 5304520495 Contact Us For Availability
33
WIRING HARNESS, CONTROL BOX, W/POTENTIOMETER, WCI 5304520496 Contact Us For Availability
42
SCREW, TRILOB, M5 X 14 WCI 5304520480 Contact Us For Availability
NIA
SCREW, TRILOB, M3 X 6 WCI 5304519110 Contact Us For Availability
× ![]()
