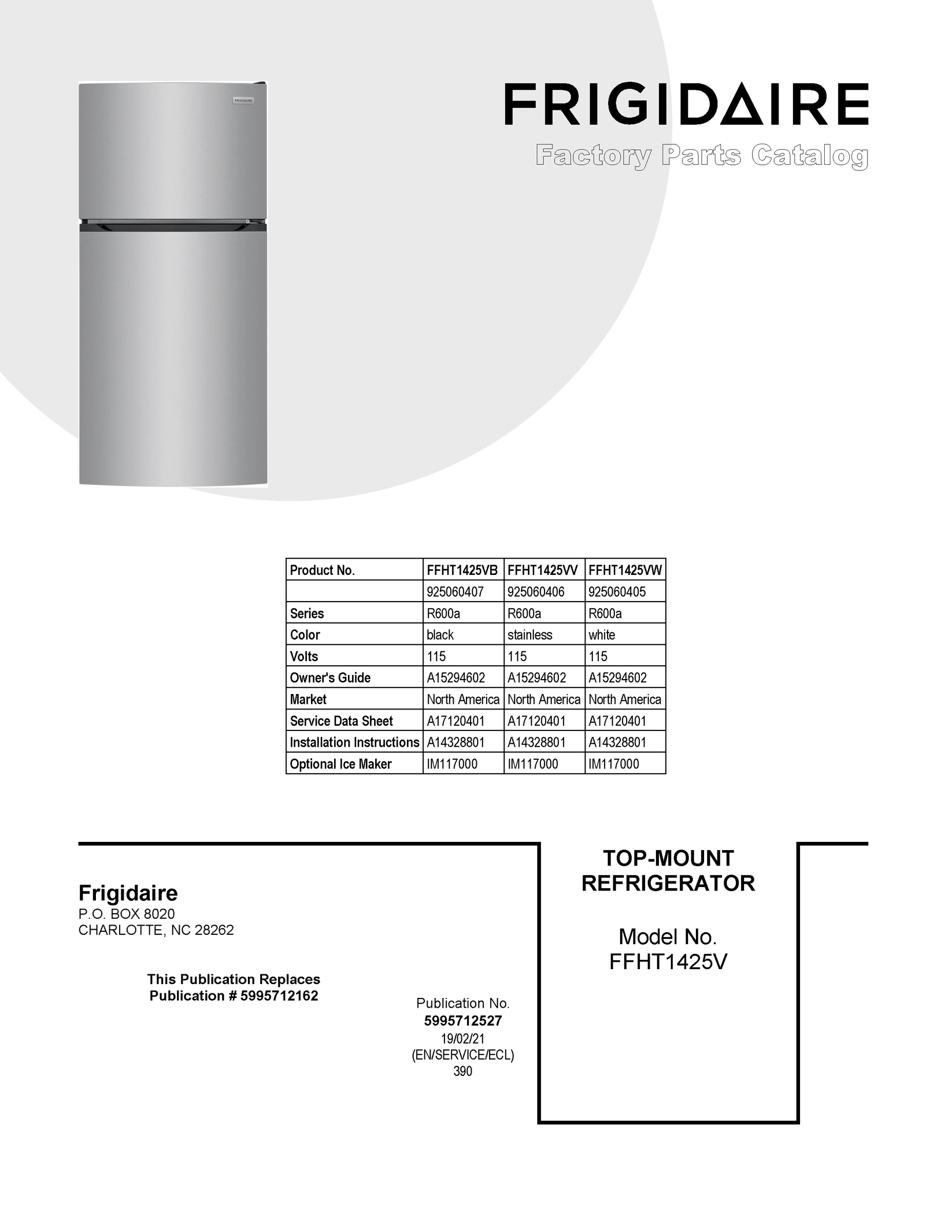

Model Electrolux FFHT1425VW REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

1

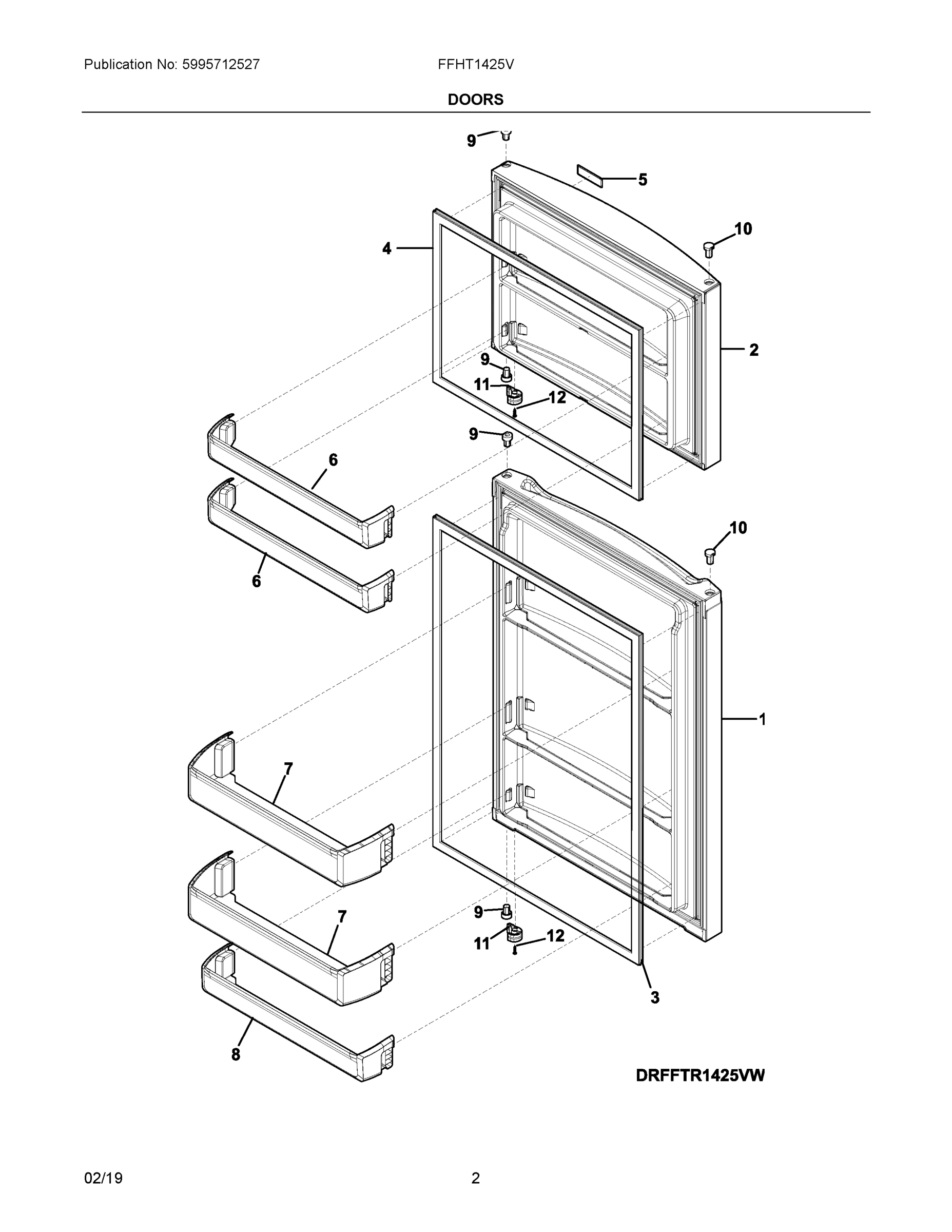

DOOR ASSEMBLY, FRESH FOOD, WHITE
DOOR ASSEMBLY, FRESH FOOD, WHITE WCI 5304520455 Contact Us For Availability
View on Model
1

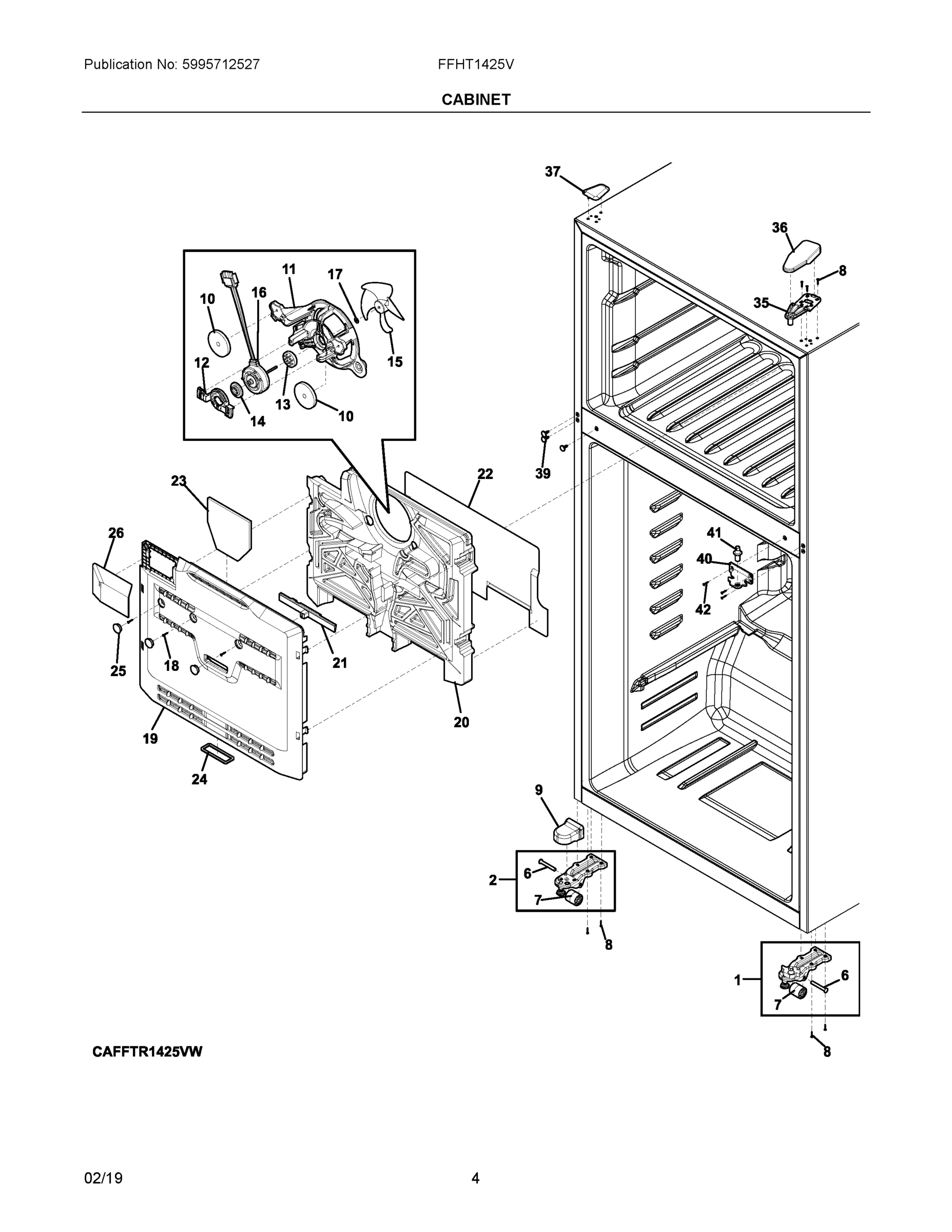

BRACKET ASSEMBLY, BOTTOM HINGE, RH, STOP/FOOT
BRACKET ASSEMBLY, BOTTOM HINGE, RH, STOP/FOOT WCI 5304520629 Contact Us For Availability
View on Model
2
DOOR ASSEMBLY, FREEZER, WHITE
DOOR ASSEMBLY, FREEZER, WHITE WCI 5304520456 Contact Us For Availability
View on Model
2
BRACKET ASSEMBLY, BOTTOM, LH, W/FOOT-ROLLER
BRACKET ASSEMBLY, BOTTOM, LH, W/FOOT-ROLLER WCI 5304520630 Contact Us For Availability
View on Model
3
GASKET, DOOR, FRESH FOOD
GASKET, DOOR, FRESH FOOD WCI 811988584 Contact Us For Availability
View on Model
3

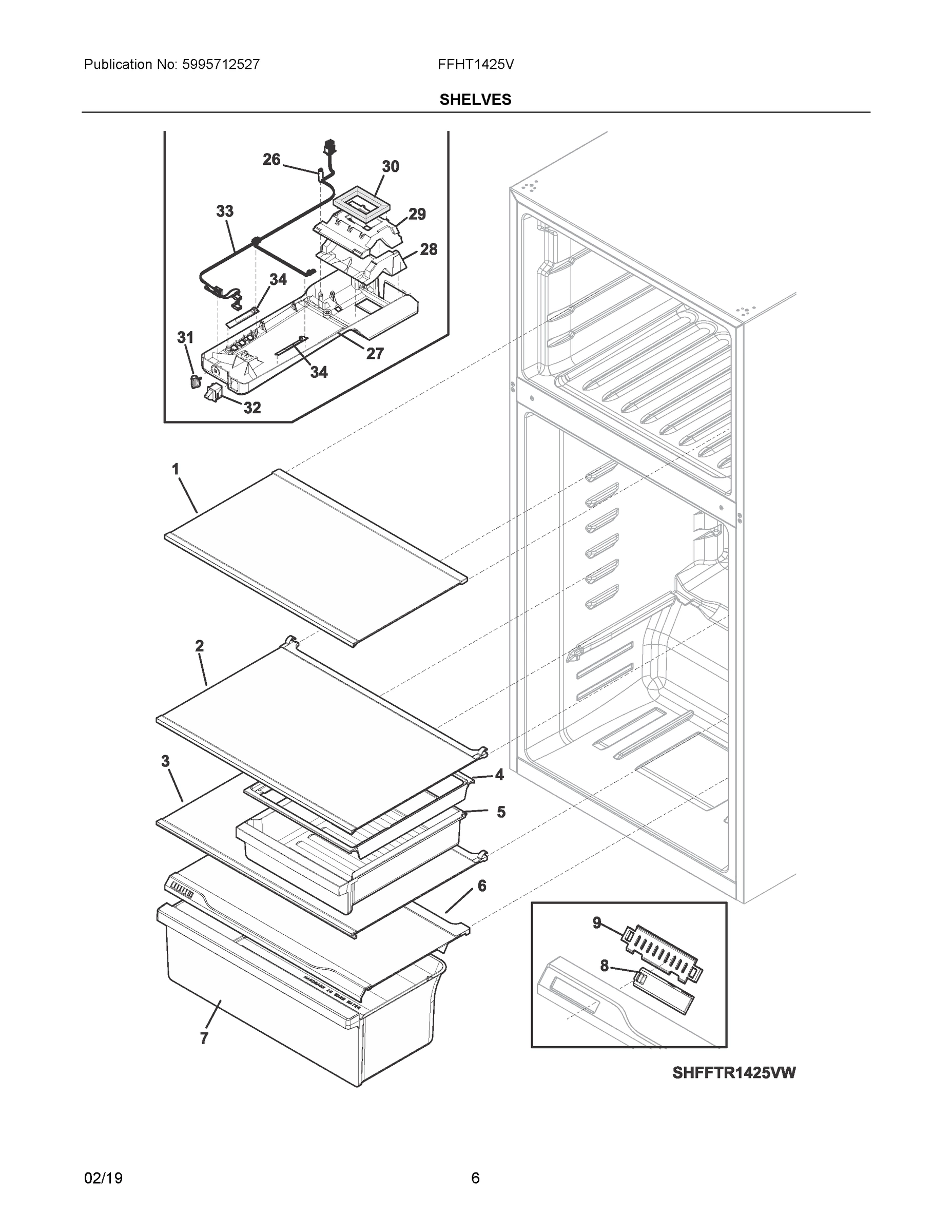

SHELF ASSEMBLY, GLASS, FRESH FOOD
SHELF ASSEMBLY, GLASS, FRESH FOOD WCI 5304520483 Contact Us For Availability
View on Model
4
SUPPORT, DELI DRAWER
SUPPORT, DELI DRAWER WCI 5304520484 Contact Us For Availability
View on Model
5
BADGE, FRIGIDAIRE, WHITE
BADGE, FRIGIDAIRE, WHITE WCI 5304511144 Contact Us For Availability
View on Model
7
DRAWER ASSEMBLY, CRISPER
DRAWER ASSEMBLY, CRISPER WCI 5304520487 Contact Us For Availability
View on Model
9
BEARING, HINGE, WHITE, DOOR
BEARING, HINGE, WHITE, DOOR WCI 5304520460 Contact Us For Availability
View on Model
11
HOOK, AUTO CLOSER, WHITE, DOOR
HOOK, AUTO CLOSER, WHITE, DOOR WCI 5304520462 Contact Us For Availability
View on Model
12

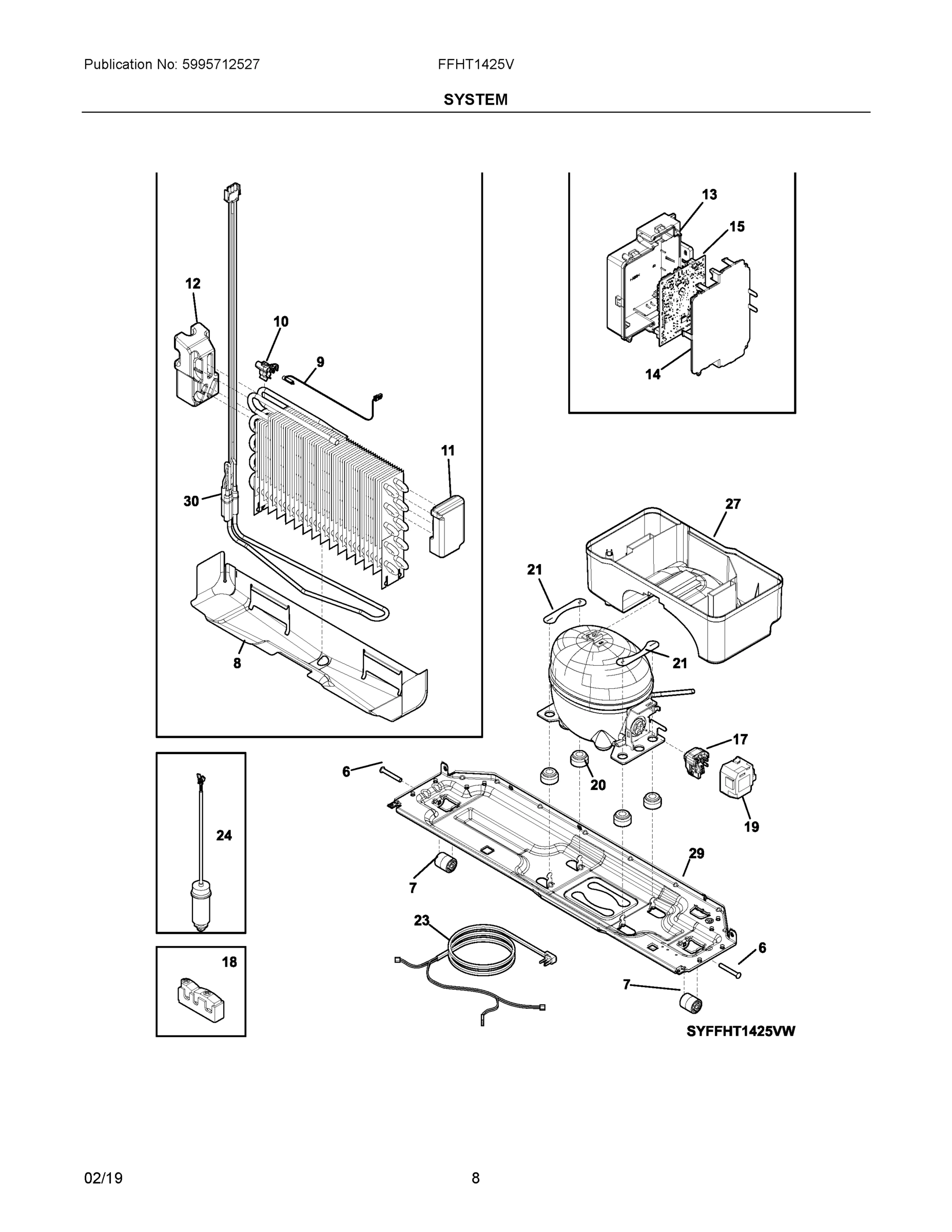

SUPPORT, EVAPORATOR, LH
SUPPORT, EVAPORATOR, LH WCI 5304520500 Contact Us For Availability
View on Model
13
HOUSING, CONTROL BOARD, MAIN
HOUSING, CONTROL BOARD, MAIN WCI 5304520501 Contact Us For Availability
View on Model
15
BLADE, EVAPORATOR FAN
BLADE, EVAPORATOR FAN WCI 811699602 Contact Us For Availability
View on Model
16
MOTOR, FAN, FRZ EVAPORATOR
MOTOR, FAN, FRZ EVAPORATOR WCI 809069207 Contact Us For Availability
View on Model
17
ELECTRICALS, COMPRESSOR, TH1111Y
ELECTRICALS, COMPRESSOR, TH1111Y WCI 5304520509 Contact Us For Availability
View on Model
18
CLAMP ASSEMBLY, CABLE
CLAMP ASSEMBLY, CABLE WCI 242535801 Contact Us For Availability
View on Model
19
COVER, ELECTRICALS
COVER, ELECTRICALS WCI 242563302 Contact Us For Availability
View on Model
20
GROMMET, COMPRESSOR
GROMMET, COMPRESSOR WCI 811978901 Contact Us For Availability
View on Model
22
TAPE, AIR DUCT, ALUMINUM FOIL, REAR
TAPE, AIR DUCT, ALUMINUM FOIL, REAR WCI 5304520474 Contact Us For Availability
View on Model
23
POWER CORD, ELECTRICAL, SERVICE
POWER CORD, ELECTRICAL, SERVICE WCI 5304520505 Contact Us For Availability
View on Model
24
CAPACITOR, RUN, COMPRESSOR
CAPACITOR, RUN, COMPRESSOR WCI 5304520510 Contact Us For Availability
View on Model
26
SENSOR, TEMPERATURE
SENSOR, TEMPERATURE WCI 5304520944 Contact Us For Availability
View on Model
26
COVER, ELECTRICAL, & WATER INLET, OPTIONAL IM
COVER, ELECTRICAL, & WATER INLET, OPTIONAL IM WCI 5304520475 Contact Us For Availability
View on Model
27
CONTROL BOX
CONTROL BOX WCI 5304520490 Contact Us For Availability
View on Model
29
BASE ASSEMBLY, COMPRESSOR
BASE ASSEMBLY, COMPRESSOR WCI 807822703 Contact Us For Availability
View on Model
30
HEATER, DEFROST, EVAPORATOR
HEATER, DEFROST, EVAPORATOR WCI 5304520507 Contact Us For Availability
View on Model
32
SWITCH, DOOR
SWITCH, DOOR WCI 5304520495 Contact Us For Availability
View on Model
33

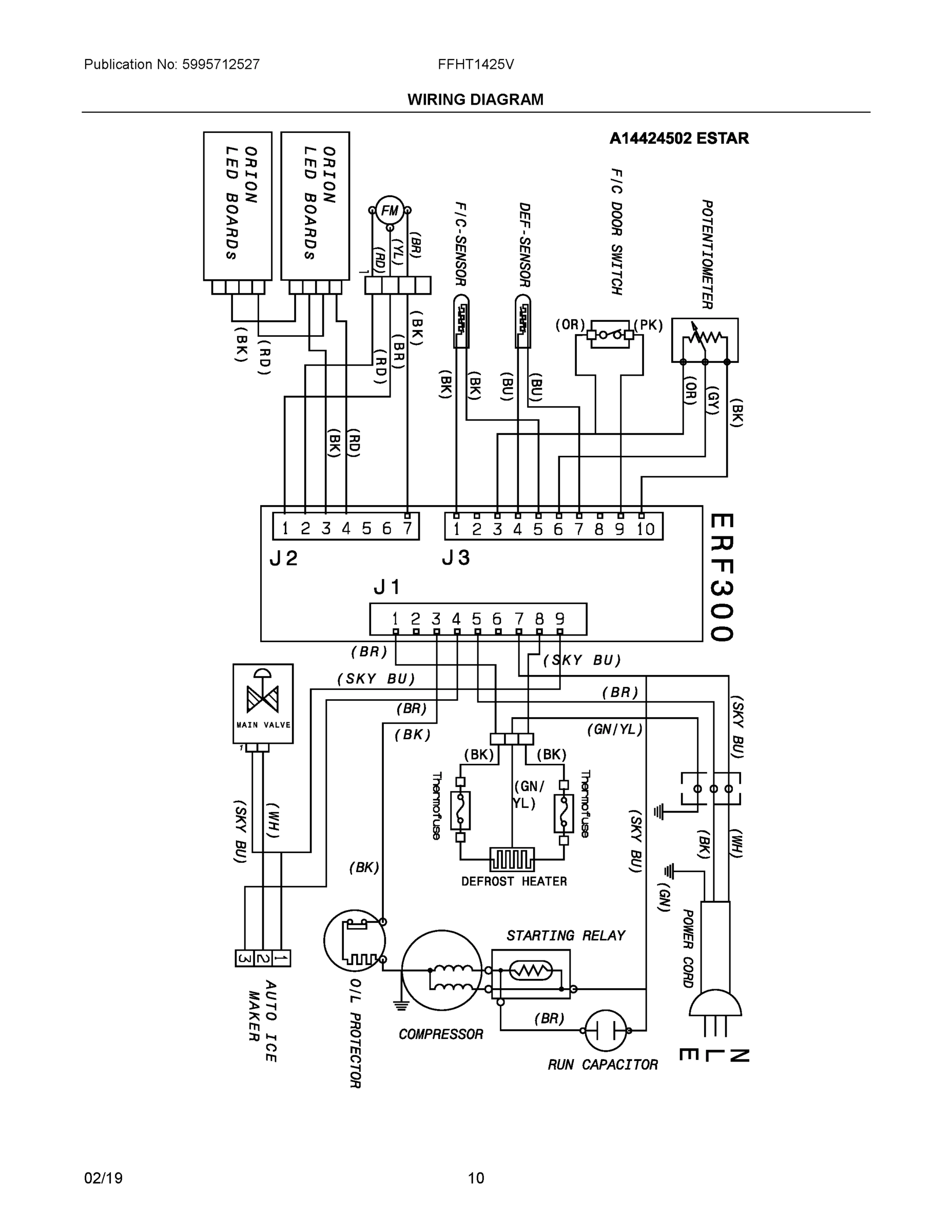

WIRING HARNESS, CONTROL BOX, W/POTENTIOMETER,
WIRING HARNESS, CONTROL BOX, W/POTENTIOMETER, WCI 5304520496 Contact Us For Availability
View on Model
42
SCREW, TRILOB, M5 X 14
SCREW, TRILOB, M5 X 14 WCI 5304520480 Contact Us For Availability
View on Model
NI
SCREW, TRILOB, M5 X 16
SCREW, TRILOB, M5 X 16 WCI 811949401 Contact Us For Availability
View on Model
NI
SCREW, PF AB PFZ PH, 3.5X1.27X32
SCREW, PF AB PFZ PH, 3.5X1.27X32 WCI 808337903 Contact Us For Availability
View on Model
NIA
SCREW, TRILOB, M3 X 6
SCREW, TRILOB, M3 X 6 WCI 5304519110 Contact Us For Availability
View on Model
