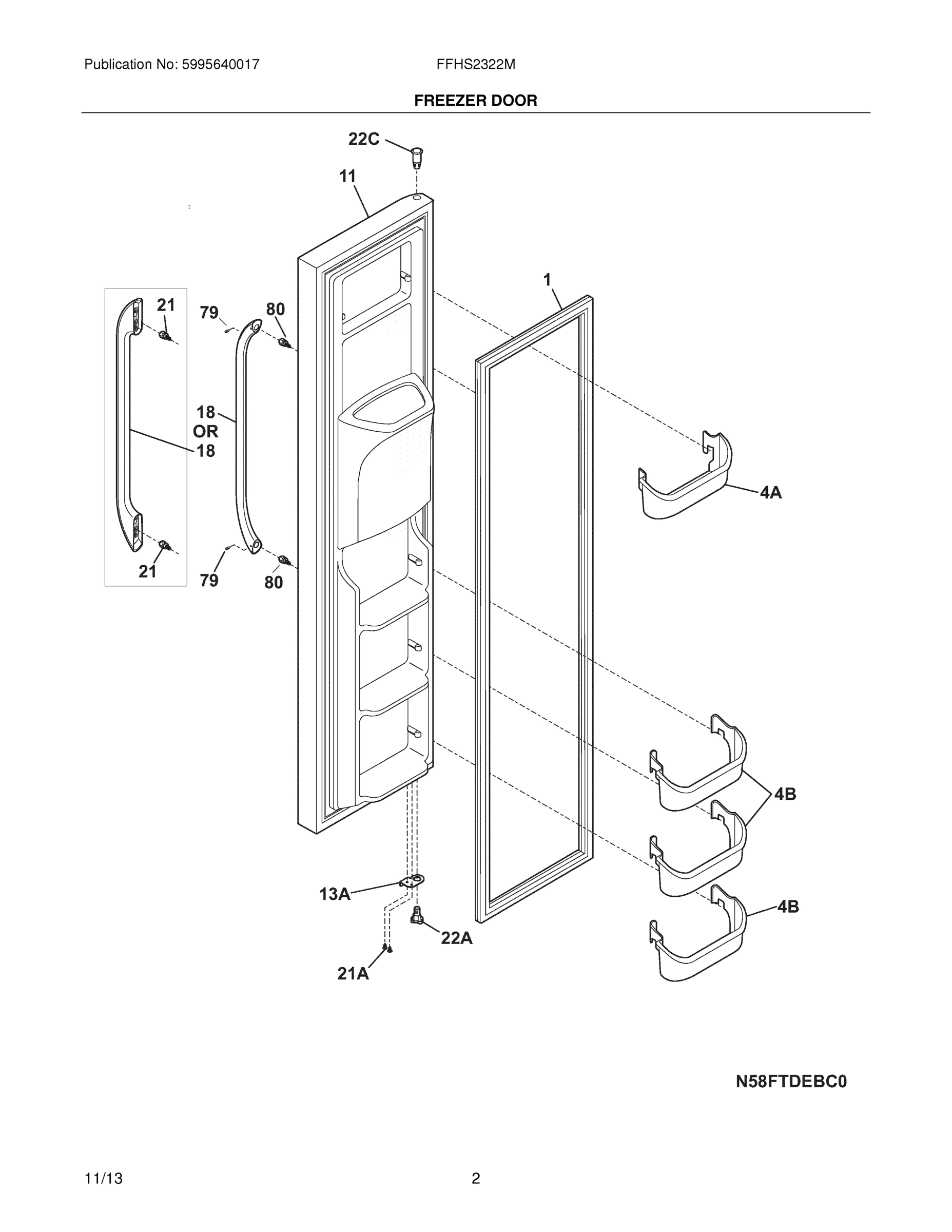

Model Electrolux FFHS2322MB7 REFRIGERATOR – Common Parts &amp; Diagrams

1

241786008 Frigidaire Refrigerator Gasket Backorder WCI 241786008 $127.43

2

241716101 Frigidaire Refrigerator Ice Auger In Stock WCI 241716101 $67.00

2

241786015 Frigidaire Door Gasket Backorder WCI 241786015 $56.07

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.28

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $37.03

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $65.68

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $8.69

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $26.74

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $41.87

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.41

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $32.52

6

5304521699 Frigidaire Refrigerator Machine Wi Backorder WCI 5304521699 $82.34

7

241734201 Frigidaire Refrigerator Front Ice C Backorder WCI 241734201 $53.34

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.59

8

WCI 242083403 WCI 242083403 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.13

10

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $65.70

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.35

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $36.57

10A

241719710 Frigidaire Refrigerator Evaporator Backorder WCI 241719710 $73.60

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $49.36

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $26.74

11

WCI 242026493 WCI 242026493 Contact Us For Availability

11A

5304532465 Frigidaire Refrigerator Shelf and Backorder WCI 5304532465 $31.76

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $32.27

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $78.01

13

241942603 Frigidaire Refrigerator Black Door Backorder WCI 241942603 $12.90

13

5304456665 Frigidaire Refrigerator Thermostat In Stock WCI 5304456665 $78.01

13

808602602 Frigidaire Refrigerator Motor Backorder WCI 808602602 $105.05

13A

241942604 Frigidaire Refrigerator Black Door Backorder WCI 241942604 $12.90

240505801 Frigidaire Light Switch Backorder WCI 240505801 $41.44

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $64.35

242083003 Frigidaire Refrigerator Module Cove Backorder WCI 242083003 $44.54

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $4.89

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.66

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.44

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $231.12

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $53.79

WCI 242038893 WCI 242038893 Contact Us For Availability

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $44.52

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $38.80

17

241679801 Frigidaire Screw Backorder WCI 241679801 $8.91

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.22

18

WCI 242059104 No Longer Available

18

WCI 242059102 WCI 242059102 Contact Us For Availability

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $93.47

21

241608401 Frigidaire Refrigerator Thermistor Backorder WCI 241608401 $48.48

21

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.46

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.89

21A

241608501 Frigidaire Refrigerator Freezer The Backorder WCI 241608501 $31.63

22

240597220 Frigidaire Sensor In Stock WCI 240597220 $2.95

22

241917801 Frigidaire Refrigerator Closer Plat In Stock WCI 241917801 $4.44

22

241990301 Frigidaire Hinge Bearing In Stock WCI 241990301 $4.44

22A

241990302 Frigidaire Freezer Hinge Bearing Backorder WCI 241990302 $4.44

22B

241760404 Frigidaire Refrigerator Bearing Backorder WCI 241760404 $8.02

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $26.72

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $90.46

23

241947003 Frigidaire Refrigerator Drip Tray Backorder WCI 241947003 $14.68

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $41.42

24A

242083503 Frigidaire Refrigerator Actuator Backorder WCI 242083503 $71.40

25

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $8.44

25

241974201 Frigidaire Cover-Crisper Pan In Stock WCI 241974201 $59.06

25

WCI 240491503 WCI 240491503 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $55.08

26

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $112.46

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $49.38

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $27.61

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.20

30

241941003 Frigidaire Refrigerator Starter Rel In Stock WCI 241941003 $55.10

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $31.63

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $38.78

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.07

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.31

34

240405201 Frigidaire Refrigerator Grommet In Stock WCI 240405201 $12.46

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.89

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $40.97

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.22

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.68

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.89

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $12.91

37B

241684108 Frigidaire Washer Poly V-Belt Backorder WCI 241684108 $12.91

37C

241684109 Frigidaire Ice Crusher Blade Backorder WCI 241684109 $12.91

38A

241689104 Frigidaire Refrigerator Micro Switc Backorder WCI 241689104 $73.19

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $40.11

38C

242053503 Frigidaire Refrigerator Control Boa In Stock WCI 242053503 $147.44

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.18

40

241946715 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946715 $21.37

41

241550801 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550801 $37.02

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $8.89

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $14.68

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.67

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.00

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $43.62

45C

241676101 Frigidaire Refrigerator Solenoid-Ac Backorder WCI 241676101 $40.11

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $27.61

47

240350613 Frigidaire Refrigerator Insert Backorder WCI 240350613 $71.85

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $8.91

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $82.30

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $66.58

49

240324501 Frigidaire Bin Door Shelf Backorder WCI 240324501 $48.95

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $84.04

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $122.04

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $49.81

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $37.92

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $40.56

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $17.83

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.01

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.46

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.20

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $24.50

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.44

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.02

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $30.30

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.80

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.50

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $78.35

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.00

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.22

66B

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.24

66B

WCI 240374301 WCI 240374301 Contact Us For Availability

79

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.00

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $8.91

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.30

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.35

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $22.66

85

241856909 Frigidaire Refrigerator Connector T Backorder WCI 241856909 $93.03

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.23

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.46

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.46

89

WCI 241733901 WCI 241733901 Contact Us For Availability

90

241732703 Frigidaire Refrigerator Light Pipe Backorder WCI 241732703 $20.05

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $43.64

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.46

100

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $5.44

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $3.38

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.44

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.11

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $29.87

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.18

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $37.08

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $60.84

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $38.78

210

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $8.89

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.26

218976419 Frigidaire Refrigerator Tube Backorder WCI 218976419 $14.26

218976429 Frigidaire Refrigerator Tube Backorder WCI 218976429 $25.41

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $18.70

240349801 Frigidaire Refrigerator Clip Backorder WCI 240349801 $12.04

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.22

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $27.61

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.00

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.04

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.22

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $38.78

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.15

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $12.91

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.31

241522901 Frigidaire Refrigerator Electrical Backorder WCI 241522901 $68.35

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.68

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $63.51

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $21.83

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $96.83

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $59.94

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 $13.39

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $202.92

WCI 241737801 WCI 241737801 Contact Us For Availability
