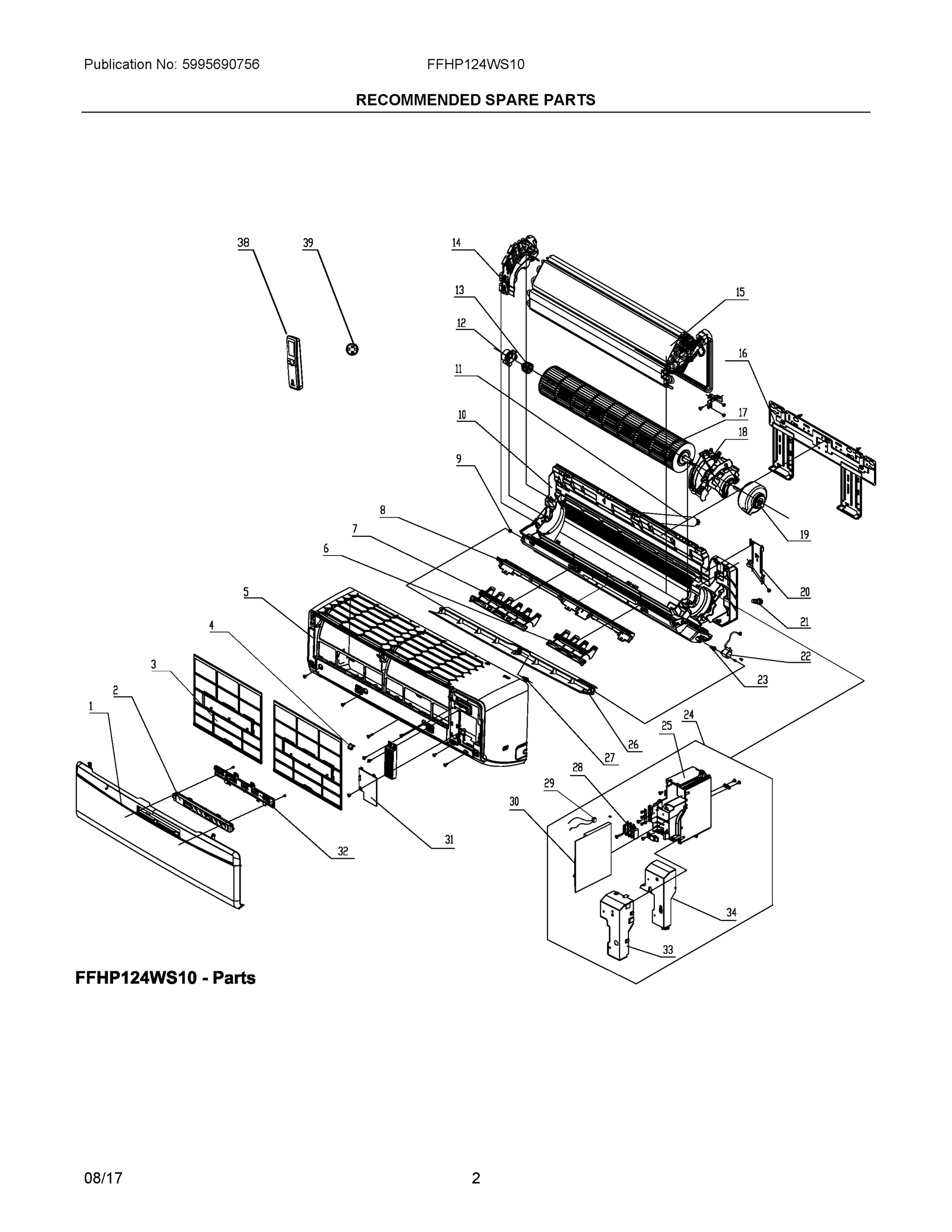

Model Electrolux FFHP124WS10 HEATING/COOLING, AC, HP INDOOR – Common Parts & Diagrams

3
FILTER, AIR
FILTER, AIR WCI 5304506538 Contact Us For Availability
View on Model
4
WCI 5304513339
WCI 5304513339 WCI 5304513339 Contact Us For Availability
View on Model
5
FRAME, FRONT ASSEMBLY
FRAME, FRONT ASSEMBLY WCI 5304505707 Contact Us For Availability
View on Model
6
WCI 5304513348
WCI 5304513348 WCI 5304513348 Contact Us For Availability
View on Model
7
WCI 5304513340
WCI 5304513340 WCI 5304513340 Contact Us For Availability
View on Model
9
BUSHING, LOUVER SHAFT, LEFT
BUSHING, LOUVER SHAFT, LEFT WCI 5304482905 Contact Us For Availability
View on Model
10
CASING, REAR
CASING, REAR WCI 5304505709 Contact Us For Availability
View on Model
11
HOSE, DRAIN
HOSE, DRAIN WCI 5304483590 Contact Us For Availability
View on Model
12
BEARING BLOCK, HOUSING, W/O'RING
BEARING BLOCK, HOUSING, W/O'RING WCI 5304482777 Contact Us For Availability
View on Model
13
O'RING, BEARING, GASKET/SEAL
O'RING, BEARING, GASKET/SEAL WCI 5304502202 Contact Us For Availability
View on Model
14
SUPPORT, EVAPORATOR
SUPPORT, EVAPORATOR WCI 5304505710 Contact Us For Availability
View on Model
16
PLATE, INSTALLATION, WALL MOUNT
PLATE, INSTALLATION, WALL MOUNT WCI 5304505712 Contact Us For Availability
View on Model
18
WCI 5304513341
WCI 5304513341 WCI 5304513341 Contact Us For Availability
View on Model
19
WCI 5304513342
WCI 5304513342 WCI 5304513342 Contact Us For Availability
View on Model
20
CLAMP, DRAIN HOSE
CLAMP, DRAIN HOSE WCI 5304505716 Contact Us For Availability
View on Model
21
DRAIN PLUG, DRIP TRAY
DRAIN PLUG, DRIP TRAY WCI 5304482805 Contact Us For Availability
View on Model
23
LEVER, LOUVER CONTROL, CRANK
LEVER, LOUVER CONTROL, CRANK WCI 5304505718 Contact Us For Availability
View on Model
25
WCI 5304513344
WCI 5304513344 WCI 5304513344 Contact Us For Availability
View on Model
26
WCI 5304513345
WCI 5304513345 WCI 5304513345 Contact Us For Availability
View on Model
28
TERMINAL BLOCK, 4-BIT
TERMINAL BLOCK, 4-BIT WCI 5304482804 Contact Us For Availability
View on Model
29
SENSOR, TEMPERATURE
SENSOR, TEMPERATURE WCI 5304505808 Contact Us For Availability
View on Model
31
WCI 5304513346
WCI 5304513346 WCI 5304513346 Contact Us For Availability
View on Model
32
WCI 5304513347
WCI 5304513347 WCI 5304513347 Contact Us For Availability
View on Model
33
SHIELD, COVER, CONTROL BOX
SHIELD, COVER, CONTROL BOX WCI 5304505721 Contact Us For Availability
View on Model
34
COVER, ELEC ACCESS, CONTROL BOX
COVER, ELEC ACCESS, CONTROL BOX WCI 5304505720 Contact Us For Availability
View on Model
39
HOLDER, REMOTE CONTROL
HOLDER, REMOTE CONTROL WCI 5304505819 Contact Us For Availability
View on Model
