Model Electrolux FFHD2250TS3 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts & Diagrams
01 - COVER SHEET
02 - FREEZER DRAWER, BASKETS

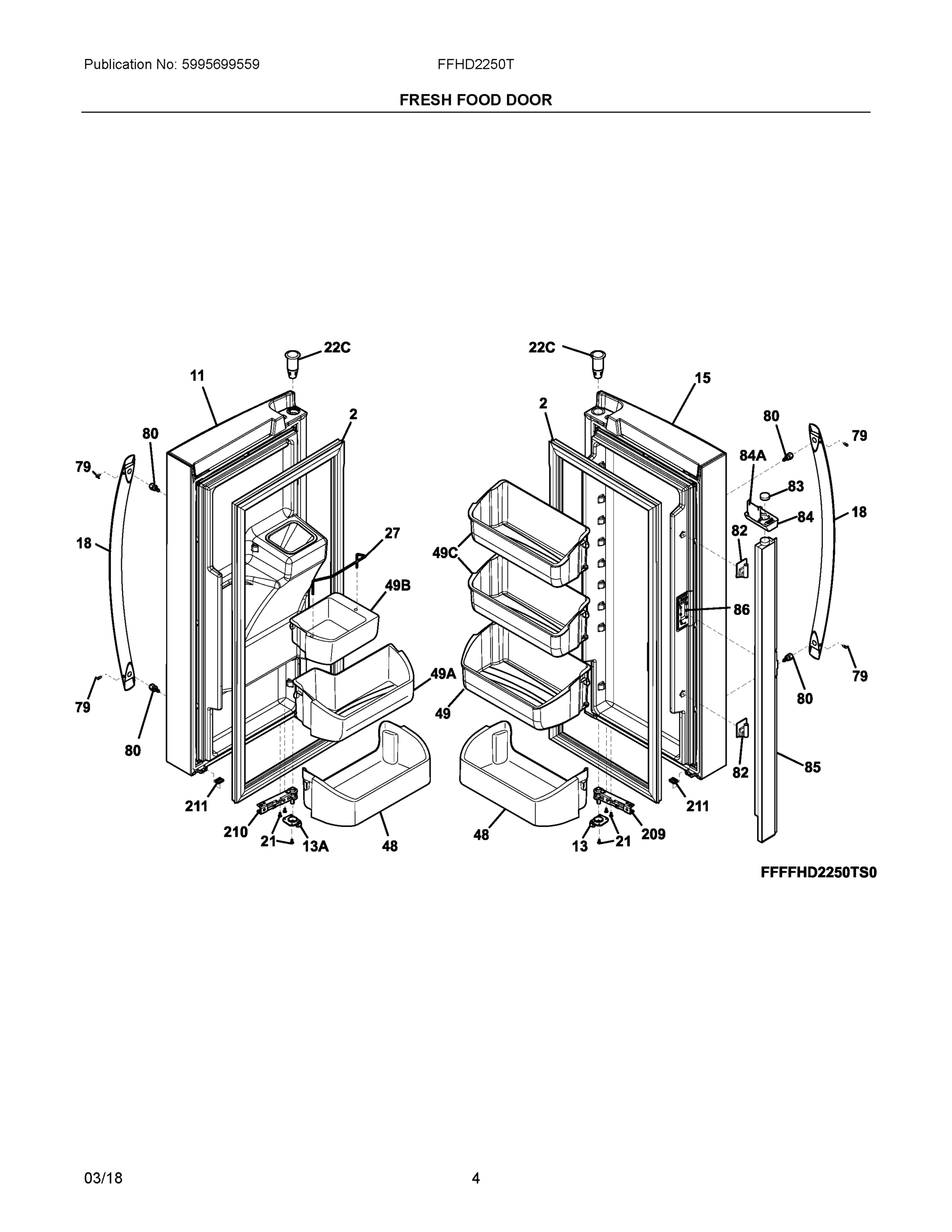

03 - FRESH FOOD DOOR

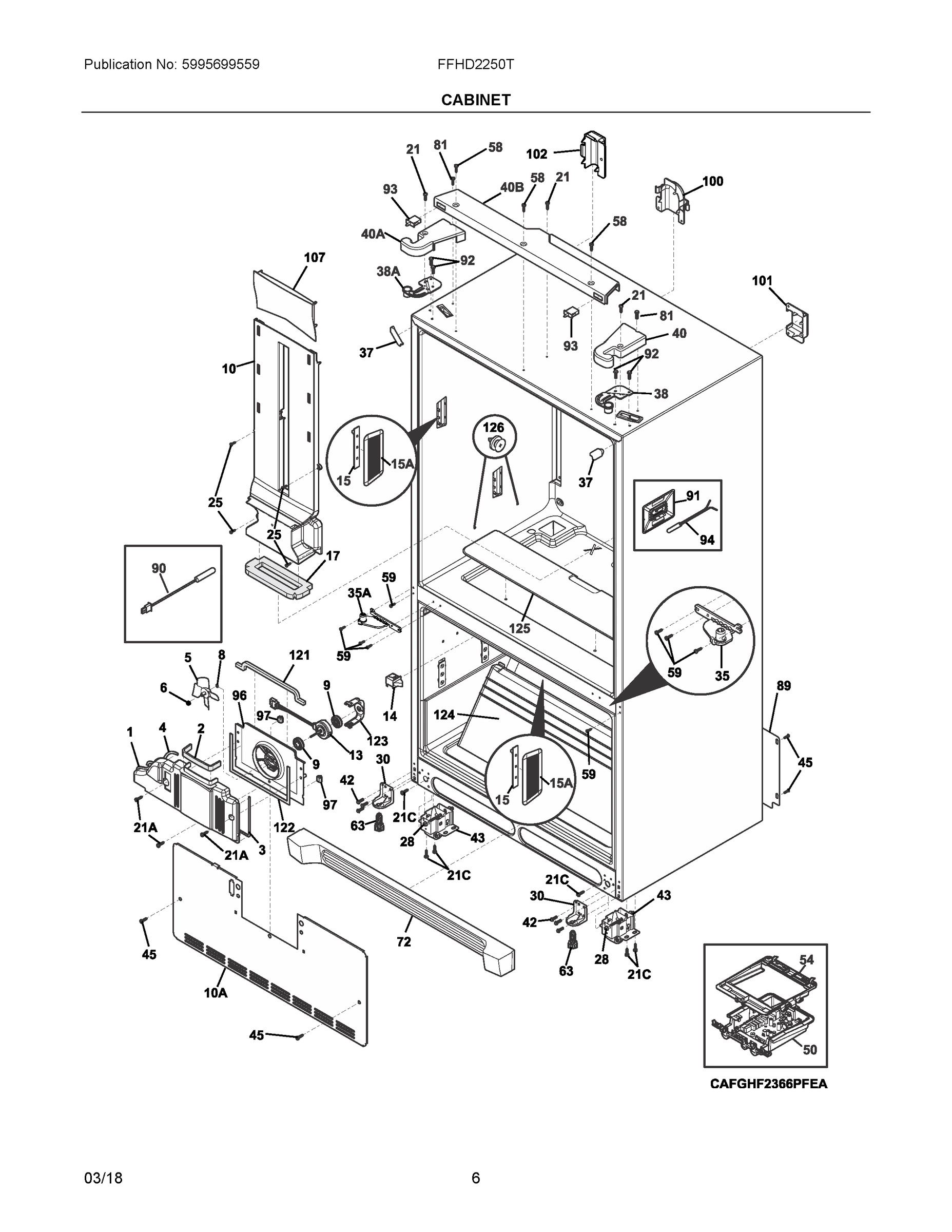

04 - CABINET

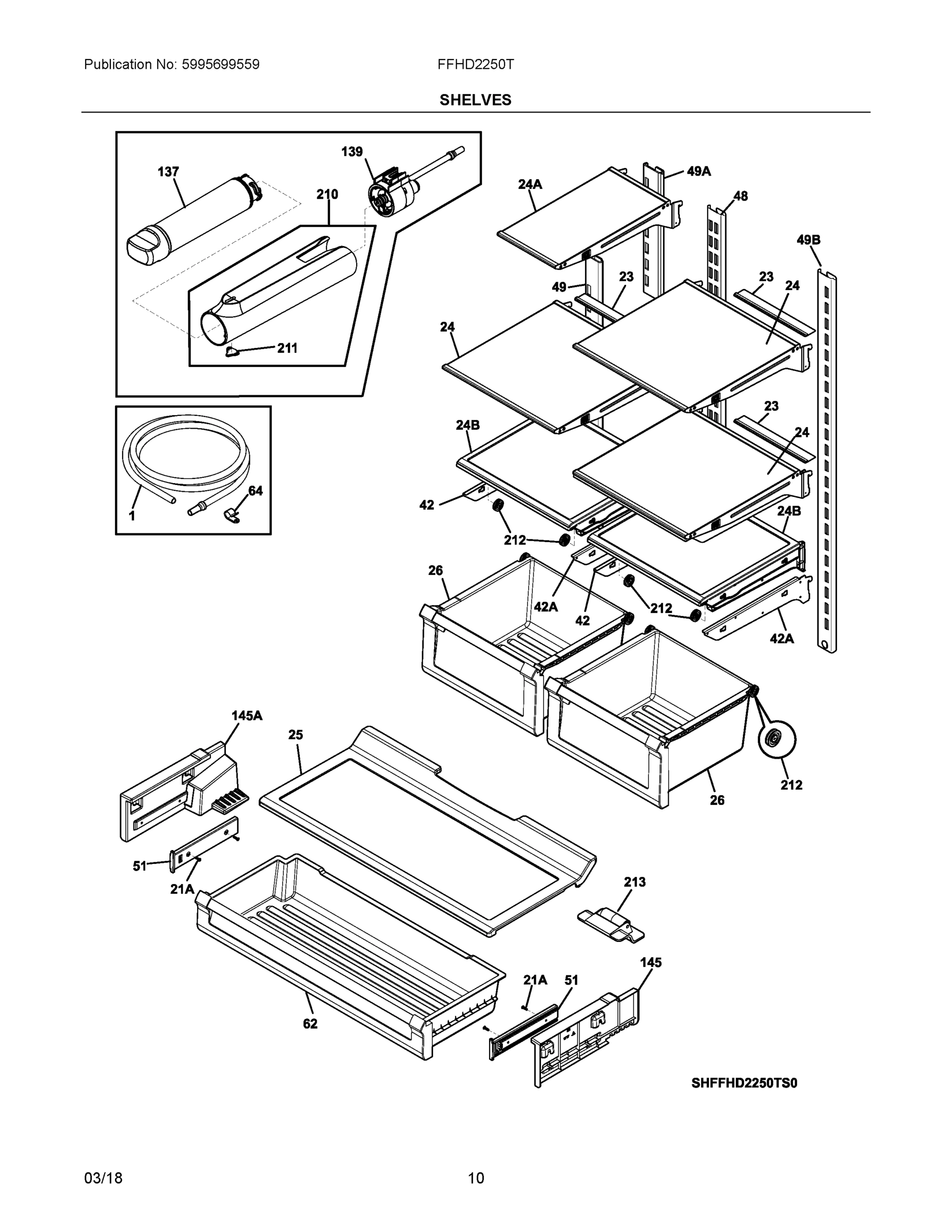

05 - SHELVES

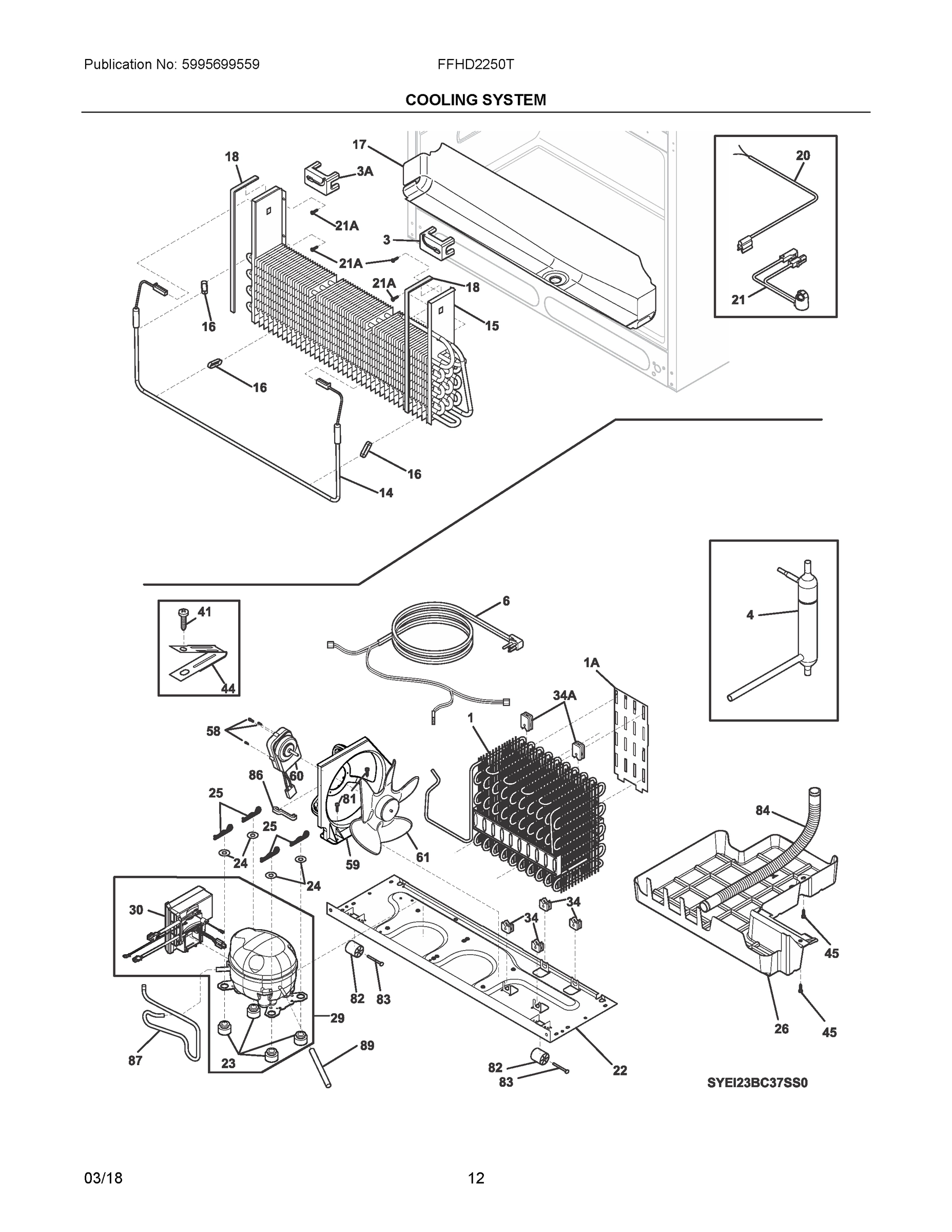

06 - COOLING SYSTEM

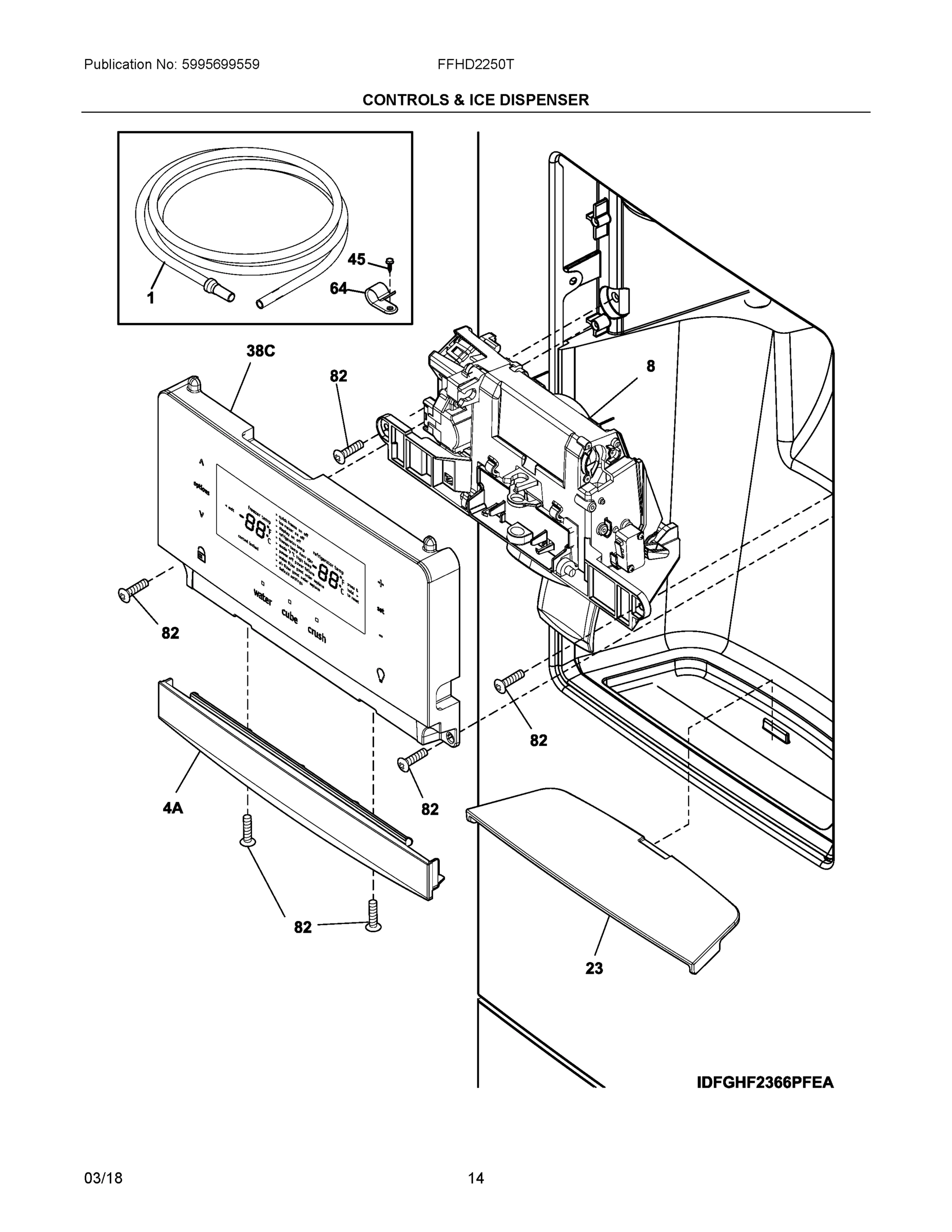

07 - CONTROLS & ICE DISPENSER

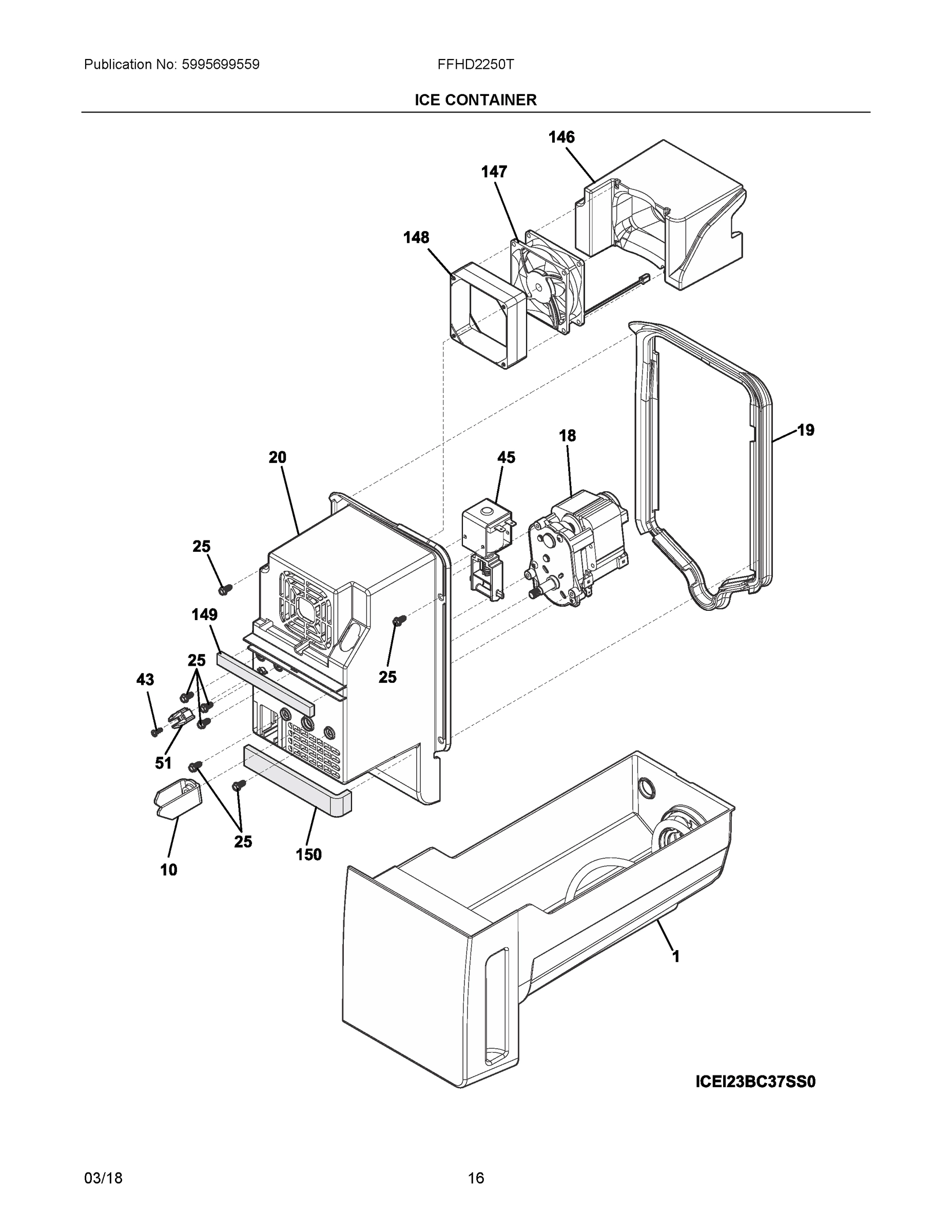

08 - ICE CONTAINER

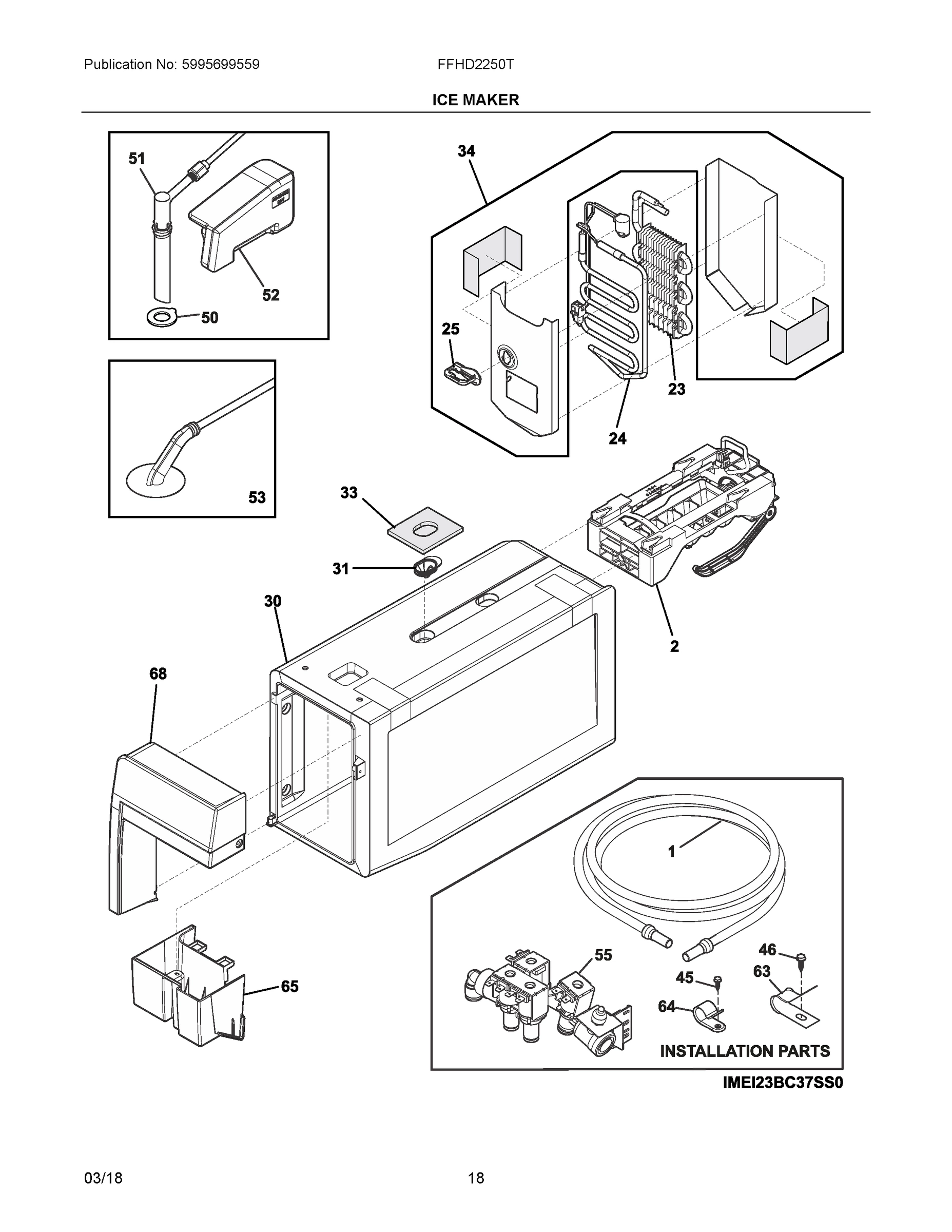

09 - ICE MAKER

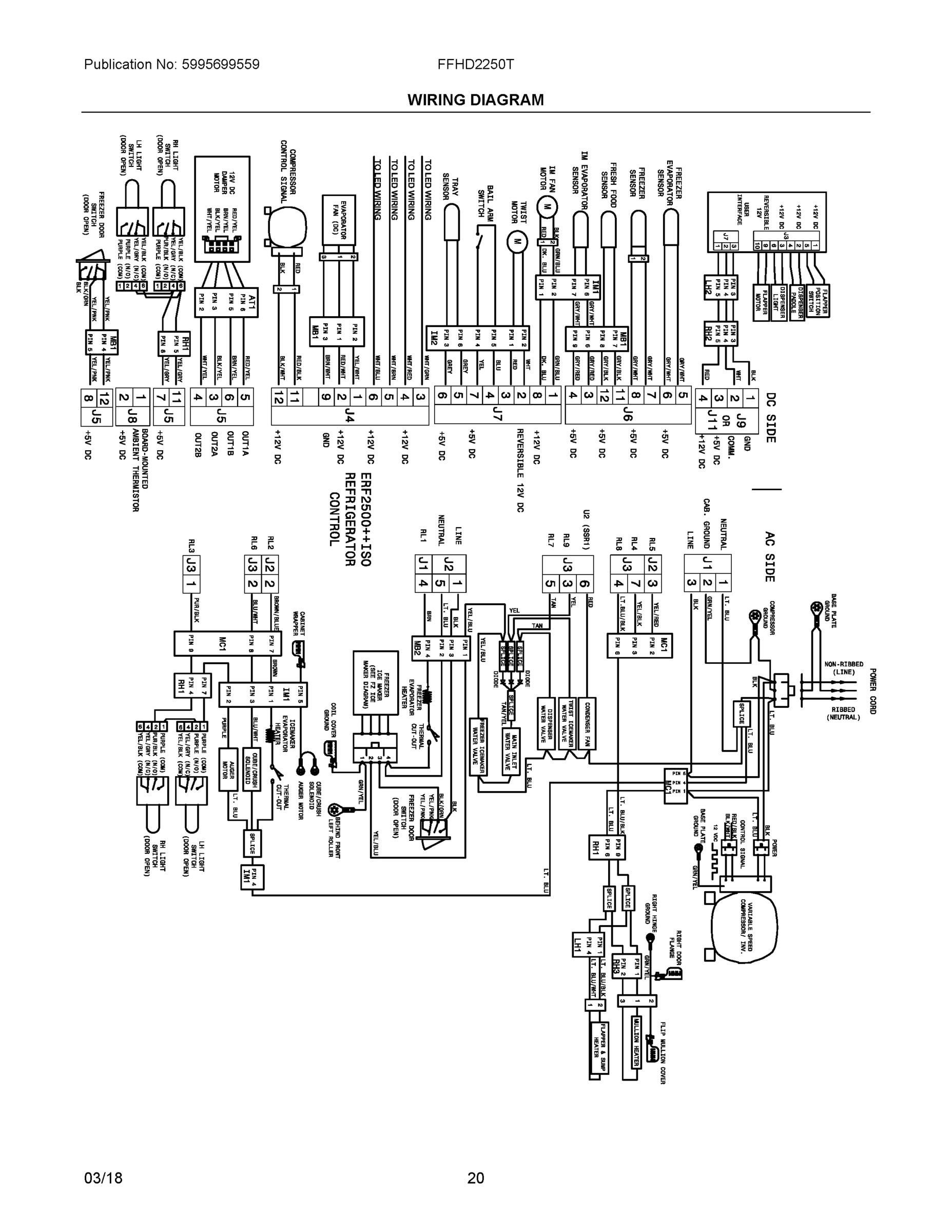

10 - WIRING DIAGRAM

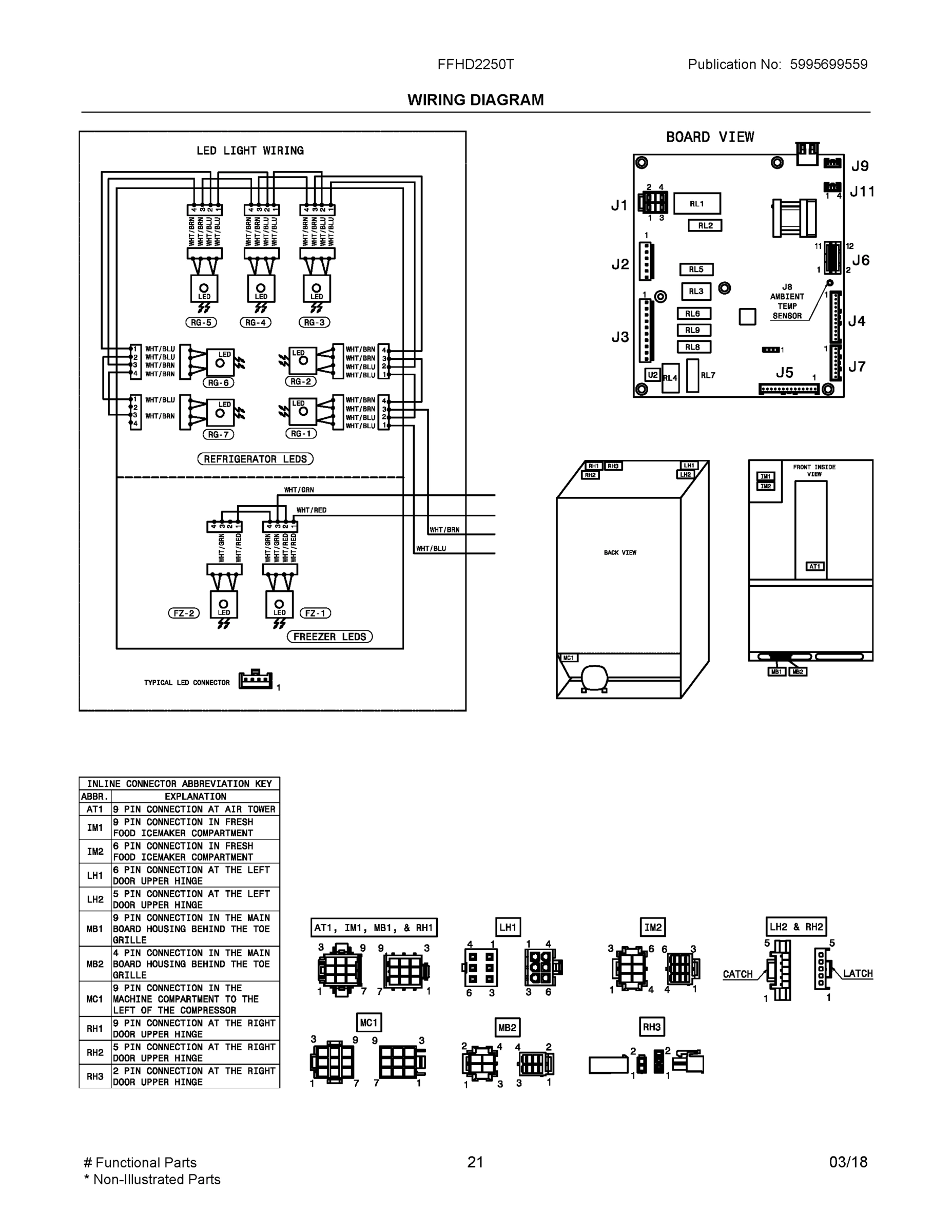

11 - WIRING DIAGRAM
Common parts from model Electrolux FFHD2250TS3 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE
1
TUBE-WATER, 1/4-36", LIGHT GREEN, VALVE TO, B WCI 241964707 Contact Us For Availability
1
ICE CONTAINER ASSY, W/MOVING PARTS WCI 242100106 Contact Us For Availability
1
CONDENSER WCI 241862903 Contact Us For Availability
1
COVER, EVAPORATOR FAN WCI 5304503130 Contact Us For Availability
3
GASKET-EVAP, BOTTOM WCI 241860111 Contact Us For Availability
4A
TRIM, FACADE, STAINLESS WCI 242194301 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
8
MODULE, DISPENSER, CLEAR, W/PADDLE WCI 242270106 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 5304508006 Contact Us For Availability
10
BAR-DRIVE WCI 241829001 Contact Us For Availability
10
AIR TOWER, ASSEMBLY, W/DAMPER WCI 5304508741 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241860402 Contact Us For Availability
11
REFRIGERATOR DOOR, COMPLETE, STAINLESS, LH WCI 807460148 Contact Us For Availability
11
DRAWER, STN, FREEZER WCI 241987976 Contact Us For Availability
13
DOOR STOP, ASSEMBLY, RH, W/BUSHING WCI 5304508039 Contact Us For Availability
13A
DOOR STOP, ASSEMBLY, LH, W/BUSHING WCI 5304508038 Contact Us For Availability
14
DEFROST HEATER KIT, 28' WCI 5303918410 Contact Us For Availability
14
SWITCH-LIGHT/LAMP, FRZR DOOR WCI 242060202 Contact Us For Availability
15
EVAPORATOR KIT, C/D FDBM WCI 5303918569 Contact Us For Availability
15
REFRIGERATOR DOOR, COMPLETE, STAINLESS WCI 807460147 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
GASKET, AIR DUCT, BOTTOM WCI 5304508008 Contact Us For Availability
17
TROUGH-DRAIN WCI 241791201 Contact Us For Availability
18
MOTOR-AUGER WCI 241816602 Contact Us For Availability
18
HANDLE-DRAWER, STAINLESS WCI 5304510339 Contact Us For Availability
18
GASKET, CLOSED CELL WCI 241860101 Contact Us For Availability
19
GASKET, AIR HANDLER WCI 5304508066 Contact Us For Availability
20
THERMISTOR, FREEZER DEFROST, NTC, W/CONNECTOR WCI 5303918776 Contact Us For Availability
20
HOUSING, AIR HANDLER WCI 5304508036 Contact Us For Availability
21
SCREW, QUADREX, #10-16 HILO WCI 241690602 Contact Us For Availability
21
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
SUMP, DISPENSER, GREY WCI 242176503 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
EVAPORATOR, ASSEMBLY, ICE MAKER WCI 242094701 Contact Us For Availability
24
HEATER-DEFROST, W/SAFETY THERM WCI 242094804 Contact Us For Availability
24
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC WCI 240383412 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
SHELF ASSEMBLY, 1/2 WIDTH, RAIL/TRIM, GLASS & WCI 5304510351 Contact Us For Availability
24A
SHELF ASSEMBLY, 1/4 WIDTH, RAIL/TRIM, GLASS WCI 5304510349 Contact Us For Availability
25
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE WCI 240383407 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25
CONNECTOR, HARNESS, EVAP COVER WCI 5304508037 Contact Us For Availability
26
PAN-CRISPER, ASSEMBLY, W/ROLLER WCI 5304510280 Contact Us For Availability
27
RETAINER, TALL BOTTLE WCI 241752703 Contact Us For Availability
30
INVERTOR WCI 241577505 Contact Us For Availability
30
COVER, ICMKR & BUCKET WCI 242142204 Contact Us For Availability
30
BRACKET-ANTI TIP WCI 241778702 Contact Us For Availability
31
TUBE-WATER, ICE MOLD FILL, BLACK, EXTENSION WCI 241844403 Contact Us For Availability
34
HOUSING KIT, FFIM EVAPORATOR, W/HARNESS CLIP WCI 5303918779 Contact Us For Availability
35
HINGE ASSEMBLY, LOWER, RH, W/ADJ SCREW WCI 5304508044 Contact Us For Availability
35A
HINGE ASSEMBLY, LOWER, LH, W/ADJ SCREW WCI 5304508045 Contact Us For Availability
37
TRIM-CABINET CORNER, GRAY, (2) WCI 242161206 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
CONTROL ASSEMBLY, USER INTERFACE, W/HOUSING WCI 5304513666 Contact Us For Availability
40B
COVER-UPPER HINGE, GREY, CENTER WCI 241862405 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
RAIL, CRISPER COVER, LH SIDE WCI 5304508043 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42A
RAIL, CRISPER COVER, RH SIDE WCI 5304508042 Contact Us For Availability
43
SCREW WCI 241641502 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
48
BIN-DOOR, PSEUDO, WHITE WCI 242071401 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 242122101 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 242079701 Contact Us For Availability
49
CHANNEL-SHELF MTG, SIDE, LH WCI 5304508035 Contact Us For Availability
49A
BIN-DOOR, 2-LITER WCI 242071301 Contact Us For Availability
49A
BASKET-FRZR, UPPER WCI 241780811 Contact Us For Availability
49A
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF WCI 242122001 Contact Us For Availability
49B
BIN-DOOR, DISPENSER WCI 242011701 Contact Us For Availability
49B
CHANNEL-SHELF MTG, SIDE, RH WCI 242122301 Contact Us For Availability
49C
BIN-DOOR, 1/2 GALLON WCI 242079901 Contact Us For Availability
50
BOARD ASSEMBLY, MAIN POWER, W/HOUSING WCI 5304510308 Contact Us For Availability
50
CLIP, FREEZER BASKET WCI 5304501271 Contact Us For Availability
50
SEAL, DOUGHNUT WCI 241512813 Contact Us For Availability
51
SLIDE ASSEMBLY, BASKET LOWER, RH, W/PINION WCI 5304507977 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
51
SLIDE-DELI WCI 242120001 Contact Us For Availability
51A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER RH WCI 5304508094 Contact Us For Availability
52
SLIDE ASSEMBLY, BASKET LOWER, LH, W/PINION WCI 5304507976 Contact Us For Availability
52
INSULATION, I/M FILL TUBE WCI 5304508046 Contact Us For Availability
52A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER LH WCI 5304508095 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
55
VALVE-WATER, QUAD SOLENOID WCI 242253002 Contact Us For Availability
58
SCREW WCI 241853202 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
63
WCI 216396900 WCI 216396900 Contact Us For Availability
64
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
65
COVER, WIRING WCI 808462601 Contact Us For Availability
68
COVER, -FRONT, BUCKET TRIM WCI 242095002 Contact Us For Availability
72
WCI 242054804 WCI 242054804 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
82
HINGE-MULLION, UPPER/LOWER, FLIPPER WCI 241779401 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
DIVIDER, LOWER BASKET WCI 5304507996 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
83
MAGNET, DOOR WCI 241812202 Contact Us For Availability
84
TUBE-DRAIN WCI 241830904 Contact Us For Availability
84
GUIDE-MULLION, MAGNET COVER, FLIPPER WCI 808274201 Contact Us For Availability
84
DIVIDER, BASKET WCI 241780905 Contact Us For Availability
84A
COVER-MULLION, MAGNET COVER WCI 242190501 Contact Us For Availability
85
FLIPPER MULLION ASSEMBLY, GREY, W/HEATER WCI 242036303 Contact Us For Availability
85A
SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242139301 Contact Us For Availability
86
HINGE-MULLION, CENTER, FLIPPER WCI 241779802 Contact Us For Availability
86
TRIM, DRAWER, STABILIZER WCI 5304507340 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability
87
PINION WCI 5304507999 Contact Us For Availability
89
BRACKET, FREEZER DRAWER, (2) WCI 5304509676 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
91
WCI 5304508041 WCI 5304508041 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
93
WCI 241835505 WCI 241835505 Contact Us For Availability
94
WCI 5303918775 WCI 5303918775 Contact Us For Availability
96
WCI 241860601 WCI 241860601 Contact Us For Availability
100
WCI 242157601 WCI 242157601 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
102
BLOCK-HANDLE MTG WCI 5304504279 Contact Us For Availability
102
WCI 242157501 WCI 242157501 Contact Us For Availability
103
SCREW, #10 AB FLAT HD WCI 242077302 Contact Us For Availability
105
TRIM-BASKET WCI 242116801 Contact Us For Availability
123
WCI 5304508007 WCI 5304508007 Contact Us For Availability
124
WCI 242006903 WCI 242006903 Contact Us For Availability
125
WCI 242071201 WCI 242071201 Contact Us For Availability
145A
SUPPORT, DELI COVER, LH WCI 5304508028 Contact Us For Availability
146
SUPPORT, FAN WCI 5304508072 Contact Us For Availability
148
GROMMET, FAN WCI 5304508063 Contact Us For Availability
149
GASKET WCI 242095415 Contact Us For Availability
150
GASKET WCI 242095423 Contact Us For Availability
210
HOUSING, WATER FILTER, W/PLUG & PAD WCI 5303918723 Contact Us For Availability
211
PLUG, FILTER HOUSING WCI 807932201 Contact Us For Availability
211
BUMPER, DOOR, BOTTOM WCI 5304508077 Contact Us For Availability
212
ROLLER, CRISPER PAN WCI 5304508016 Contact Us For Availability
213
ROLLER ASSY, DELI PAN WCI 242010901 Contact Us For Availability
NI
KIT, DSPENSER HTR AC WCI 5303918596 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
WCI 241695904 WCI 241695904 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918445 Contact Us For Availability
NI
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) WCI 242146401 Contact Us For Availability
NI
CLIP-GRILLE WCI 218515401 Contact Us For Availability
NI
WCI 218362501 WCI 218362501 Contact Us For Availability
NI
HARNESS-DISPENSER, GROUNDING WCI 241510904 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NI
SPACER, HEAT EXCHANGER WCI 241947701 Contact Us For Availability
NIA
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
NIA
TUBE-WATER, 5/16-37", YELLOW, VALVE TO, BACK WCI 218976435 Contact Us For Availability
NIA
TAPE WCI 240346701 Contact Us For Availability
NIA
BUMPER, FLIPPER MULLION WCI 242068601 Contact Us For Availability
NIA
WCI 241842301 WCI 241842301 Contact Us For Availability
NIA
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
NIA
WCI 242036801 WCI 242036801 Contact Us For Availability
NIA
PIN-LOCK WCI 242011101 Contact Us For Availability
NIAA
WCI 241860104 WCI 241860104 Contact Us For Availability
NIAA
SCREW, BASKET SLIDES WCI 242039701 Contact Us For Availability
NIAB
WCI 241860105 WCI 241860105 Contact Us For Availability
NIB
CONNECTOR-WATER, STRAIGHT, 5/16 TO 1/4 WCI 241503901 Contact Us For Availability
NIB
INSULATION, I/CONTAINER FRT WCI 242096001 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIC
CLIP WCI 242200102 Contact Us For Availability
NID
WCI 242220119 WCI 242220119 Contact Us For Availability
× ![]()
