Model Electrolux FFHB2740PP5A REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts &amp; Diagrams

1

242093003 Frigidaire Refrigerator Ice Contain In Stock WCI 242093003 $142.02

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.09

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $61.36

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $81.90

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $8.69

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.41

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $22.72

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.59

8

242270106 Frigidaire Refrigerator Module In Stock WCI 242270106 $117.88

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $41.42

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.13

10

242072002 Frigidaire Refrigerator Cover Backorder WCI 242072002 $80.19

10A

COVER-EVAP COIL, LOWER WCI 242084102 Contact Us For Availability

11

DOOR-REFR, WHITE, W/DIPS WCI 242185631 Contact Us For Availability

11

DOOR-FRZR, WHITE, COMPLETE ASSY WCI 241987934 Contact Us For Availability

12

242016301 Frigidaire Refrigerator Nameplate Backorder WCI 242016301 $2.66

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $11.59

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $79.70

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $11.59

14

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $25.39

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

15

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $148.68

15

5304517886 Frigidaire Refrigerator Light In Stock WCI 5304517886 $44.95

15

DOOR-REFR, WHITE, W/O DISP WCI 242185630 Contact Us For Availability

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $30.29

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $38.80

16A

240590403 Frigidaire Refrigerator Light Socke Backorder WCI 240590403 $15.61

17

TROUGH-DRAIN WCI 242084201 Contact Us For Availability

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $111.28

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.13

242090502 Frigidaire Refrigerator Door Handle Backorder WCI 242090502 $129.12

5304511509 Frigidaire Refrigerator Handle Backorder WCI 5304511509 $78.03

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $28.07

20

242072201 Frigidaire Refrigerator Cover Backorder WCI 242072201 $60.37

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $55.98

20

5303918776 Frigidaire Refrigerator Thermistor In Stock WCI 5303918776 $12.90

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.68

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.80

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $9.79

242046001 Frigidaire Refrigerator Defrost The In Stock WCI 242046001 $47.15

5303918568 Frigidaire Thermostat Defrost In Stock WCI 5303918568 $56.86

21C

241899703 Frigidaire Refrigerator Screw Backorder WCI 241899703 $9.35

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl In Stock WCI 242075602 $14.68

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.01

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $26.72

23

242094603 Frigidaire Refrigerator Evaporator Backorder WCI 242094603 $71.44

23

SUMP, DISPENSER, WHITE WCI 242176501 Contact Us For Availability

24

242068701 Frigidaire Refrigerator Shelf Backorder WCI 242068701 $114.12

24

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $61.25

24

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.31

24A

240383412 Frigidaire Refrigerator Screw Backorder WCI 240383412 $7.13

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $121.62

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $12.01

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

26

241801801 Frigidaire Crisper Pan In Stock WCI 241801801 $114.12

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $83.58

27

241752703 Frigidaire Refrigerator Retainer Backorder WCI 241752703 $32.52

29

5304524549 Frigidaire Refrigerator Compressor Backorder WCI 5304524549 $547.29

30

241577505 Frigidaire Refrigerator Inverter In Stock WCI 241577505 $189.21

30

241778701 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778701 $15.61

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse Backorder WCI 241868301 $19.59

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $31.18

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $13.81

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $40.99

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $40.11

38CA

5304527929 Frigidaire Control Board Dispenser In Stock WCI 5304527929 $176.27

41

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $8.44

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $8.89

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $14.24

42A

242067801 Frigidaire Refrigerator Door Suppor Backorder WCI 242067801 $27.61

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.31

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $14.68

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $63.02

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $57.30

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $49.83

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $66.11

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $41.87

49

5303918736 Frigidaire Refrigerator Lower Bask Backorder WCI 5303918736 $137.45

49A

241780810 Frigidaire Refrigerator Basket Backorder WCI 241780810 $132.86

49A

242071301 Frigidaire Refrigerator Clear Door In Stock WCI 242071301 $59.53

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $27.61

49B

242011701 Frigidaire Bin Shelf Door Backorder WCI 242011701 $30.74

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $48.50

49C

242079901 Frigidaire Refrigerator Door Bin In Stock WCI 242079901 $57.30

50

5304502780 Frigidaire Refrigerator Main Power Backorder WCI 5304502780 $185.16

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $12.91

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $81.04

51

5303918690 Frigidaire Refrigerator Wire Baske In Stock WCI 5303918690 $151.61

51A

241894223 Frigidaire Drawer Right Slide Rail Backorder WCI 241894223 $80.17

52

SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER WCI 242130517 Contact Us For Availability

52A

241894224 Frigidaire Refrigerator Slide Assem Backorder WCI 241894224 $79.73

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $7.57

54

807854301 Frigidaire Refrigerator Support Backorder WCI 807854301 $28.54

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $103.89

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.22

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.89

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.50

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.59

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $78.35

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.22

62

PAN-DELI WCI 242096801 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.68

65

242232701 Frigidaire Refrigerator Cover Backorder WCI 242232701 $20.05

68

242095002 Frigidaire Refrigerator Cover Backorder WCI 242095002 $59.08

72

242054803 Frigidaire Refrigerator Kickplate/G Backorder WCI 242054803 $47.16

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $13.37

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.44

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.48

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.22

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.24

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.30

82

DIVIDER, BASKET WCI 242168701 Contact Us For Availability

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $44.95

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $22.66

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.48

85

241778808 Frigidaire Refrigerator White Mulli Backorder WCI 241778808 $179.87

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $53.36

85A

SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242168501 Contact Us For Availability

85B

SUPPORT-BEAM, LOWER BASKET WCI 241872204 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.23

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $21.39

86

BAR-STABILIZER, FREEZER DRAWER WCI 242090701 Contact Us For Availability

89

241972302 Frigidaire Refrigerator Drawer Brac Backorder WCI 241972302 $63.49

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $2.95

90

242136901 Frigidaire Refrigerator Timing Bar Backorder WCI 242136901 $22.28

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.46

93

241835501 Frigidaire Refrigerator Light Switc Backorder WCI 241835501 $31.63

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $79.73

97A

COVER-WATER TANK WCI 242117301 Contact Us For Availability

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.11

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.26

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $14.26

107A

241971601 Frigidaire Refrigerator Light Shiel Backorder WCI 241971601 $20.94

107B

241971202 Frigidaire Refrigerator Light Shiel Backorder WCI 241971202 $21.37

108

WCI 241971402 WCI 241971402 Contact Us For Availability

108A

241971801 Frigidaire Refrigerator Wiring Cove Backorder WCI 241971801 $57.17

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $46.97

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.78

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.68

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $4.89

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $71.40

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $37.08

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $45.40

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $48.03

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $64.37

148

242095406 Frigidaire Refrigerator Gasket In Stock WCI 242095406 $11.11

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $68.67

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $38.78

154

SUPPORT WCI 242082401 Contact Us For Availability

157

241872201 Frigidaire Refrigerator Crisper Cov Backorder WCI 241872201 $31.63

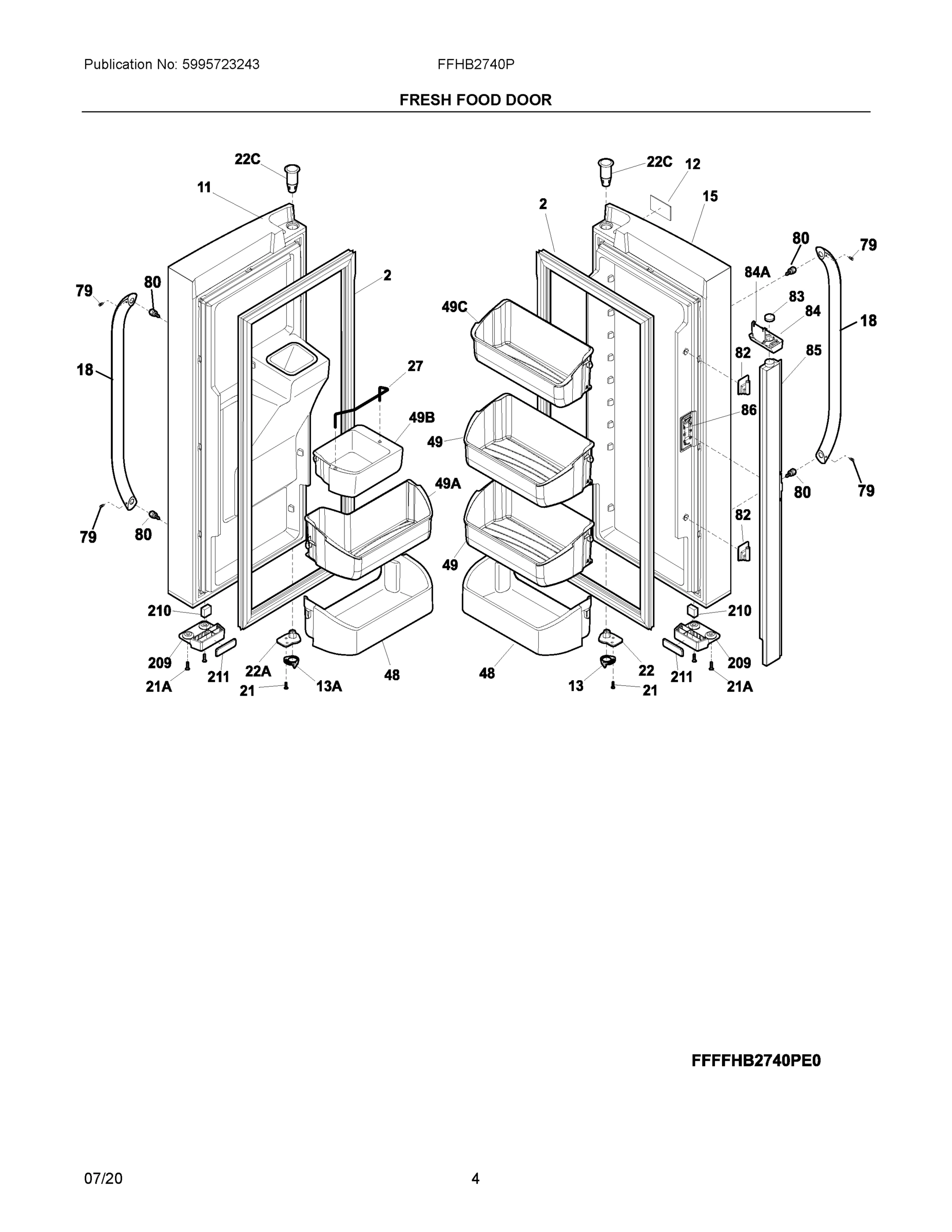

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $12.02

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $19.59

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $45.87

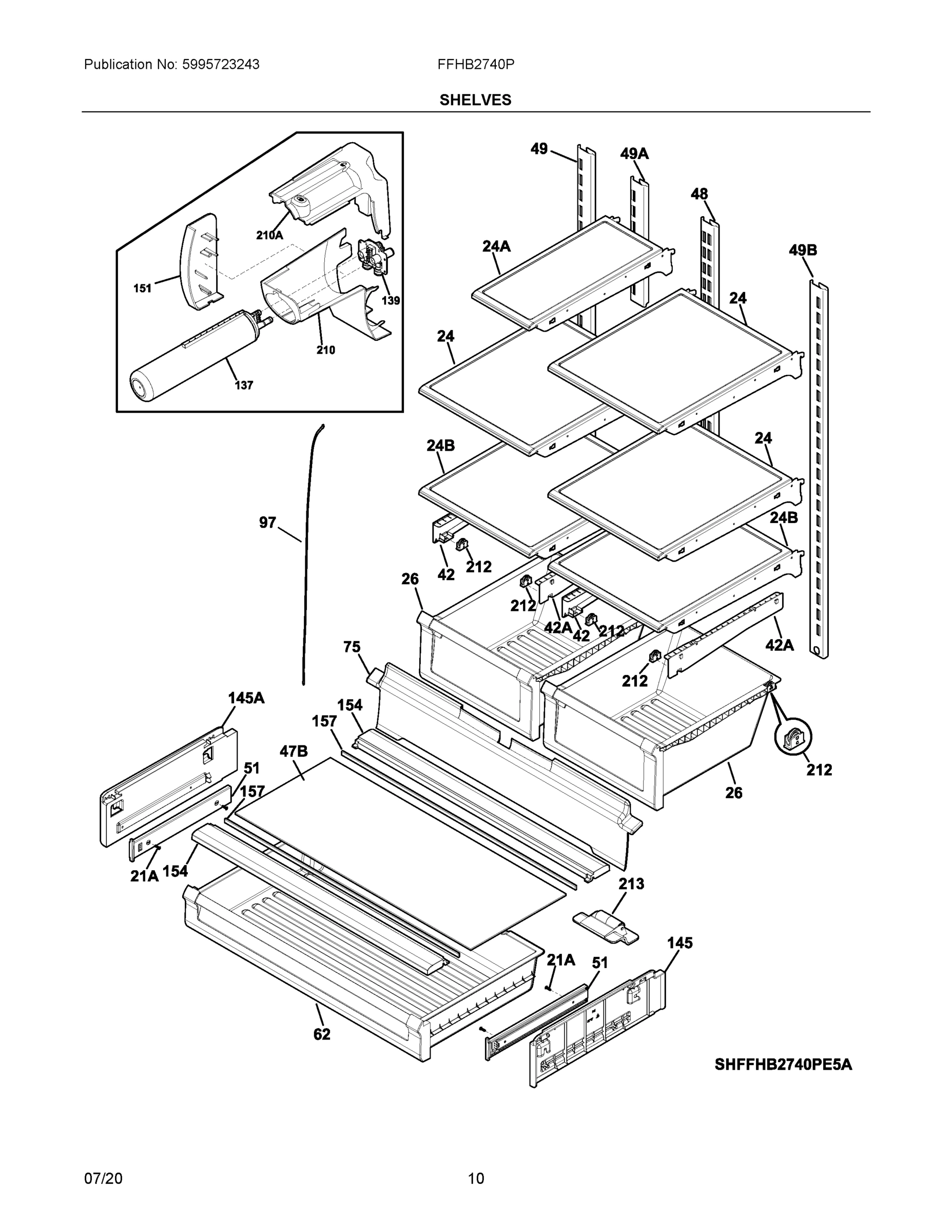

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $14.24

212

242236801 Frigidaire Refrigerator Roller Asse Backorder WCI 242236801 $12.91

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.20

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.04

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.67

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $32.09

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $37.02

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $58.18

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $8.89

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $8.91

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $59.04

HARNESS-WIRING, DOOR WCI 242040802 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $8.89

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $18.70

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.02

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.46

241842301 Frigidaire Refrigerator Thermistor In Stock WCI 241842301 $21.37

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $14.68

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.55

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $8.91

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.24

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $59.94

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.46

242095804 Frigidaire Refrigerator Wiring Harn Backorder WCI 242095804 $53.79

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $11.59

242141401 Frigidaire Refrigerator Harness Wir In Stock WCI 242141401 $120.36

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.35

WCI 242061606 WCI 242061606 Contact Us For Availability

NIAA

241510802 Frigidaire Refrigerator Wiring Harn Backorder WCI 241510802 $26.28

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.46

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $11.13

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.00

241810104 Frigidaire Refrigerator Seal Backorder WCI 241810104 $7.11

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $3.55

242119001 Frigidaire Refrigerator Wiring Harn Backorder WCI 242119001 $70.97

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $24.08

NIC

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.70

NIC

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $11.57

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $11.57

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $15.13

NIE

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $22.74

NIH

242095425 Frigidaire Gasket Backorder WCI 242095425 $6.24
