Model Electrolux FFGS3025PSH RANGE/OVEN, GAS, SLIDE-IN – Common Parts & Diagrams

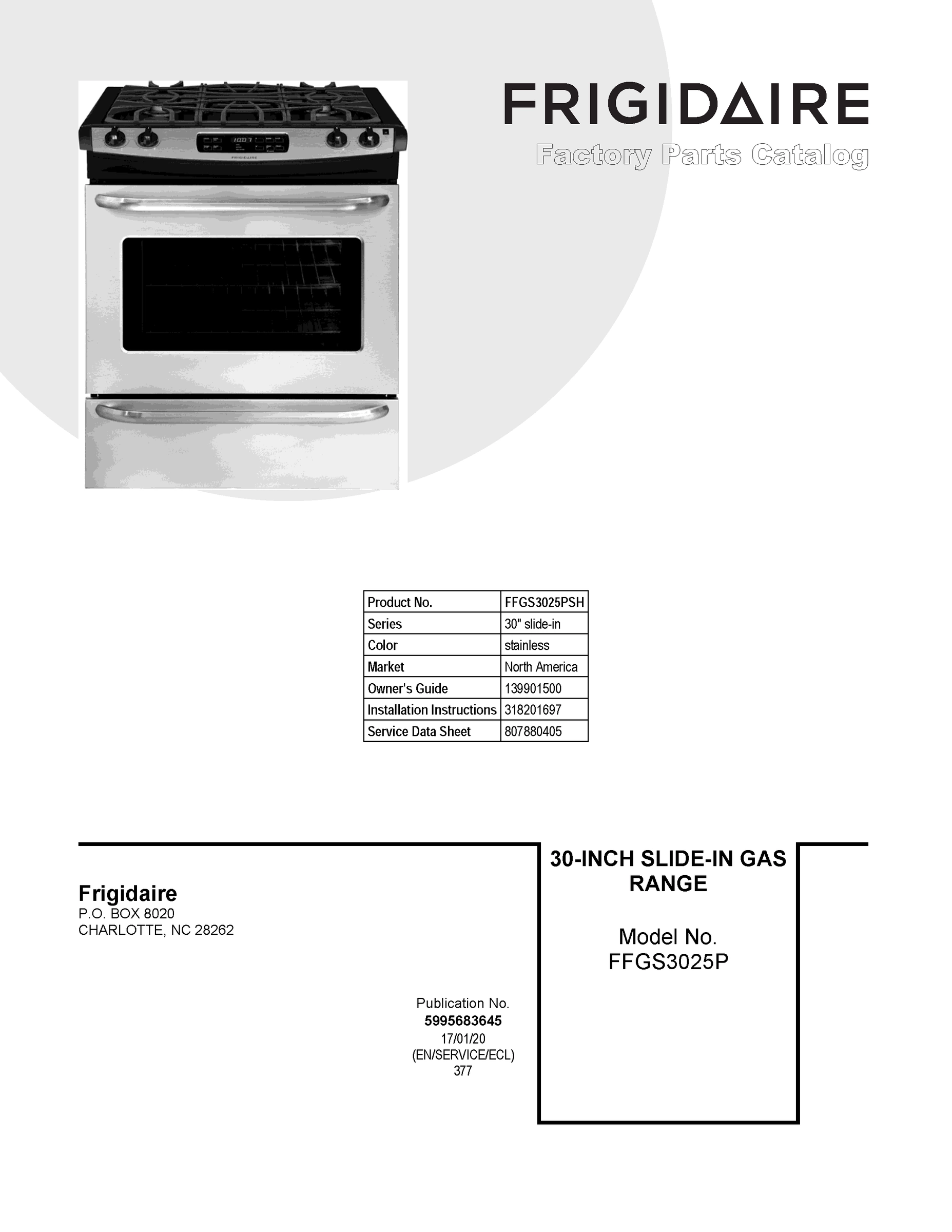

01 - COVER SHEET

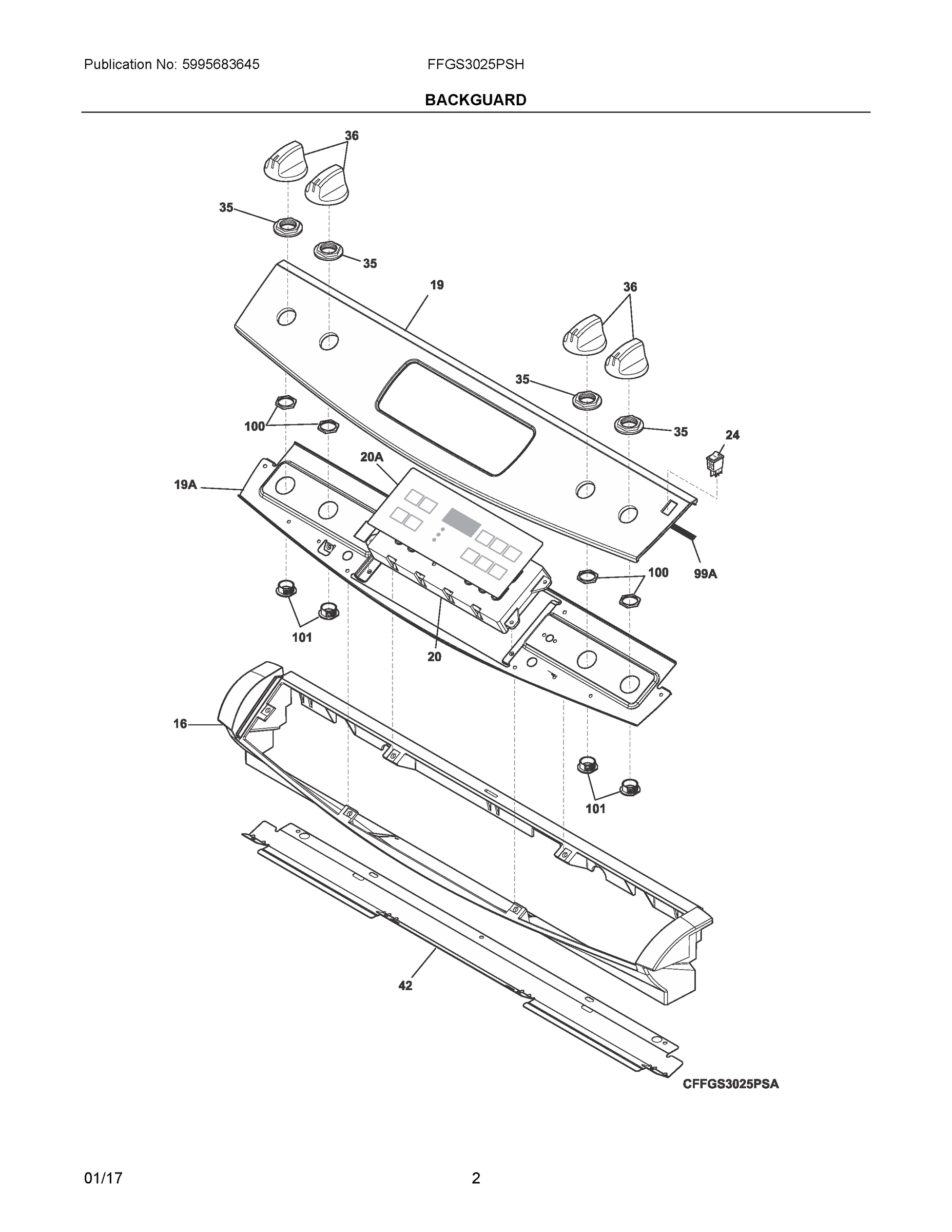

02 - BACKGUARD

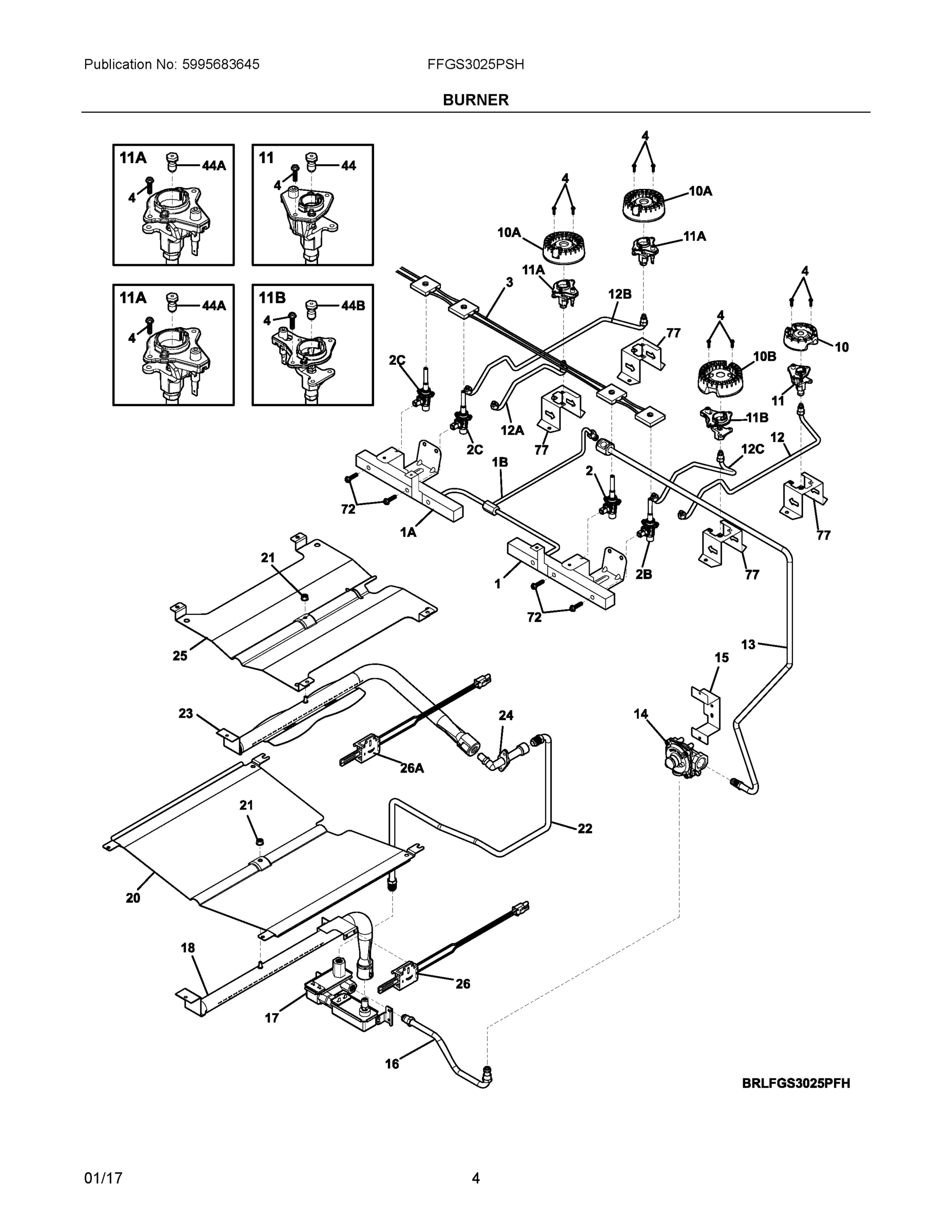

03 - BURNER

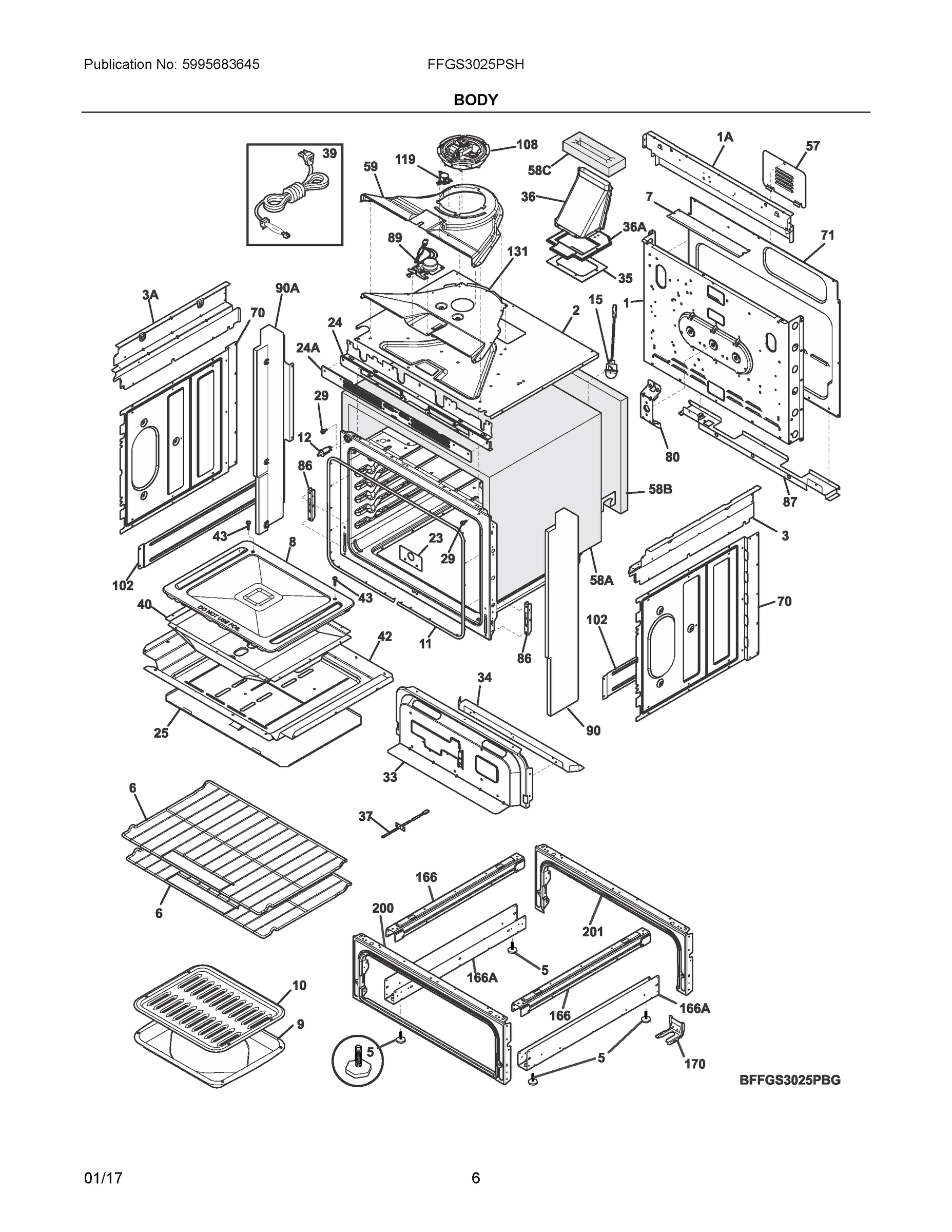

04 - BODY

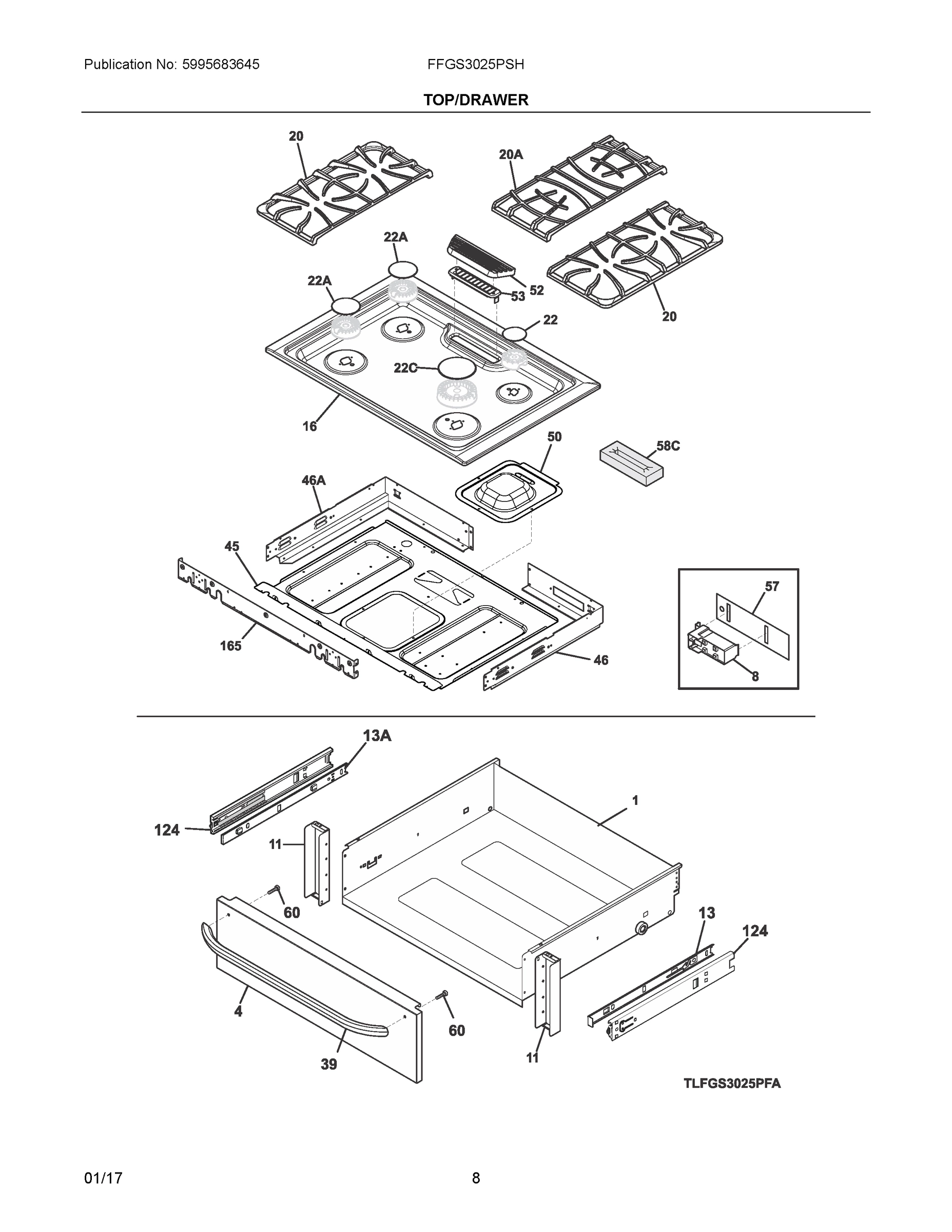

05 - TOP/DRAWER

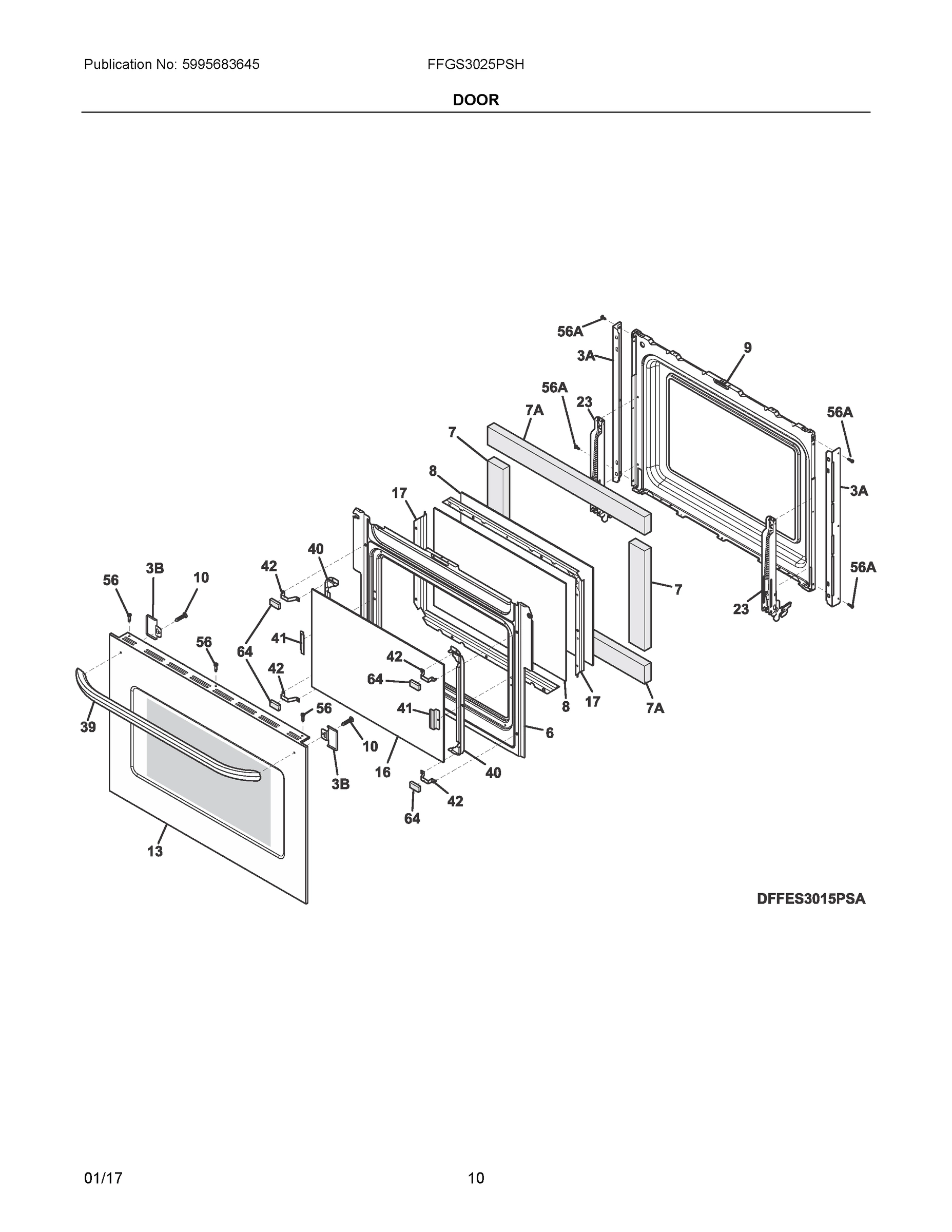

06 - DOOR

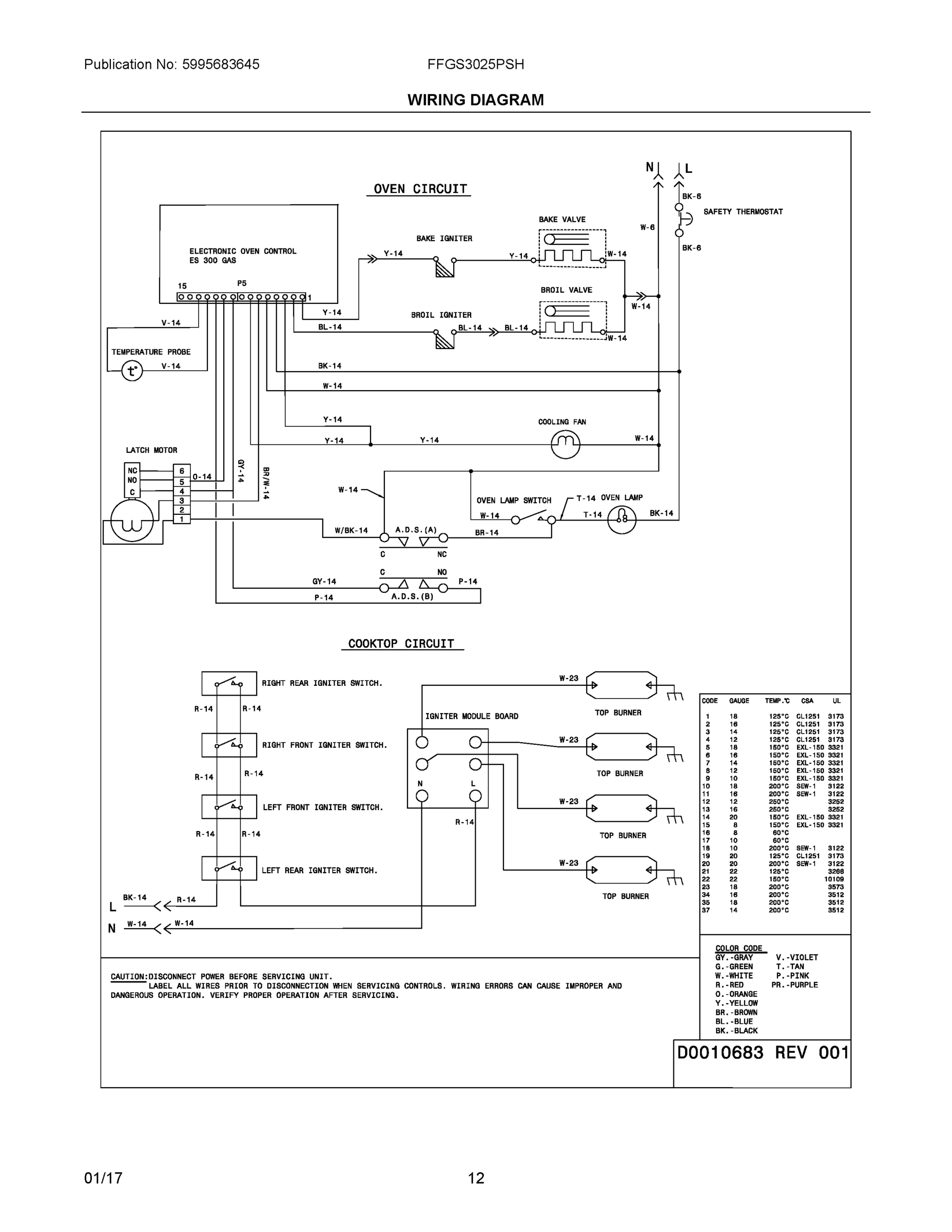

07 - WIRING DIAGRAM
Common parts from model Electrolux FFGS3025PSH RANGE/OVEN, GAS, SLIDE-IN
1
DRAWER, BLACK WCI 318107317 Contact Us For Availability
1B
TUBE, MANIFOLD, 3/8, INTERCONNECT WCI 318305410 Contact Us For Availability
2
VALVE, TOP BURNER, YELLOW STEM, 2500BTU WCI 5304507290 Contact Us For Availability
2C
VALVE, TOP BURNER, RED STEM, 1700BTU WCI 5304507285 Contact Us For Availability
3A
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED WCI 139014401 Contact Us For Availability
4
PANEL, DRAWER, STAINLESS, FRONT WCI 318298812 Contact Us For Availability
5
SCREW, LEVELING WCI 318175503 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011800 Contact Us For Availability
6
BAFFLE, DOOR WCI 139006905 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, DOOR WCI 318372016 Contact Us For Availability
8
SPARK MODULE WCI 808608802 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 318138801 Contact Us For Availability
10
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10A
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, 5K, W/HOLD WCI 316540800 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545502 Contact Us For Availability
11
BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, 9.5K, W/HO WCI 316540700 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, 14K, W/HOL WCI 316543206 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS/ WCI 139099607 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 318259504 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 318259505 Contact Us For Availability
16
CONSOLE, ASSY., BLACK WCI 318299102 Contact Us For Availability
16
MAINTOP ASSEMBLY, BLACK WCI 318569262 Contact Us For Availability
16
TUBE, REGULATOR VALVE WCI 318289500 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264731 Contact Us For Availability
18
BURNER, BAKE WCI 5304502520 Contact Us For Availability
19
CONTROL PANEL ASSEMBLY, STEEL/GLASS, STAINLES WCI 139038864 Contact Us For Availability
19A
PANEL, CONTROL MTG. WCI 318224402 Contact Us For Availability
20
CLOCK/TIMER, ELECTRONIC, ES300 WCI 316557141 Contact Us For Availability
20
BAFFLE, BAKE BURNER WCI 139005100 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES300 WCI 316419141 Contact Us For Availability
20A
GRATE, BLACK, CENTER WCI 318560470 Contact Us For Availability
23
HINGE, OVEN DOOR, LILAC WCI 316575915 Contact Us For Availability
24
ELBOW, MIXER WCI 316409703 Contact Us For Availability
24A
COVER, VENT TRIM, BLACK WCI 139075001 Contact Us For Availability
25
BAFFLE, BROIL BURNER WCI 316401301 Contact Us For Availability
26
IGNITOR, BURNER WCI 139013700 Contact Us For Availability
26A
IGNITOR, BROIL BURNER WCI 139013701 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
35
RETAINER, CONTROL PANEL, BLACK WCI 318233720 Contact Us For Availability
36
KNOB, CONTROL, BLACK WCI 316543818 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 316558201 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
42
BRACKET, GLASS RETAINER, (4) WCI 318382302 Contact Us For Availability
44
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44A
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
44B
ORIFICE, TOP BURNER, 14K WCI 316527513 Contact Us For Availability
50
PANEL, SERVICE, FAN WCI 318578803 Contact Us For Availability
52
COVER, FLUE, BLACK, OUTER WCI 318291126 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
DUCT, COOLING FAN, TOP WCI 139078002 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
72
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
90
PANEL, FILLER, BLACK, RH WCI 318296904 Contact Us For Availability
108
MOTOR ASSEMBLY, COOLING FAN WCI 318575612 Contact Us For Availability
119
THERMOSTAT, SAFETY, 11 WCI 807144901 Contact Us For Availability
124
GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability
131
WCI 139078102 WCI 139078102 Contact Us For Availability
166
WCI 318298410 WCI 318298410 Contact Us For Availability
170
WCI 5304486410 WCI 5304486410 Contact Us For Availability
200
WCI 318298232 WCI 318298232 Contact Us For Availability
201
WCI 318298233 WCI 318298233 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 318199776 WCI 318199776 Contact Us For Availability
NI
WCI 318565404 WCI 318565404 Contact Us For Availability
NI
WCI 808041201 WCI 808041201 Contact Us For Availability
NI
WCI 5304497401 WCI 5304497401 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
WCI 318531701 WCI 318531701 Contact Us For Availability
NIB
WCI 5303289910 WCI 5303289910 Contact Us For Availability
× ![]()
