Model Electrolux FFGS3025PBC GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - BACKGUARD

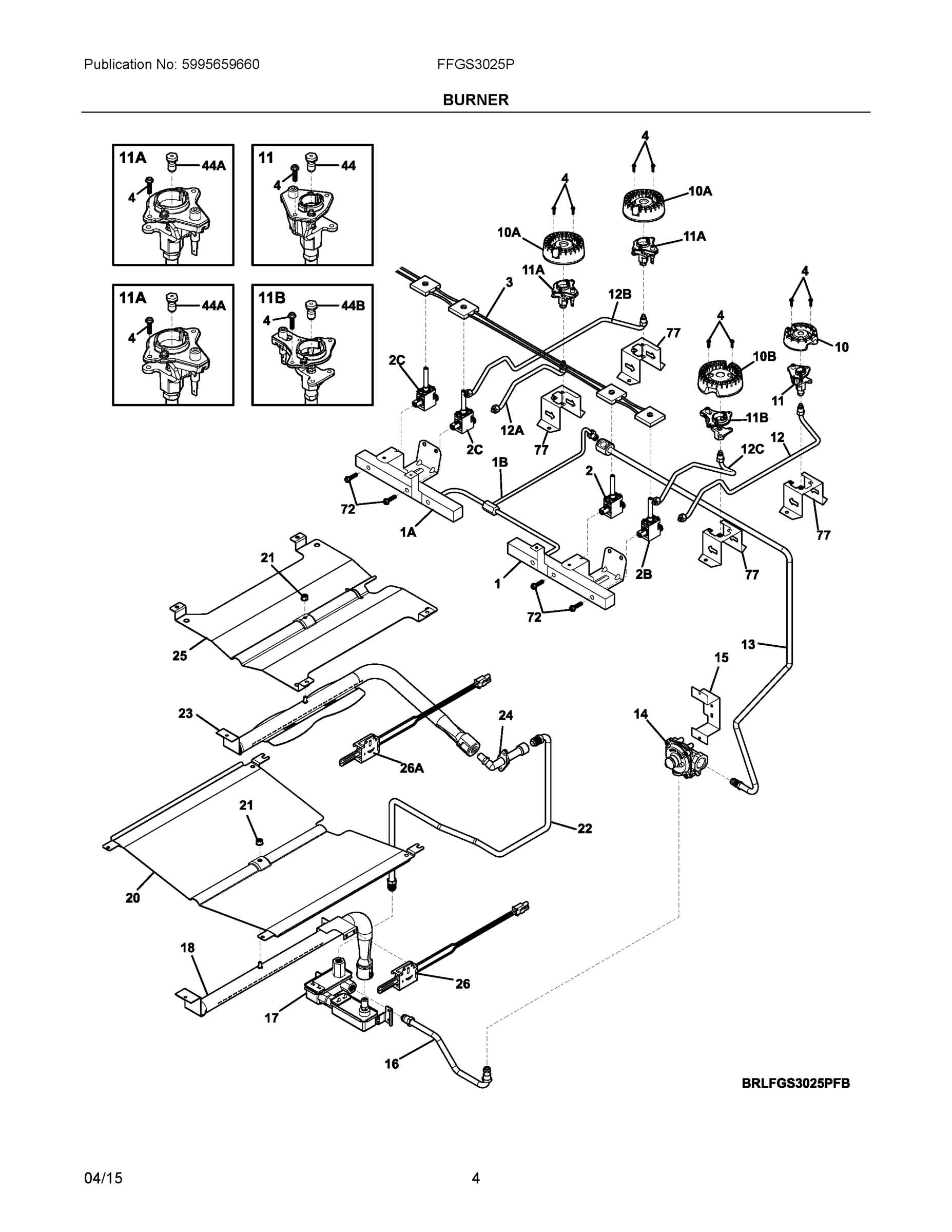

03 - BURNER

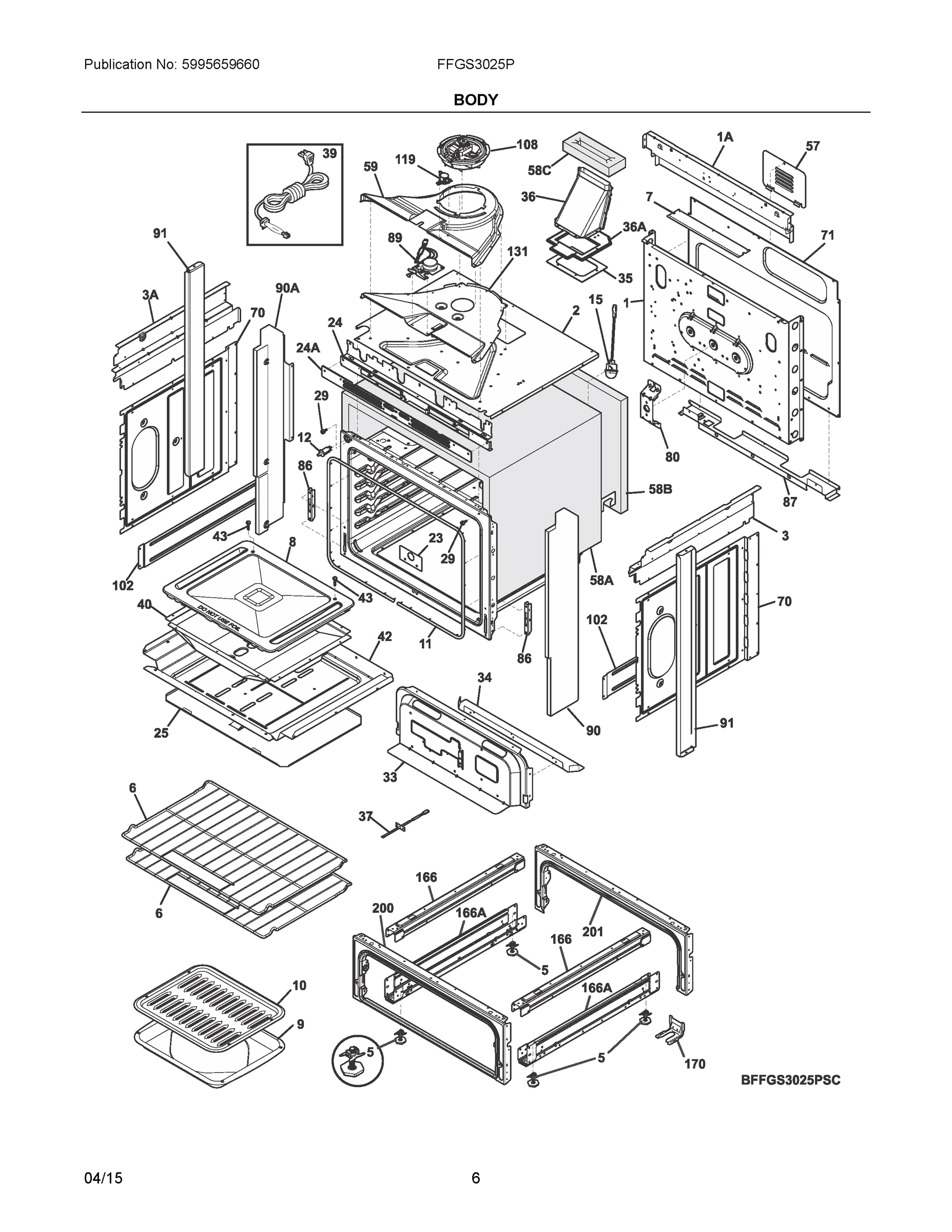

04 - BODY

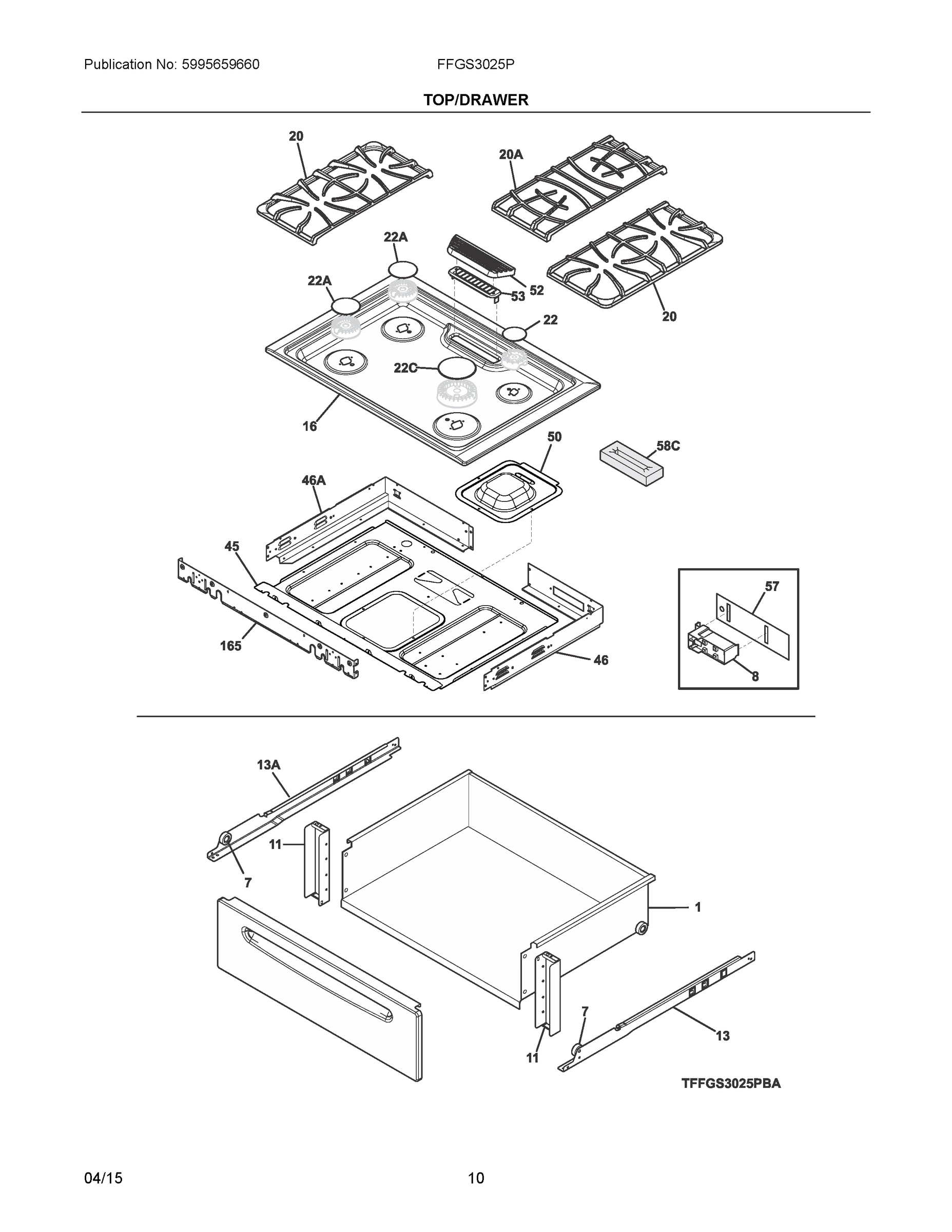

05 - TOP/DRAWER

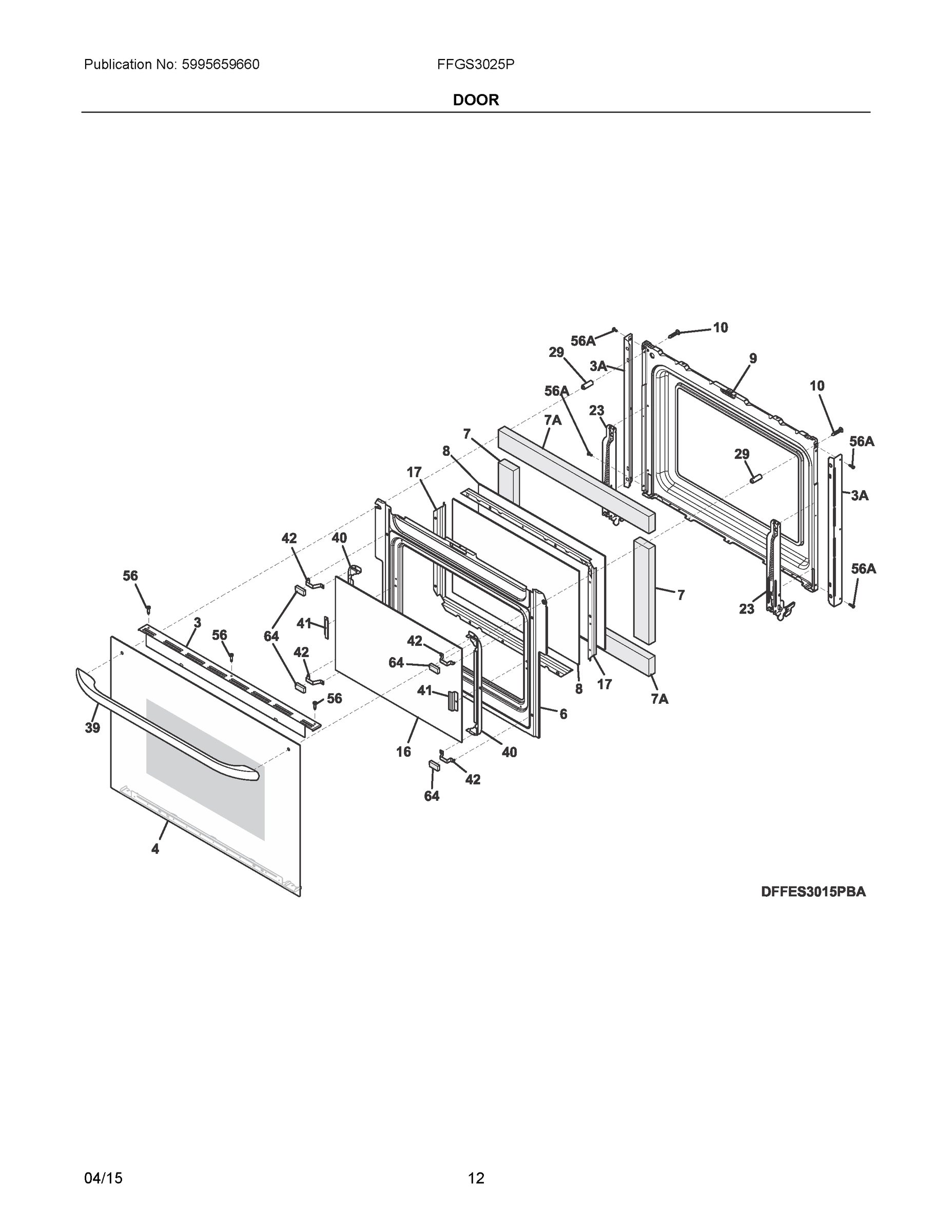

06 - DOOR

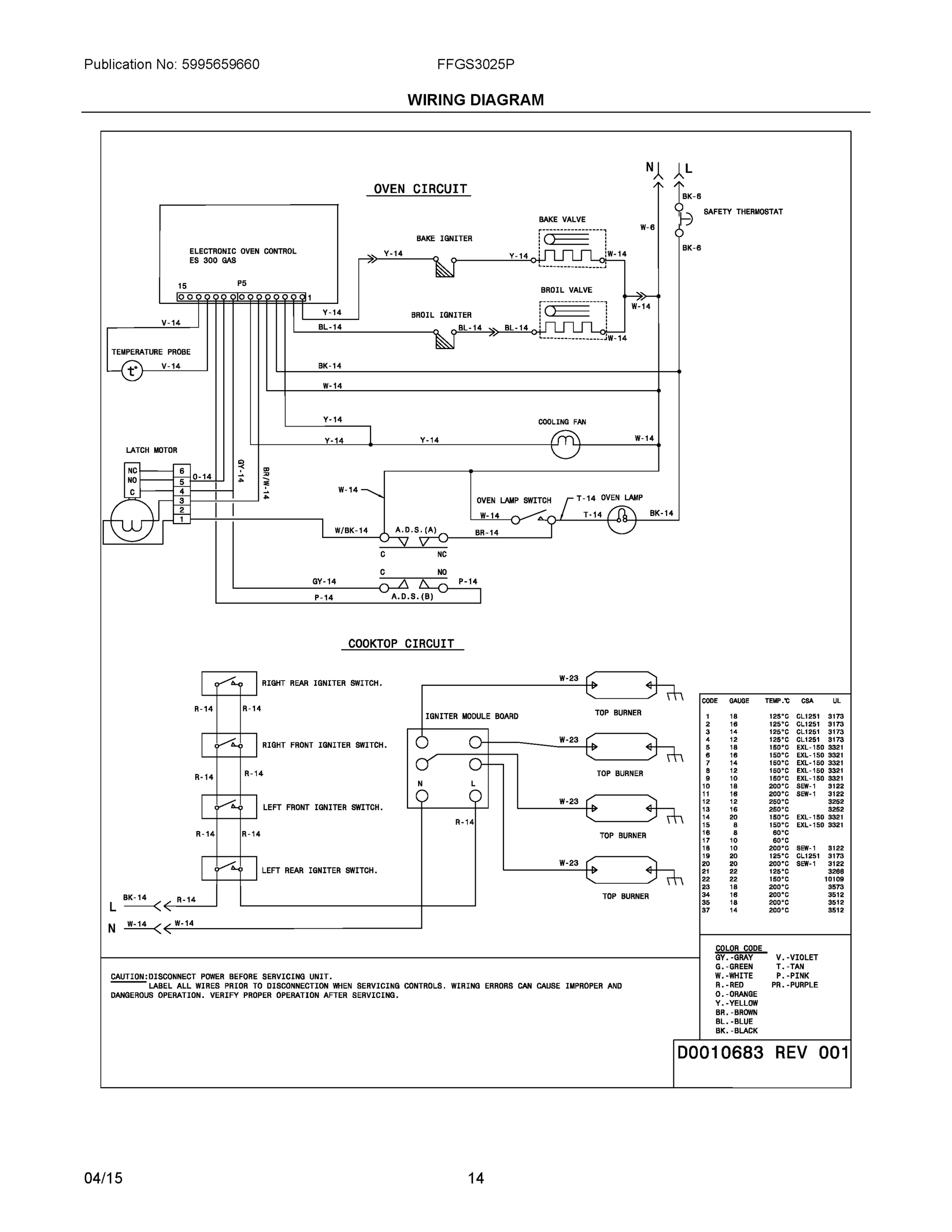

07 - WIRING DIAGRAM
Common parts from model Electrolux FFGS3025PBC GAS RANGE
2B
VALVE, TOP BURNER, 1500 BTU, BLUE STEM WCI 316271302 Contact Us For Availability
2C
VALVE, TOP BURNER, 1700 BTU, RED STEM WCI 316271301 Contact Us For Availability
3
WCI 5304491103 WCI 5304491103 Contact Us For Availability
3
WCI 139023301 WCI 139023301 Contact Us For Availability
3A
WCI 139014401 WCI 139014401 Contact Us For Availability
4
PANEL, DRAWER, BLACK, FRONT WCI 318298908 Contact Us For Availability
6
WCI 139011800 WCI 139011800 Contact Us For Availability
6
WCI 139006905 WCI 139006905 Contact Us For Availability
7
WCI 318372017 WCI 318372017 Contact Us For Availability
7A
WCI 318372016 WCI 318372016 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 318138801 Contact Us For Availability
10
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10
WCI 808190201 WCI 808190201 Contact Us For Availability
10A
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, 5K, W/HOLD WCI 316540800 Contact Us For Availability
11
WCI 807545502 WCI 807545502 Contact Us For Availability
11
BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, 9.5K, W/HO WCI 316540700 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, 14K, W/HOL WCI 316543206 Contact Us For Availability
13
CHANNEL, DRAWER, RH WCI 318018100 Contact Us For Availability
13A
CHANNEL, DRAWER, LH WCI 318018101 Contact Us For Availability
16
CONSOLE, ASSY., BLACK WCI 318299102 Contact Us For Availability
16
MAINTOP ASSEMBLY, BLACK WCI 318569262 Contact Us For Availability
16
TUBE, REGULATOR VALVE WCI 318289500 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
19A
PANEL, CONTROL MTG. WCI 318224402 Contact Us For Availability
20
CLOCK/TIMER, ELECTRONIC, ES300 WCI 316557141 Contact Us For Availability
20
WCI 139005100 WCI 139005100 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES300 WCI 316419141 Contact Us For Availability
20A
GRATE, BLACK, CENTER WCI 318560470 Contact Us For Availability
24
ELBOW, MIXER WCI 316409703 Contact Us For Availability
24A
WCI 139075001 WCI 139075001 Contact Us For Availability
25
BAFFLE, BROIL BURNER WCI 316401301 Contact Us For Availability
26
WCI 139013700 WCI 139013700 Contact Us For Availability
26A
WCI 139013701 WCI 139013701 Contact Us For Availability
29
WCI 139023400 WCI 139023400 Contact Us For Availability
35
RETAINER, CONTROL PANEL, BLACK WCI 318233720 Contact Us For Availability
36
WCI 316543818 WCI 316543818 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, BLACK WCI 316545300 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
WCI 318370602 WCI 318370602 Contact Us For Availability
44
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44A
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
44B
ORIFICE, TOP BURNER, 14K WCI 316527513 Contact Us For Availability
50
PANEL, SERVICE, FAN WCI 318578803 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
90
PANEL, FILLER, BLACK, RH WCI 318296904 Contact Us For Availability
108
MOTOR ASSEMBLY, COOLING FAN WCI 318575612 Contact Us For Availability
119
THERMOSTAT, SAFETY, 110C DEG WCI 807144901 Contact Us For Availability
170
WCI 5304486410 WCI 5304486410 Contact Us For Availability
200
FRAME & WHEEL ASSEMBLY, BLACK WCI 318335600 Contact Us For Availability
201
WCI 318298233 WCI 318298233 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
CONVERSION KIT, LP WCI 318565404 Contact Us For Availability
NI
WCI 808041201 WCI 808041201 Contact Us For Availability
NI
WCI 5304497401 WCI 5304497401 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
SPACER WCI 318531701 Contact Us For Availability
NIB
SCREW, TRUSS SQDR, 8A X 1" WCI 5303289910 Contact Us For Availability
× ![]()
