Model Electrolux FFGF3051TSB RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

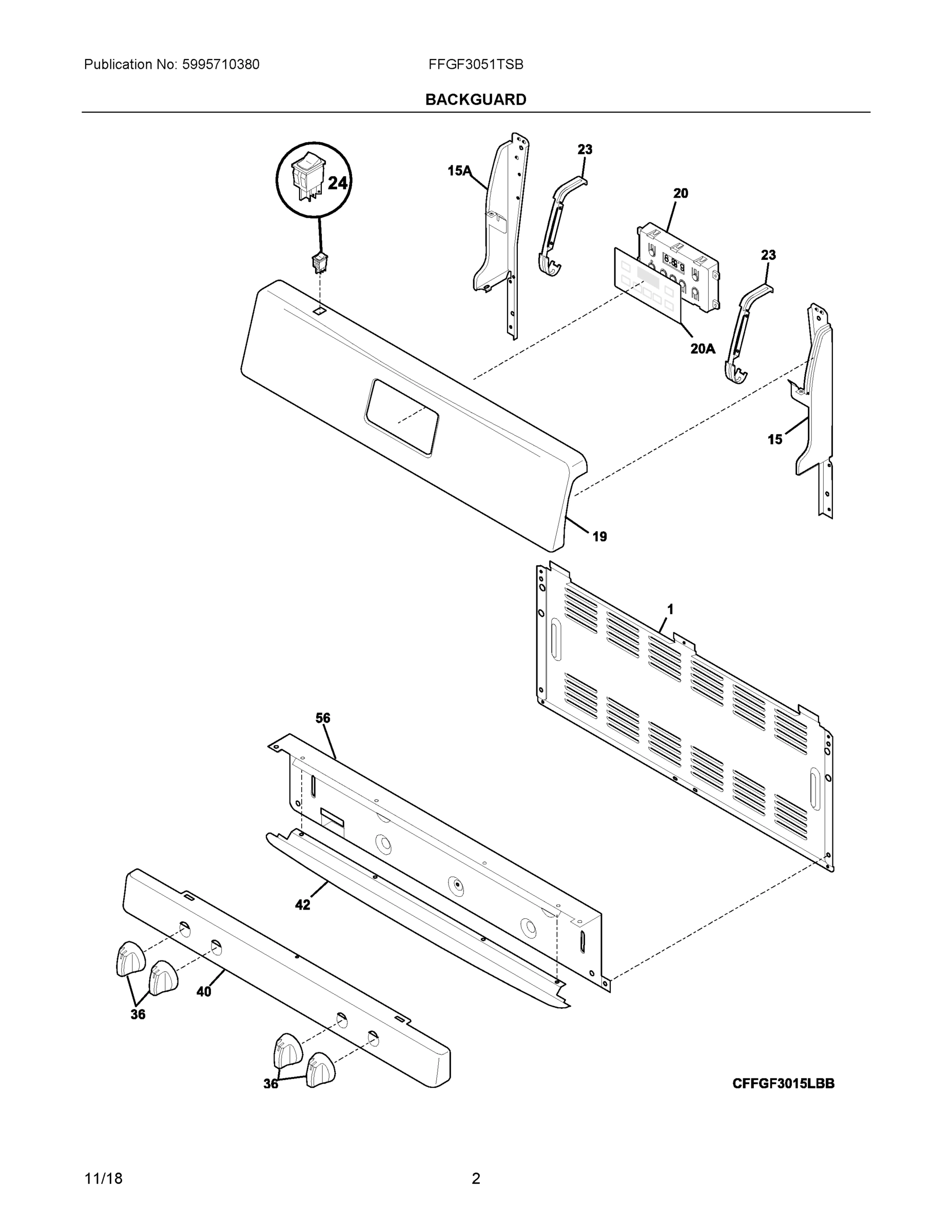

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FFGF3051TSB RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
PANEL, MAIN BACK WCI 316029419 Contact Us For Availability
1
CARRIAGE, LOW BROIL WCI 316110201 Contact Us For Availability
2
VALVE, TOP BURNER, BLUE STEM, 1125BTU WCI 5304506549 Contact Us For Availability
2
LINER, LOW BROIL WCI 316236401 Contact Us For Availability
2A
VALVE, TOP BURNER, BLACK STEM, 500BTU WCI 5304506547 Contact Us For Availability
2A
SHIELD, BROILER WCI 316541500 Contact Us For Availability
2C
VALVE, TOP BURNER, GREEN STEM, 850BTU WCI 5304506548 Contact Us For Availability
2D
VALVE, TOP BURNER, WHITE STEM, 1500BTU WCI 5304506550 Contact Us For Availability
3
HARNESS, IGNITION WCI 5304506555 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE AND FOI WCI 5303935398 Contact Us For Availability
4
GLASS ASSEMBLY, OVEN DOOR, W/TAPE, OUTER WCI 316453048 Contact Us For Availability
4
DRAWER PANEL, ASSY, STAINLESS, W/ OVERLAY WCI 316581603 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
8
SPARK MODULE WCI 808608802 Contact Us For Availability
8
GLASS, OVEN DOOR, INNER WCI 5304503232 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316495901 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316230635 Contact Us For Availability
10
SCREW, WAFER HEAD, 10-24 X 1.375, HANDLE MTG. WCI 316001013 Contact Us For Availability
10
BURNER, SEALED, 12K WCI 316438000 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10C
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY .,, TOP BURNER, RIGHT FR WCI 316536621 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536612 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
13
GLIDE, LOW BROIL, OUTER/RH & LH, (2) WCI 316111503 Contact Us For Availability
13
TUBE, 3/8, ALUMINUM, RGLTR TO MANF, W/FITTING WCI 5304513126 Contact Us For Availability
13A
GLIDE-LOW BROIL, INNER WCI 316534200 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
15A
CAP-END, BLACK, LH WCI 316602105 Contact Us For Availability
16
TUBE, VALVE TO REGUL, 3/8 WCI 316065006 Contact Us For Availability
17
VALVE, SAFETY WCI 3203459 Contact Us For Availability
17
SPACER, DOOR GLASS WCI 5304520152 Contact Us For Availability
18
BURNER, OVEN WCI 316114300 Contact Us For Availability
19
IGNITOR, OVEN BURNER WCI 5304509706 Contact Us For Availability
20
GRATE, BURNER, BLACK, SIDE, (2) WCI 807327101 Contact Us For Availability
20
BAFFLE, OVEN BURNER WCI 316496001 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK WCI 316220729 Contact Us For Availability
20A
GRATE, BURNER, BLACK, CENTER WCI 807412601 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 316575924 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
36
KNOB, TOP VALVE, BLACK WCI 5304507386 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316233903 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
CORD, ELECTRIC POWER WCI 5304515659 Contact Us For Availability
42
TRIM, EXTRUSION, BLACK WCI 316416204 Contact Us For Availability
44A
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44B
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
47
LP CONVERSION KIT, W/INSTRUCTIONS, OPTIONAL, WCI GRLP4 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316491201 Contact Us For Availability
56
SHIELD, BACKGUARD, INNER WCI 316230708 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
73
BASE, LOW BROIL WCI 316109902 Contact Us For Availability
85
RACK, LOW BROIL WCI 316115601 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
HARNESS, WIRING, MAIN WCI 5304503371 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
WCI 5303271648 WCI 5303271648 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
× ![]()
