Model Electrolux FFEW2425QSB WALL OVEN, ELECTRIC, SINGLE – Common Parts & Diagrams

Common parts from model Electrolux FFEW2425QSB WALL OVEN, ELECTRIC, SINGLE

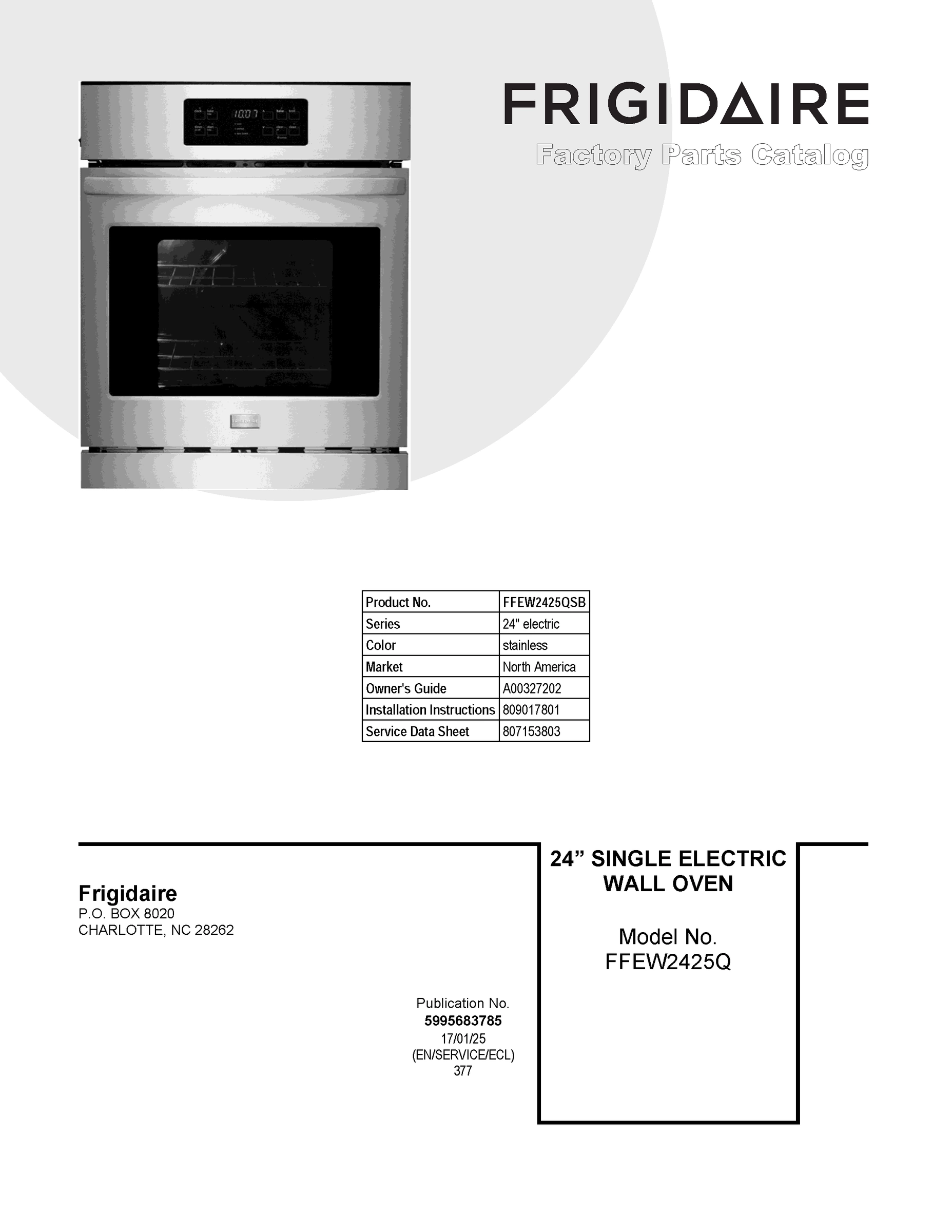

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 View Details $19.47

View on Model

8

GLASS, DOOR, INNER, (2), HRC2 WCI 139085800 Contact Us For Availability

View on Model

9

PAN, BROILER OPTIONAL ACCESSORY WCI 316081900 Contact Us For Availability

View on Model

10

5304414648 Frigidaire Oven Screw In Stock WCI 5304414648 View Details $9.06

View on Model

10

INSERT, BROILER PAN OPTIONAL ACCESSORY WCI 316082000 Contact Us For Availability

View on Model

11

807108501 Frigidaire Oven Seal Backorder WCI 807108501 View Details $51.99

View on Model

12

5304527841 Frigidaire Oven Rocker Switch (Bla In Stock WCI 5304527841 View Details $6.80

View on Model

13

DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK/STAI WCI 5304504224 Contact Us For Availability

View on Model

15

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 View Details $13.57

View on Model

19

CONTROL PANEL, ASSEMBLY, BLACK/STAINLESS WCI 5304504310 Contact Us For Availability

View on Model

20

5304513048 Frigidaire Controller Backorder WCI 5304513048 View Details $188.29

View on Model

20A

316419141 Frigidaire Oven Overlay In Stock WCI 316419141 View Details $33.49

View on Model

23

316575947 Frigidaire Oven Hinge Assembly In Stock WCI 316575947 View Details $42.13

View on Model

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 View Details $7.69

View on Model

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 View Details $27.16

View on Model

39

HANDLE, DOOR, STAINLESS WCI 5304498070 Contact Us For Availability

View on Model

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 View Details $11.78

View on Model

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 View Details $8.15

View on Model

42

318382302 Frigidaire Bracket Backorder WCI 318382302 View Details $30.36

View on Model

56

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 View Details $9.06

View on Model

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 View Details $54.23

View on Model

66

139203500 Frigidaire Oven Element Backorder WCI 139203500 View Details $76.18

View on Model

67

139086600 Frigidaire Oven Element Backorder WCI 139086600 View Details $67.23

View on Model

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 View Details $20.91

View on Model

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 View Details $42.55

View on Model

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 View Details $12.67

View on Model

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 View Details $15.40

View on Model

89

139021302 Frigidaire Oven Motor Backorder WCI 139021302 View Details $90.76

View on Model

90

139905004 Frigidaire Oven Trim Backorder WCI 139905004 View Details $57.79

View on Model

99

139032900 Frigidaire Bracket Backorder WCI 139032900 View Details $27.16

View on Model

108

807123002 Frigidaire Oven Motor Assembly Rang In Stock WCI 807123002 View Details $16.73

View on Model

119

318578506 Frigidaire Oven High Limit Thermost In Stock WCI 318578506 View Details $32.71

View on Model

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 View Details $27.62

View on Model

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 View Details $46.16

View on Model

NI

316021105 Frigidaire Oven Screw Backorder WCI 316021105 View Details $7.23

View on Model

NI

316021109 Frigidaire Oven Screw In Stock WCI 316021109 View Details $9.06

View on Model

NI

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 View Details $11.32

View on Model

NI

5304470882 Frigidaire Oven Screw Backorder WCI 5304470882 View Details $8.60

View on Model

NI

5304498106 Frigidaire Oven Harness Backorder WCI 5304498106 View Details $114.69

View on Model

NI

5304506983 Frigidaire Harness Assembly Backorder WCI 5304506983 View Details $78.91

View on Model

NIA

316001017 Frigidaire Screw Backorder WCI 316001017 View Details $1.83

View on Model

NIA

316205500 Frigidaire Oven Nut In Stock WCI 316205500 View Details $7.25

View on Model

NIA

316418900 Frigidaire Oven Screw Backorder WCI 316418900 View Details $9.06

View on Model

NIA

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 View Details $33.97

View on Model

NIB

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 View Details $3.61

View on Model

×
