Model Electrolux FFET3026TSB WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

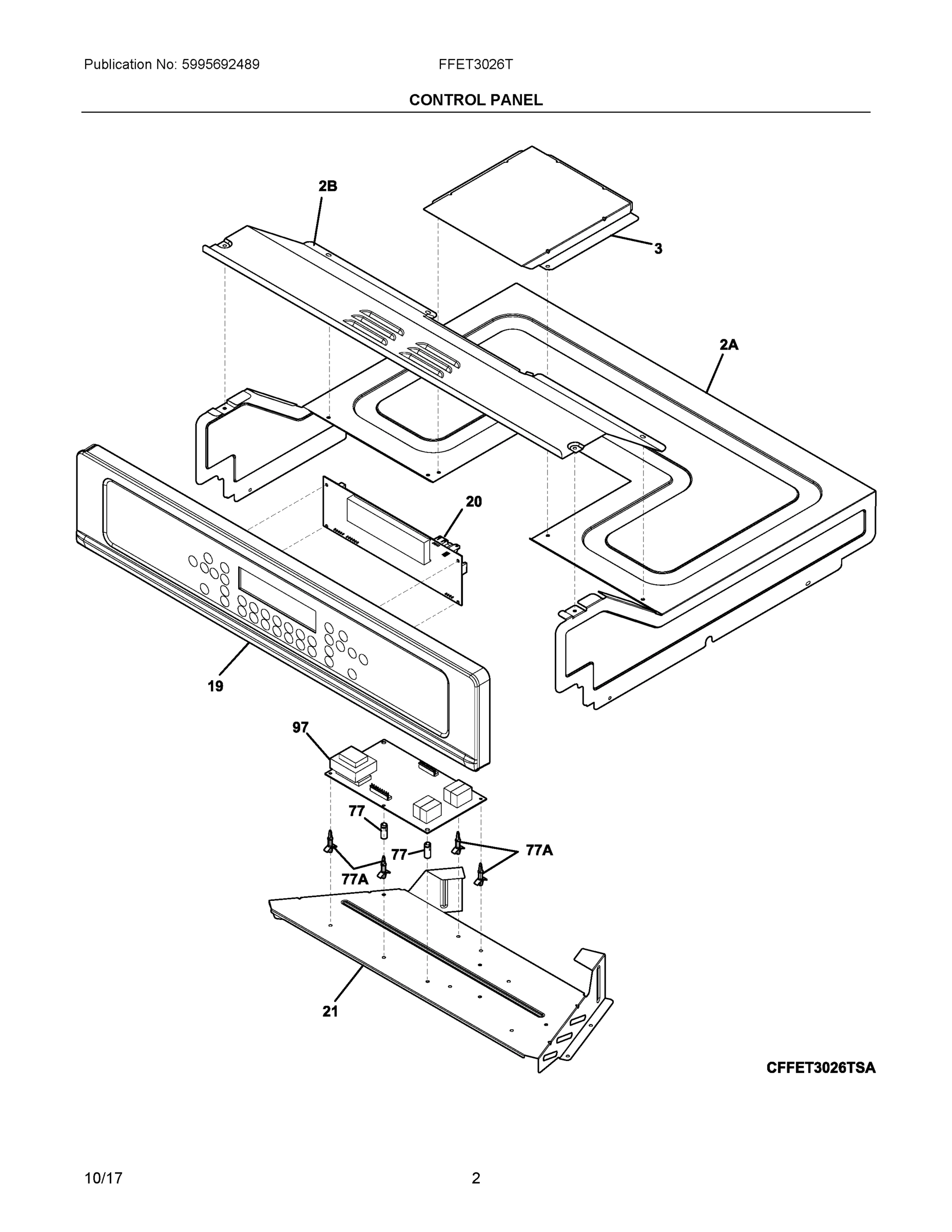

02 - CONTROL PANEL
03 - UPPER OVEN
04 - LOWER OVEN
05 - DOORS
06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux FFET3026TSB WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
2A
COVER, OVEN TOP WCI 139017901 Contact Us For Availability
2B
COVER, CONTROL ACCESS WCI 139017801 Contact Us For Availability
2B
HOUSING, FAN, AIR DIVERTER WCI 139038901 Contact Us For Availability
3A
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED WCI 139014401 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011800 Contact Us For Availability
6
BAFFLE, DOOR WCI 139006905 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, DOOR WCI 318372016 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139000411 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESSORY WCI 318138801 Contact Us For Availability
10
SCREW, 10-24 X 3/8 WCI 5303311174 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545502 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK WCI 5304510851 Contact Us For Availability
13A
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, LOWER WCI 5304510854 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264731 Contact Us For Availability
19
CONTROL PANEL ASSEMBLY, STEEL/GLASS, STAINLES WCI 5304510857 Contact Us For Availability
20
WCI 5304513223 WCI 5304513223 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
42
BRACKET, GLASS RETAINER, (4) WCI 318382302 Contact Us For Availability
56
TRIM, SIDE FILLER, BLACK, RH WCI 318903676 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
56A
TRIM, SIDE FILLER, BLACK, LH WCI 318903677 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
77
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139020100 Contact Us For Availability
97
BOARD, RELAY, DUAL OVEN WCI 316443913 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256201 Contact Us For Availability
108
MOTOR ASSEMBLY, COOLING FAN WCI 318575612 Contact Us For Availability
108
BLOWER ASSEMBLY, COOLING, CROSS FLOW, W/BAFFL WCI 139038301 Contact Us For Availability
108A
BRACKET, FAN MTG., CROSS FLOW WCI 139023900 Contact Us For Availability
127
TUBE ASSEMBLY, VENT, W/CATALYST WCI 139042600 Contact Us For Availability
131
DUCT, COOLING FAN, LOWER WCI 139027700 Contact Us For Availability
264
WCI 139007801 WCI 139007801 Contact Us For Availability
264
TRIM, VENT, BLACK, FRONT WCI 139017601 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 318165800 WCI 318165800 Contact Us For Availability
NI
SCREW, WCI 316021105 Contact Us For Availability
NI
WCI 5304506955 WCI 5304506955 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIB
WCI 5303289910 WCI 5303289910 Contact Us For Availability
× ![]()
