Model Electrolux FFES3026TWB RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH – Common Parts & Diagrams

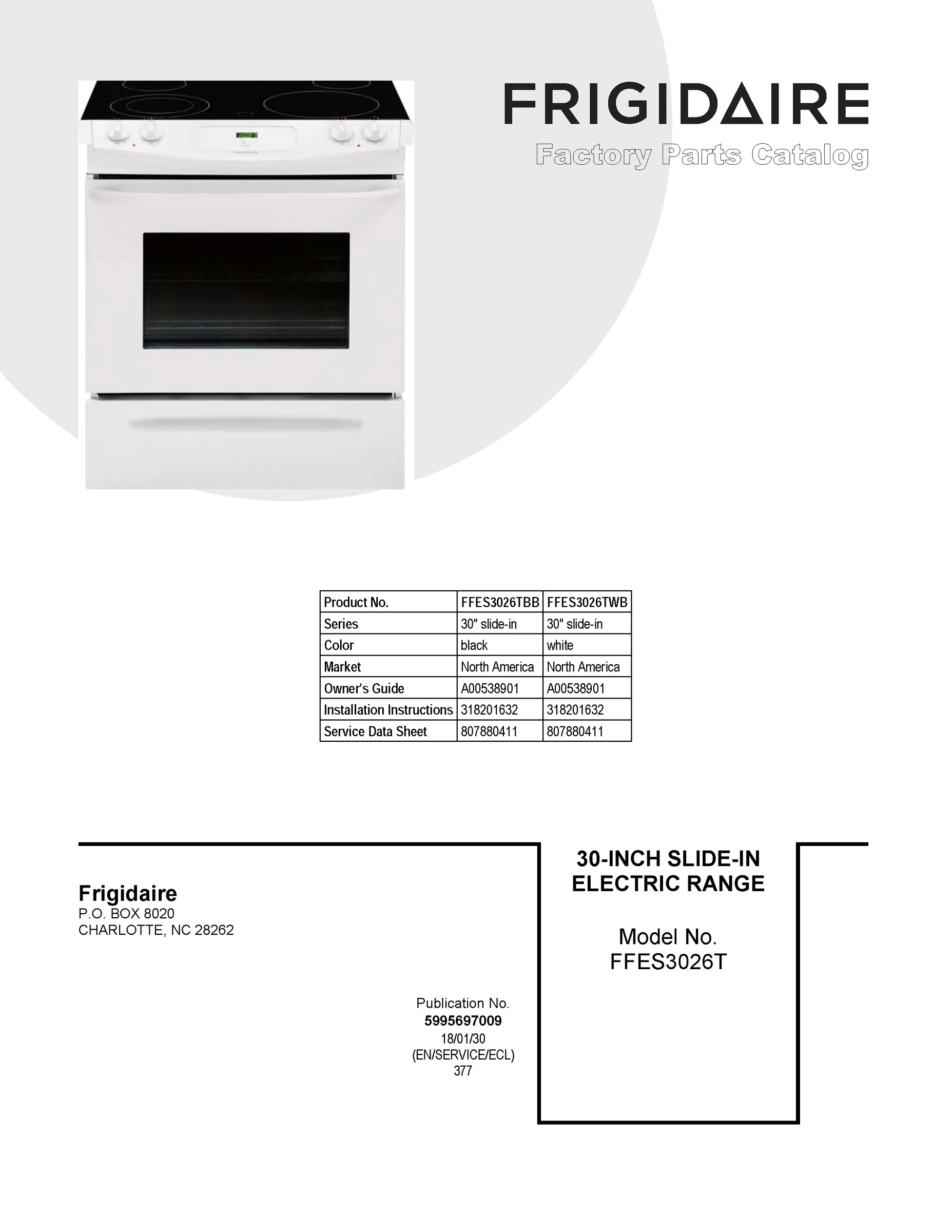

01 - COVER SHEET

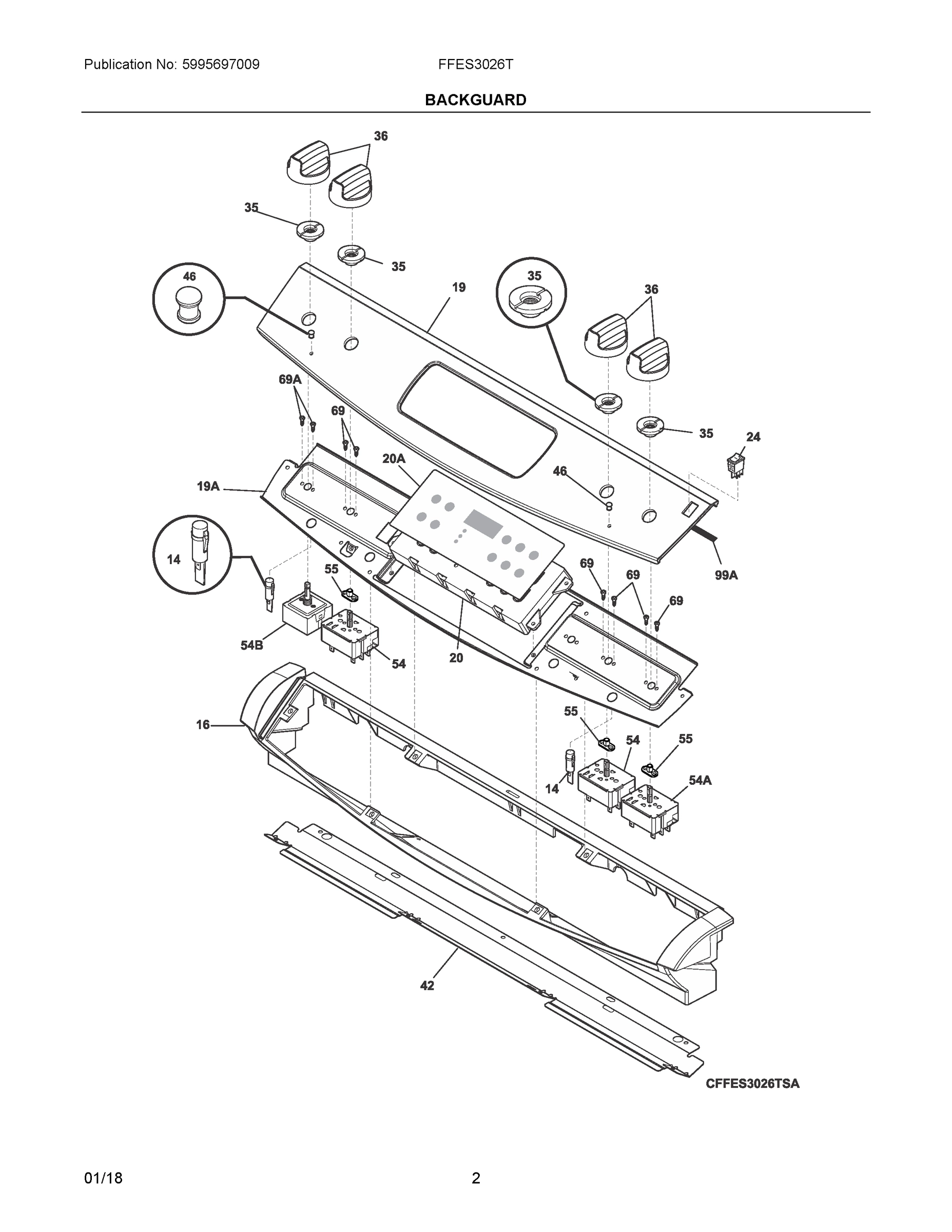

02 - BACKGUARD

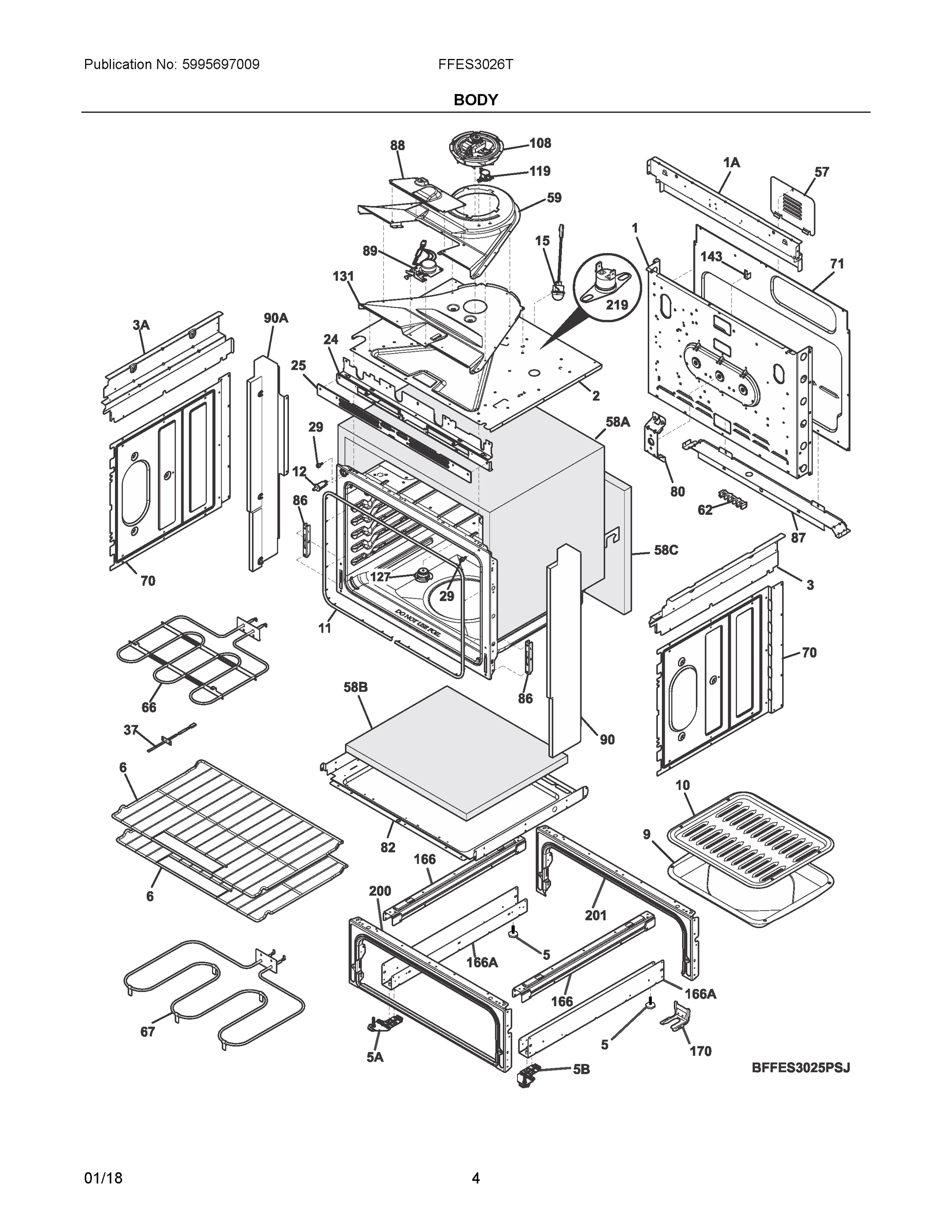

03 - BODY

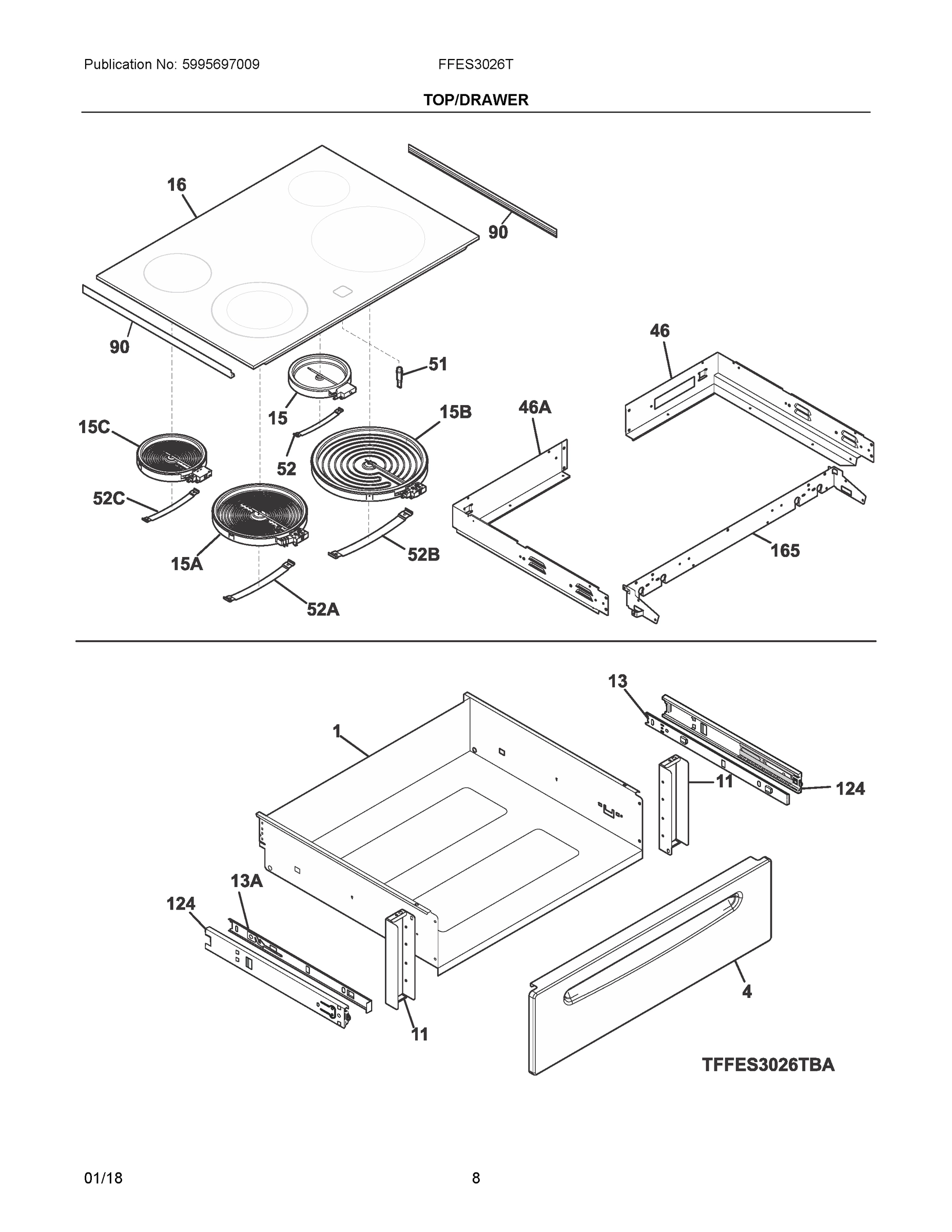

04 - TOP/DRAWER

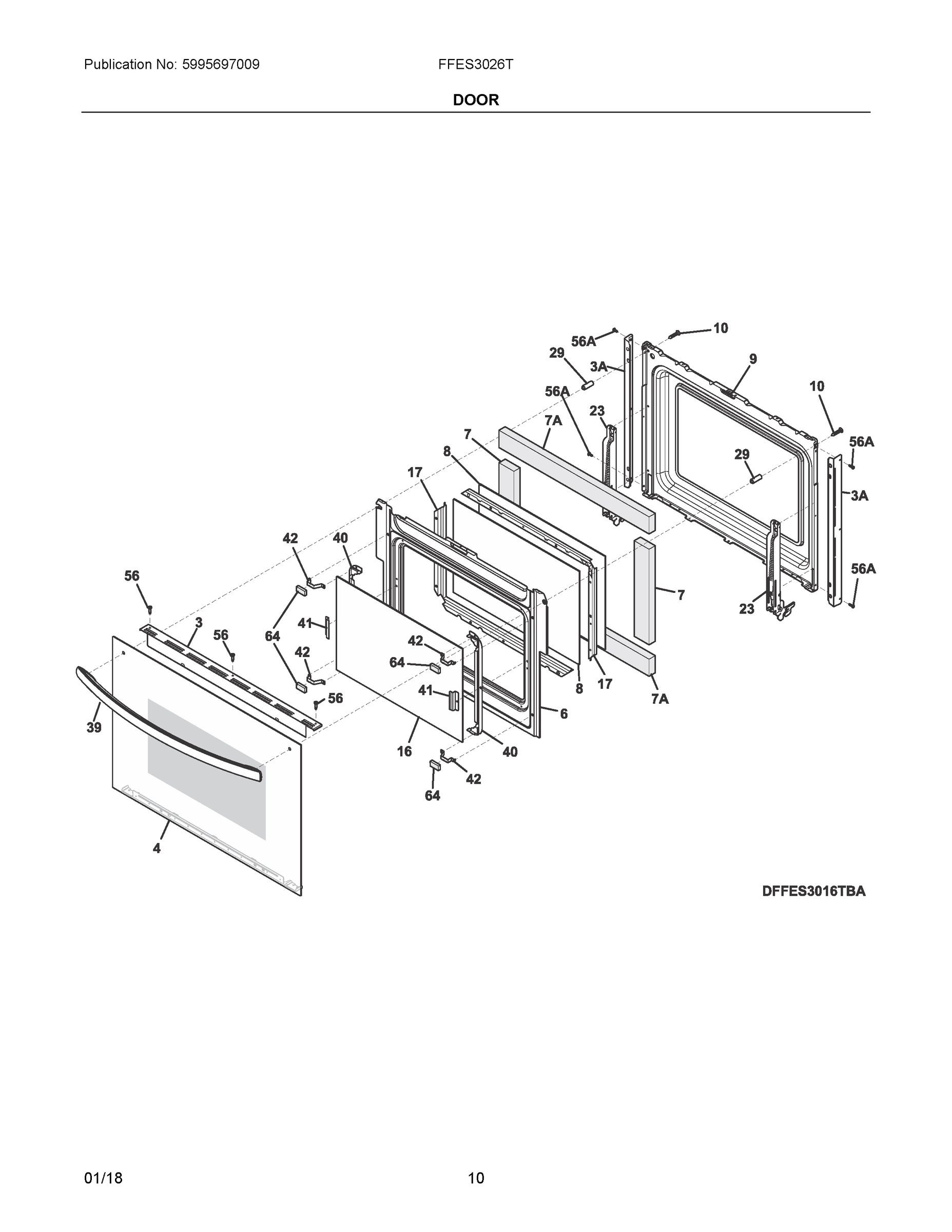

05 - DOOR

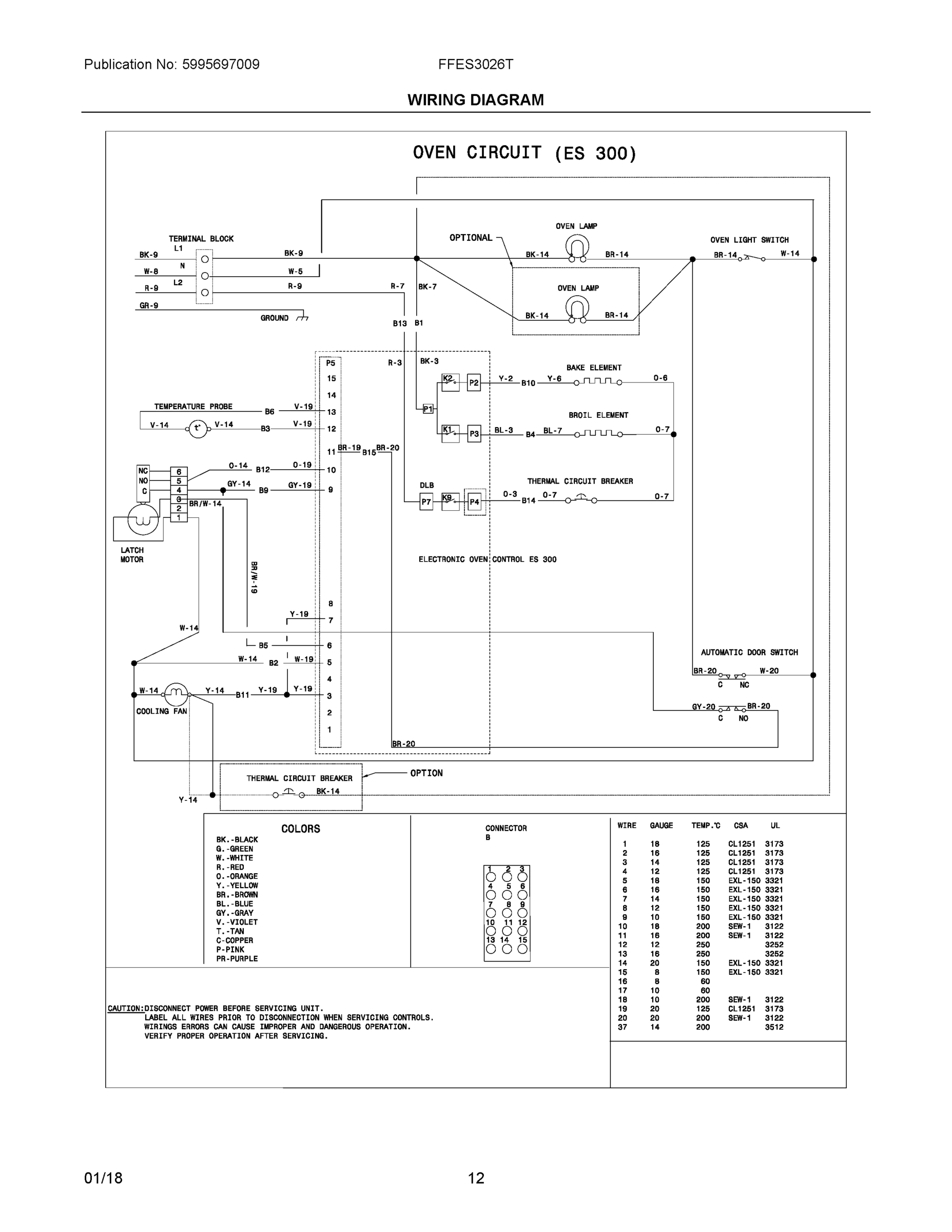

06 - WIRING DIAGRAM

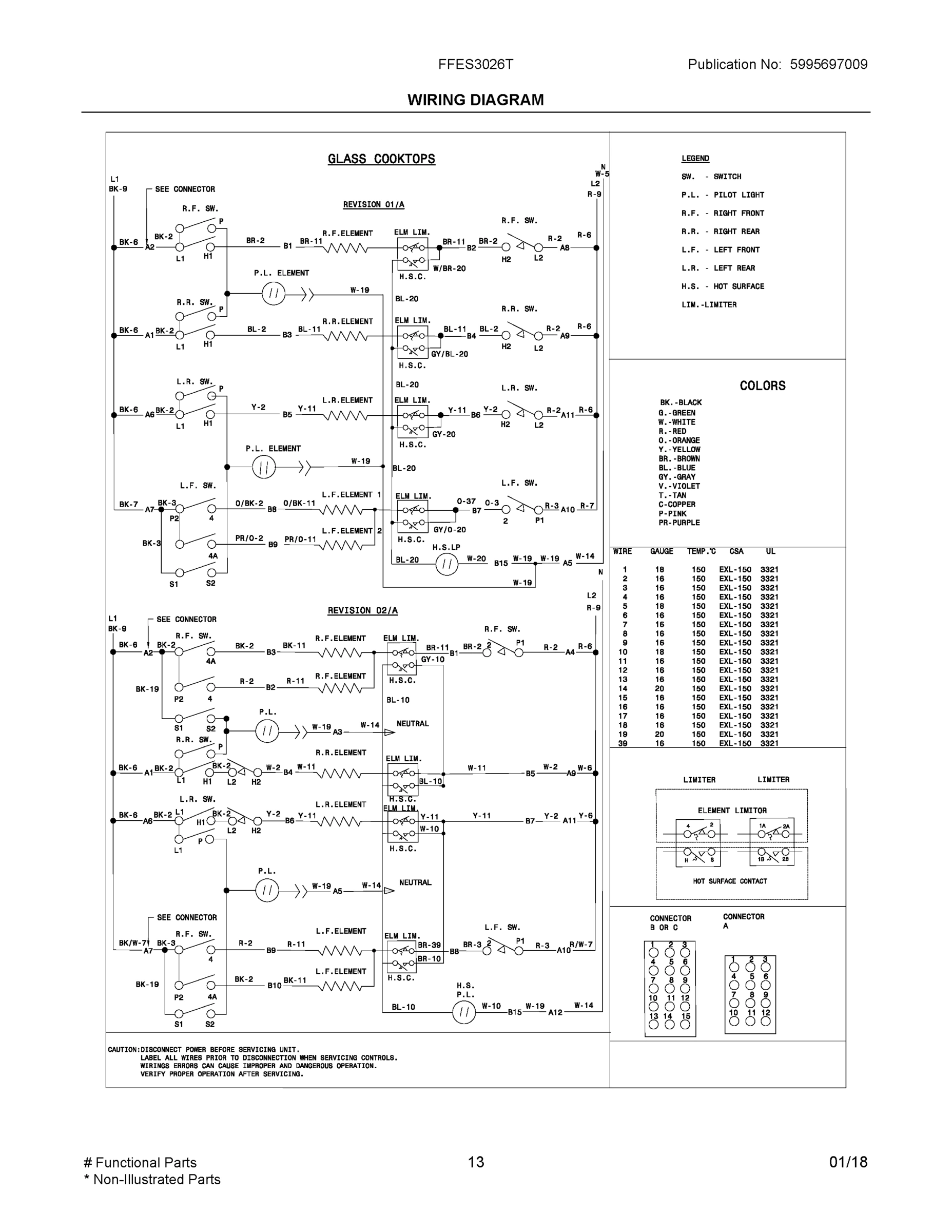

07 - WIRING DIAGRAM
Common parts from model Electrolux FFES3026TWB RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH
1
DRAWER, BLACK WCI 318107317 Contact Us For Availability
3
TRIM, OVEN DOOR, BLACK, UPPER WCI 139023301 Contact Us For Availability
3A
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED WCI 139014401 Contact Us For Availability
4
GLASS ASSEMBLY, DOOR, WHITE, W/TRIM WCI 5304510849 Contact Us For Availability
4
PANEL, DRAWER, WHITE, FRONT WCI 318298906 Contact Us For Availability
5
LEVELING LEG WCI 316498903 Contact Us For Availability
5A
LEG ASSEMBLY, LEVELING, LH, FRONT WCI 5304511891 Contact Us For Availability
5B
LEG ASSEMBLY, LEVELING, RH, FRONT WCI 5304511892 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011800 Contact Us For Availability
6
BAFFLE, DOOR WCI 139006905 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, DOOR WCI 318372016 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139000405 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
SCREW, HANDLE MTG., (2) WCI 808190201 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545502 Contact Us For Availability
11
BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 318259504 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 318259505 Contact Us For Availability
14
LIGHT, INDICATOR, NATURAL, (4) WCI 318044831 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15B
ELEMENT, SURFACE, 12", 2700W WCI 316291200 Contact Us For Availability
15C
ELEMENT, SURFACE, 7", 1500W WCI 318198851 Contact Us For Availability
16
WCI 5304514367 WCI 5304514367 Contact Us For Availability
16
CONSOLE, ASSY., WHITE WCI 318299100 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264731 Contact Us For Availability
19
CONTROL PANEL, ASSEMBLY, WHITE WCI 5304512969 Contact Us For Availability
19A
PANEL, CONTROL MTG. WCI 318224401 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES300 WCI 5304511028 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES300 WCI 316419144 Contact Us For Availability
25
COVER, VENT TRIM, BLACK WCI 139075001 Contact Us For Availability
29
SPACER, DOOR HANDLE, (2) WCI 139023400 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
36
KNOB, CONTROL, WHITE WCI 5304511056 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
42
BRACKET, GLASS RETAINER, (4) WCI 318382302 Contact Us For Availability
46
LENS, INDICATOR LIGHT WCI 318228301 Contact Us For Availability
52
SPRING, ELEMENT MTG, SMALL WCI 318122006 Contact Us For Availability
52A
SPRING, ELEMENT MTG, 3000W WCI 318122010 Contact Us For Availability
52B
SPRING, ELEMENT MTG, 1200W/1800W WCI 318122011 Contact Us For Availability
54
SWITCH, SURFACE ELEMENT, SMALL, (2) WCI 318293830 Contact Us For Availability
54A
SWITCH, SURFACE ELEMENT, LARGE WCI 318293831 Contact Us For Availability
54B
SWITCH, INFINITE, DUAL WCI 318191023 Contact Us For Availability
55
BUSHING, SWITCH WCI 318402901 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
67
ELEMENT, BAKE, 6 PASS, 2750W WCI 139027501 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
90
CHANNEL, GLASS PROTECTOR, (2) WCI 318368001 Contact Us For Availability
99A
GASKET, DARK GREY WCI 318223900 Contact Us For Availability
108
MOTOR ASSEMBLY, COOLING FAN WCI 318575612 Contact Us For Availability
119
THERMOSTAT, SAFETY, 110C DEG WCI 807144901 Contact Us For Availability
124
GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability
127
TUBE ASSEMBLY, VENT, W/CATALYST WCI 139042600 Contact Us For Availability
131
DUCT, COOLING FAN, LOWER WCI 139027700 Contact Us For Availability
166
WCI 318298410 WCI 318298410 Contact Us For Availability
166A
WCI 5304511884 WCI 5304511884 Contact Us For Availability
170
WCI 5304486410 WCI 5304486410 Contact Us For Availability
200
WCI 318298232 WCI 318298232 Contact Us For Availability
201
WCI 318298233 WCI 318298233 Contact Us For Availability
219
WCI 318005229 WCI 318005229 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5304503336 WCI 5304503336 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIA
WCI 318531701 WCI 318531701 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIC
WCI 318264200 WCI 318264200 Contact Us For Availability
NID
WCI 5303289910 WCI 5303289910 Contact Us For Availability
× ![]()
