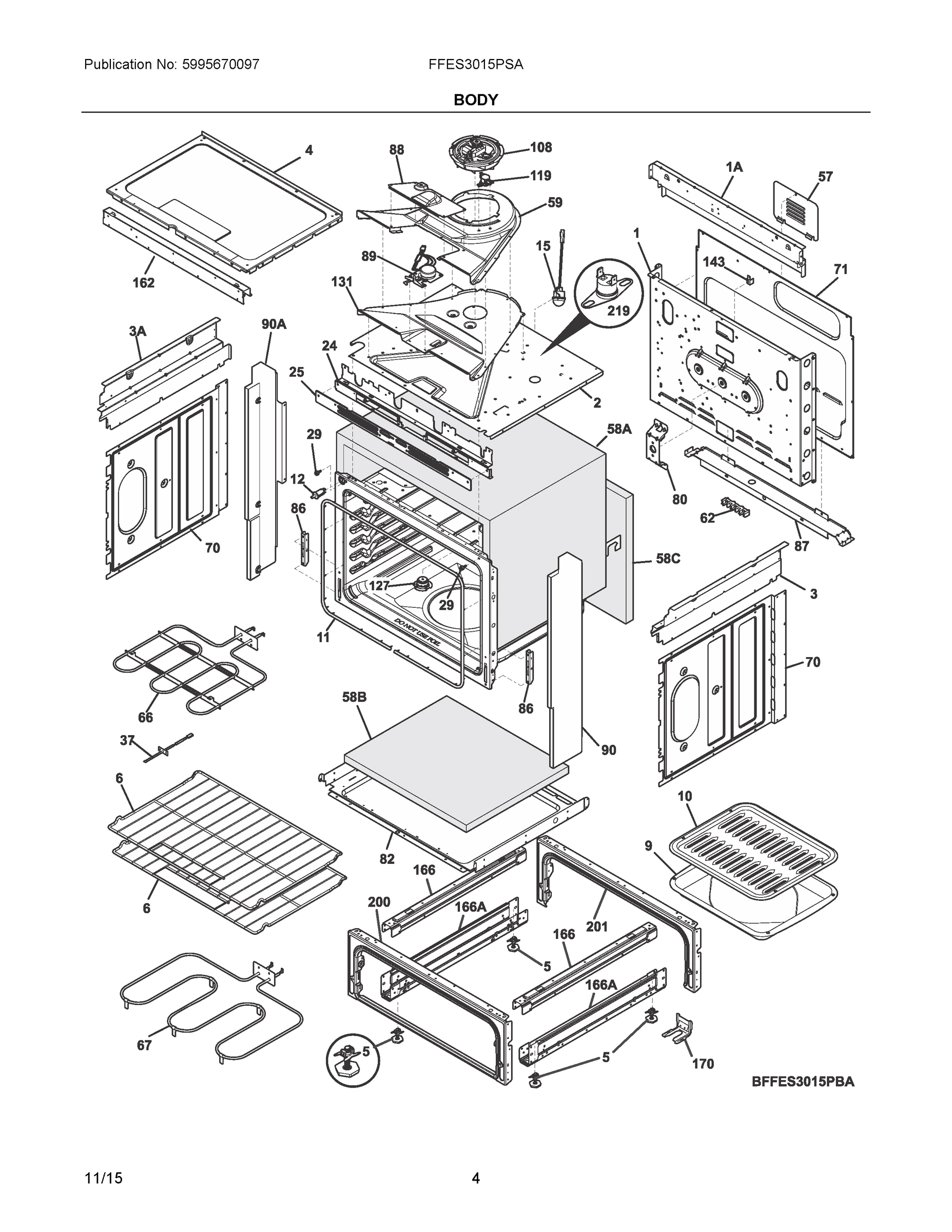

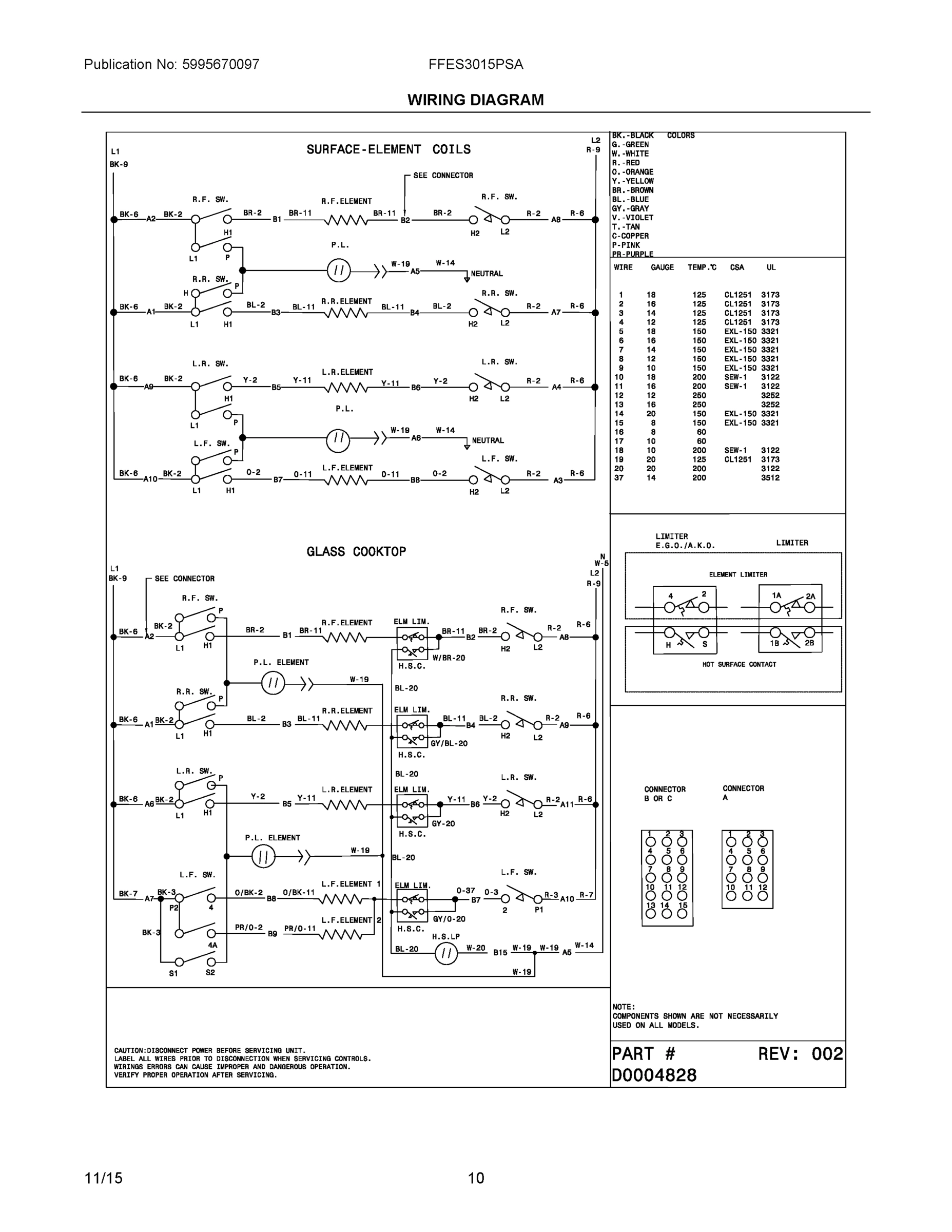

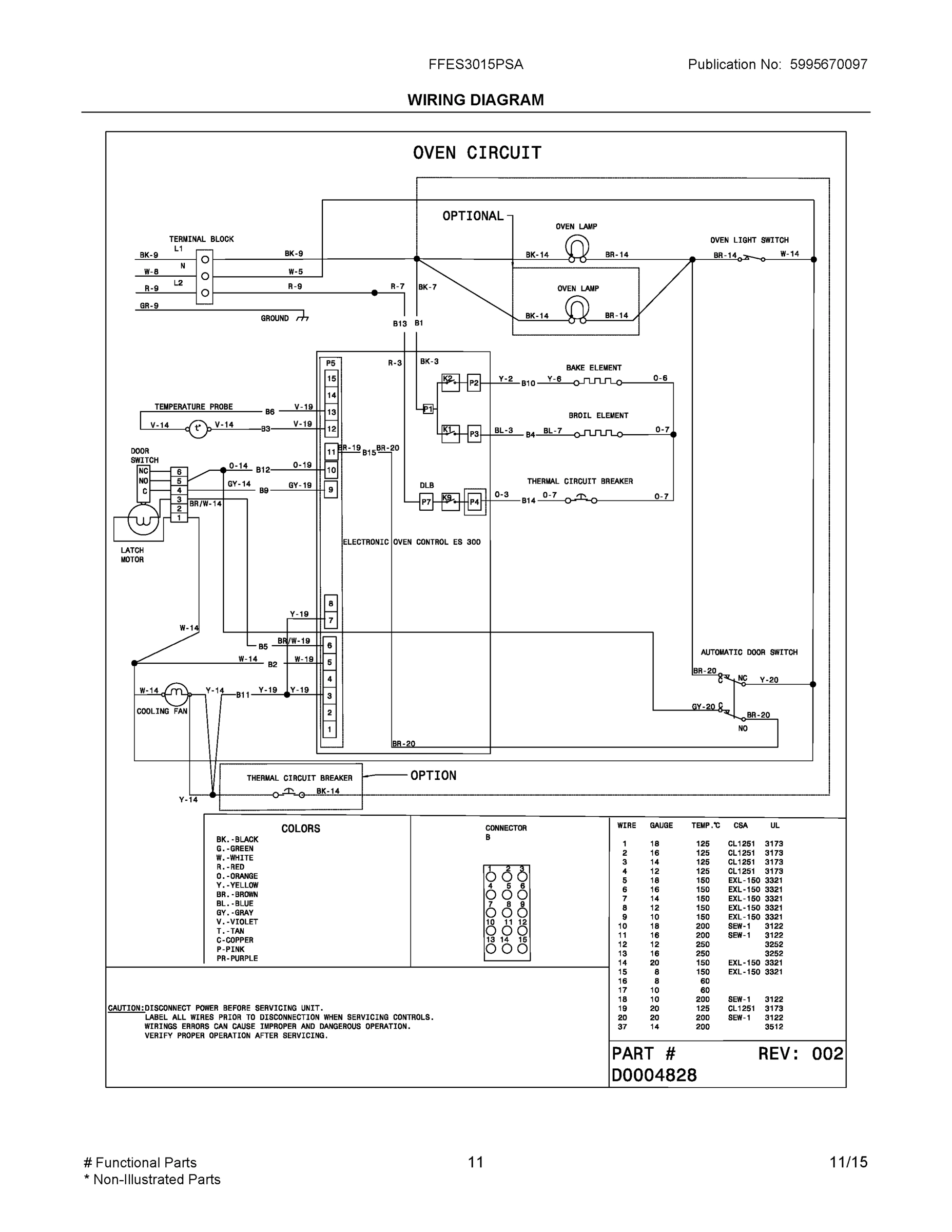

Model Electrolux FFES3015PSA ELECTRIC RANGE – Common Parts &amp; Diagrams

2

139028107 Frigidaire Shield Backorder WCI 139028107 $38.35

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $19.15

4

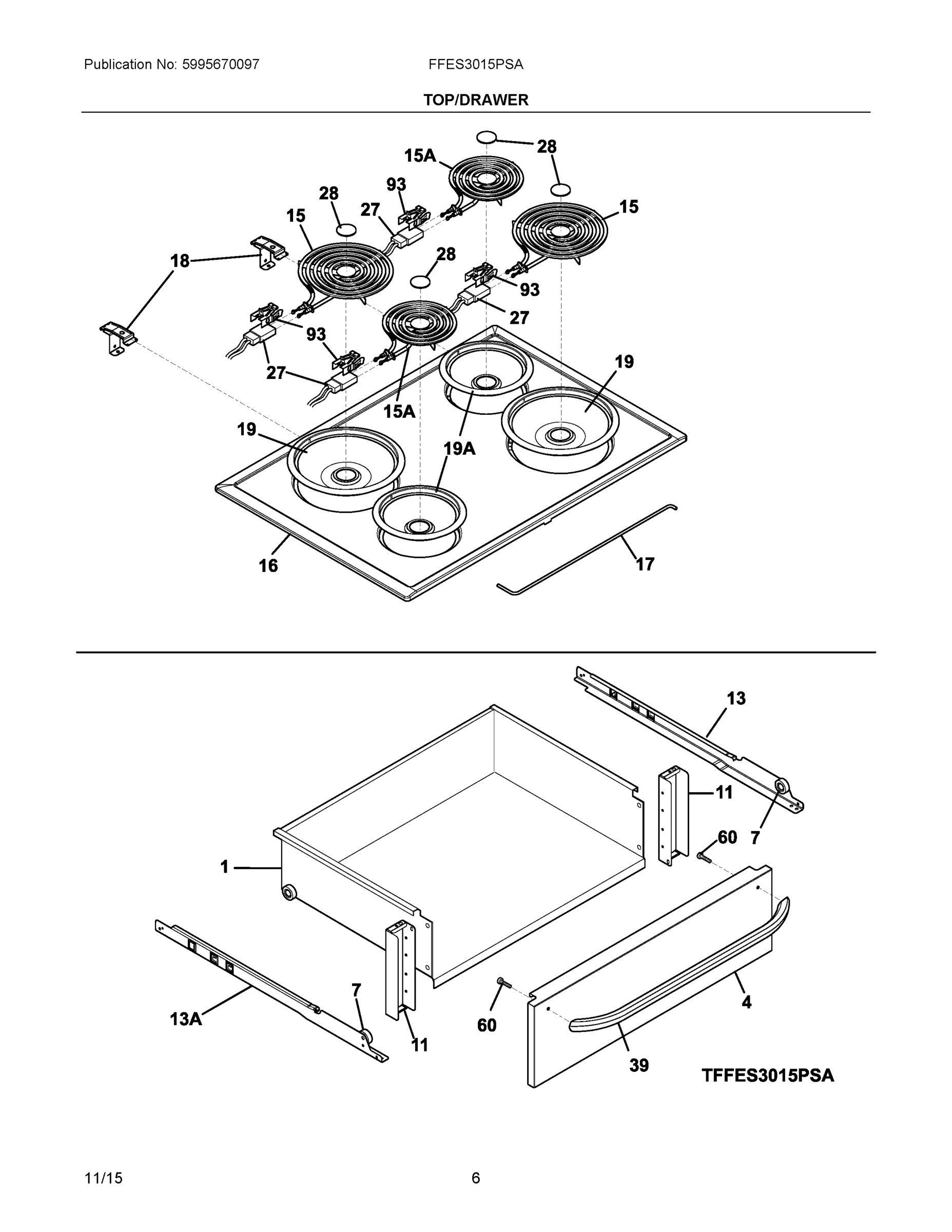

PANEL, DRAWER, STAINLESS, FRONT WCI 318298812 Contact Us For Availability

6

WCI 139011800 WCI 139011800 Contact Us For Availability

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.22

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.13

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $72.74

9

139000411 Frigidaire Oven Liner Backorder WCI 139000411 $86.15

9

PAN, BROILER OPTIONAL ACCESSORY WCI 316081900 Contact Us For Availability

10

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.35

10

INSERT, BROILER PAN OPTIONAL ACCESSORY WCI 316082000 Contact Us For Availability

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $84.88

11

BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability

12

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $56.00

13

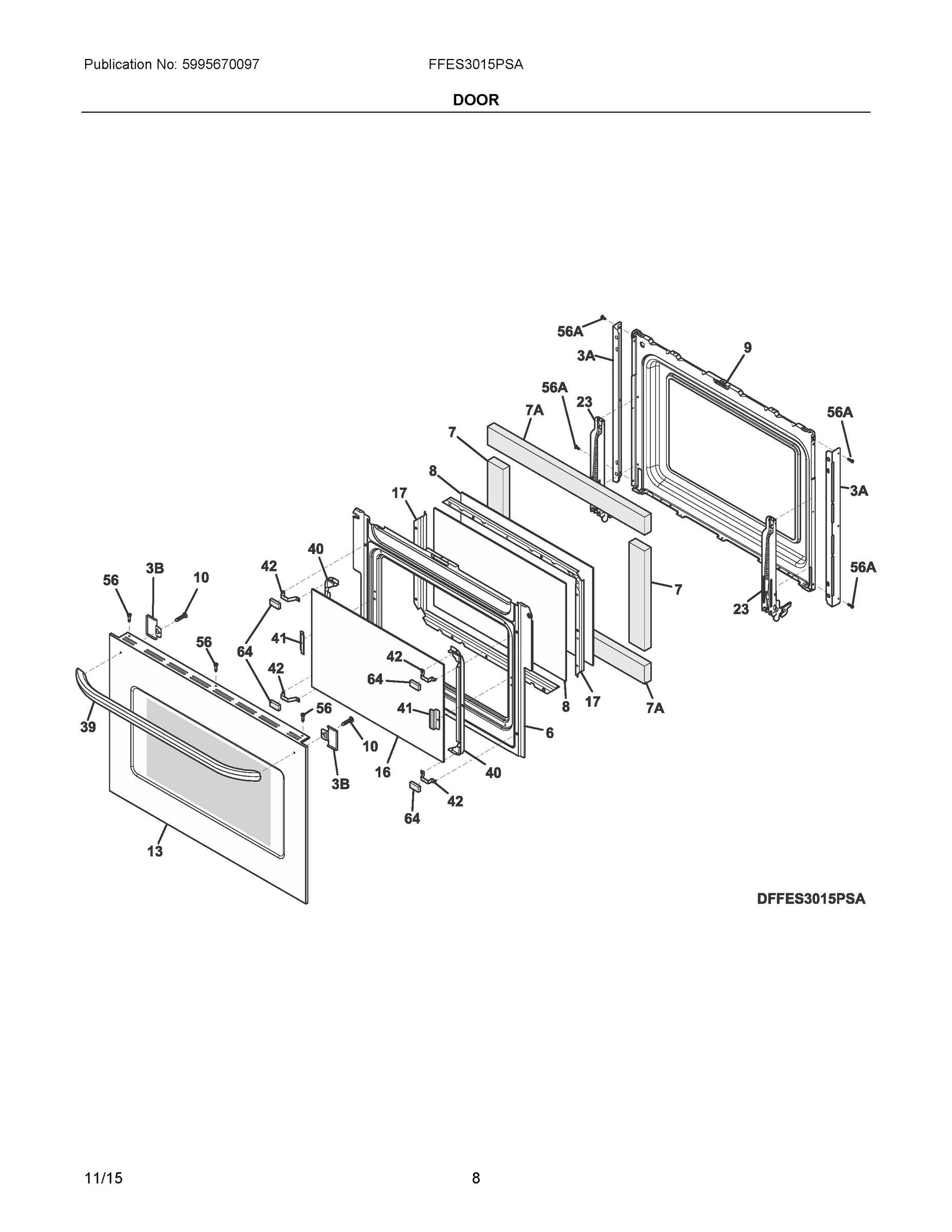

DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS/ WCI 139099607 Contact Us For Availability

13

CHANNEL, DRAWER, RH WCI 318018100 Contact Us For Availability

13A

CHANNEL, DRAWER, LH WCI 318018101 Contact Us For Availability

14

LIGHT, INDICATOR, 125V, (2) WCI 318293901 Contact Us For Availability

15

316442301 Frigidaire Oven 8 Coil Element 2600 In Stock WCI 316442301 $15.95

15

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.35

15A

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $12.96

16

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $72.75

16

318225606 Frigidaire Oven Maintop Backorder WCI 318225606 $159.49

16

CONSOLE, ASSY., BLACK WCI 318299102 Contact Us For Availability

18

HINGE, MAINTOP, (2) WCI 318227710 Contact Us For Availability

19

316048413 Frigidaire Oven Range Chrome 8" Dri In Stock WCI 316048413 $3.56

19

WCI 139038876 WCI 139038876 Contact Us For Availability

19A

316048414 Frigidaire Oven Range Chrome 6" Dri In Stock WCI 316048414 $2.62

19A

PANEL, CONTROL MTG. WCI 318224401 Contact Us For Availability

20

WCI 316557139 WCI 316557139 Contact Us For Availability

20A

316419141 Frigidaire Oven Overlay In Stock WCI 316419141 $32.94

25

139075001 Frigidaire Oven Cover Backorder WCI 139075001 $37.03

27

5304503375 Frigidaire Oven Harness Assembly Backorder WCI 5304503375 $91.32

28

5303017715 Frigidaire Medallion Backorder WCI 5303017715 $37.47

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.57

35

SUPPORT, GLASS, BLACK, (4) WCI 318183105 Contact Us For Availability

36

316543810 Frigidaire Oven Knob Backorder WCI 316543810 $29.41

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $26.72

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.59

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.02

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $29.87

46

LENS, INDICATOR LIGHT WCI 318228301 Contact Us For Availability

54

318293830 Frigidaire Oven Switch In Stock WCI 318293830 $51.12

54A

318293831 Frigidaire Range Surface Element Sw In Stock WCI 318293831 $50.24

55

318402901 Frigidaire Oven Bushing Backorder WCI 318402901 $11.13

56A

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $8.91

57

316283600 Frigidaire Oven Cover Backorder WCI 316283600 $7.13

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $53.34

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.13

66

5304521498 Frigidaire Element In Stock WCI 5304521498 $50.67

67

139027501 Frigidaire Oven Element Assembly Backorder WCI 139027501 $108.05

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $41.86

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.46

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.15

89

5304528836 Frigidaire Motor Backorder WCI 5304528836 $45.40

90

5304511889 Frigidaire Oven Panel Backorder WCI 5304511889 $46.28

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $47.16

93

SUPPORT, TERMINAL BLOCK, (4) WCI 318366410 Contact Us For Availability

99A

318223900 Frigidaire Oven Gasket Backorder WCI 318223900 $46.75

108

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $116.62

119

807144901 Frigidaire Thermostat Backorder WCI 807144901 $34.31

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.18

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $45.40

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.09

170

5304486410 Frigidaire Oven Kit Backorder WCI 5304486410 $89.60

200

FRAME & WHEEL ASSEMBLY, BLACK WCI 318335600 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $28.52

219

318005229 Frigidaire Oven Switch Backorder WCI 318005229 $31.20

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.11

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $8.91

318531701 Frigidaire Spacer Backorder WCI 318531701 $7.57

5304517808 Frigidaire Harness Backorder WCI 5304517808 $27.18

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $8.91

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $13.81

SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability

CLIP, CONSOLE, (2) WCI 5304447071 Contact Us For Availability

NIB

316205500 Frigidaire Oven Nut Backorder WCI 316205500 $7.13

NIC

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.55

NID

316001017 Frigidaire Screw Backorder WCI 316001017 $1.80
