Model Electrolux FFEF3052TBB RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

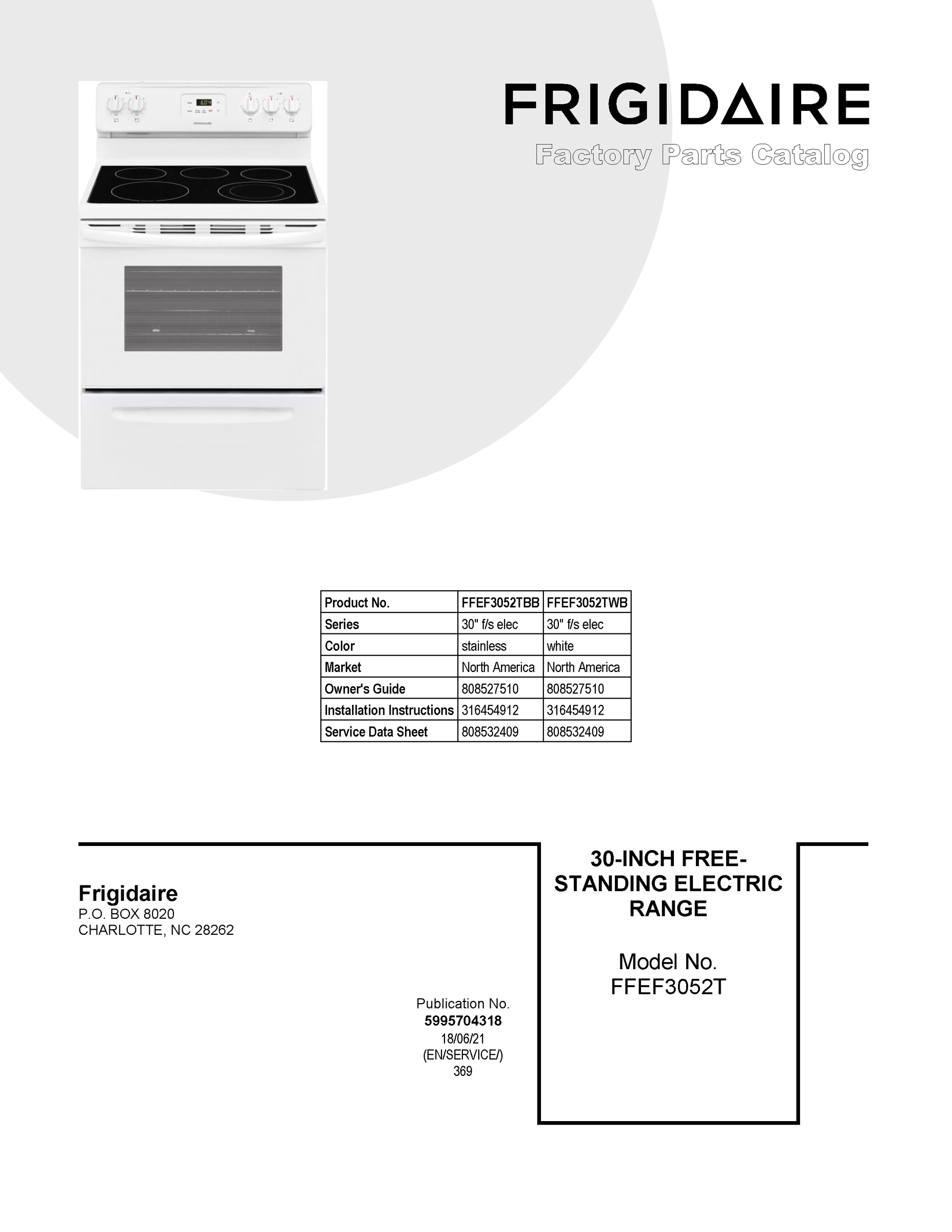

01 - COVER SHEET

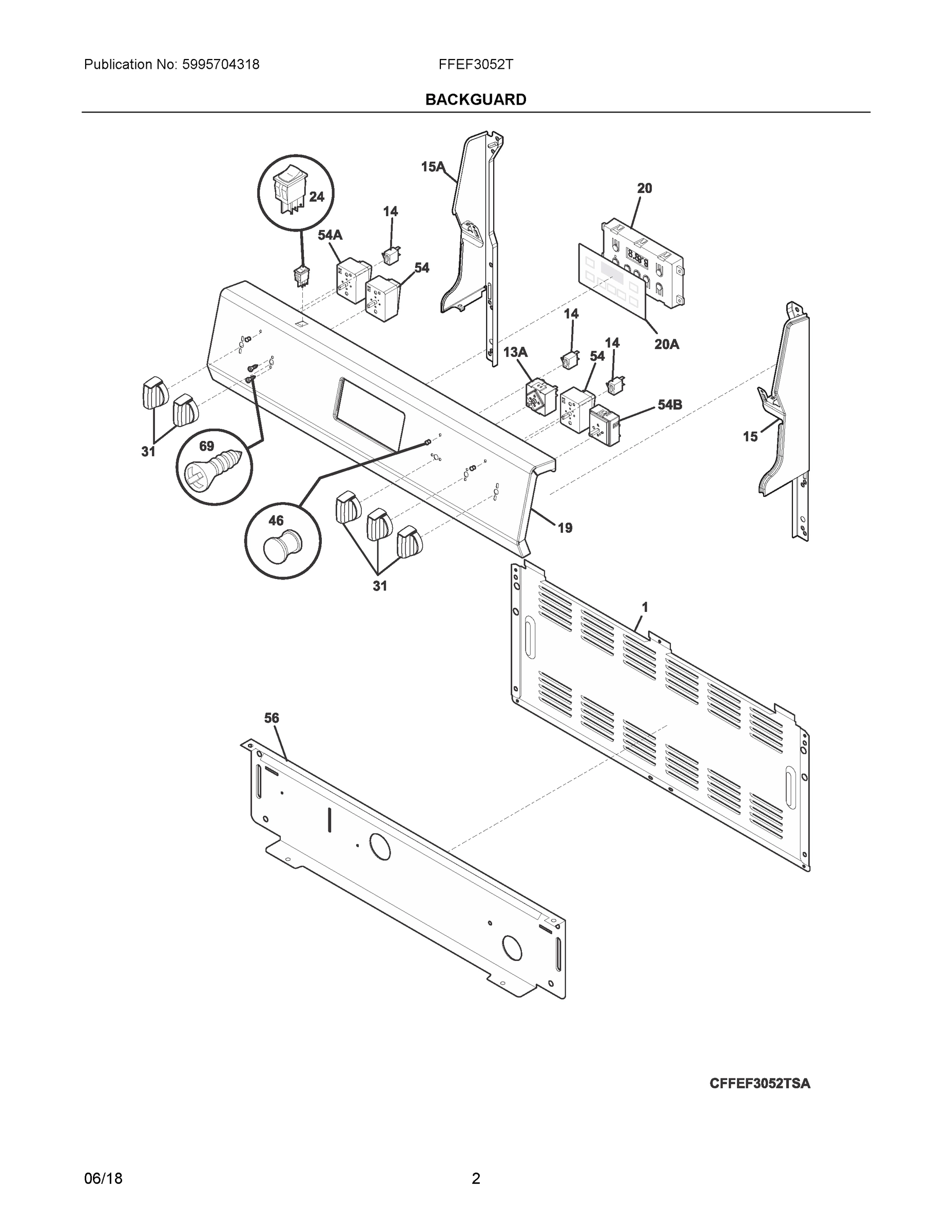

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FFEF3052TBB RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE AND FOI WCI 5303935398 Contact Us For Availability
4
PANEL, DRAWER, BLACK WCI 316231328 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, OUTER WCI 316202831 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
7
GLIDE, DRAWER, REAR WCI 316407402 Contact Us For Availability
8
GLASS, OVEN DOOR, INNER WCI 5304503232 Contact Us For Availability
8
PANEL, SUMP, OVEN BOTTOM WCI 316201501 Contact Us For Availability
9
PAN, BROILER WCI 316081900 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316230635 Contact Us For Availability
10
SCREW, WAFER HEAD, 10-14 X 1 3/8, HANDLE MTG WCI 316278700 Contact Us For Availability
10
INSERT, BROILER PAN WCI 316082000 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
13A
SWITCH, INFINITE, WARMER WCI 5304508926 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK WCI 5304513835 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, BACKGUARD, BLACK WCI 5304514986 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK WCI 316220729 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 316575924 Contact Us For Availability
26
SUPPORT, CHASSIS, (2) WCI 316206300 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
29
GLIDE, DRAWER, FRONT WCI 807047102 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 5304508956 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316233903 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316491201 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238202 Contact Us For Availability
56
SHIELD, BACKGUARD, BLACK, INNER WCI 316234045 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, 1", OVEN WRAPPER WCI 316047707 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
62
TERMINAL BLOCK KIT WCI 5303935271 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203200 Contact Us For Availability
67
ELEMENT, BAKE WCI 316225001 Contact Us For Availability
68
SUPPORT, BROIL ELEMENT WCI 316203400 Contact Us For Availability
71
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
87
BRACKET, CABLE MTG WCI 316081200 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIC
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
