Model Electrolux FFEF3003NWB ELECTRIC RANGE – Common Parts & Diagrams

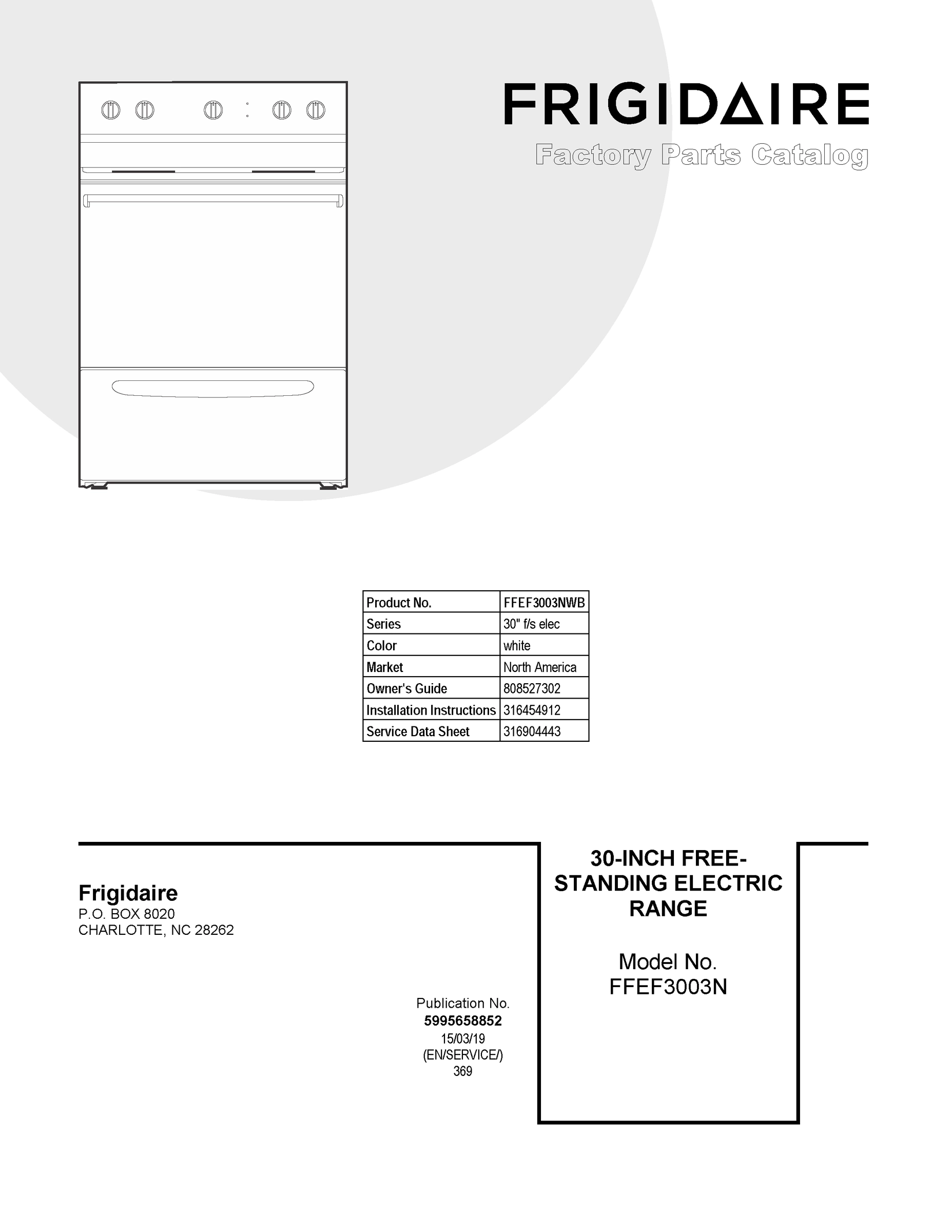

01 - COVER SHEET

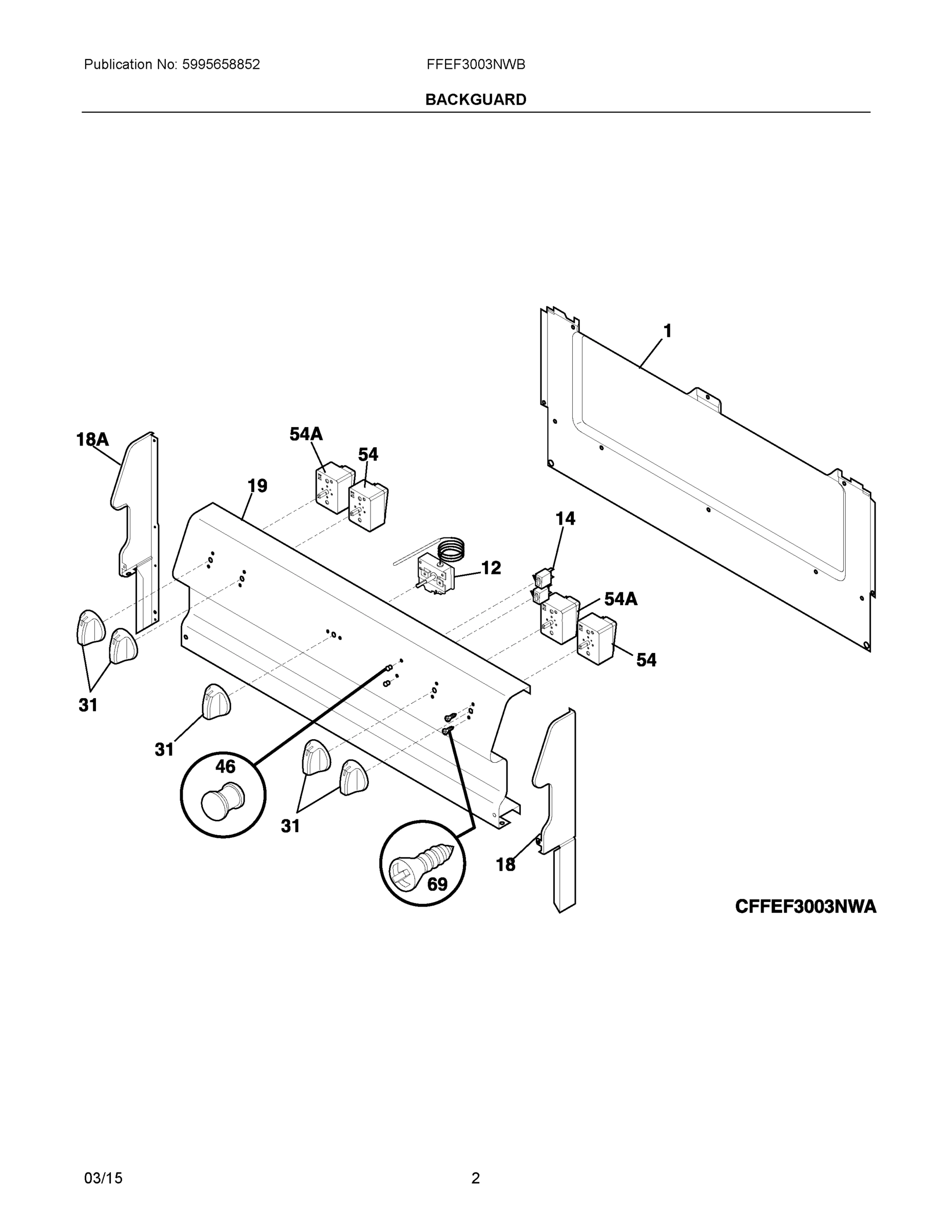

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FFEF3003NWB ELECTRIC RANGE
1
SHIELD, BACKGUARD, REAR WALL WCI 5303289640 Contact Us For Availability
4
PANEL, DRAWER, WHITE WCI 316231305 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
7
HINGE, OVEN DOOR, RH WCI 316566212 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316236801 Contact Us For Availability
7A
HINGE, OVEN DOOR, LH WCI 316566213 Contact Us For Availability
8
PANEL,, OVEN BOTTOM WCI 316495903 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
WCI 316230633 WCI 316230633 Contact Us For Availability
10
SCREW, WAF HD SQ, 10-24 X 1.88, (2), HANDLE M WCI 316001009 Contact Us For Availability
10
INSERT, BROILER PAN OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10B
WASHER, 3/4 OD X 1/4 ID, STEEL WCI 316008401 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
12
WCI 316215900 WCI 316215900 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 316202609 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, SURFACE, 250 V WCI 316022503 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", SMALL WCI 318372210 Contact Us For Availability
16
MAIN TOP, WHITE WCI 316245402 Contact Us For Availability
17
ROD, MAINTOP SUPPORT WCI 316066900 Contact Us For Availability
18A
BRACKET, HINGE, MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
END CAP, WHITE, LH WCI 316263405 Contact Us For Availability
19
PAN-SURFACE ELEMENT, CHROME, LARGE/8 INCH WCI 316048413 Contact Us For Availability
19
PANEL, BACKGUARD, WHITE WCI 316263388 Contact Us For Availability
19A
PAN-SURFACE ELEMENT, CHROME, SMALL/6 INCH WCI 316048414 Contact Us For Availability
21
SPACER, DOOR HANDLE, (2) WCI 316284101 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
23
WCI 316575920 WCI 316575920 Contact Us For Availability
26
SUPPORT, CHASSIS, (2) WCI 316206300 Contact Us For Availability
27
CLIP, THERMO BULB MTG WCI 5303284616 Contact Us For Availability
28
MEDALLION, 1 1/2"DIA, BLACK, SURFACE ELEMENT WCI 5303017715 Contact Us For Availability
31
KNOB, CONTROL, WHITE, (4) WCI 316543800 Contact Us For Availability
39
HANDLE, OVEN DOOR, WHITE WCI 316020202 Contact Us For Availability
41
COVER, HINGE CUTOUT, RH WCI 316233400 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
49
END CAP, HANDLE, WHITE, (2) WCI 316137000 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, 1", OVEN WRAPPER WCI 316047707 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
59
TUBE, OVEN VENT WCI 316073605 Contact Us For Availability
62
WCI 5303935271 WCI 5303935271 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203200 Contact Us For Availability
68
SUPPORT, BROIL ELEMENT WCI 316203400 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
87
BRACKET, CABLE MTG WCI 316081200 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
HARNESS, WIRING, SURFACE UNITS WCI 316580408 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
PLUG, BUTTON, OVEN PROBE WCI 316246400 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NI
WCI 5303271648 WCI 5303271648 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
