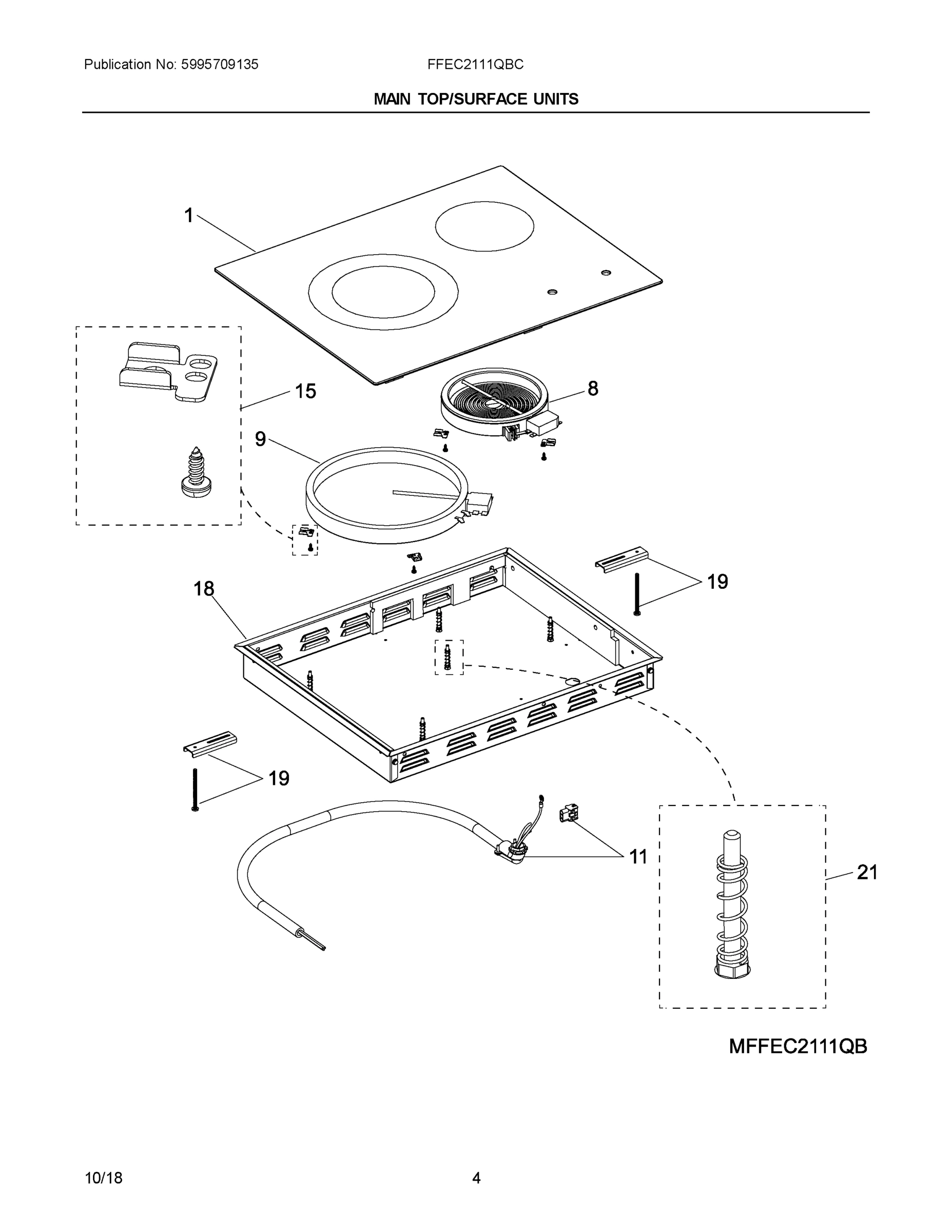

Model Electrolux FFEC2111QBC COOKTOP, ELECTRIC, 2 BURNER – Common Parts & Diagrams

1
MAIN TOP, ASSEMBLY, BLACK, W/BRACKETS
MAIN TOP, ASSEMBLY, BLACK, W/BRACKETS WCI 5304499899 Contact Us For Availability
View on Model
8
BURNER, SINGLE
BURNER, SINGLE WCI 5304499909 Contact Us For Availability
View on Model
8
SLEEVE, STEM
SLEEVE, STEM WCI 5304519985 Contact Us For Availability
View on Model
10
HARNESS, WIRING, MAIN
HARNESS, WIRING, MAIN WCI 5304519984 Contact Us For Availability
View on Model
11
HARNESS, POWER INLET, W/CONDUIT
HARNESS, POWER INLET, W/CONDUIT WCI 5304499911 Contact Us For Availability
View on Model
12
HARNESS, WIRING, SINGLE BURNER
HARNESS, WIRING, SINGLE BURNER WCI 5304499905 Contact Us For Availability
View on Model
13
HARNESS, WIRING, DUAL BURNER
HARNESS, WIRING, DUAL BURNER WCI 5304499906 Contact Us For Availability
View on Model
14
HARNESS, WIRING, LIGHT
HARNESS, WIRING, LIGHT WCI 5304499907 Contact Us For Availability
View on Model
15
BRACKET, BURNER MTG., (5 PACK), W/SCREWS
BRACKET, BURNER MTG., (5 PACK), W/SCREWS WCI 5304499912 Contact Us For Availability
View on Model
16
LIGHT, INDICATOR
LIGHT, INDICATOR WCI 5304485476 Contact Us For Availability
View on Model
17
BOX, CONTROL MTG.
BOX, CONTROL MTG. WCI 5304499908 Contact Us For Availability
View on Model
18
BOX, BURNER CHASSIS
BOX, BURNER CHASSIS WCI 5304499913 Contact Us For Availability
View on Model
19
HARDWARE PACK, COOKTOP MTG., W/BRACKETS
HARDWARE PACK, COOKTOP MTG., W/BRACKETS WCI 5304499914 Contact Us For Availability
View on Model
21
STUD, BURNER, (5 PACK), W/SPRING
STUD, BURNER, (5 PACK), W/SPRING WCI 5304499915 Contact Us For Availability
View on Model
NI
HARDWARE BAG, GENERAL
HARDWARE BAG, GENERAL WCI 5304499916 Contact Us For Availability
View on Model
