Model Electrolux FFC20D7HW3 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

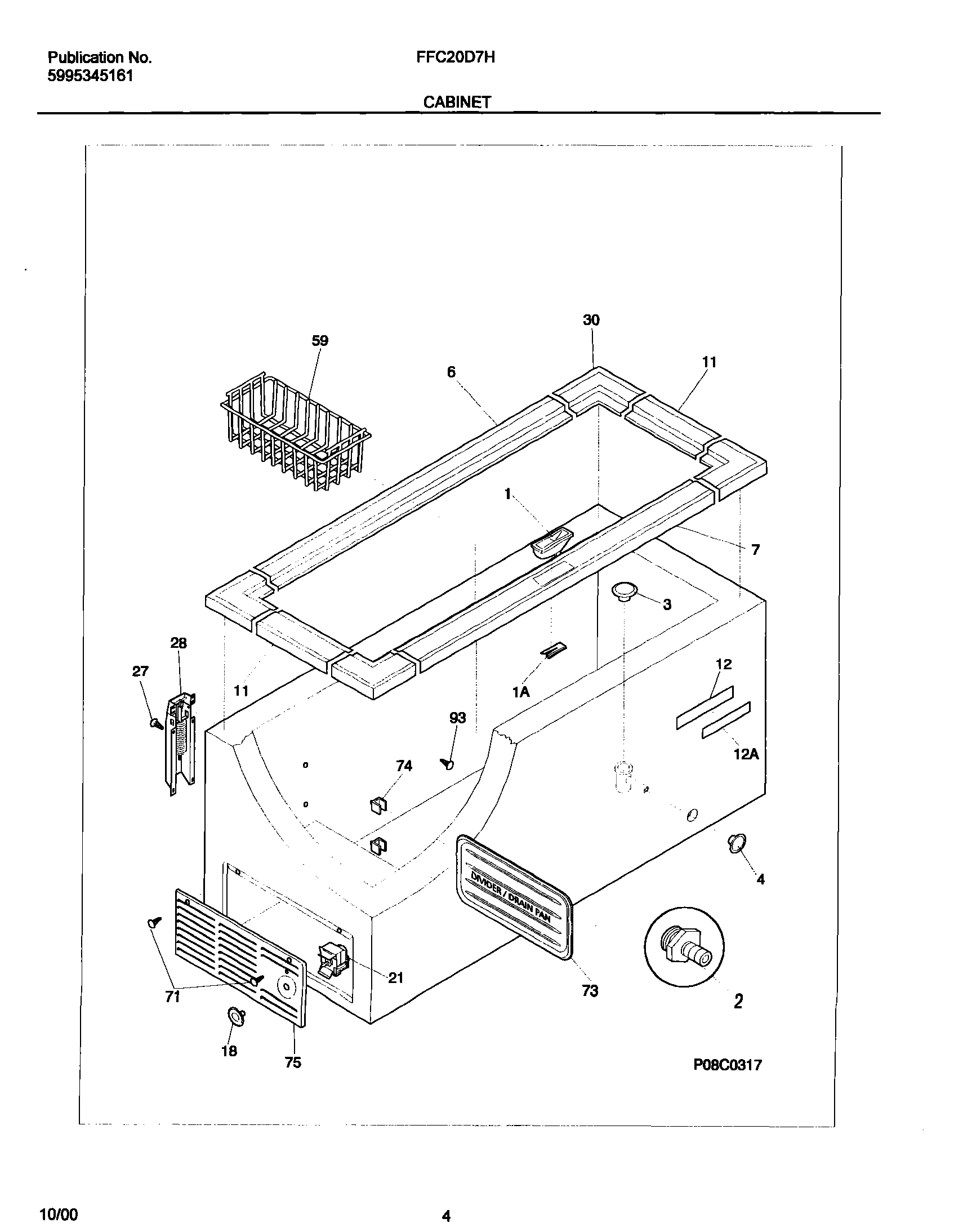

05 - CABINET

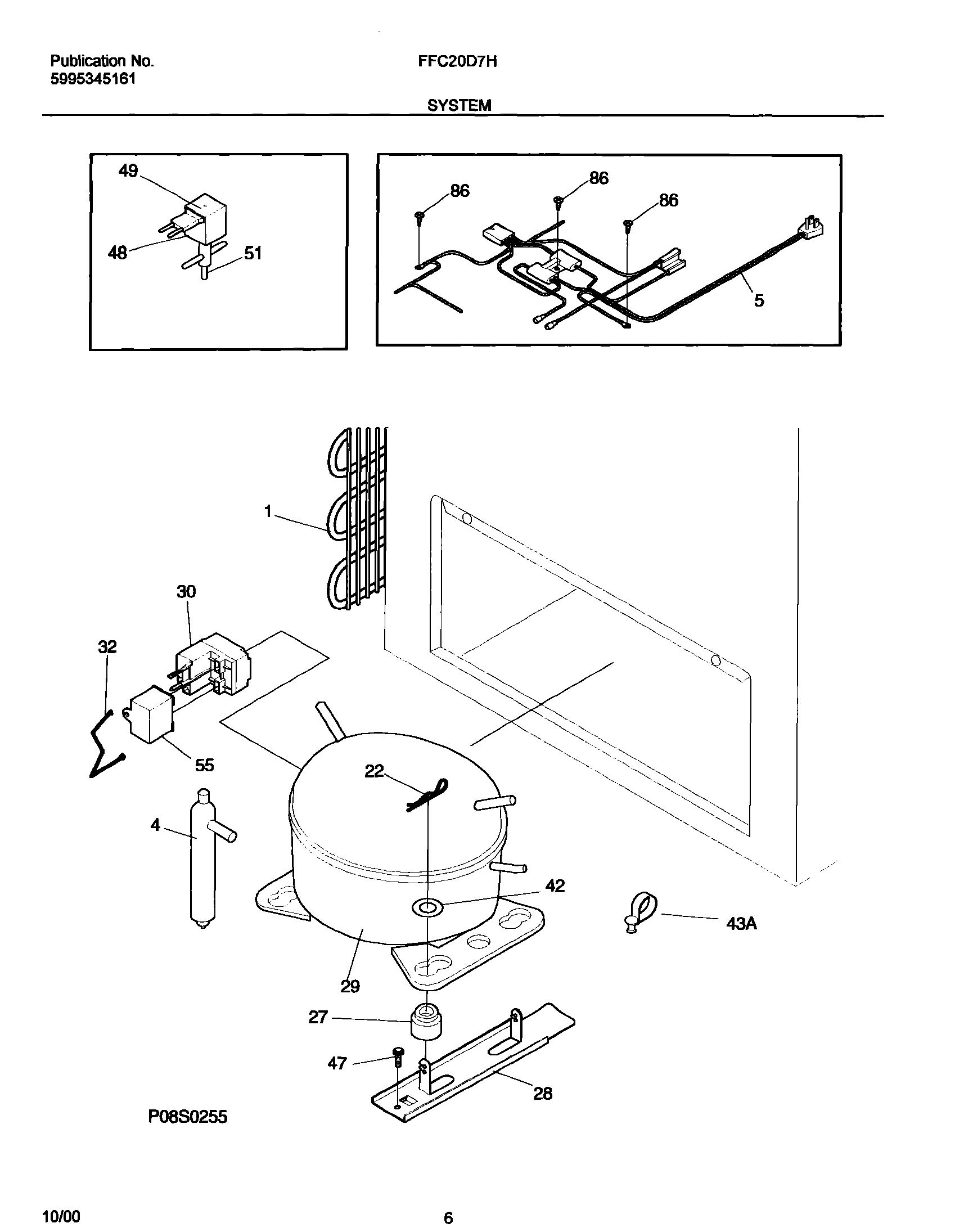

07 - SYSTEM
Common parts from model Electrolux FFC20D7HW3 FREEZER
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
1
WCI 5303280307 WCI 5303280307 Contact Us For Availability
1A
WCI 216080800 WCI 216080800 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
WCI 216502600 WCI 216502600 Contact Us For Availability
4
PLUG-DRAIN,EXTERIOR WCI 216073900 Contact Us For Availability
5
WCI 216702000 WCI 216702000 Contact Us For Availability
6
WCI 216111200 WCI 216111200 Contact Us For Availability
7
WCI 216111800 WCI 216111800 Contact Us For Availability
11
WCI 216130104 WCI 216130104 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12
WCI 316095402 WCI 316095402 Contact Us For Availability
12A
WCI 216373000 WCI 216373000 Contact Us For Availability
16
WCI 216684000 WCI 216684000 Contact Us For Availability
18
WCI 216140200 WCI 216140200 Contact Us For Availability
18
WCI 216205004 WCI 216205004 Contact Us For Availability
18
WCI 216591602 WCI 216591602 Contact Us For Availability
21
CONTROL-TEMPERATURE WCI 216562400 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
23
WCI 216212700 WCI 216212700 Contact Us For Availability
28
WCI 216592400 WCI 216592400 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
29
WCI 216470500 WCI 216470500 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
30
WCI 216649302 WCI 216649302 Contact Us For Availability
31
GASKET-DOOR, WHITE WCI 216481401 Contact Us For Availability
32
WCI 216649100 WCI 216649100 Contact Us For Availability
35
WCI 5303297015 WCI 5303297015 Contact Us For Availability
36
PLATE, BACKUP, LIGHT SWITCH WCI 5306599968 Contact Us For Availability
40
WCI 5309948647 WCI 5309948647 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
45
SWITCH-DEFROST WCI 3201509 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 216756000 WCI 216756000 Contact Us For Availability
48
WCI 216700800 WCI 216700800 Contact Us For Availability
49
WCI 216722800 WCI 216722800 Contact Us For Availability
51
WCI 216718400 WCI 216718400 Contact Us For Availability
53
WCI 5303208483 WCI 5303208483 Contact Us For Availability
55
WCI 216164000 WCI 216164000 Contact Us For Availability
56
WCI 216694200 WCI 216694200 Contact Us For Availability
59
WCI 216080300 WCI 216080300 Contact Us For Availability
61
WCI 5309948955 WCI 5309948955 Contact Us For Availability
73
WCI 216128200 WCI 216128200 Contact Us For Availability
74
SUPPORT, SHELF WCI 5306594584 Contact Us For Availability
75
WCI 216034301 WCI 216034301 Contact Us For Availability
92
SCREW,HEX WASHER HEAD ,8-32 X 7/16 ,BUZZER WCI 5303272319 Contact Us For Availability
NI
WCI 5303925098 WCI 5303925098 Contact Us For Availability
NI
WCI 216478900 WCI 216478900 Contact Us For Availability
NI
SPACER-TUBE,.75`` WCI 5303298960 Contact Us For Availability
× ![]()
