Model Electrolux FFC15D9CW2 FREEZER – Common Parts & Diagrams

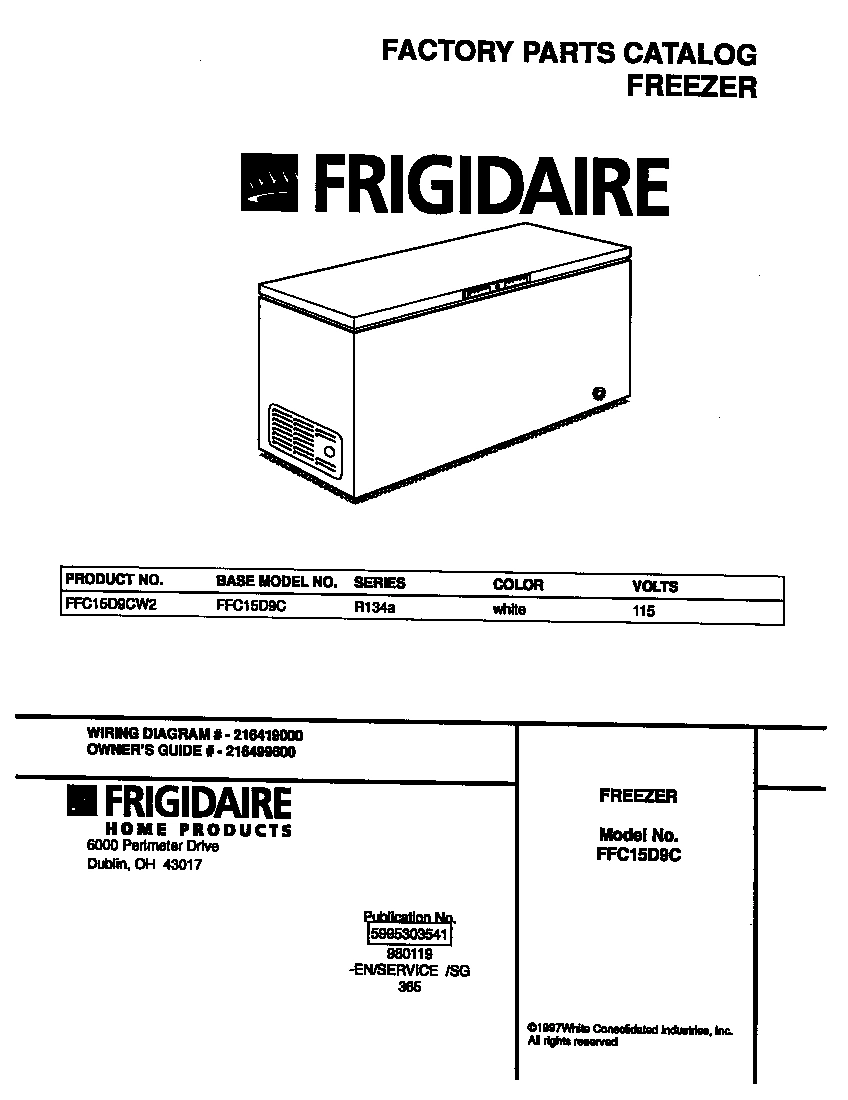

01 - COVER

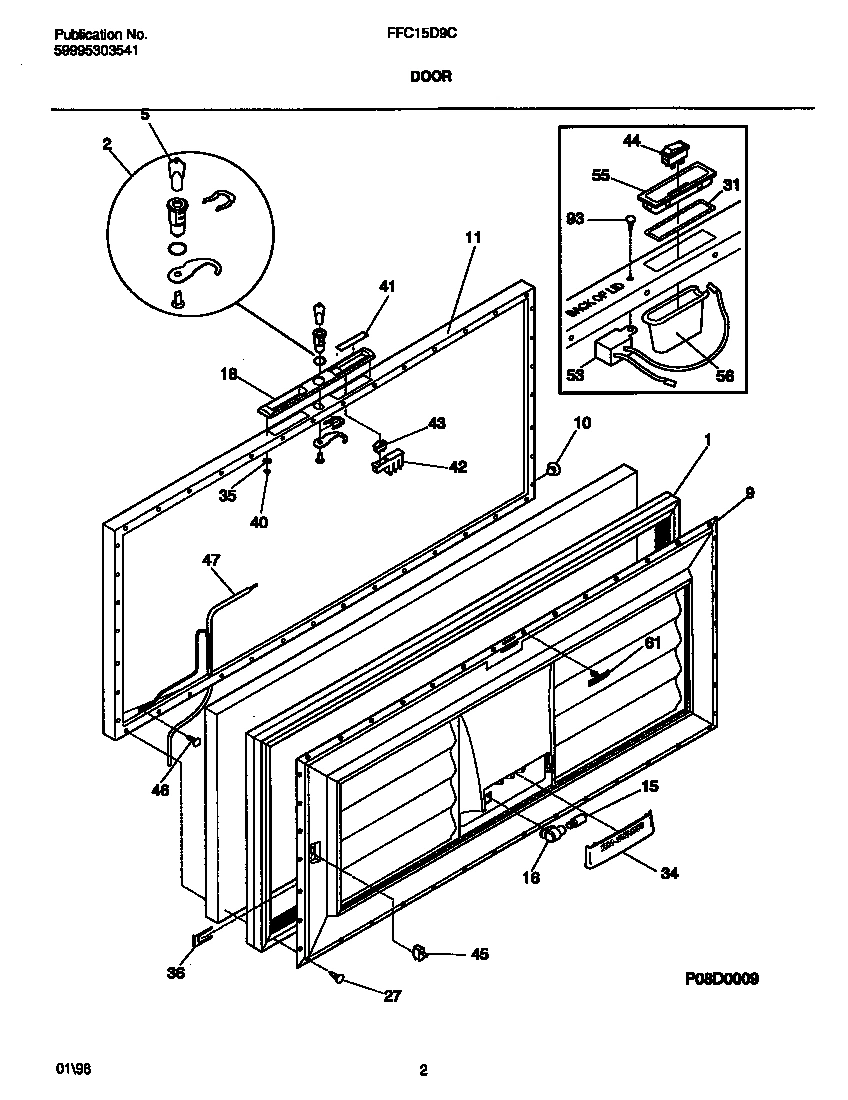

02 - DOOR

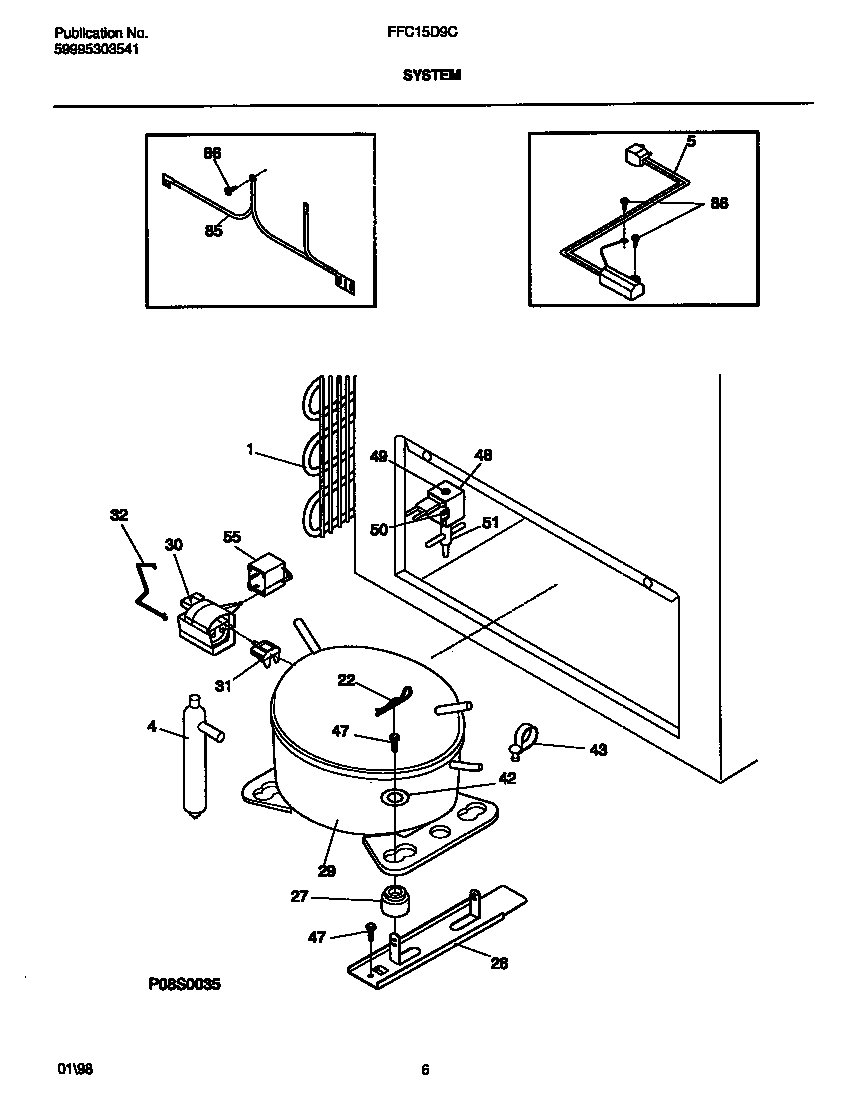

04 - SYSTEM

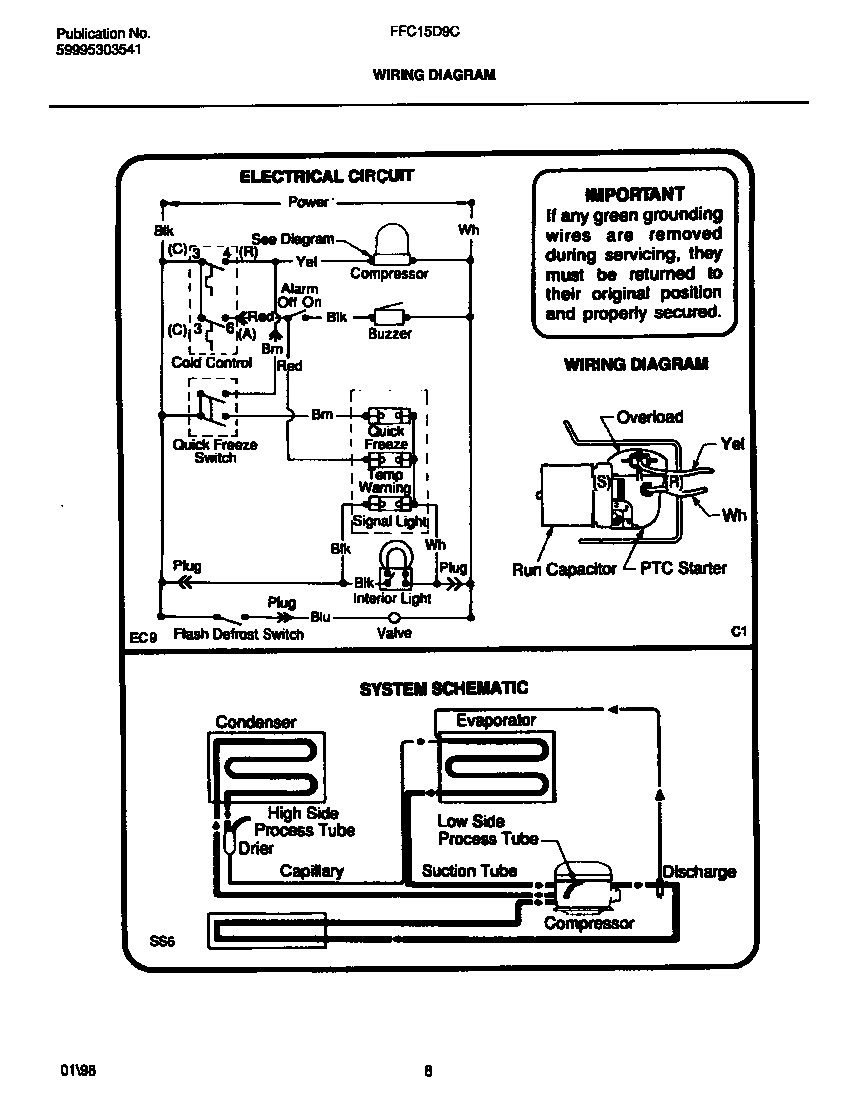

05 - WIRING DIAGRAM
Common parts from model Electrolux FFC15D9CW2 FREEZER
*71400
INSULATION WCI 5303917276 Contact Us For Availability
*71403
WCI 216478900 WCI 216478900 Contact Us For Availability
2
WCI 5303925107 WCI 5303925107 Contact Us For Availability
5
WCI 216090100 WCI 216090100 Contact Us For Availability
9
WCI 216057900 WCI 216057900 Contact Us For Availability
10
WCI 21614110 WCI 21614110 Contact Us For Availability
11
WCI 216129907 WCI 216129907 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 216039700 Contact Us For Availability
18
WCI 216140200 WCI 216140200 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 216100114 WCI 216100114 Contact Us For Availability
32
WCI 216147800 WCI 216147800 Contact Us For Availability
34
WCI 216087903 WCI 216087903 Contact Us For Availability
35
WCI 5303297015 WCI 5303297015 Contact Us For Availability
36
PLATE, BACKUP, LIGHT SWITCH WCI 5306599968 Contact Us For Availability
40
WCI 3206024 WCI 3206024 Contact Us For Availability
41
WCI 216375000 WCI 216375000 Contact Us For Availability
42
WCI 5303290000 WCI 5303290000 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
43
WCI 3201504 WCI 3201504 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
45
SWITCH-DEFROST WCI 3201509 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 216040500 WCI 216040500 Contact Us For Availability
47
SCREW-COMPRESOR,IND HWH TYPE T ,10-32 X 1/2,S WCI 08016776 Contact Us For Availability
48
WCI 3201514 WCI 3201514 Contact Us For Availability
49
WCI 3201513 WCI 3201513 Contact Us For Availability
50
WCI 216533700 WCI 216533700 Contact Us For Availability
51
WCI 216161900 WCI 216161900 Contact Us For Availability
53
WCI 5303208483 WCI 5303208483 Contact Us For Availability
55
WCI 216164000 WCI 216164000 Contact Us For Availability
56
WCI 5308037857 WCI 5308037857 Contact Us For Availability
61
WCI 5309948955 WCI 5309948955 Contact Us For Availability
85
WCI 216533500 WCI 216533500 Contact Us For Availability
× ![]()
