Model Electrolux FFC13D9EW0 FREEZER – Common Parts & Diagrams

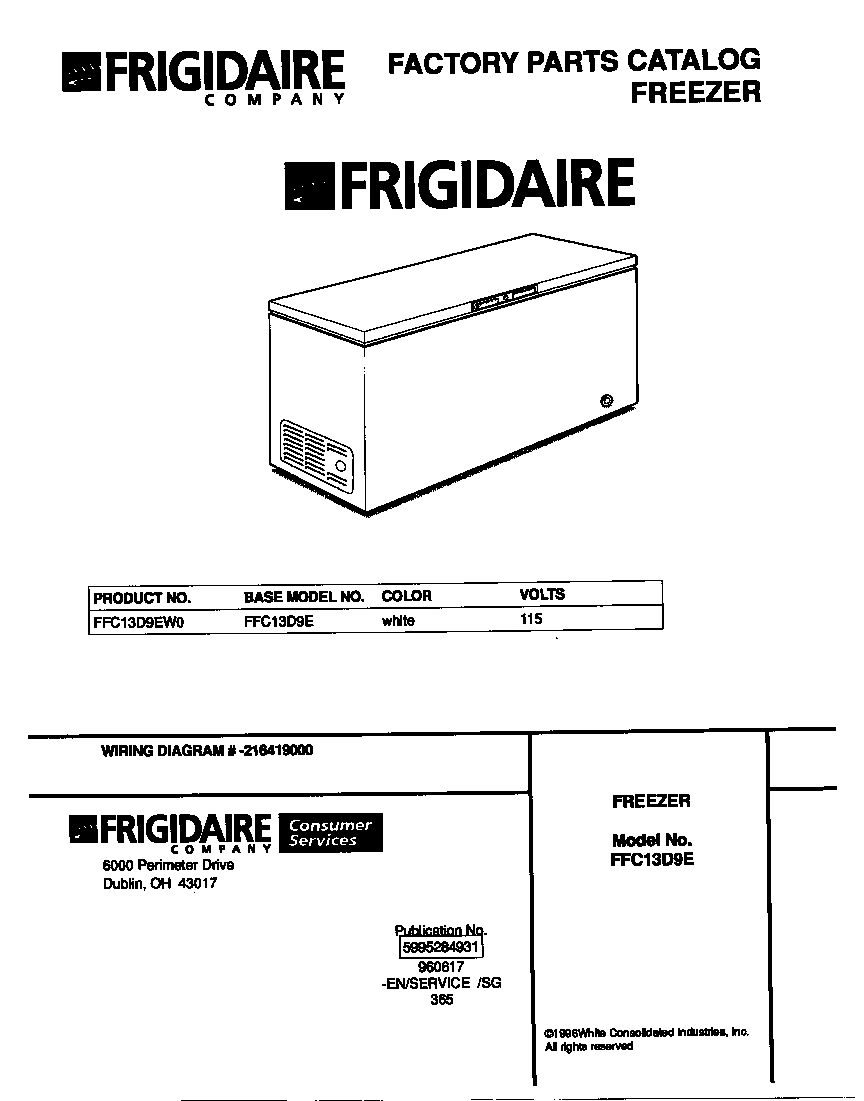

01 - COVER

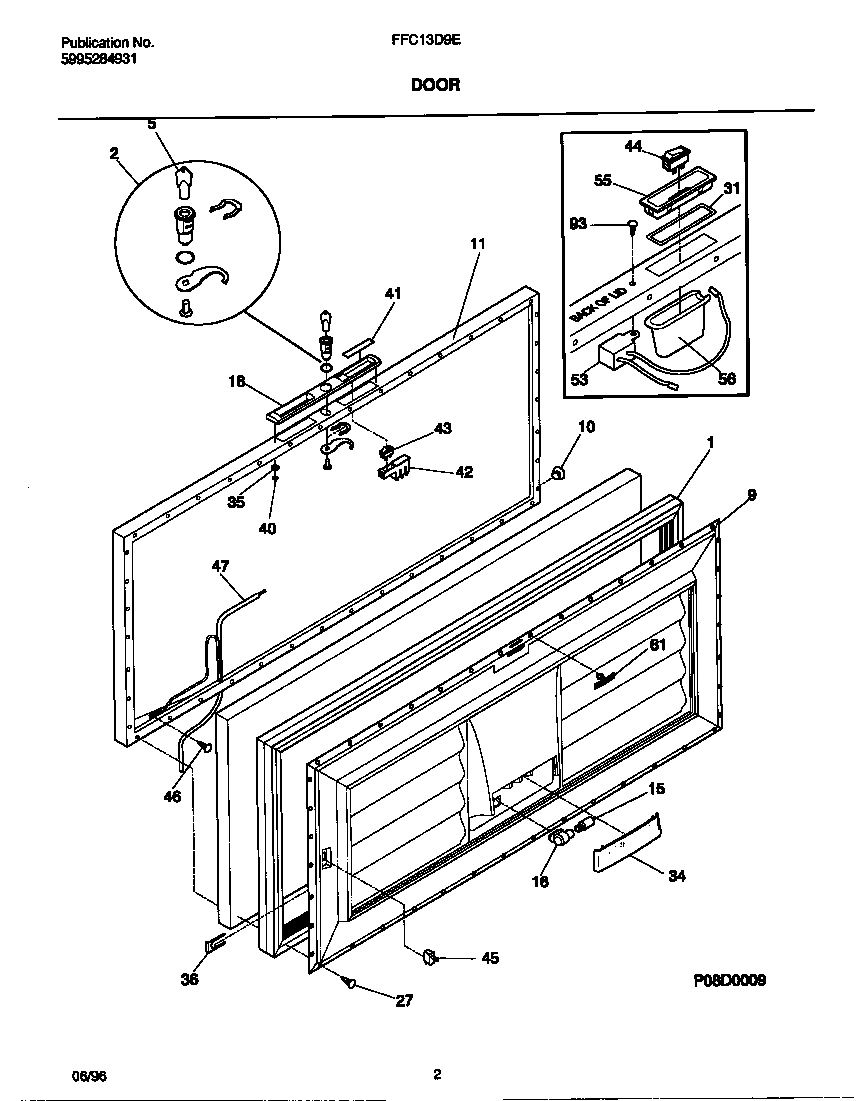

02 - DOOR

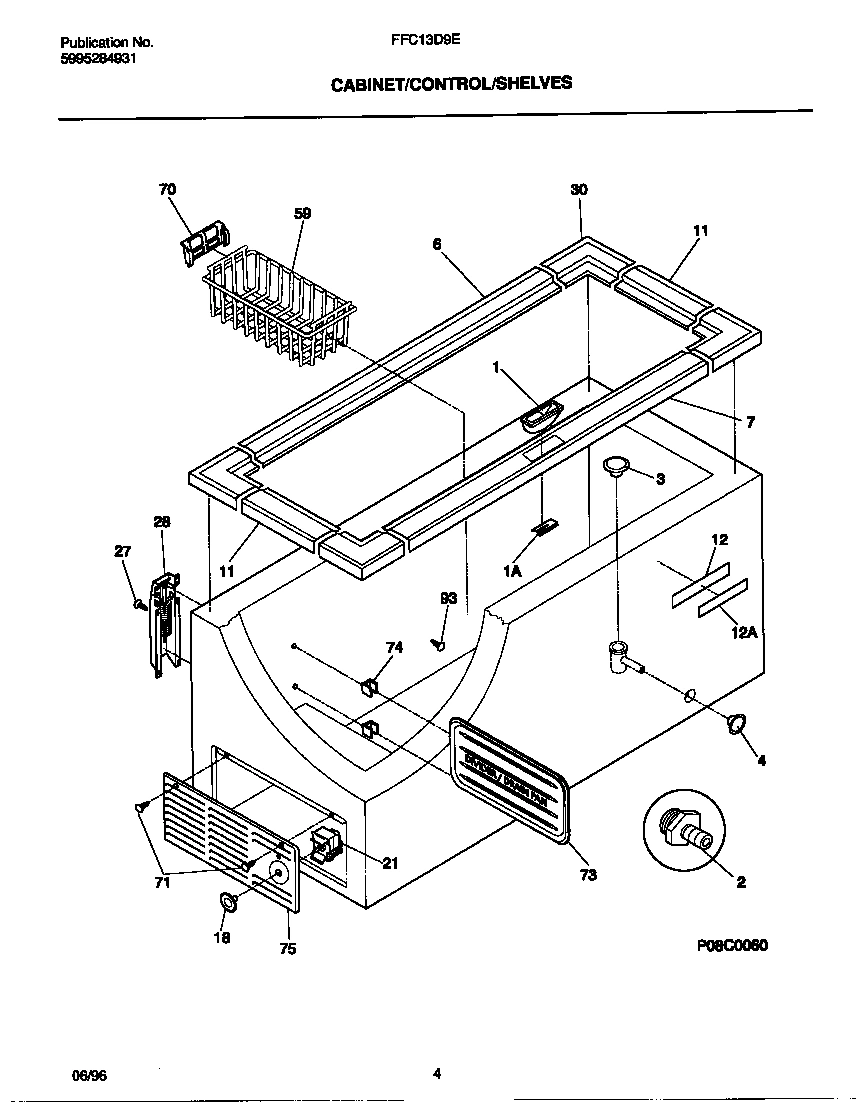

03 - CABINET/CONTROL/SHELVES

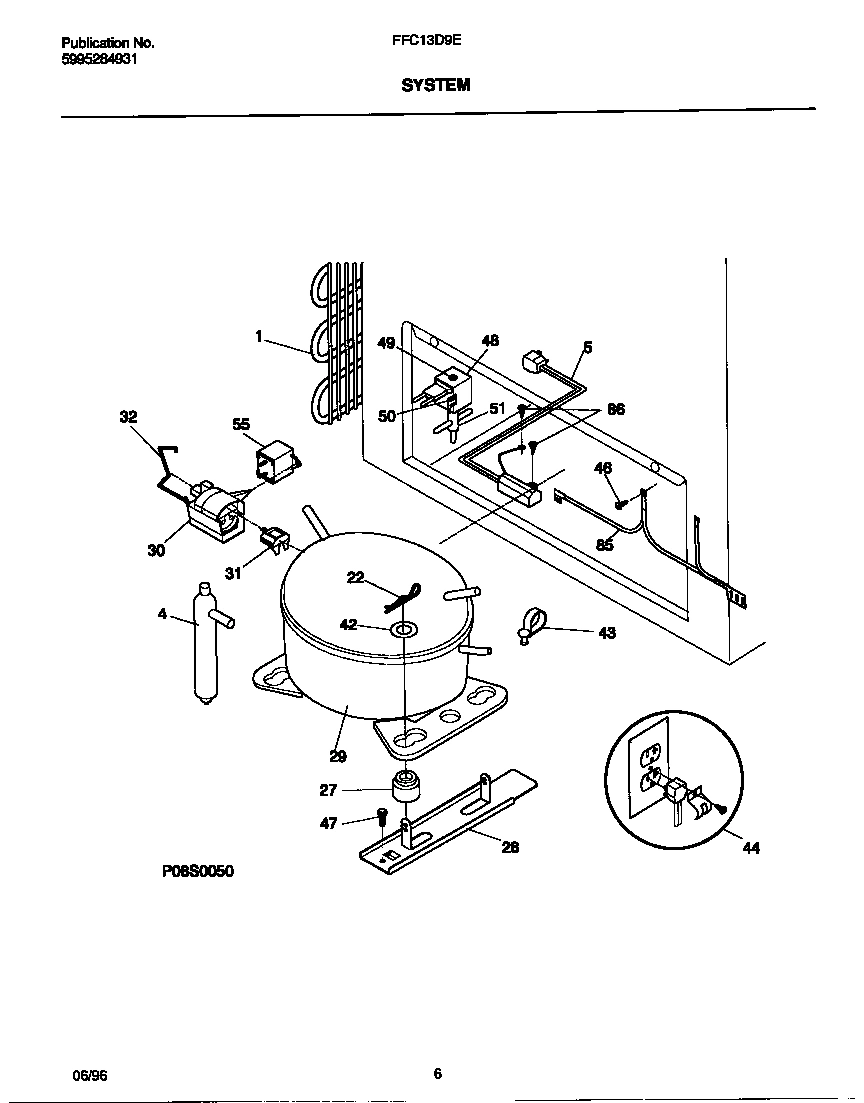

04 - SYSTEM

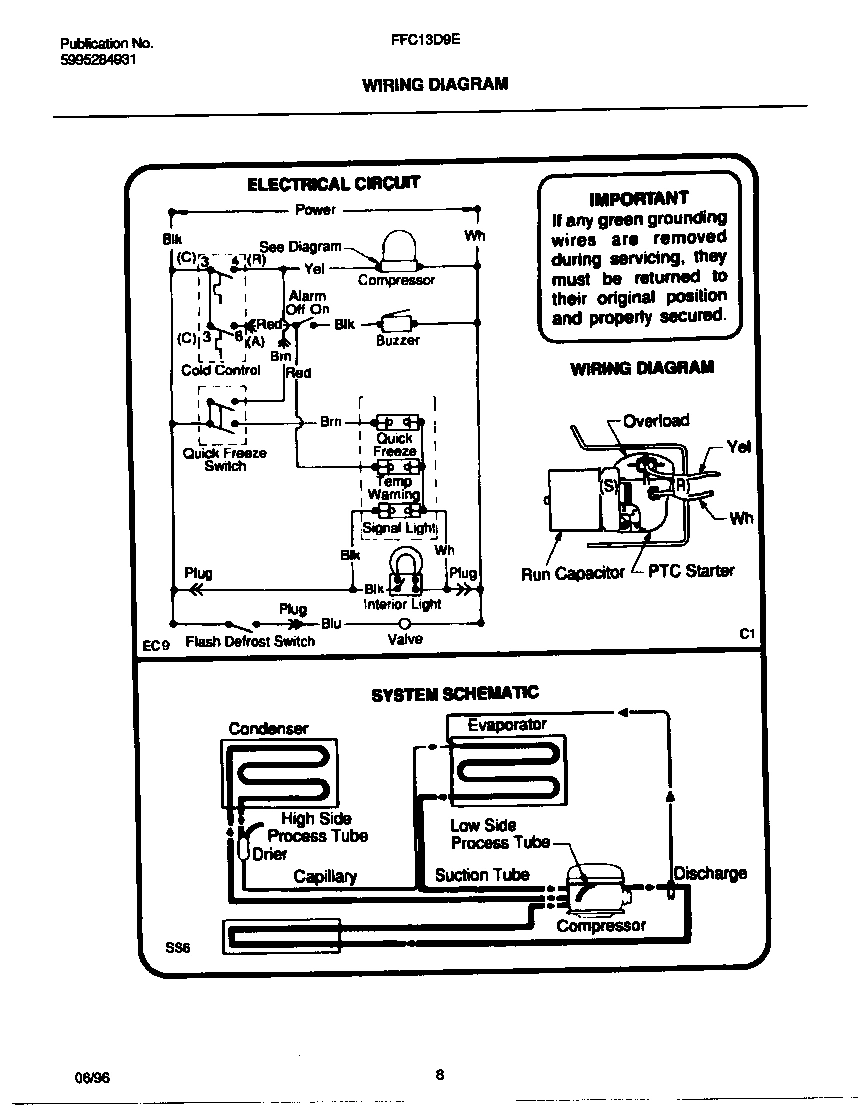

05 - WIRING DIAGRAM
Common parts from model Electrolux FFC13D9EW0 FREEZER
*52241
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 216080800 WCI 216080800 Contact Us For Availability
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
4
PLUG, DRAIN WCI 216073900 Contact Us For Availability
5
WCI 216090100 WCI 216090100 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 5303925185 Contact Us For Availability
7
WCI 216111500 WCI 216111500 Contact Us For Availability
9
WCI 216057000 WCI 216057000 Contact Us For Availability
10
WCI 216141101 WCI 216141101 Contact Us For Availability
11
WCI 216129813 WCI 216129813 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12
WCI 216315100 WCI 216315100 Contact Us For Availability
12
WCI 218364004 WCI 218364004 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 216039700 Contact Us For Availability
18
WCI 216140200 WCI 216140200 Contact Us For Availability
18
WCI 216034505 WCI 216034505 Contact Us For Availability
21
WCI 216375500 WCI 216375500 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
WCI 216039600 WCI 216039600 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 216100108 WCI 216100108 Contact Us For Availability
32
WCI 216147800 WCI 216147800 Contact Us For Availability
34
WCI 216087903 WCI 216087903 Contact Us For Availability
35
WCI 5303297015 WCI 5303297015 Contact Us For Availability
36
PLATE, BACKUP, LIGHT SWITCH WCI 5306599968 Contact Us For Availability
40
WCI 3206024 WCI 3206024 Contact Us For Availability
41
WCI 216375000 WCI 216375000 Contact Us For Availability
42
WCI 5303290000 WCI 5303290000 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
43
WCI 3201504 WCI 3201504 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
45
SWITCH-DEFROST WCI 3201509 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 216040500 WCI 216040500 Contact Us For Availability
47
SCREW-COMPRESSOR, IND HWH TYPE T, 10-32 X 1/2 WCI 08016776 Contact Us For Availability
48
WCI 3201514 WCI 3201514 Contact Us For Availability
49
WCI 3201513 WCI 3201513 Contact Us For Availability
50
WCI 5303307575 WCI 5303307575 Contact Us For Availability
51
WCI 216161900 WCI 216161900 Contact Us For Availability
53
WCI 5303208483 WCI 5303208483 Contact Us For Availability
55
WCI 216164000 WCI 216164000 Contact Us For Availability
56
WCI 5308037857 WCI 5308037857 Contact Us For Availability
59
BASKET,UPPER ,(2) WCI 216080600 Contact Us For Availability
61
WCI 5309948955 WCI 5309948955 Contact Us For Availability
70
WCI 216375100 WCI 216375100 Contact Us For Availability
73
WCI 216128200 WCI 216128200 Contact Us For Availability
74
SUPPORT, SHELF WCI 5306594584 Contact Us For Availability
75
ACCESS PANEL WCI 216034301 Contact Us For Availability
85
WCI 5303294326 WCI 5303294326 Contact Us For Availability
× ![]()
