Model Electrolux FFC09M4AW3 FREEZER – Common Parts & Diagrams

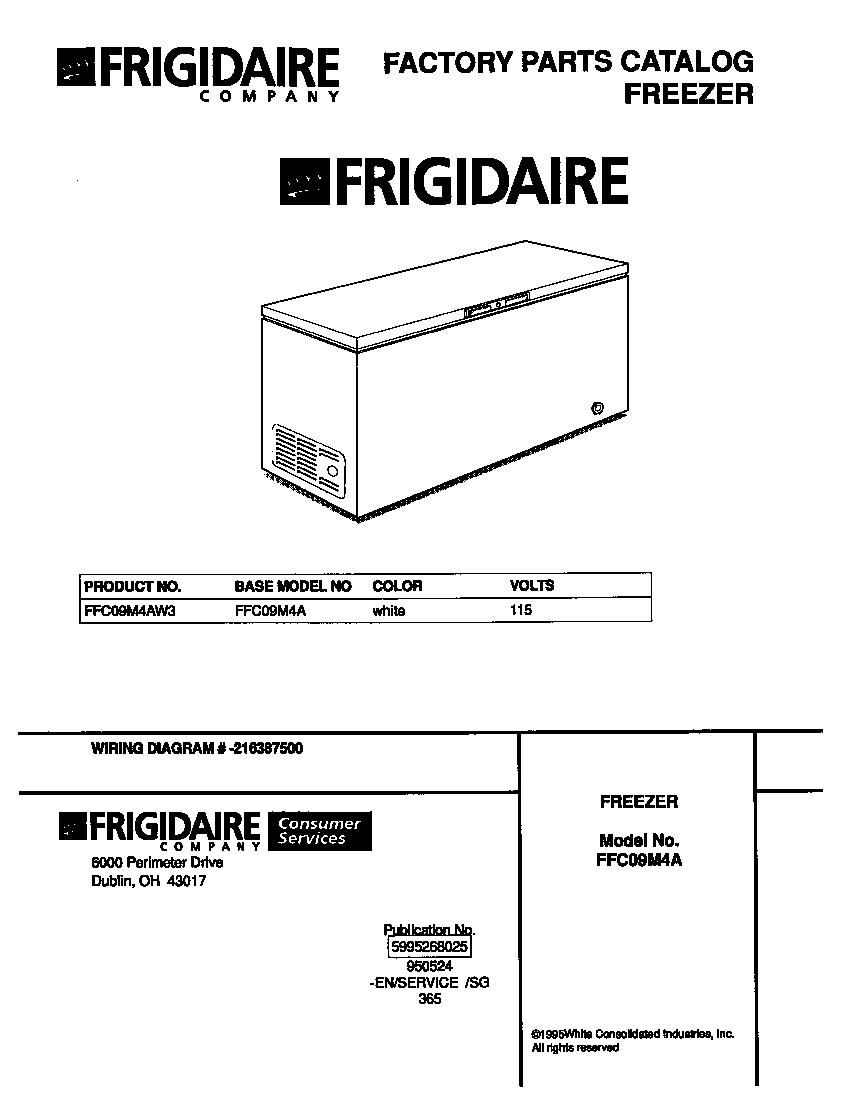

01 - COVER

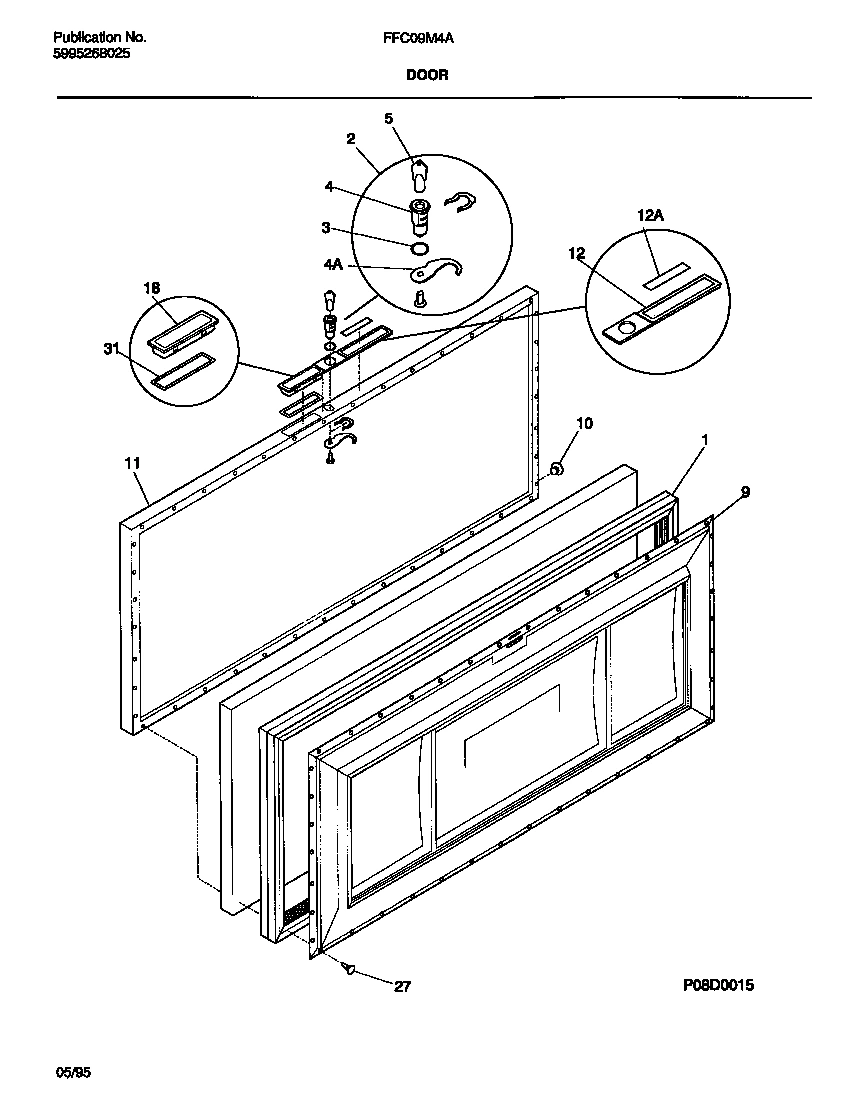

02 - DOOR

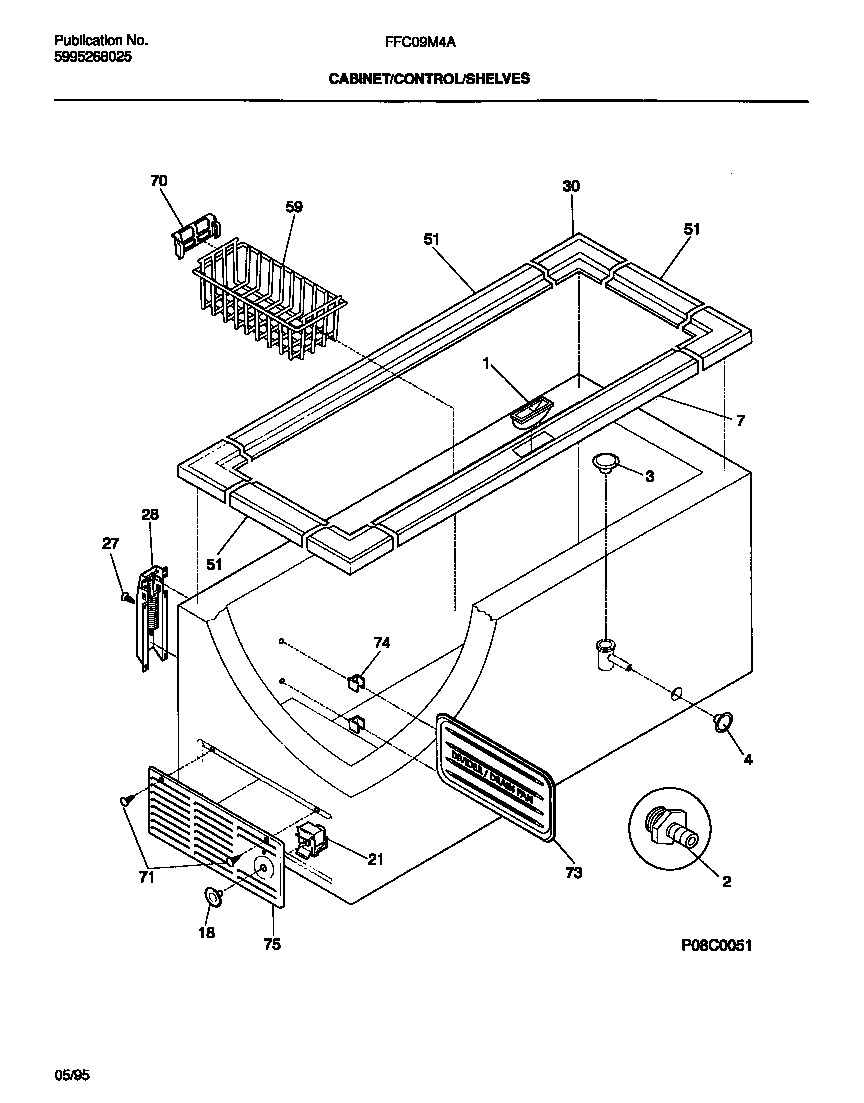

03 - CABINET/CONTROL/SHELVES

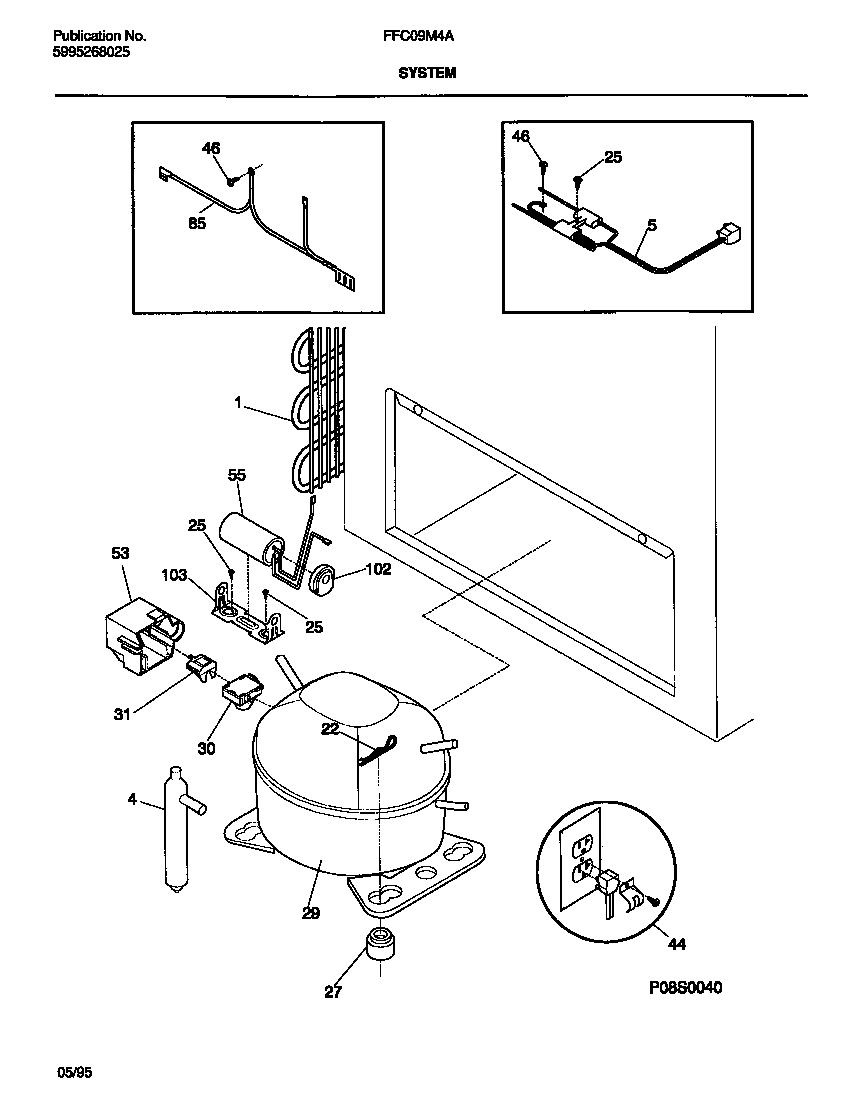

04 - SYSTEM
Common parts from model Electrolux FFC09M4AW3 FREEZER
*42560
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 216117700 WCI 216117700 Contact Us For Availability
1
WCI 5300120781 WCI 5300120781 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
PLUG-DRAIN, WHITE WCI 5306593887 Contact Us For Availability
4
WCI 216078500 WCI 216078500 Contact Us For Availability
4
WCI 5303283905 WCI 5303283905 Contact Us For Availability
4
PLUG, DRAIN WCI 216073900 Contact Us For Availability
5
WCI 216359100 WCI 216359100 Contact Us For Availability
7
WCI 216117600 WCI 216117600 Contact Us For Availability
9
WCI 216062500 WCI 216062500 Contact Us For Availability
10
WCI 216141101 WCI 216141101 Contact Us For Availability
11
WCI 5303925286 WCI 5303925286 Contact Us For Availability
12
WCI 216208100 WCI 216208100 Contact Us For Availability
12
INSERT-BEZEL WCI 216208800 Contact Us For Availability
18
WCI 216140200 WCI 216140200 Contact Us For Availability
18
WCI 216034505 WCI 216034505 Contact Us For Availability
21
WCI 216356800 WCI 216356800 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
25
WCI 216022800 WCI 216022800 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
HINGE ASSY WCI 216119101 Contact Us For Availability
30
BREAKER, WHITE, CORNERS WCI 216105500 Contact Us For Availability
30
WCI 216386600 WCI 216386600 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 216100105 WCI 216100105 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
51
BREAKERS, WHITE, HINGE/SIDE WCI 216117500 Contact Us For Availability
53
COVER, COMPRESSOR WCI 216347800 Contact Us For Availability
55
WCI 216386400 WCI 216386400 Contact Us For Availability
59
BASKET WCI 216142600 Contact Us For Availability
70
WCI 216208500 WCI 216208500 Contact Us For Availability
73
DIVIDER/DRAIN PAN WCI 216078200 Contact Us For Availability
74
SUPPORTS-DIVIDER WCI 09950051 Contact Us For Availability
75
WCI 216329402 WCI 216329402 Contact Us For Availability
85
WCI 216154900 WCI 216154900 Contact Us For Availability
102
WCI 216386800 WCI 216386800 Contact Us For Availability
103
WCI 216386700 WCI 216386700 Contact Us For Availability
× ![]()
