Model Electrolux FFC05M5CW5 FREEZER – Common Parts & Diagrams
01 - COVER

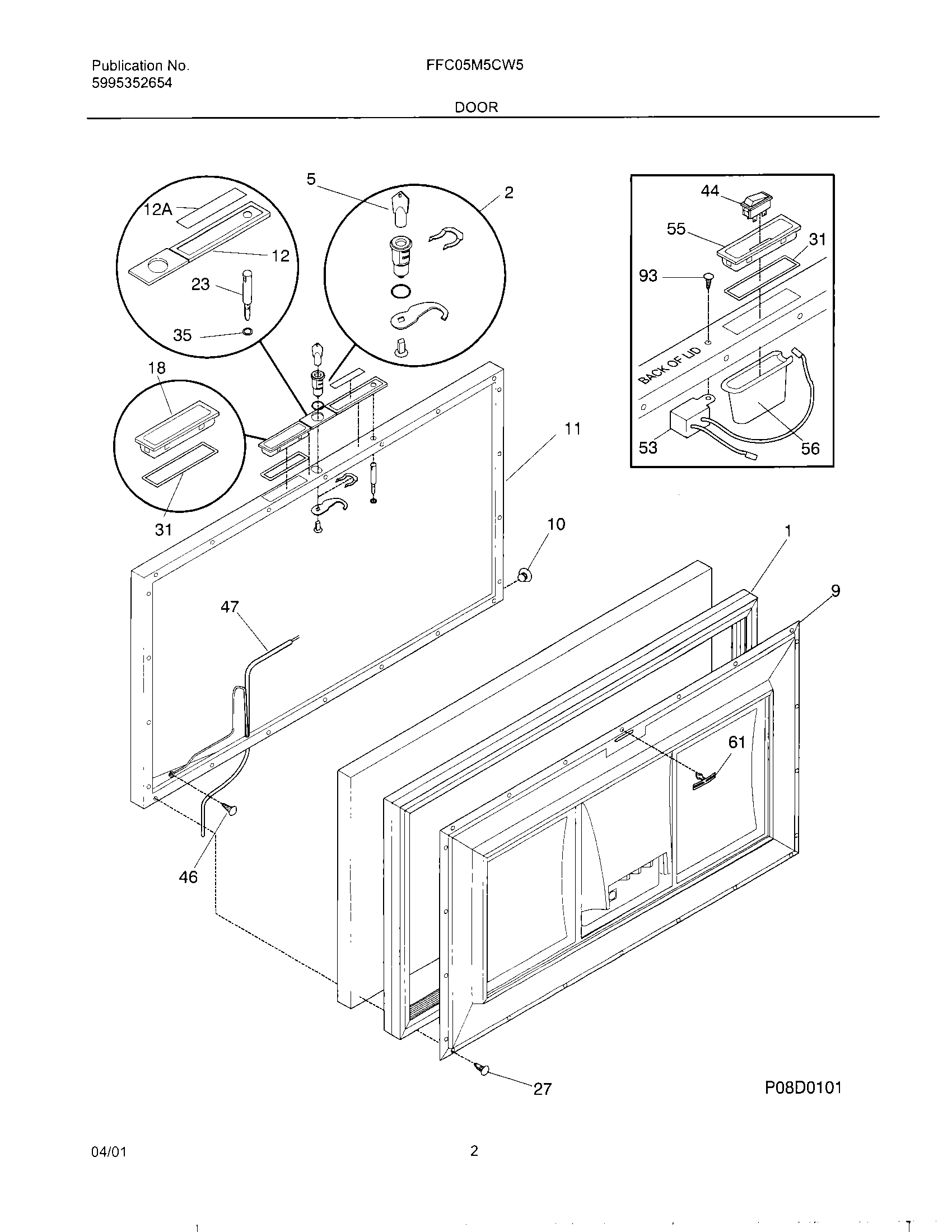

03 - DOOR

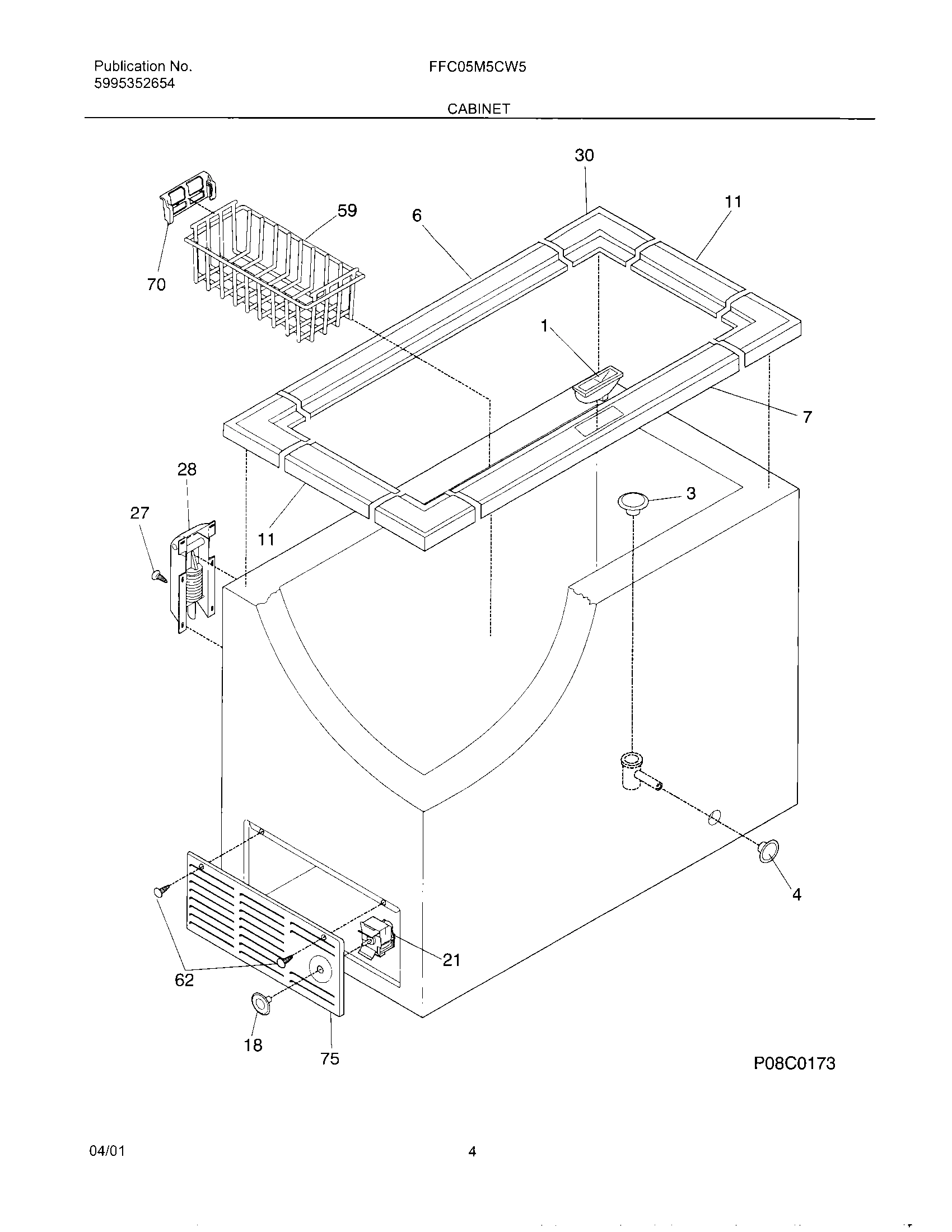

05 - CABINET

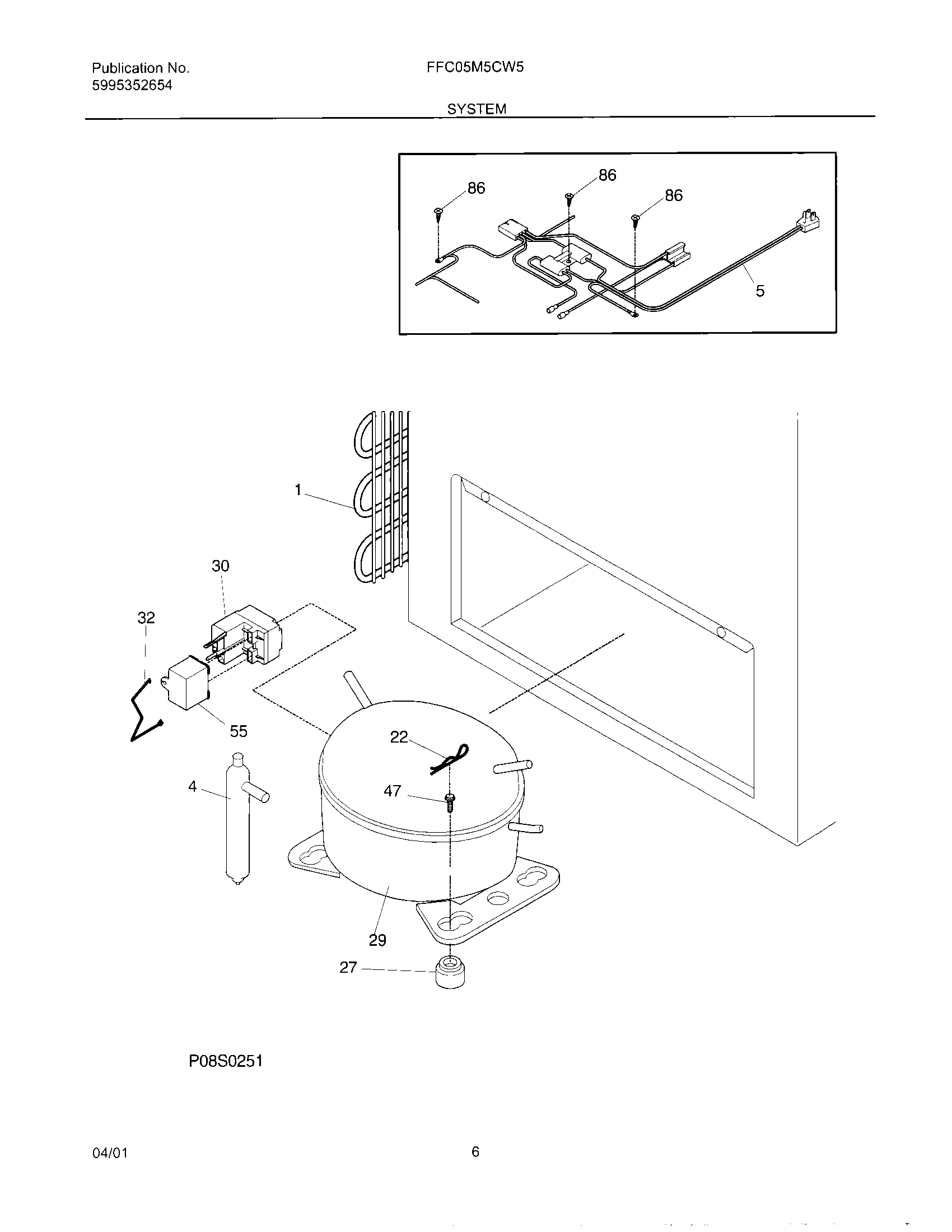

07 - SYSTEM
Common parts from model Electrolux FFC05M5CW5 FREEZER
1
CATCH-LOCK WCI 216117700 Contact Us For Availability
1
WCI 5300120779 WCI 5300120779 Contact Us For Availability
3
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
4
PLUG-DRAIN,EXTERIOR WCI 216073900 Contact Us For Availability
5
WCI 216711700 WCI 216711700 Contact Us For Availability
6
WCI 216105700 WCI 216105700 Contact Us For Availability
7
WCI 216105800 WCI 216105800 Contact Us For Availability
11
WCI 216105600 WCI 216105600 Contact Us For Availability
21
WCI 216714500 WCI 216714500 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
23
WCI 3200895 WCI 3200895 Contact Us For Availability
28
WCI 216478800 WCI 216478800 Contact Us For Availability
30
WCI 216649304 WCI 216649304 Contact Us For Availability
30
WCI 216105500 WCI 216105500 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
32
WCI 216694500 WCI 216694500 Contact Us For Availability
35
WCI 5303297015 WCI 5303297015 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
46
WCI 216707800 WCI 216707800 Contact Us For Availability
47
SCREW-COMP,IND HEX WSHR HD,10-32T X 0.500 SUP WCI 08016776 Contact Us For Availability
53
WCI 5303208483 WCI 5303208483 Contact Us For Availability
55
WCI 216164000 WCI 216164000 Contact Us For Availability
55
WCI 216696700 WCI 216696700 Contact Us For Availability
56
WCI 216694200 WCI 216694200 Contact Us For Availability
59
BASKET WCI 216142600 Contact Us For Availability
70
WCI 216375100 WCI 216375100 Contact Us For Availability
75
WCI 216329402 WCI 216329402 Contact Us For Availability
NI
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
× ![]()
