Model GE FF20DXBRWH Refrigerator – Common Parts & Diagrams

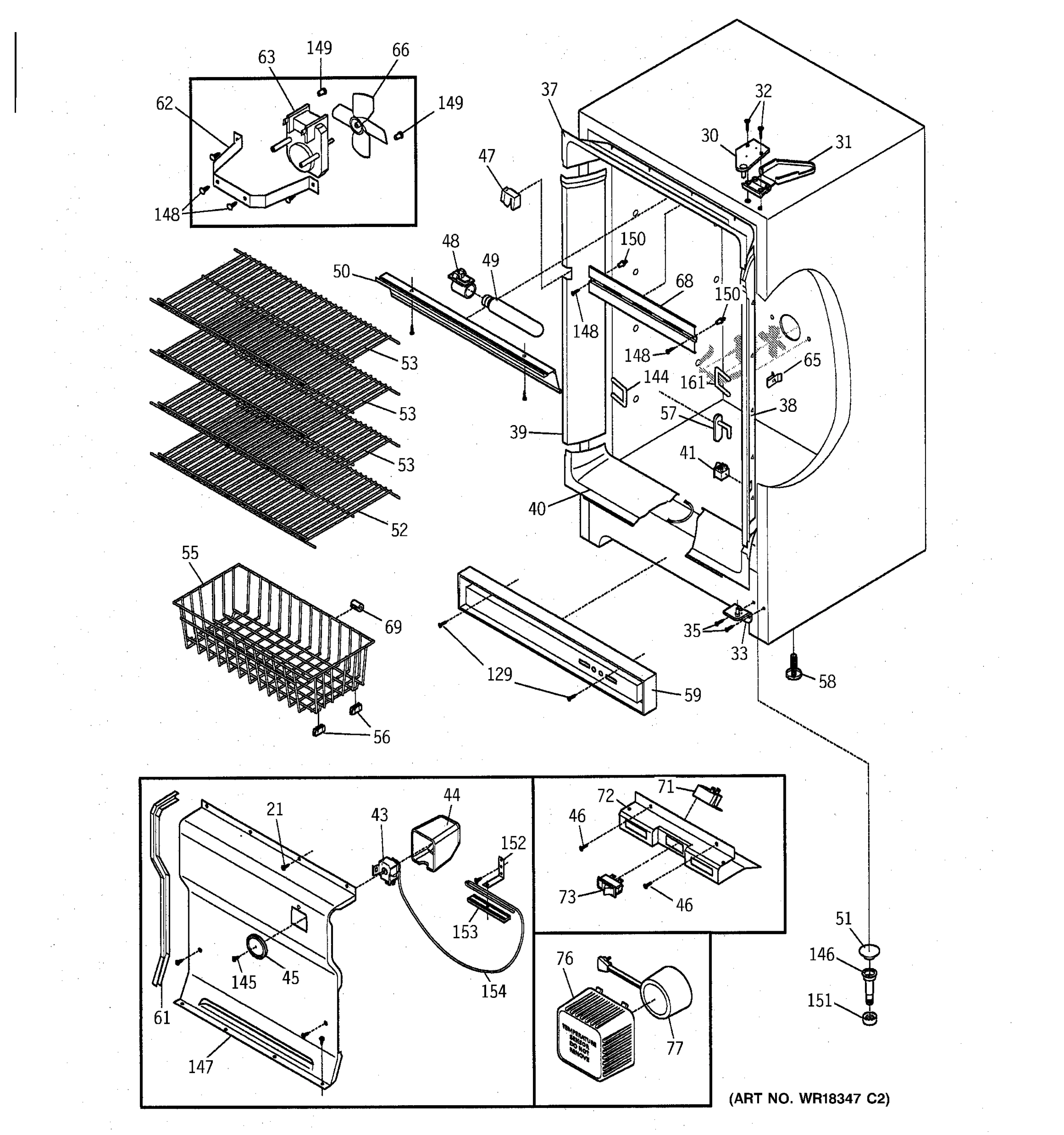

CABINET, CONTROLS & SHELVES

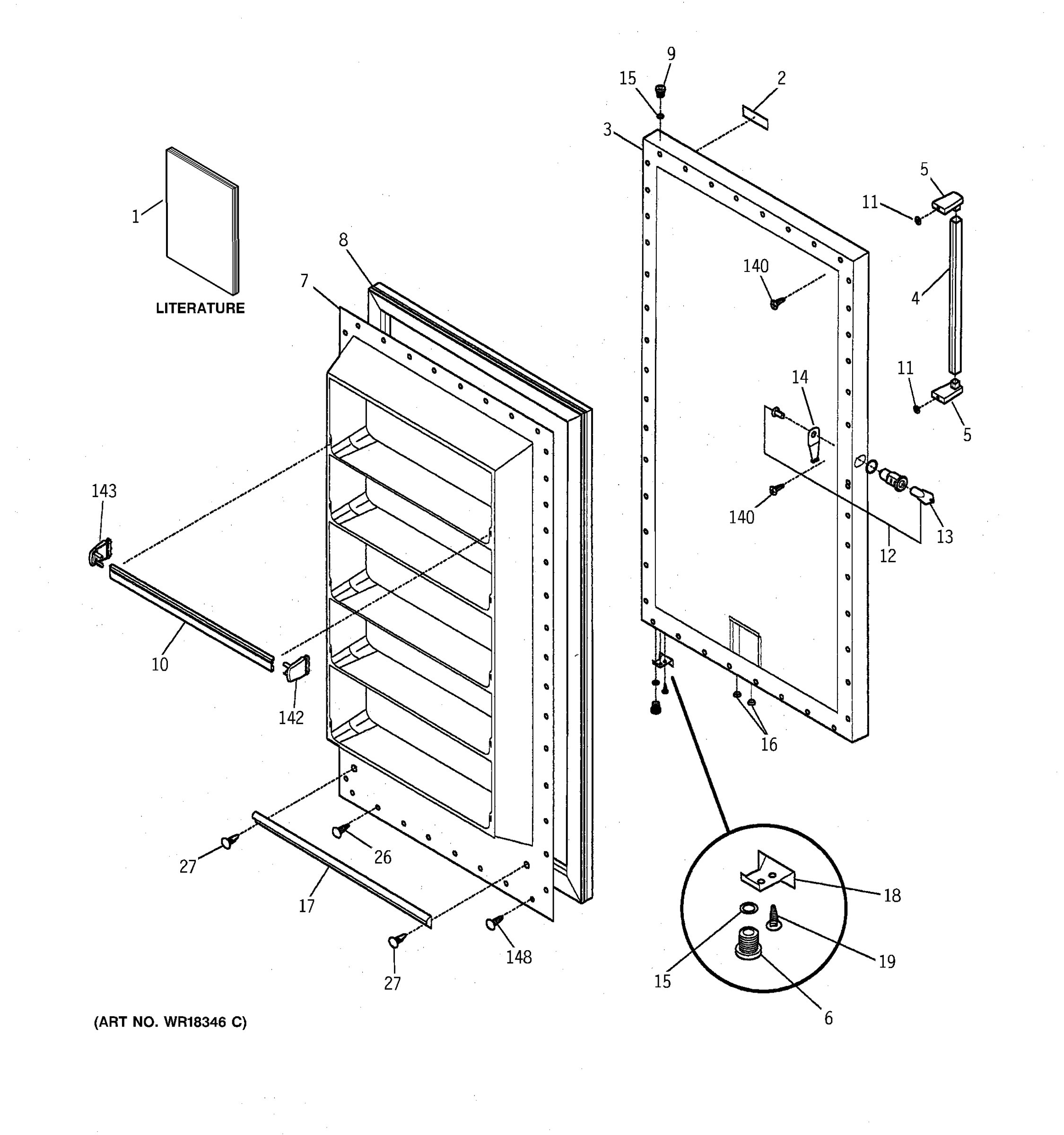

DOOR PARTS
UNIT PARTS
Common parts from model GE FF20DXBRWH Refrigerator
1
GEN 31-5928 GEN 31-5928 Contact Us For Availability
1
GEN 49-6785 GEN 49-6785 Contact Us For Availability
2
GEN WR04X0210 GEN WR04X0210 Contact Us For Availability
3
GEN WR78X8844 GEN WR78X8844 Contact Us For Availability
4
GEN WR12X1085 GEN WR12X1085 Contact Us For Availability
5
END CAP CHROME GEN WR02X8156 Contact Us For Availability
6
GEN WR02X8484 GEN WR02X8484 Contact Us For Availability
7
PANEL INNER DOOR GEN WR77X0630 Contact Us For Availability
8
GEN WR24X0523 GEN WR24X0523 Contact Us For Availability
9
GEN WR02X9491 GEN WR02X9491 Contact Us For Availability
10
GEN WR17X6451 GEN WR17X6451 Contact Us For Availability
11
WASHER FLAT HANDLE GEN WR01X2172 Contact Us For Availability
12
LOCK COMPLETE GEN WR05X0087 Contact Us For Availability
13
KEY GEN WR05X0093 Contact Us For Availability
14
GEN WR05X1927 GEN WR05X1927 Contact Us For Availability
15
GEN WR01X2180 GEN WR01X2180 Contact Us For Availability
16
GEN WR17X4280 GEN WR17X4280 Contact Us For Availability
17
GASKET SECONDARY GEN WR14X5097 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
19
SCREW DOOR STOP GEN WR01X5485 Contact Us For Availability
21
SCREW PANEL TO EVAP GEN WR02X9494 Contact Us For Availability
26
SCREW 8-18 X 1/2 GEN WR01X5405 Contact Us For Availability
27
GEN WR01X1520D GEN WR01X1520D Contact Us For Availability
30
GEN WR12X0947 GEN WR12X0947 Contact Us For Availability
31
GEN WR02X8868 GEN WR02X8868 Contact Us For Availability
32
GEN WR01X5777 GEN WR01X5777 Contact Us For Availability
33
GEN WR02X9139 GEN WR02X9139 Contact Us For Availability
35
GEN WR01X5776 GEN WR01X5776 Contact Us For Availability
37
GEN WR40X1702 GEN WR40X1702 Contact Us For Availability
38
BREAKER HINGE SIDE GEN WR40X1704 Contact Us For Availability
39
GEN WR40X1705 GEN WR40X1705 Contact Us For Availability
40
GEN WR40X1703 GEN WR40X1703 Contact Us For Availability
43
CONTROL TEMP. GEN WR09X0544 Contact Us For Availability
44
GEN WR02X9495 GEN WR02X9495 Contact Us For Availability
45
GEN WR02X9499 GEN WR02X9499 Contact Us For Availability
46
GEN WR01X2179 GEN WR01X2179 Contact Us For Availability
47
SUPPORT LOCK GEN WR02X8643 Contact Us For Availability
48
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
49
GEN PURCH.LOCA GEN PURCH.LOCA Contact Us For Availability
50
SHIELD LIGHT GEN WR02X9394 Contact Us For Availability
51
SCREEN DRAIN GEN WR01X6203 Contact Us For Availability
52
SHELF LOWER GEN WR71X2462 Contact Us For Availability
53
SHELF UPPER GEN WR71X2461 Contact Us For Availability
55
GEN WR21X0198 GEN WR21X0198 Contact Us For Availability
57
GEN WR02X6171 GEN WR02X6171 Contact Us For Availability
59
KICKPLATE GEN WR74X0251 Contact Us For Availability
60
GEN WR49X0421 GEN WR49X0421 Contact Us For Availability
61
GASKET EVAP. COVER GEN WR14X5140 Contact Us For Availability
63
GEN WR60X0270 GEN WR60X0270 Contact Us For Availability
65
CLIP BREAKER STRIP GEN WR01X5368 Contact Us For Availability
66
GEN WR60X5082 GEN WR60X5082 Contact Us For Availability
68
GEN WR17X3405 GEN WR17X3405 Contact Us For Availability
71
GEN WR23X5149 GEN WR23X5149 Contact Us For Availability
72
GEN WR02X7472 GEN WR02X7472 Contact Us For Availability
73
GEN WR23X5171 GEN WR23X5171 Contact Us For Availability
76
GEN WR17X6454 GEN WR17X6454 Contact Us For Availability
77
SENSOR ASM. GEN WR50X5037 Contact Us For Availability
82
GEN WR86X0113 GEN WR86X0113 Contact Us For Availability
101
GEN WR87X0514 GEN WR87X0514 Contact Us For Availability
103
GEN WR01X2208 GEN WR01X2208 Contact Us For Availability
104
GEN WR85X0279 GEN WR85X0279 Contact Us For Availability
105
SUPPORT EVAPORATOR GEN WR02X6206 Contact Us For Availability
106
GEN WR02X6207 GEN WR02X6207 Contact Us For Availability
108
GEN WR50X0144 GEN WR50X0144 Contact Us For Availability
109
GEN WR51X0469 GEN WR51X0469 Contact Us For Availability
110
GEN WR01X2174 GEN WR01X2174 Contact Us For Availability
111
GEN WR02X9497 GEN WR02X9497 Contact Us For Availability
112
GROMMET GEN WR01X5134 Contact Us For Availability
113
STARTER PTC/RELAY GEN WR07X0225 Contact Us For Availability
114
GEN WR01X2170 GEN WR01X2170 Contact Us For Availability
117
GEN WR02X8958 GEN WR02X8958 Contact Us For Availability
119
GEN WR08X0187 GEN WR08X0187 Contact Us For Availability
120
BRACKET TIMER GEN WR02X6209 Contact Us For Availability
128
GEN WR62X0108 GEN WR62X0108 Contact Us For Availability
140
SCREW HANDLE GEN WR01X5749 Contact Us For Availability
142
GEN WR02X9492 GEN WR02X9492 Contact Us For Availability
143
GEN WR02X9493 GEN WR02X9493 Contact Us For Availability
144
CLIP U-LOCK GEN WR02X8644 Contact Us For Availability
145
SCREW CONTROL KNOB GEN WR01X5483 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
147
COVER EVAPORATOR GEN WR17X3406 Contact Us For Availability
149
GEN WR01X2175 GEN WR01X2175 Contact Us For Availability
150
GEN WR01X2176 GEN WR01X2176 Contact Us For Availability
151
GEN WR17X4279 GEN WR17X4279 Contact Us For Availability
153
GEN WR02X9498 GEN WR02X9498 Contact Us For Availability
155
GEN WR02X6208 GEN WR02X6208 Contact Us For Availability
156
GEN WR01X2178 GEN WR01X2178 Contact Us For Availability
161
GEN WR01X2171 GEN WR01X2171 Contact Us For Availability
× ![]()
