Model Whirlpool FES375VX1 ELECTRIC RANGE – Common Parts & Diagrams

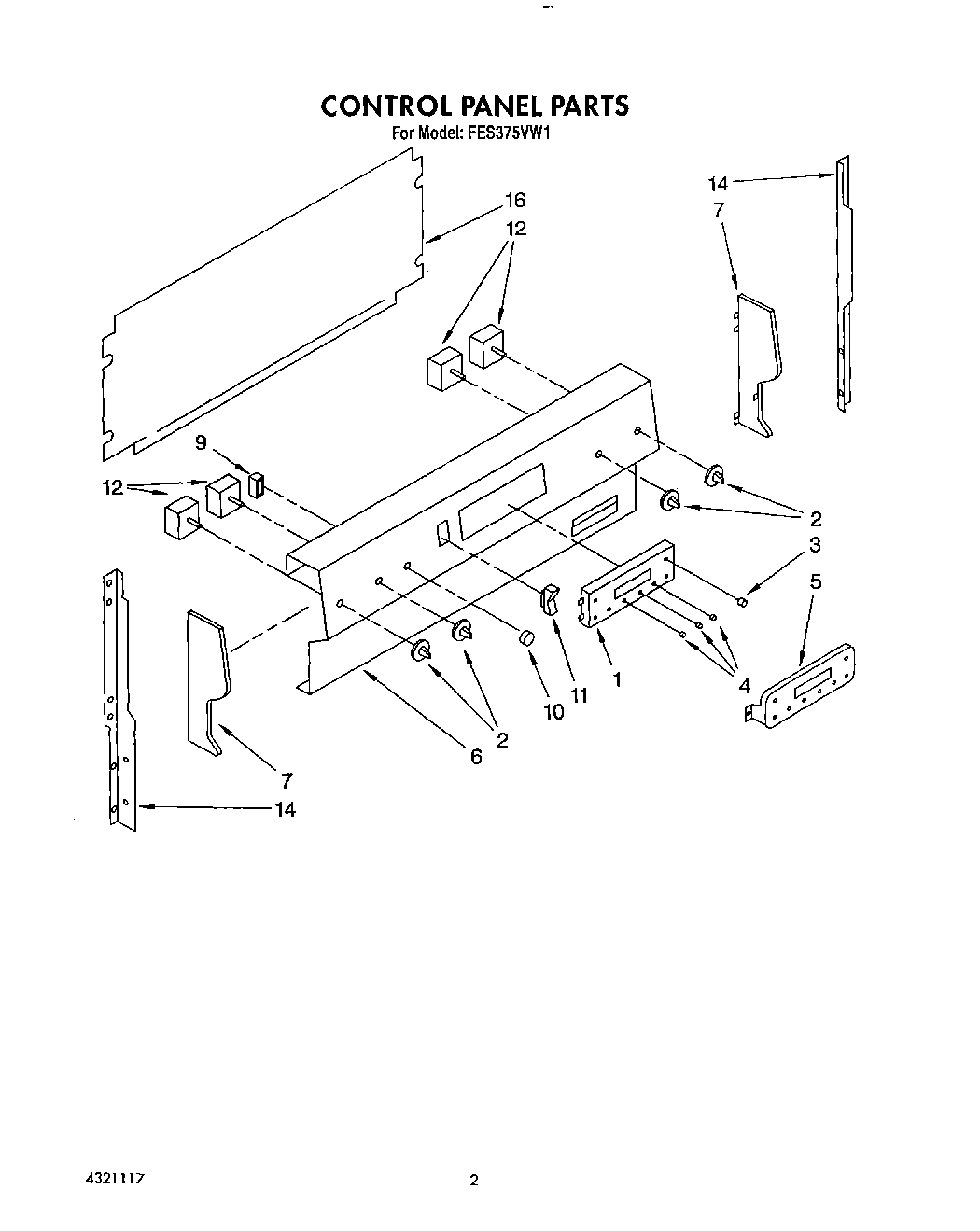

02 - CONTROL PANEL, LIT/OPTIONAL

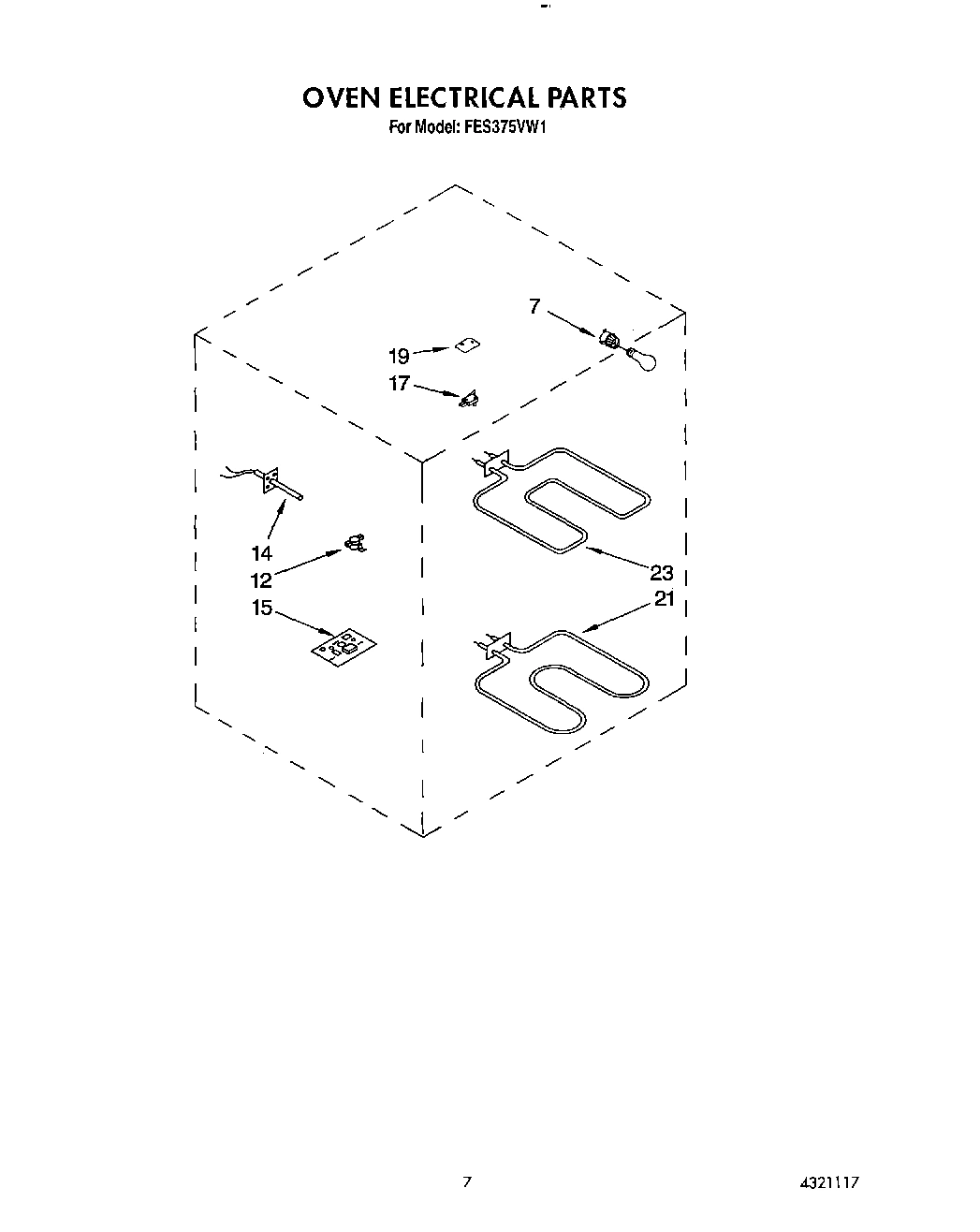

07 - OVEN ELECTRICAL
05 - EXTERNAL OVEN
03 - COOKTOP
04 - INTERNAL OVEN
06 - OVEN DOOR
Common parts from model Whirlpool FES375VX1 ELECTRIC RANGE
Installation Guide WPL LIT4315757 Contact Us For Availability
Use & Care Manual WPL LIT4320354 Contact Us For Availability
Repair Parts List WPL LIT4321117 Contact Us For Availability
1
Electric Range Control WPL 4320764 Contact Us For Availability
1
Lining, Oven Door WPL 4320847 Contact Us For Availability
2
Knob, Top Element (4) WPL 4320851 Contact Us For Availability
2
bracket, oven shell WPL 4320330 Contact Us For Availability
2
Pad, Oven Door WPL 4320300 Contact Us For Availability
3
Knob, ERC WPL 4320916 Contact Us For Availability
3
Frame WPL 4320818 Contact Us For Availability
4
Set Button (3) WPL 4320917 Contact Us For Availability
4
Tube, Vent WPL 4320830 Contact Us For Availability
4
Cooktop (White) WPL 4320842 Contact Us For Availability
4
Cooktop (Almond) WPL 4320843 Contact Us For Availability
4
Cooktop (Chrome) WPL 4320844 Contact Us For Availability
5
Glass, Lens WPL 4320852 Contact Us For Availability
5
Glass WPL 4320848 Contact Us For Availability
6
Control Panel (White) WPL 4320937 Contact Us For Availability
6
Control Panel (Almond) WPL 4320938 Contact Us For Availability
6
Control Panel (Chrome) WPL 4320939 Contact Us For Availability
6
Insulation, Top & Rear WPL 4320838 Contact Us For Availability
6
Window Assembly WPL 786429 Contact Us For Availability
7
End Cap (R.H.) WPL 4320744 Contact Us For Availability
7
End Cap (L.H.) WPL 4320745 Contact Us For Availability
8
Oven Shell WPL 4320828 Contact Us For Availability
9
Indicator Light WPL 786306 Contact Us For Availability
9
Heat Shield WPL 4315673 Contact Us For Availability
10
Lens, Light WPL 4315798 Contact Us For Availability
10
Retainer, Glass WPL 4179236 Contact Us For Availability
11
Clamp, Wire WPL 4157515 Contact Us For Availability
11
Bracket, Support WPL 786425 Contact Us For Availability
12
Switch, Infinite WPL 4315248 Contact Us For Availability
12
Switch, High Limit WPL 4320967 Contact Us For Availability
12
Broiler Pan WPL 4315109 Contact Us For Availability
12
Bumper, Rubber WPL 786526 Contact Us For Availability
13
Vent Trim WPL 4320961 Contact Us For Availability
13
Hinge, Cooktop (R.H.) WPL 4320949 Contact Us For Availability
13
Hinge, Cooktop (L.H.) WPL 4320950 Contact Us For Availability
13
Oven Rack WPL 786347 Contact Us For Availability
13
Plate, Latch WPL 786671 Contact Us For Availability
14
Support, Backguard (L.H.) WPL 4315795 Contact Us For Availability
14
Support, Backguard (R.H.) WPL 4315796 Contact Us For Availability
14
Sensor WPL 4320772 Contact Us For Availability
14
Bottom, Burner Box WPL 4320494 Contact Us For Availability
14
Broiler Grid WPL 786346 Contact Us For Availability
14
Gasket WPL 4320302 Contact Us For Availability
15
Circuit Board WPL 4320808 Contact Us For Availability
15
Pin, Door Hinge WPL 786428 Contact Us For Availability
16
Cover Plate, Rear WPL 4320832 Contact Us For Availability
16
Frame, Front (Not Serviceable) WPL ARI57450A5 Contact Us For Availability
16
Cover, Switch WPL 4320493 Contact Us For Availability
16
Rubber Bumper WPL 4179237 Contact Us For Availability
17
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
17
Hinge, Oven Door (R.H.) WPL 4320963 Contact Us For Availability
17
Hinge, Oven Door (L.H.) WPL 786375 Contact Us For Availability
18
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
18
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
18
Handle WPL 4320802 Contact Us For Availability
19
Insulator, Switch WPL 786380 Contact Us For Availability
19
Brace, Element WPL 4320674 Contact Us For Availability
19
Retainer, Rear WPL 4320962 Contact Us For Availability
20
Knob WPL 4320836 Contact Us For Availability
22
Panel, Side (White) WPL 4321094 Contact Us For Availability
22
Panel, Side (Almond) WPL 4321097 Contact Us For Availability
22
Panel, Side (Black) WPL 4321114 Contact Us For Availability
22
Bracket WPL 4315774 Contact Us For Availability
24
Latch, Oven Door WPL 4320837 Contact Us For Availability
24
Retainer, Side WPL 4315771 Contact Us For Availability
25
Track, Drawer (R.H) WPL 4315768 Contact Us For Availability
25
Track, Drawer (L.H.) WPL 4315769 Contact Us For Availability
28
Retainer, Bottom WPL 4320839 Contact Us For Availability
30
Leveling Leg WPL 4315777 Contact Us For Availability
32
Plate, Inlet WPL 4320523 Contact Us For Availability
34
Cover, Rear WPL 4320936 Contact Us For Availability
36
Cover, Access WPL 4320964 Contact Us For Availability
40
Anti Tip Kit WPL 4315756 Contact Us For Availability
41
Drawer Assembly WPL 4320306 Contact Us For Availability
42
liner, drawer WPL 4320307 Contact Us For Availability
43
Panel, Drawer (Black) WPL 4314976 Contact Us For Availability
43
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
43
Panel, Drawer (White) WPL 786522 Contact Us For Availability
44
runner (l.h.) WPL 4320308 Contact Us For Availability
44
Runner (R.H.) WPL 4320309 Contact Us For Availability
× ![]()
