Model Electrolux FEF376CJBB RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

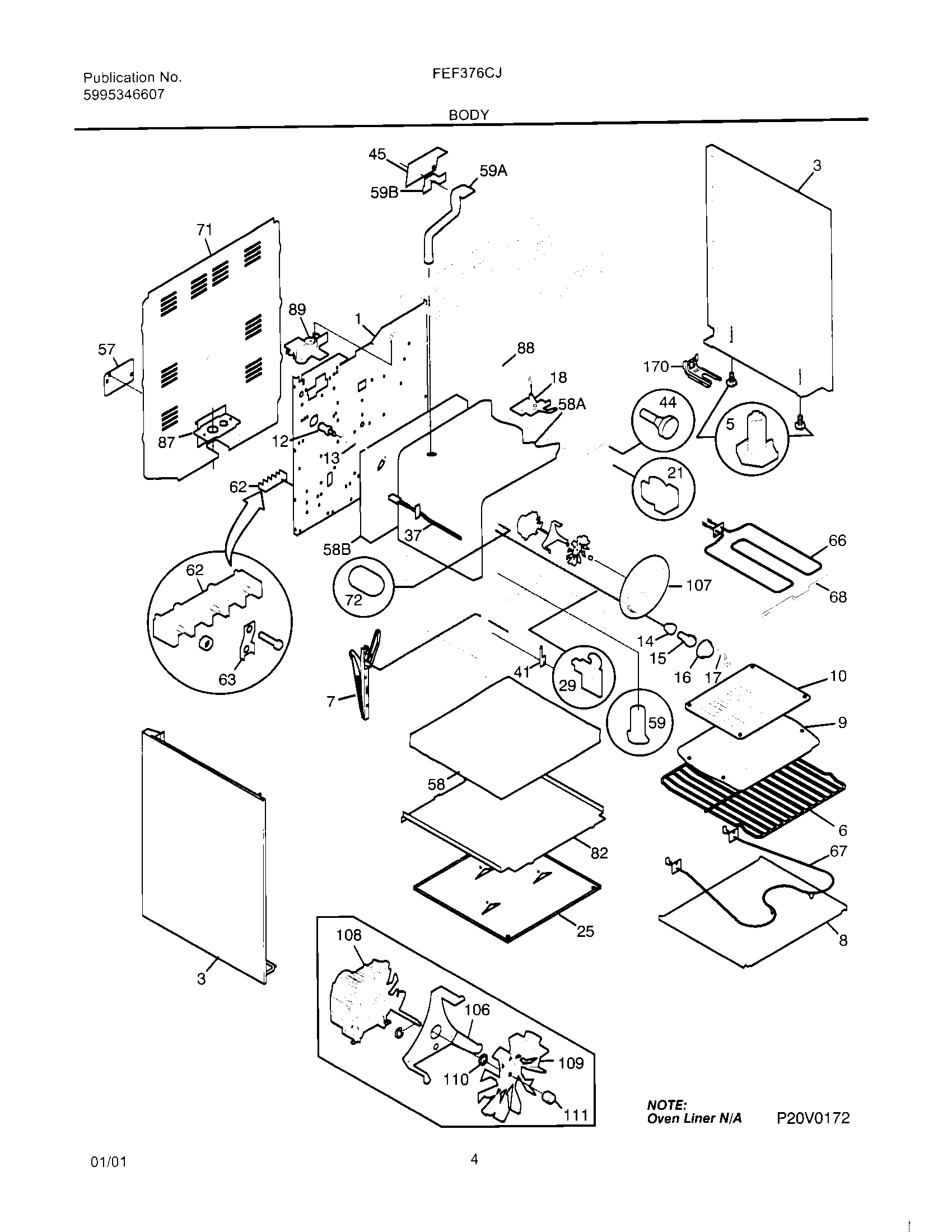

05 - BODY

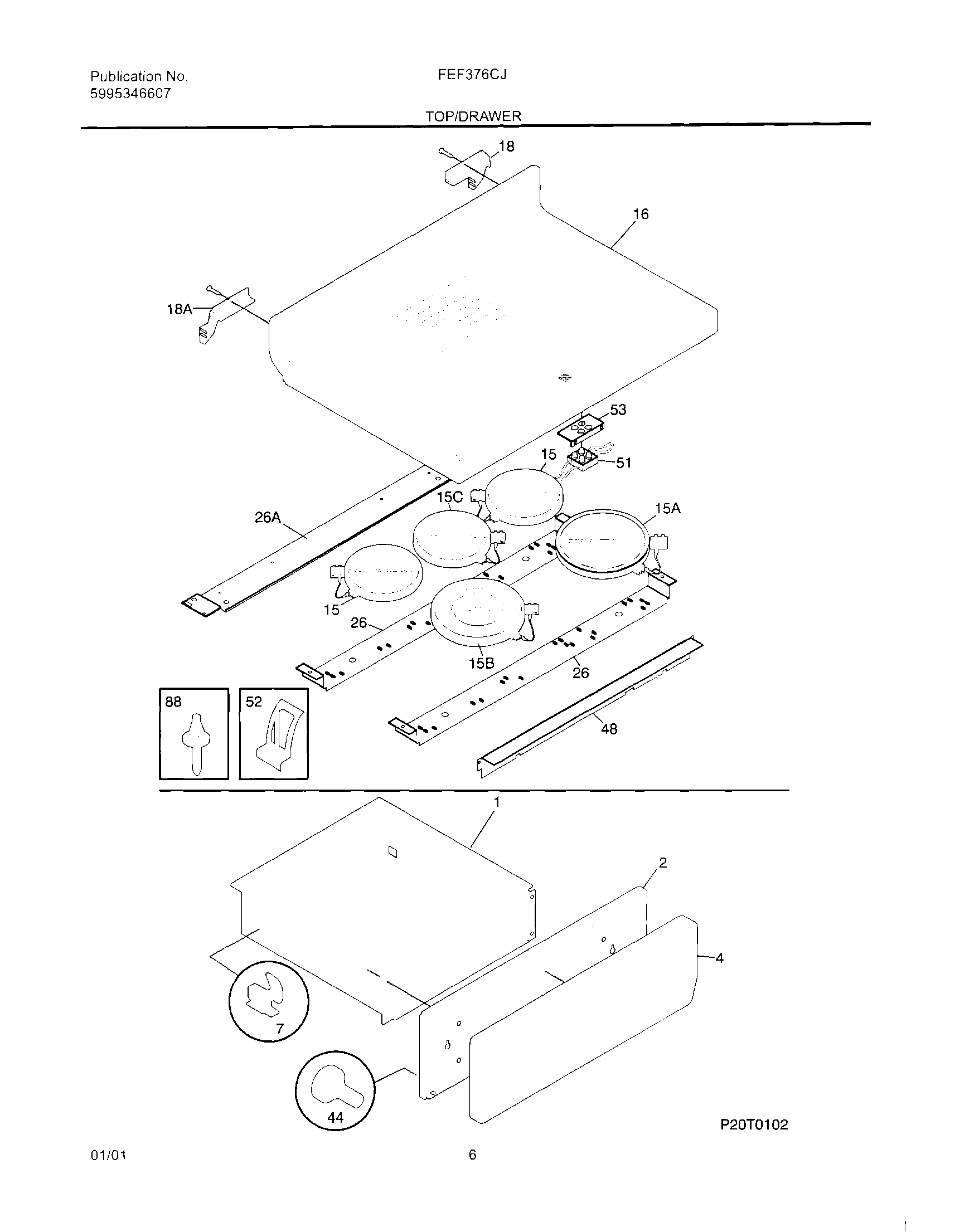

07 - TOP/DRAWER

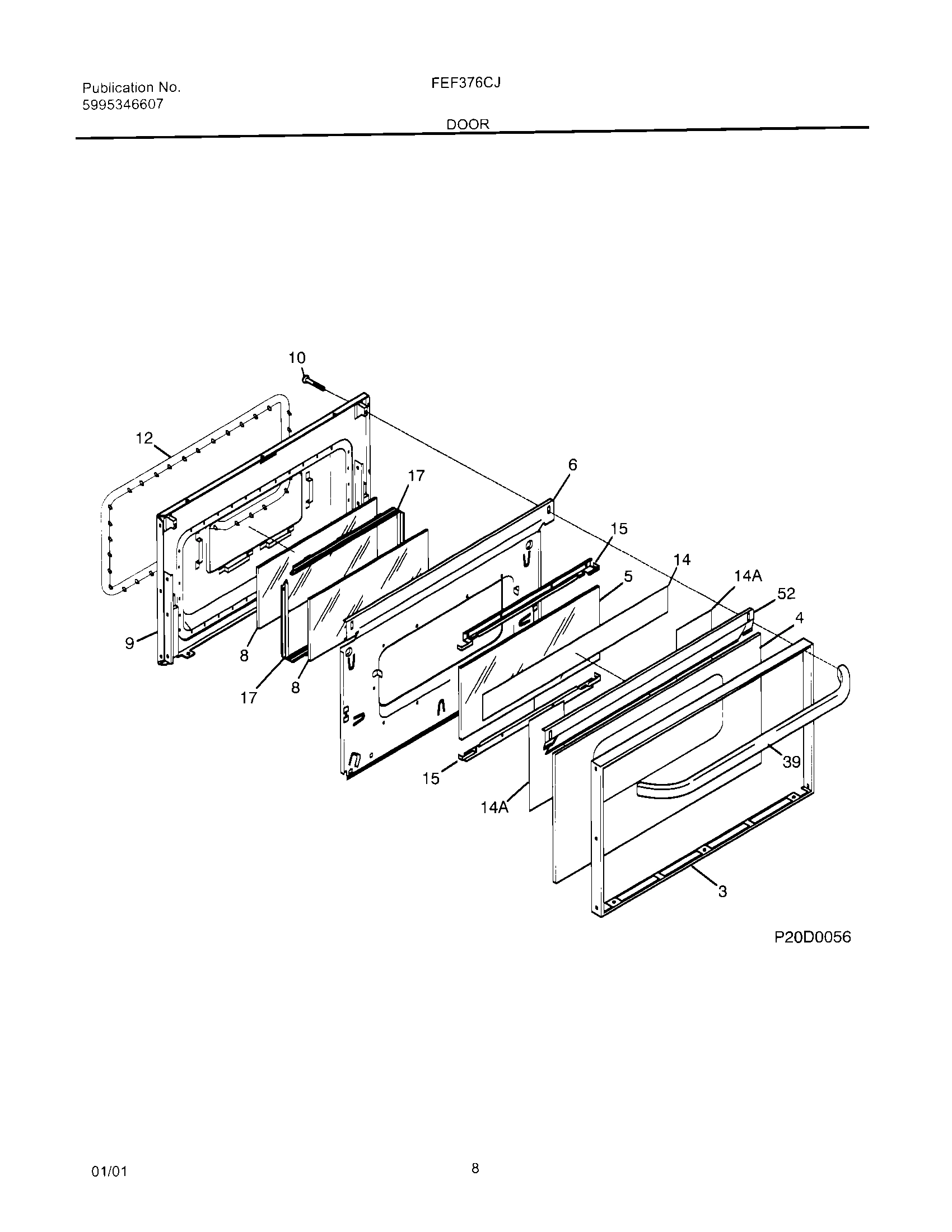

09 - DOOR

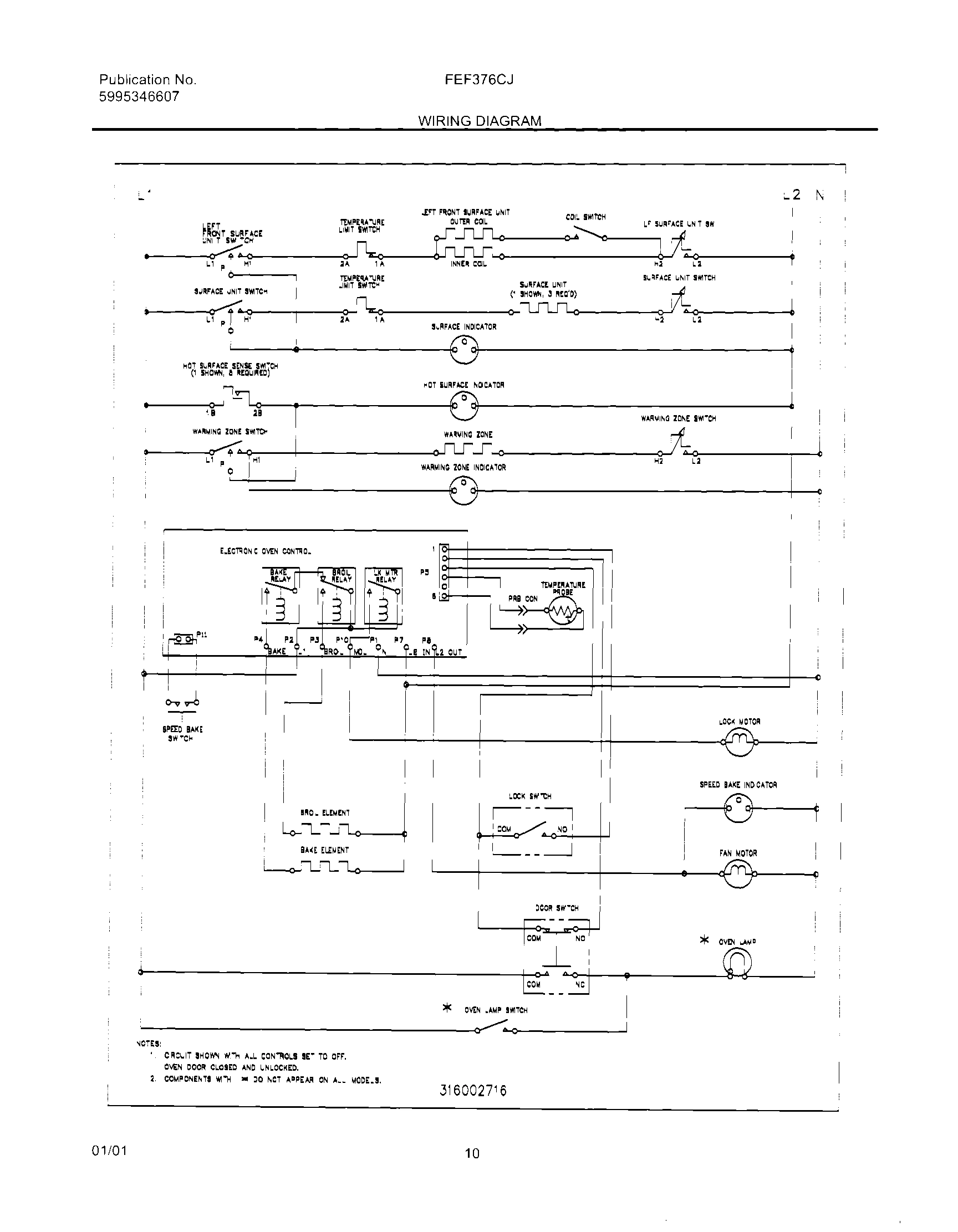

10 - WIRING DIAGRAM
Common parts from model Electrolux FEF376CJBB RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
Panel-drawer front,black WCI 316084407 Contact Us For Availability
4
WCI 316089012 WCI 316089012 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316117601 WCI 316117601 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
6
WCI 316091404 WCI 316091404 Contact Us For Availability
7
Glide,drawer ,rear WCI 3051163 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066619 WCI 316066619 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
12
WCI 5303131601 WCI 5303131601 Contact Us For Availability
14
Light/Lamp,warmer,indicator ,drawer/zone,125 WCI 316022500 Contact Us For Availability
14
Socket-light/lamp,oven WCI 316116400 Contact Us For Availability
14
Light/Lamp,indicator ,surface ,250 V WCI 316022503 Contact Us For Availability
14
WCI 316102204 WCI 316102204 Contact Us For Availability
15
WCI 316098201 WCI 316098201 Contact Us For Availability
15
WCI 316081405 WCI 316081405 Contact Us For Availability
16
WCI 316098180 WCI 316098180 Contact Us For Availability
17
WCI 316087500 WCI 316087500 Contact Us For Availability
17
Spacer-glass,(2) WCI 316117701 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
26
Channel-support,element ,galv steel ,(2) WCI 316099100 Contact Us For Availability
26
Bracket-support,chassis ,galv steel WCI 316099200 Contact Us For Availability
29
GLIDE-DRAWER, FRONT WCI 3051162 Contact Us For Availability
39
WCI 316091117 WCI 316091117 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131903 WCI 3131903 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
Wiring Harness,surface element WCI 316001759 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53
WCI 316099300 WCI 316099300 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
66
Element-broil,2950 W WCI 5303051140 Contact Us For Availability
87
WCI 316081200 WCI 316081200 Contact Us For Availability
88
WCI 316099500 WCI 316099500 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 316136300 WCI 316136300 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
170
Template, Anti-tip bracket WCI 316112500 Contact Us For Availability
NI
WCI 316008401 WCI 316008401 Contact Us For Availability
NI
Screw,8-18 x 0.500 ,chrome WCI 316021109 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black,ba WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner WCI 5303271648 Contact Us For Availability
NI
Clip-wiring harness,retainer ,green ,main top WCI 316045000 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316112101 WCI 316112101 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
