Model Electrolux FEF369CGTD RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

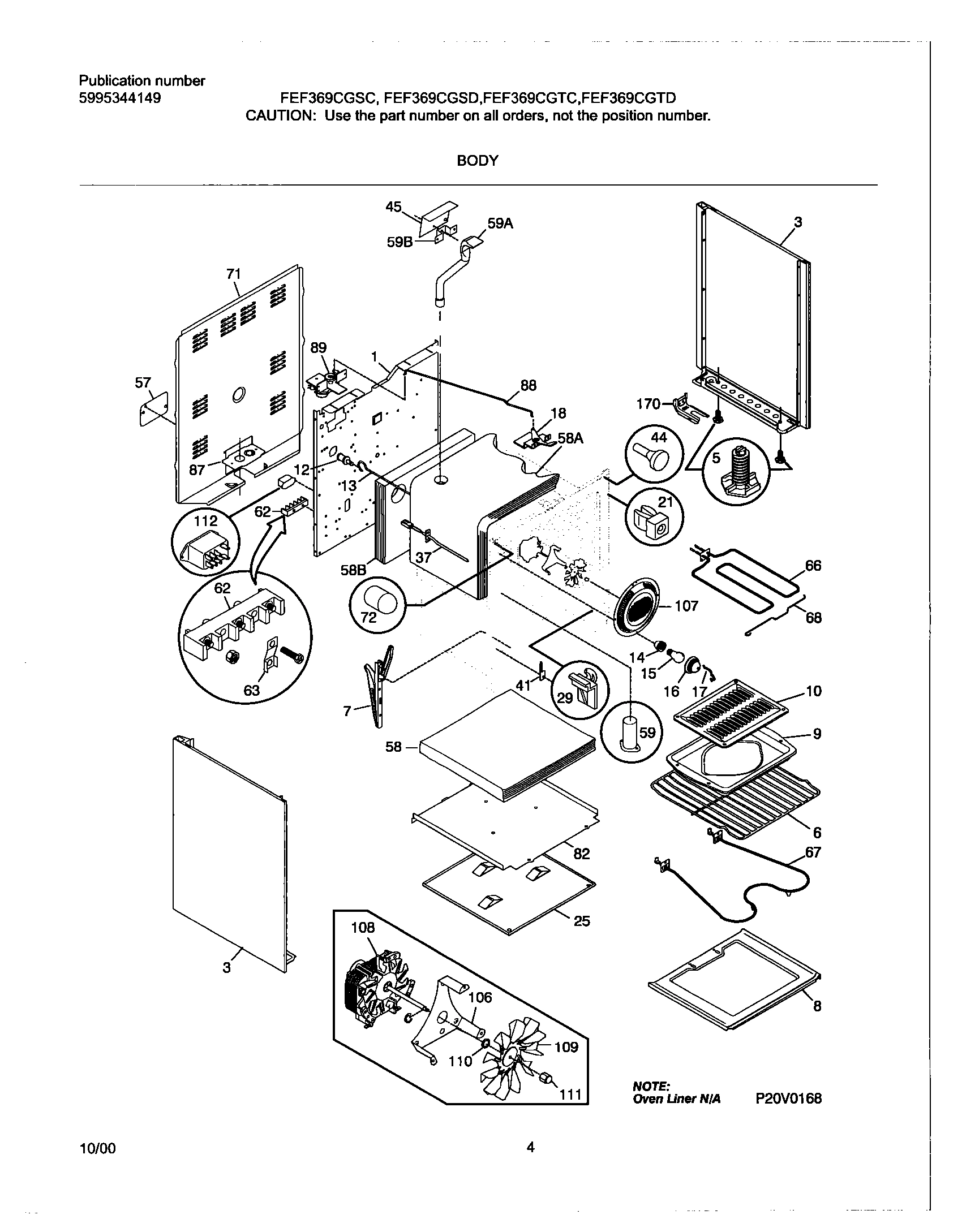

05 - BODY

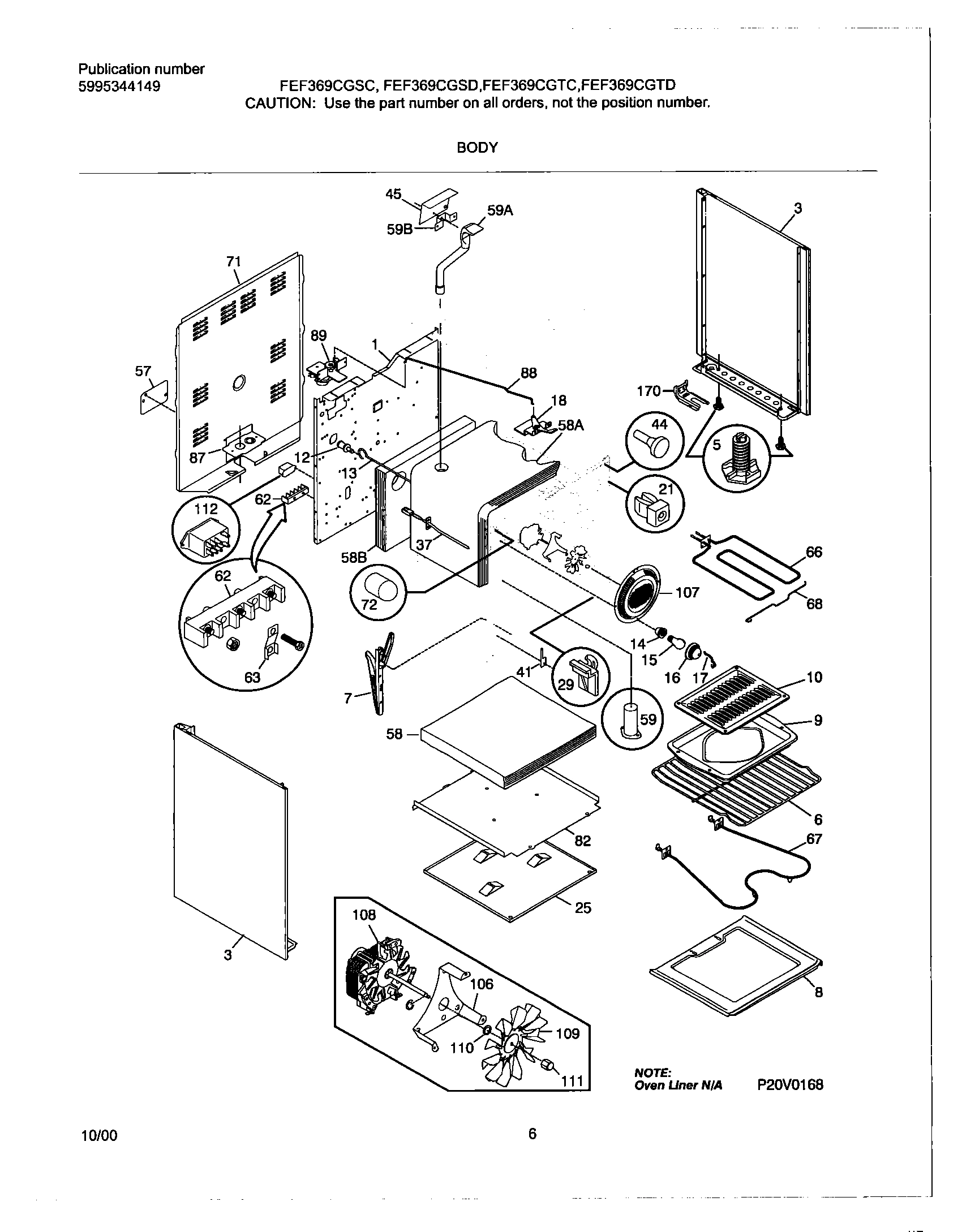

07 - BODY

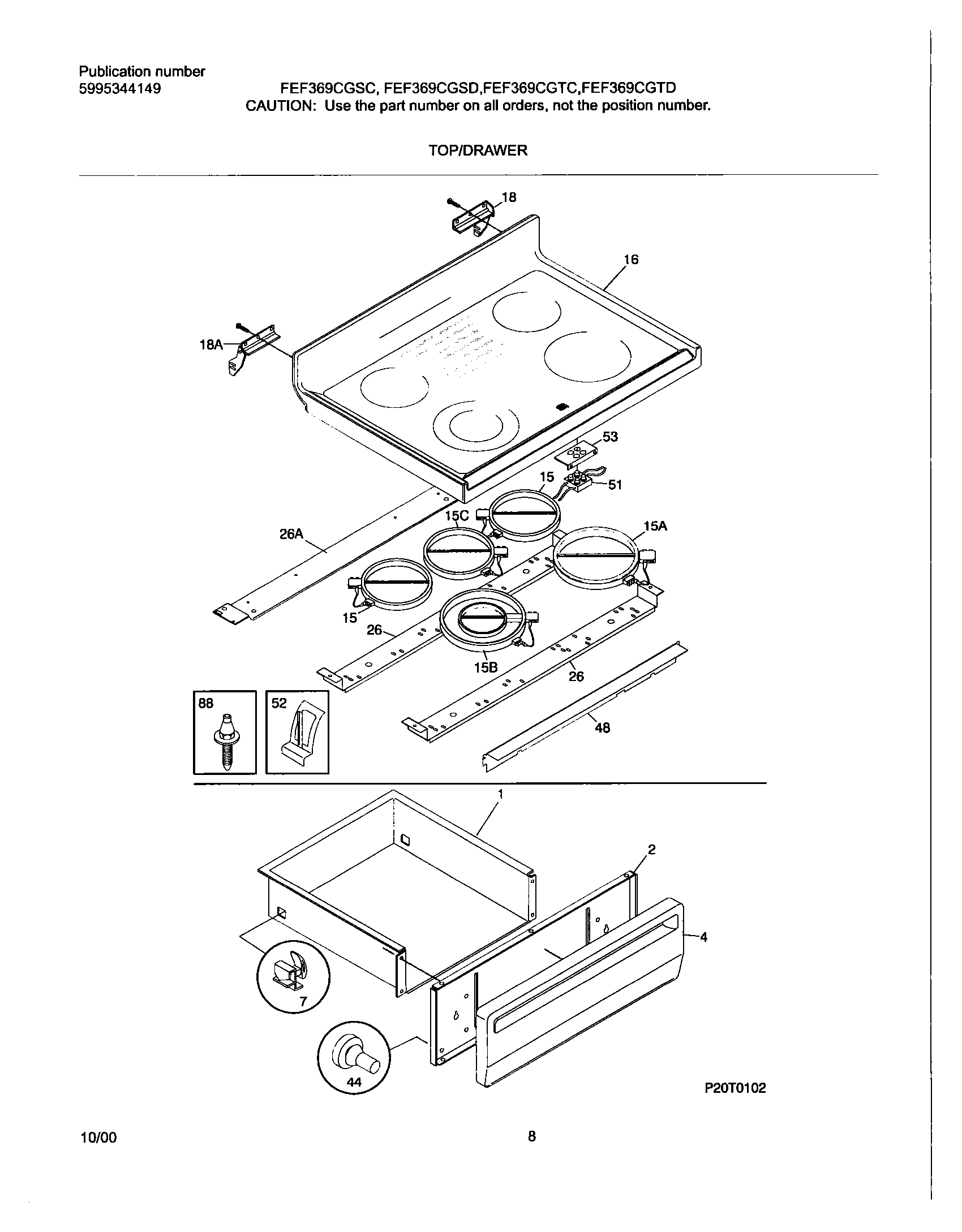

09 - TOP/DRAWER

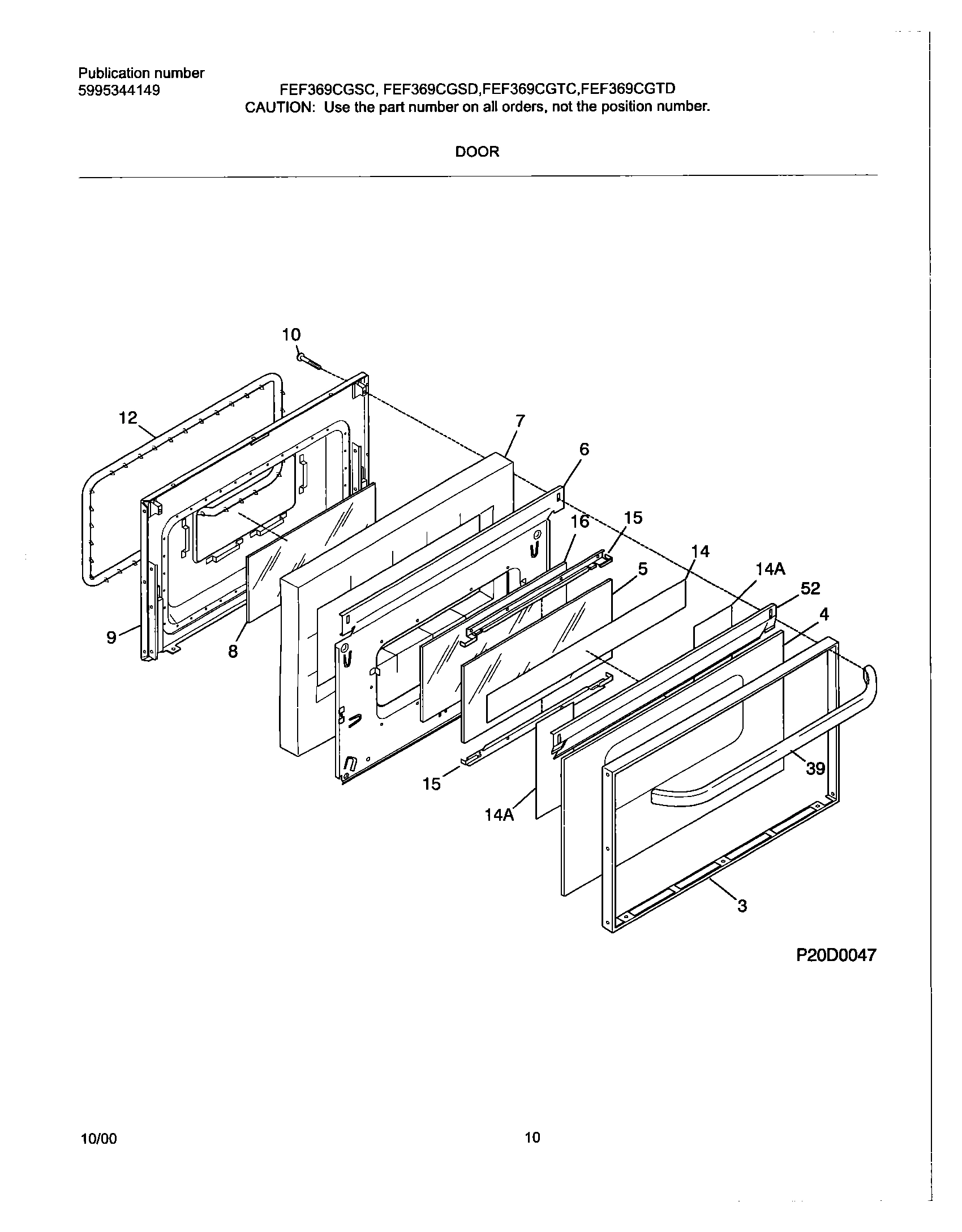

11 - DOOR

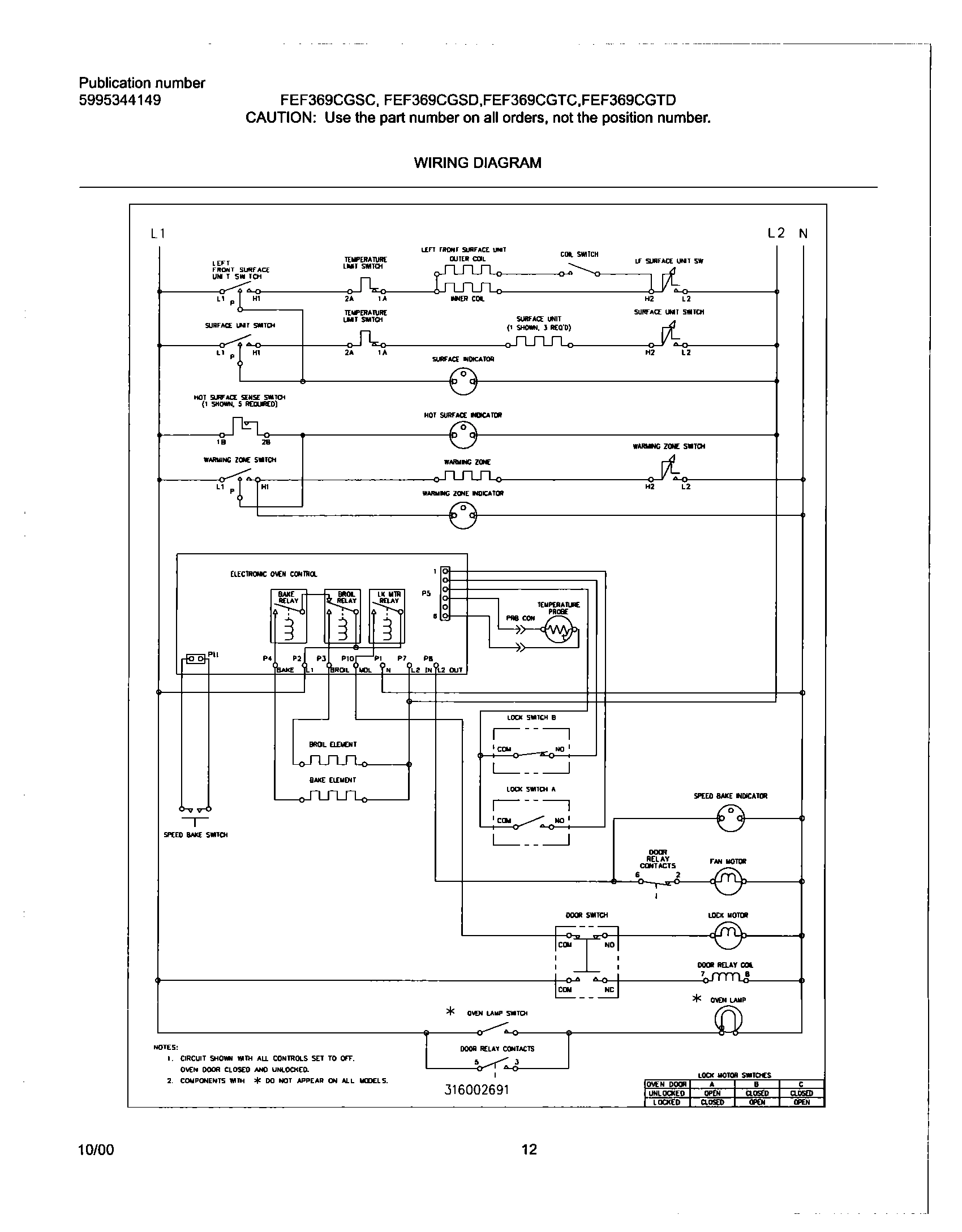

12 - WIRING DIAGRAM
Common parts from model Electrolux FEF369CGTD RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
Shield-drawer,galv steel ,front panel WCI 5303288582 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
Panel-drawer front,almond WCI 316084406 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
WCI 5303280308 WCI 5303280308 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
15C
WCI 316098201 WCI 316098201 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316098140 WCI 316098140 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 316131602 WCI 316131602 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
24
Switch-oven light,rocker ,almond WCI 316118102 Contact Us For Availability
26
Channel-support,element ,galv steel ,(2) WCI 316099100 Contact Us For Availability
26A
Bracket-support,chassis ,galv steel WCI 316099200 Contact Us For Availability
36
WCI 316025107 WCI 316025107 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
WCI 316001759 WCI 316001759 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
SHIELD-DOOR, ALMOND WCI 316081302 Contact Us For Availability
53
BRACKET-INDICATOR LIGHT, HOT SURFACE WCI 316099300 Contact Us For Availability
58A
WCI 316047708 WCI 316047708 Contact Us For Availability
112
WCI 316082700 WCI 316082700 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
NI
Clip-wiring harness,retainer ,green ,main top WCI 316045000 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316112101 WCI 316112101 Contact Us For Availability
NI
WASHER, BLACK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
