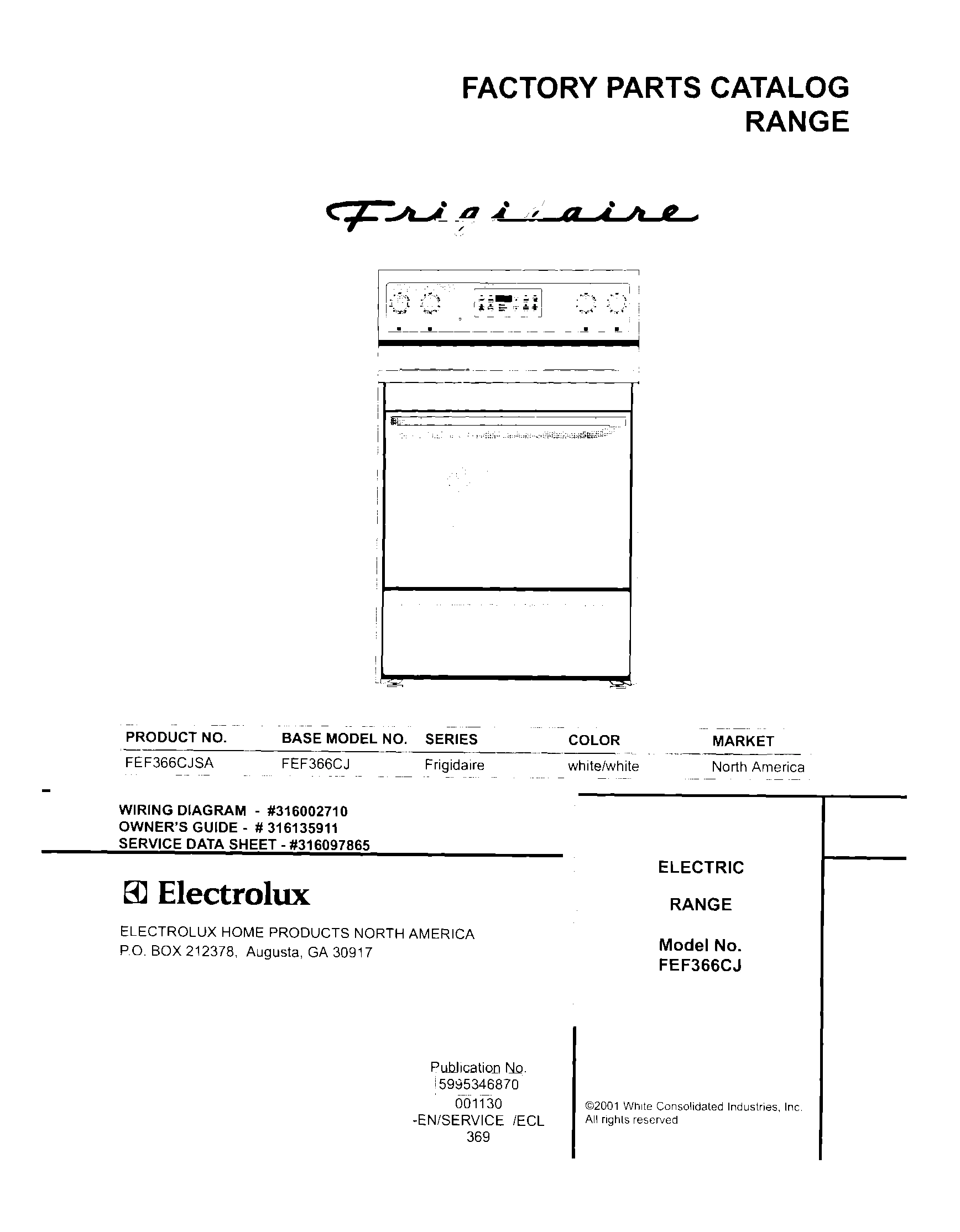

Model Electrolux FEF366CJSA RANGE – Common Parts & Diagrams

1

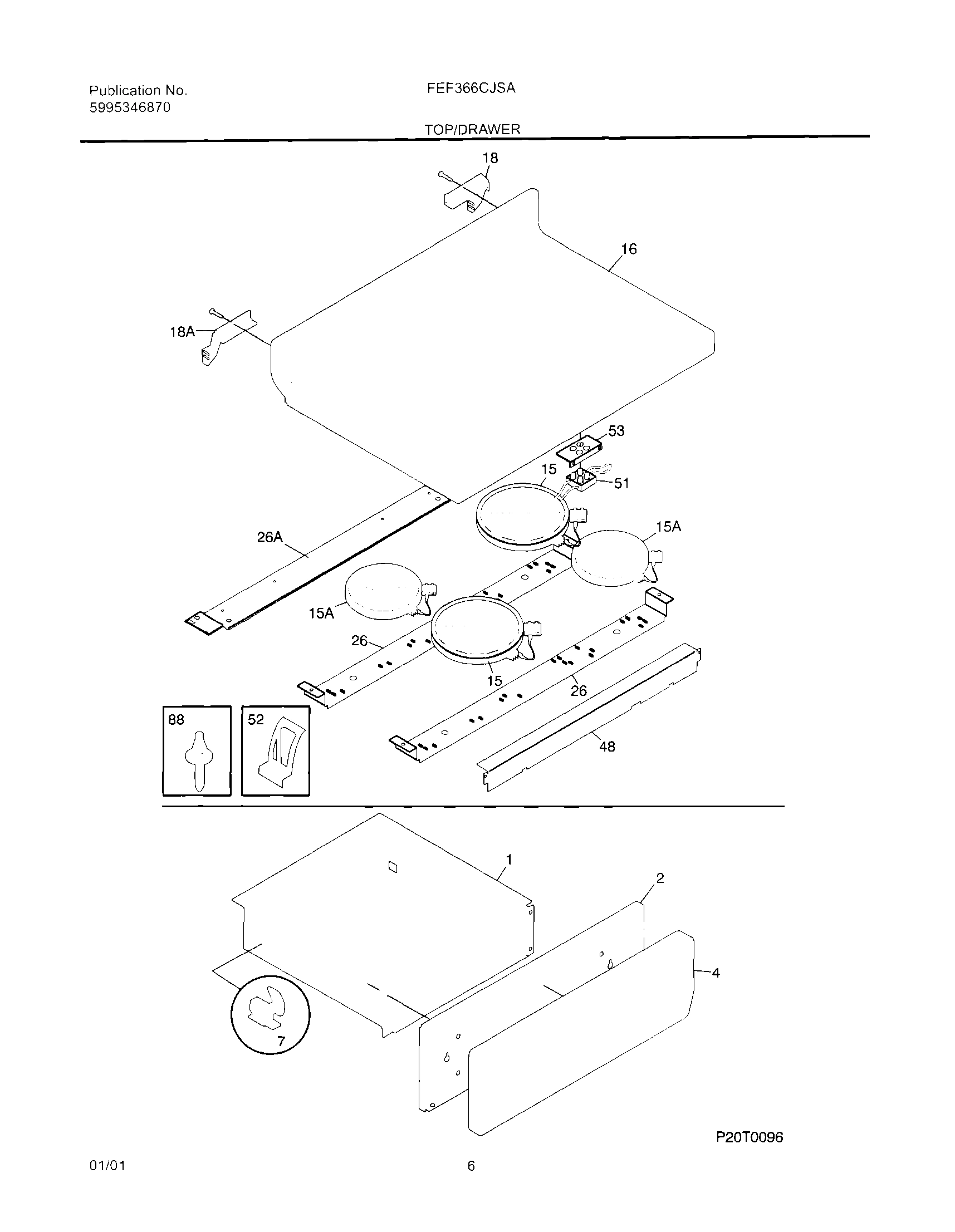

DRAWER-UTILITY
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
View on Model
2
Shield-drawer,liner ,galv steel ,front panel
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
View on Model
4
Panel-drawer front,white
Panel-drawer front,white WCI 316084405 Contact Us For Availability
View on Model
5
WCI 316129200
WCI 316129200 WCI 316129200 Contact Us For Availability
View on Model
9
Pan,broiler
Pan,broiler WCI 316081900 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
View on Model
16
WCI 316098182
WCI 316098182 WCI 316098182 Contact Us For Availability
View on Model
17

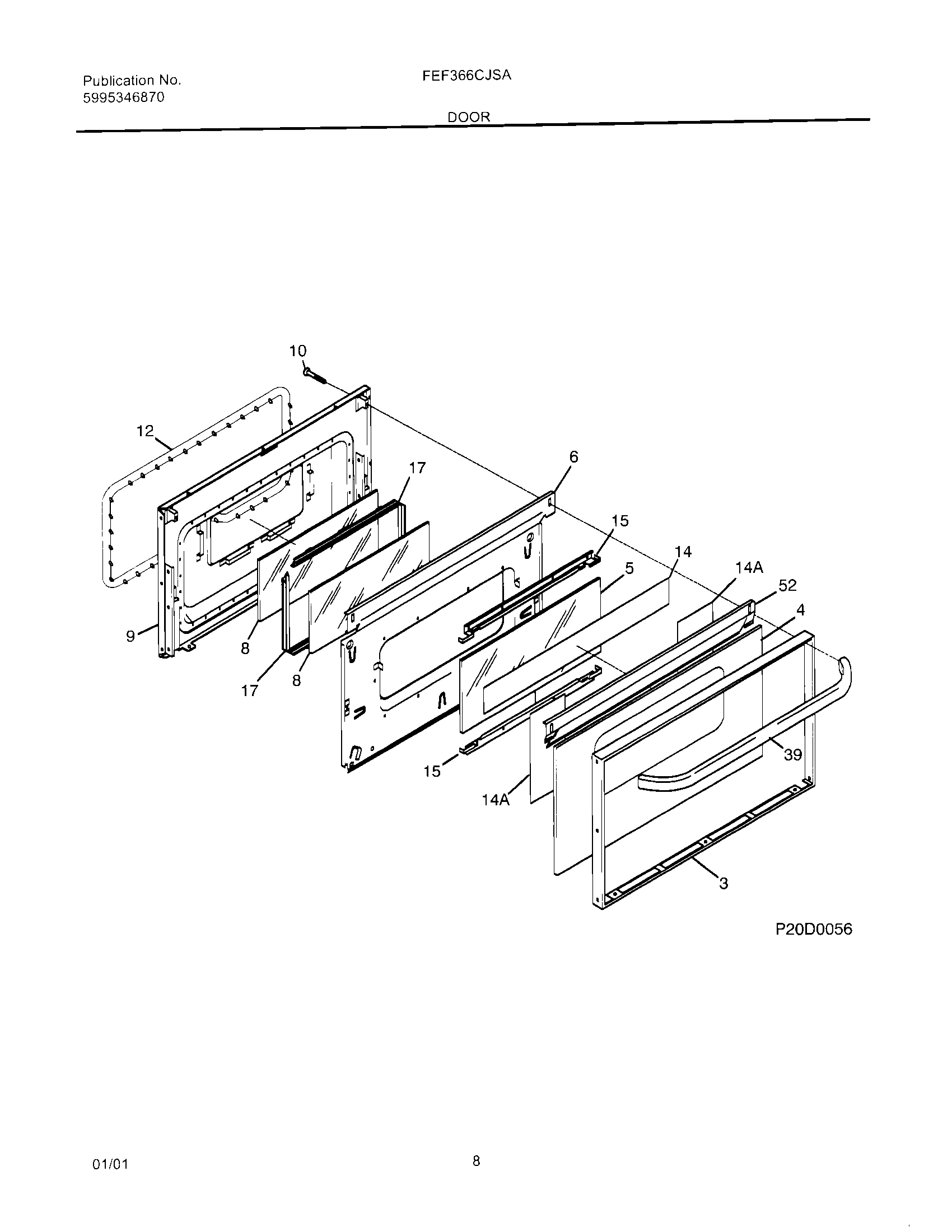

Spacer-glass,(2)
Spacer-glass,(2) WCI 316117701 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (RH)
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (LH)
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
View on Model
20
Overlay-clock,white
Overlay-clock,white WCI 316101502 Contact Us For Availability
View on Model
20
WCI 316101001
WCI 316101001 WCI 316101001 Contact Us For Availability
View on Model
21

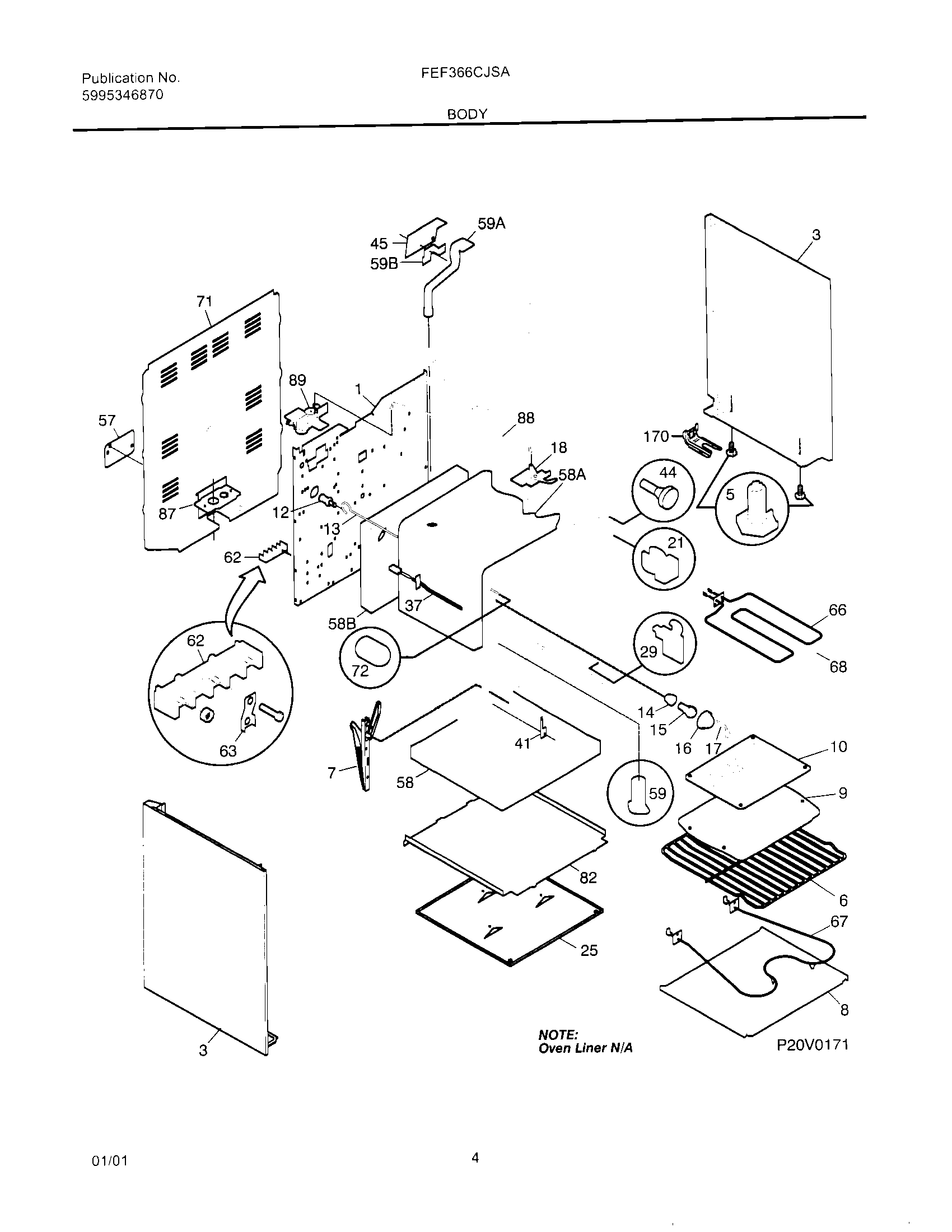

SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
26
Channel-support,element ,galv steel ,(2)
Channel-support,element ,galv steel ,(2) WCI 316099100 Contact Us For Availability
View on Model
26
Bracket-support,chassis ,galv steel
Bracket-support,chassis ,galv steel WCI 316099200 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
48
WCI 316100200
WCI 316100200 WCI 316100200 Contact Us For Availability
View on Model
51
Light/Lamp,hot surface ind ,assy
Light/Lamp,hot surface ind ,assy WCI 316105100 Contact Us For Availability
View on Model
52
WCI 316099400
WCI 316099400 WCI 316099400 Contact Us For Availability
View on Model
52
WCI 316081301
WCI 316081301 WCI 316081301 Contact Us For Availability
View on Model
53
WCI 316099300
WCI 316099300 WCI 316099300 Contact Us For Availability
View on Model
58
WCI 316047708
WCI 316047708 WCI 316047708 Contact Us For Availability
View on Model
82
WCI 5303289913
WCI 5303289913 WCI 5303289913 Contact Us For Availability
View on Model
88
WCI 316026400
WCI 316026400 WCI 316026400 Contact Us For Availability
View on Model
89
WCI 316028101
WCI 316028101 WCI 316028101 Contact Us For Availability
View on Model
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
View on Model
NI
WCI 316065306
WCI 316065306 WCI 316065306 Contact Us For Availability
View on Model
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
View on Model
NI
WCI 316001386
WCI 316001386 WCI 316001386 Contact Us For Availability
View on Model
NI
Clip-wiring harness,retainer ,green ,main top
Clip-wiring harness,retainer ,green ,main top WCI 316045000 Contact Us For Availability
View on Model
NI
WCI 316085600
WCI 316085600 WCI 316085600 Contact Us For Availability
View on Model
NI
WCI 316101600
WCI 316101600 WCI 316101600 Contact Us For Availability
View on Model
NI
WCI 316001763
WCI 316001763 WCI 316001763 Contact Us For Availability
View on Model
NI
WCI 316089600
WCI 316089600 WCI 316089600 Contact Us For Availability
View on Model
NI
WCI 316112101
WCI 316112101 WCI 316112101 Contact Us For Availability
View on Model
