Model Electrolux FEF355CFTD RANGE – Common Parts & Diagrams

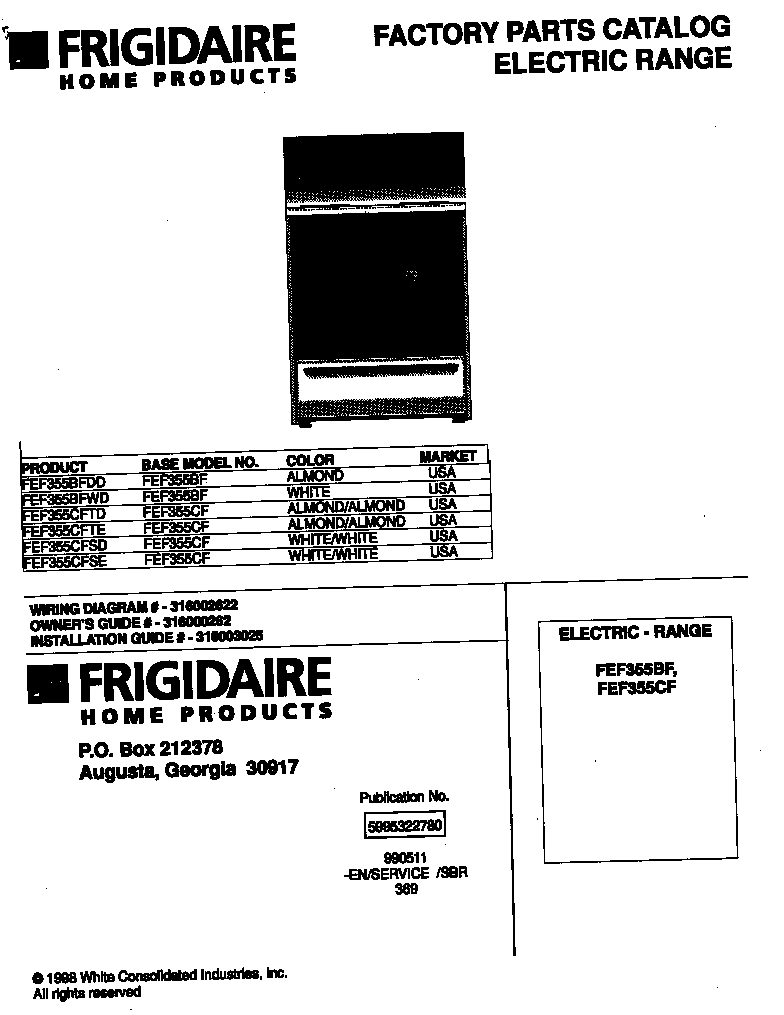

01 - COVER

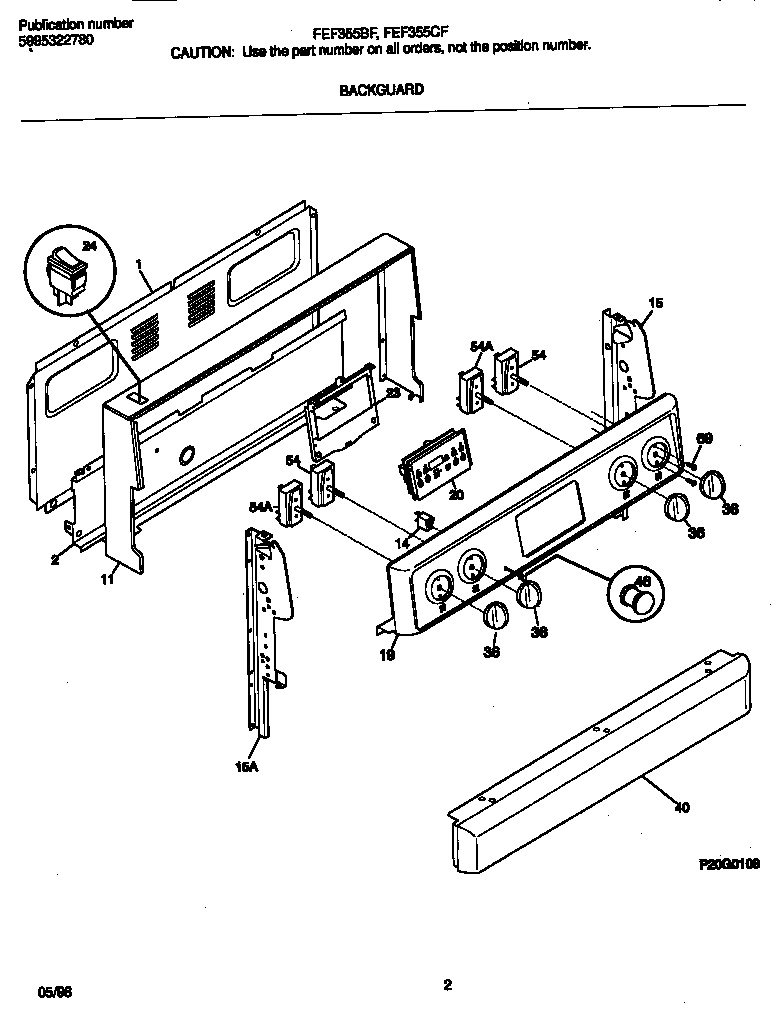

02 - BACKGUARD

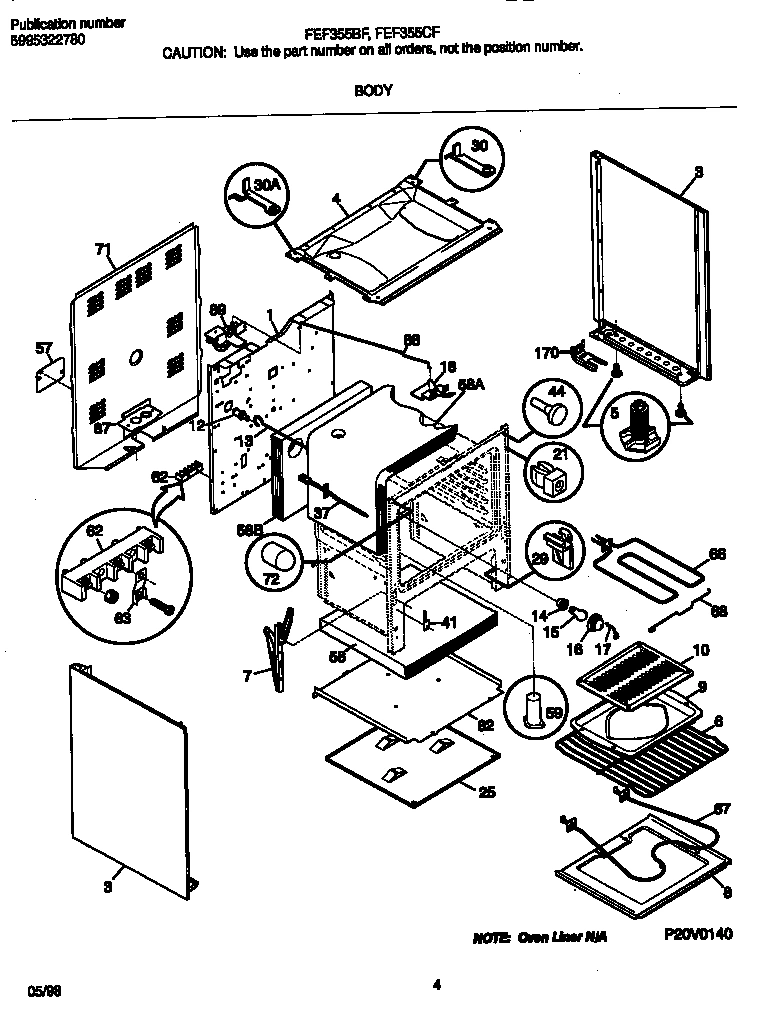

03 - BODY

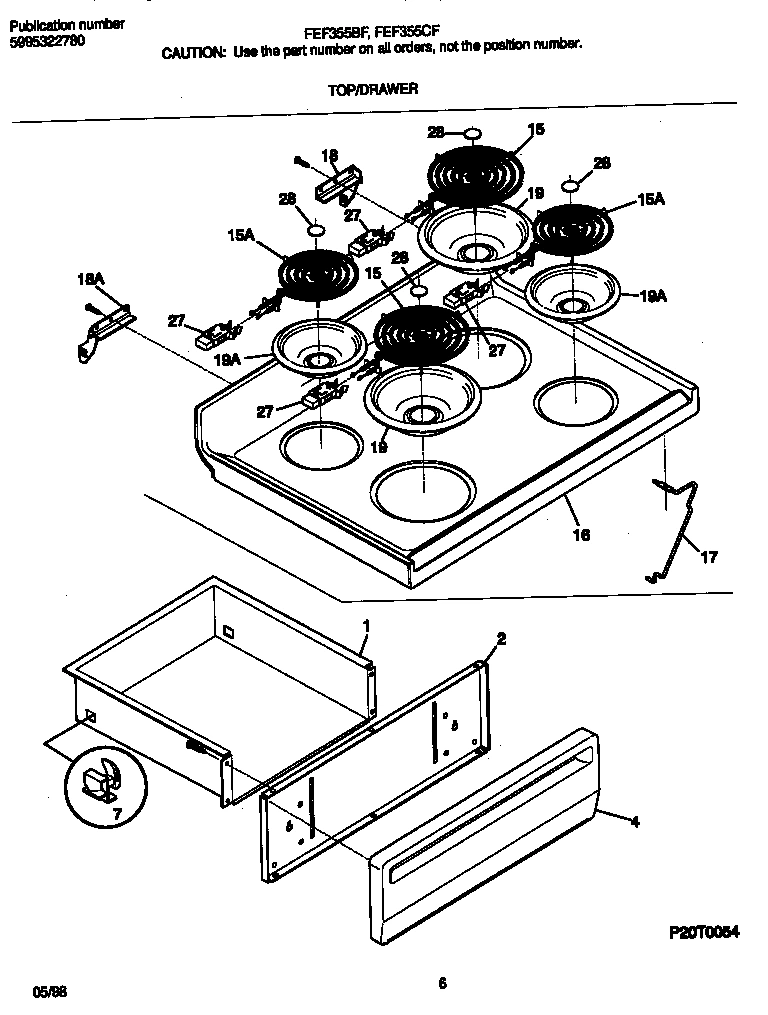

04 - TOP/DRAWER

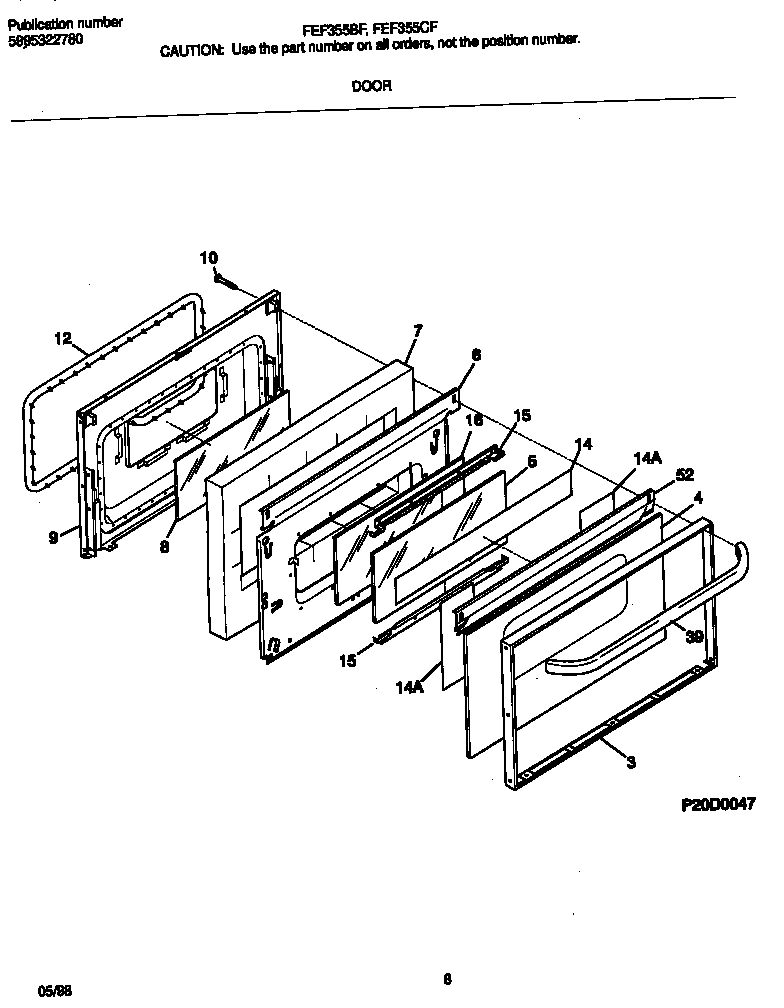

05 - DOOR

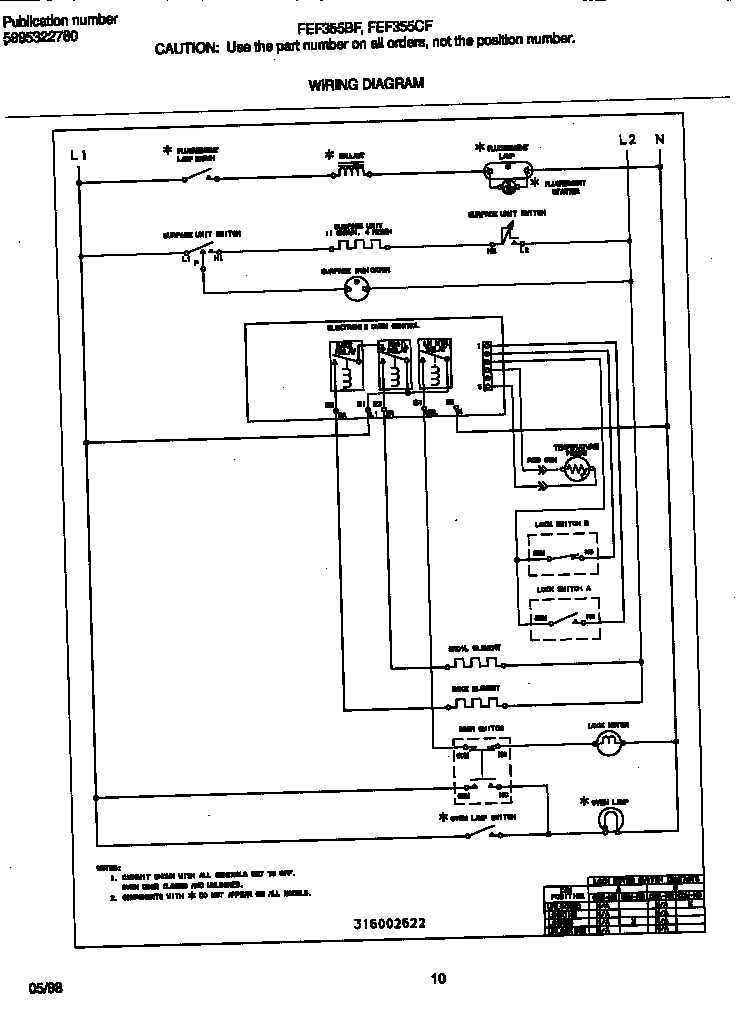

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF355CFTD RANGE
*70693
WCI 316001725 WCI 316001725 Contact Us For Availability
*70694
SCREW, CUP PT, 8-18 X 3/8, HINGE WCI 316021108 Contact Us For Availability
*70700
WCI 316089600 WCI 316089600 Contact Us For Availability
*70703
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
*70704
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*70706
WCI 316065306 WCI 316065306 Contact Us For Availability
*70709
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*70710
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
WCI 316084406 WCI 316084406 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316020908 WCI 316020908 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
PAN-SURFACE ELEMENT,ALMOND ,SML/6 INCH , WCI 316048409 Contact Us For Availability
19
PAN-SURFACE ELEMENT,ALMOND ,LG/8 INCH , WCI 316048412 Contact Us For Availability
20
WCI 316101001 WCI 316101001 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 5303296595 WCI 5303296595 Contact Us For Availability
36
KNOB-CONTROL, INFINITE SW, ALMOND, (4) WCI 316025107 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
WCI 316081302 WCI 316081302 Contact Us For Availability
58B
WCI 316047708 WCI 316047708 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
