Model Electrolux FEF336BGWC RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

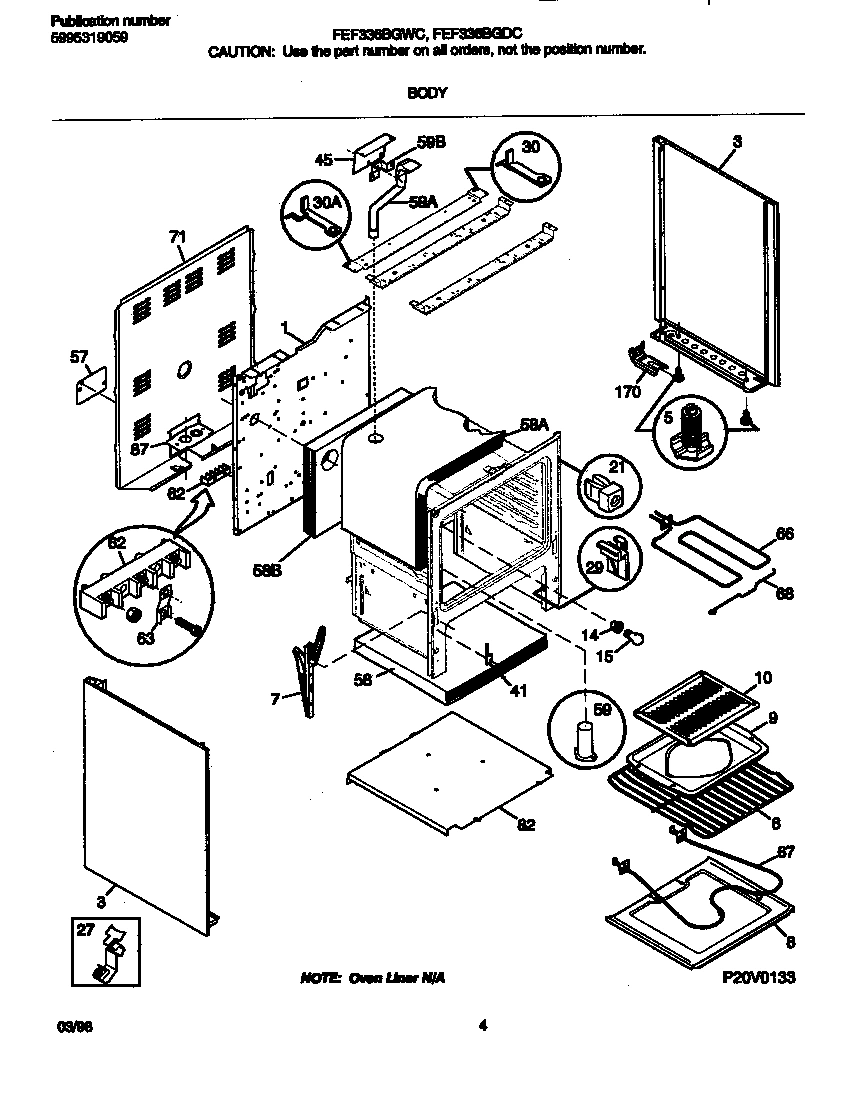

03 - BODY

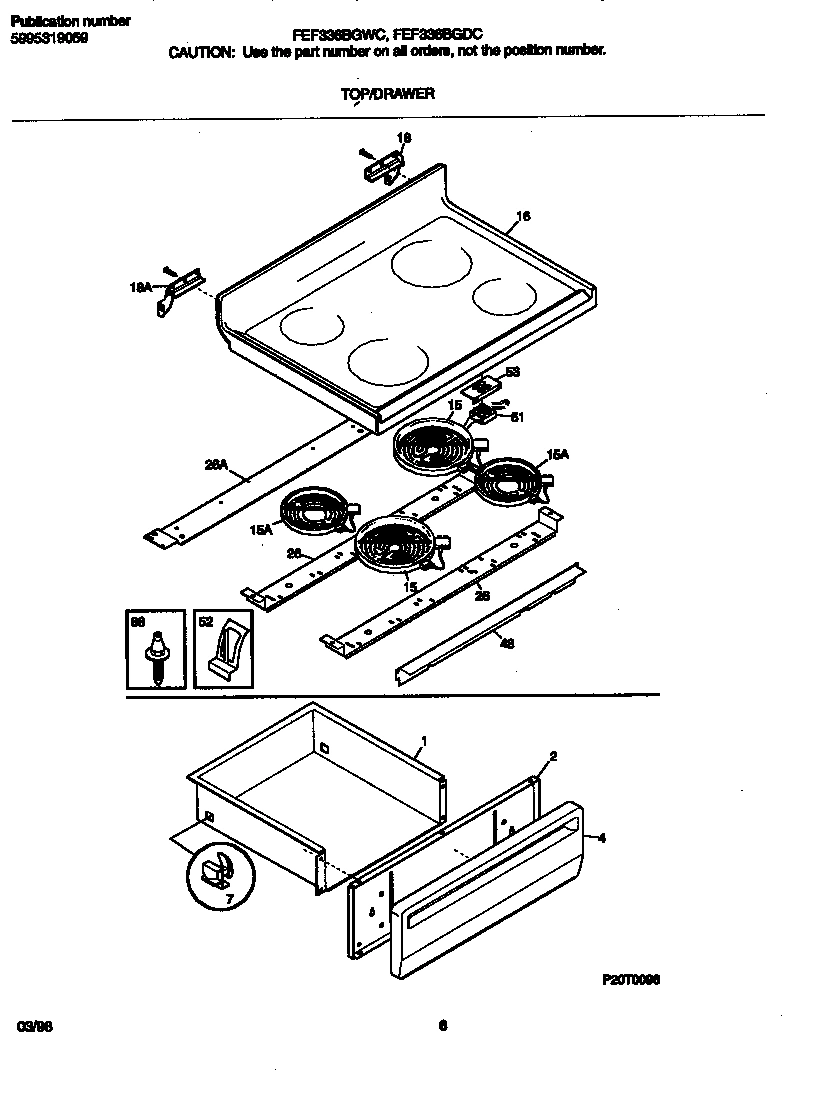

04 - TOP/DRAWER

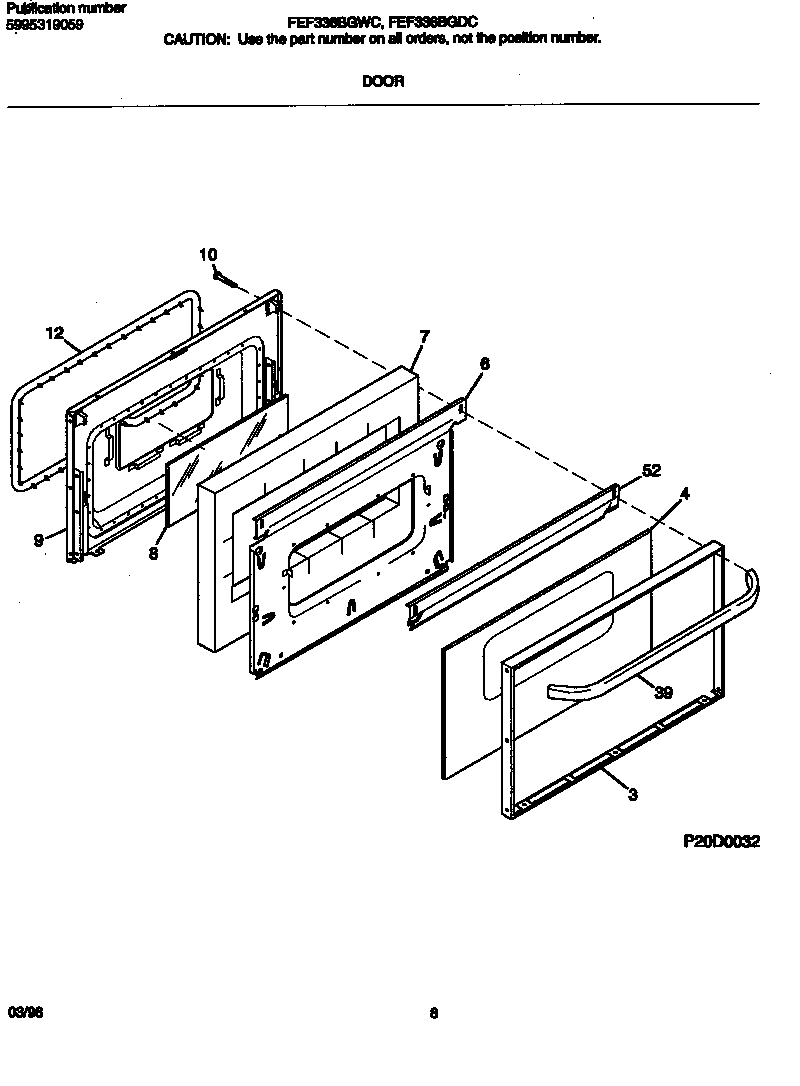

05 - DOOR

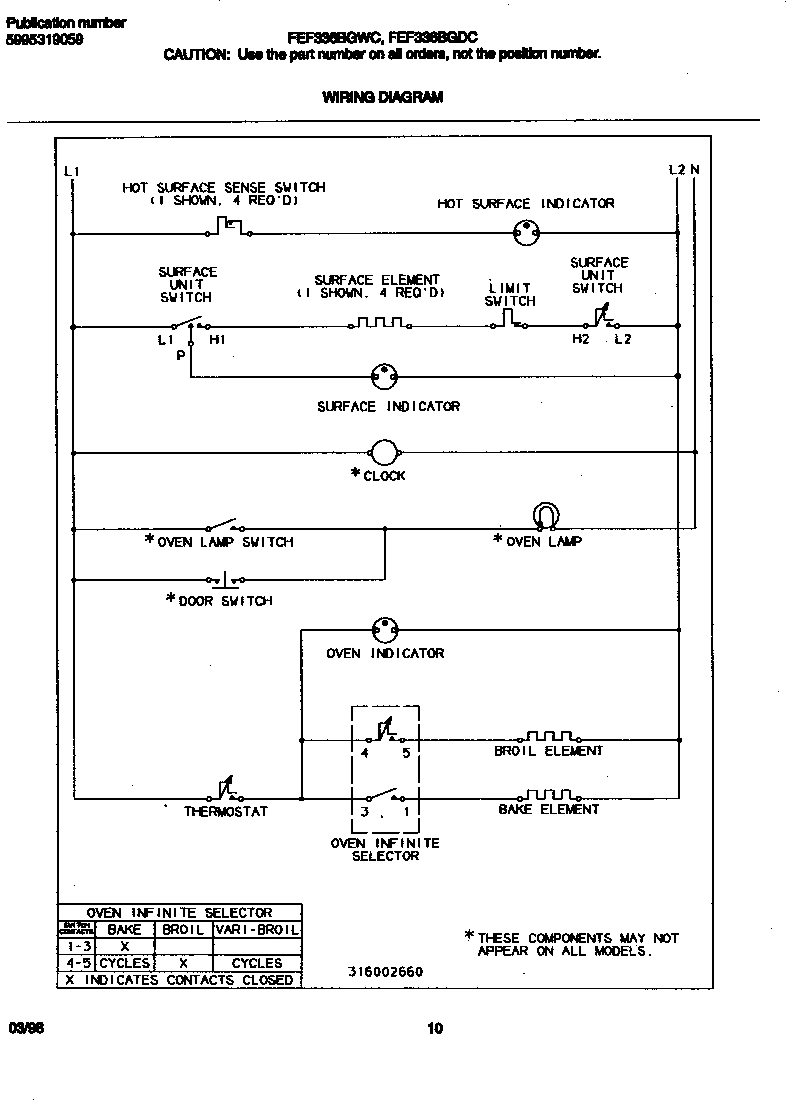

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF336BGWC RANGE
*61768
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*61772
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
*61773
WCI 316089600 WCI 316089600 Contact Us For Availability
*61774
WCI 316112101 WCI 316112101 Contact Us For Availability
*61775
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*61778
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*61783
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
WCI 316032500 WCI 316032500 Contact Us For Availability
16
WCI 316098103 WCI 316098103 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26
WCI 316099201 WCI 316099201 Contact Us For Availability
31
WCI 316109602 WCI 316109602 Contact Us For Availability
36B
WCI 316109600 WCI 316109600 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
WCI 80142193 WCI 80142193 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53
WCI 316099300 WCI 316099300 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
× ![]()
