Model Electrolux FEF336BGDF RANGE – Common Parts & Diagrams

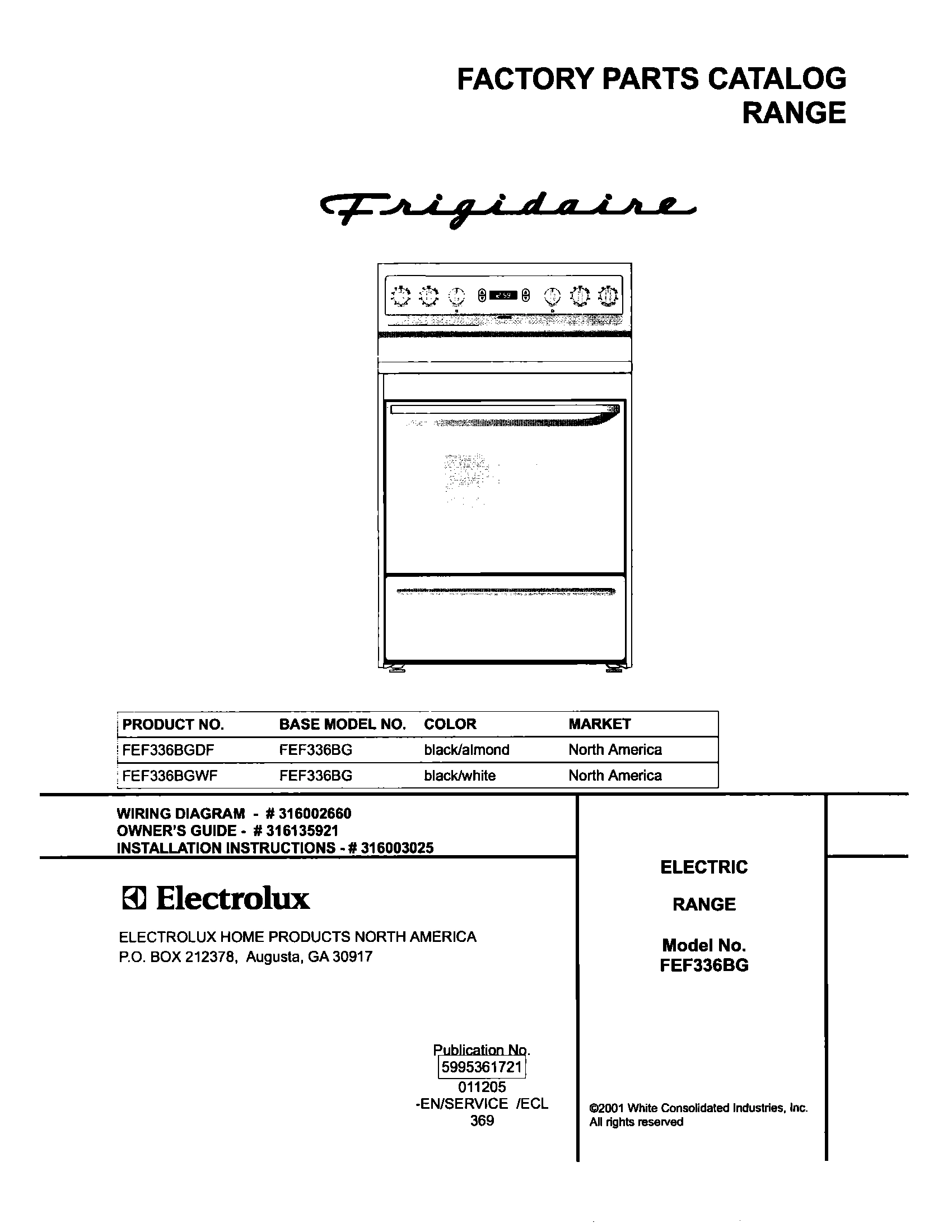

01 - COVER

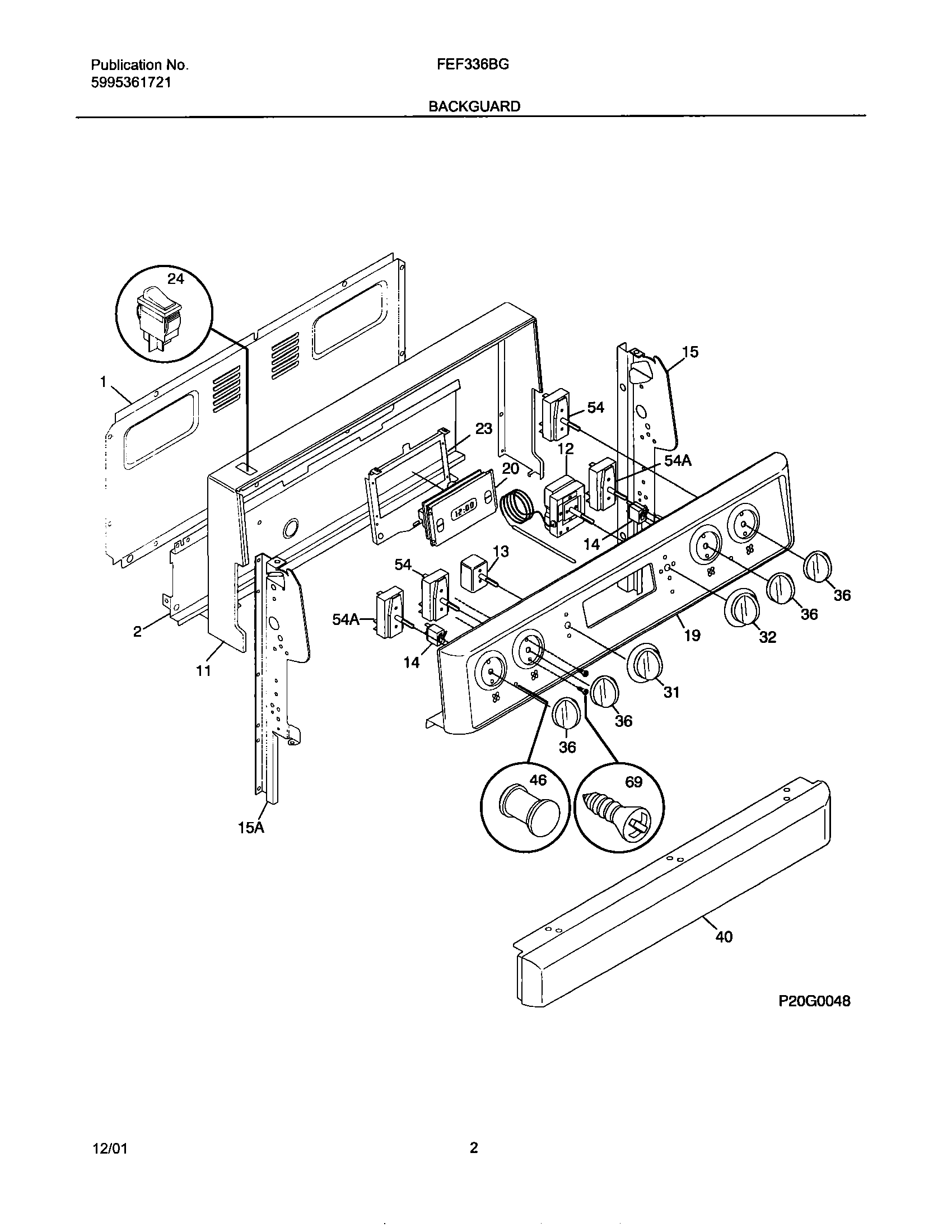

03 - BACKGUARD

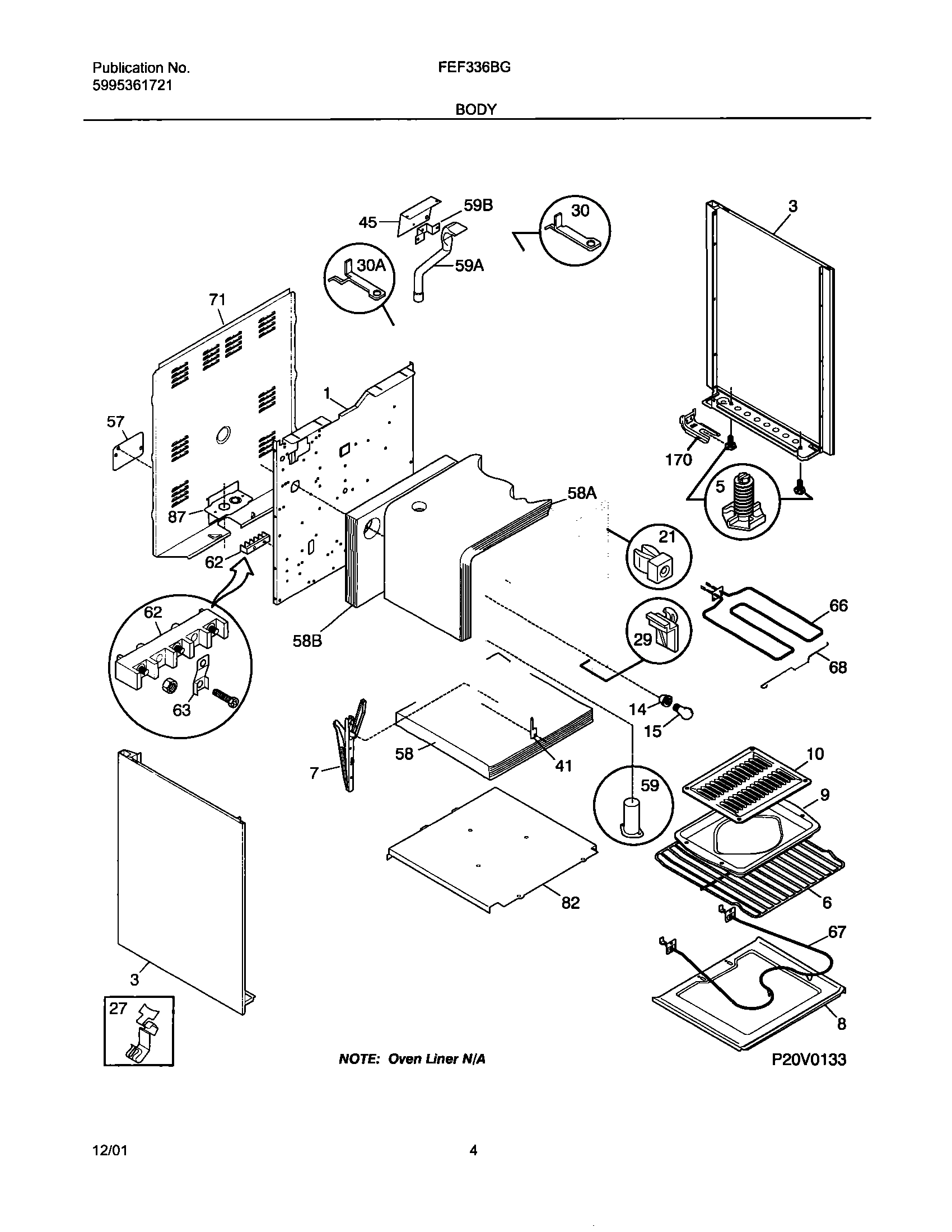

05 - BODY

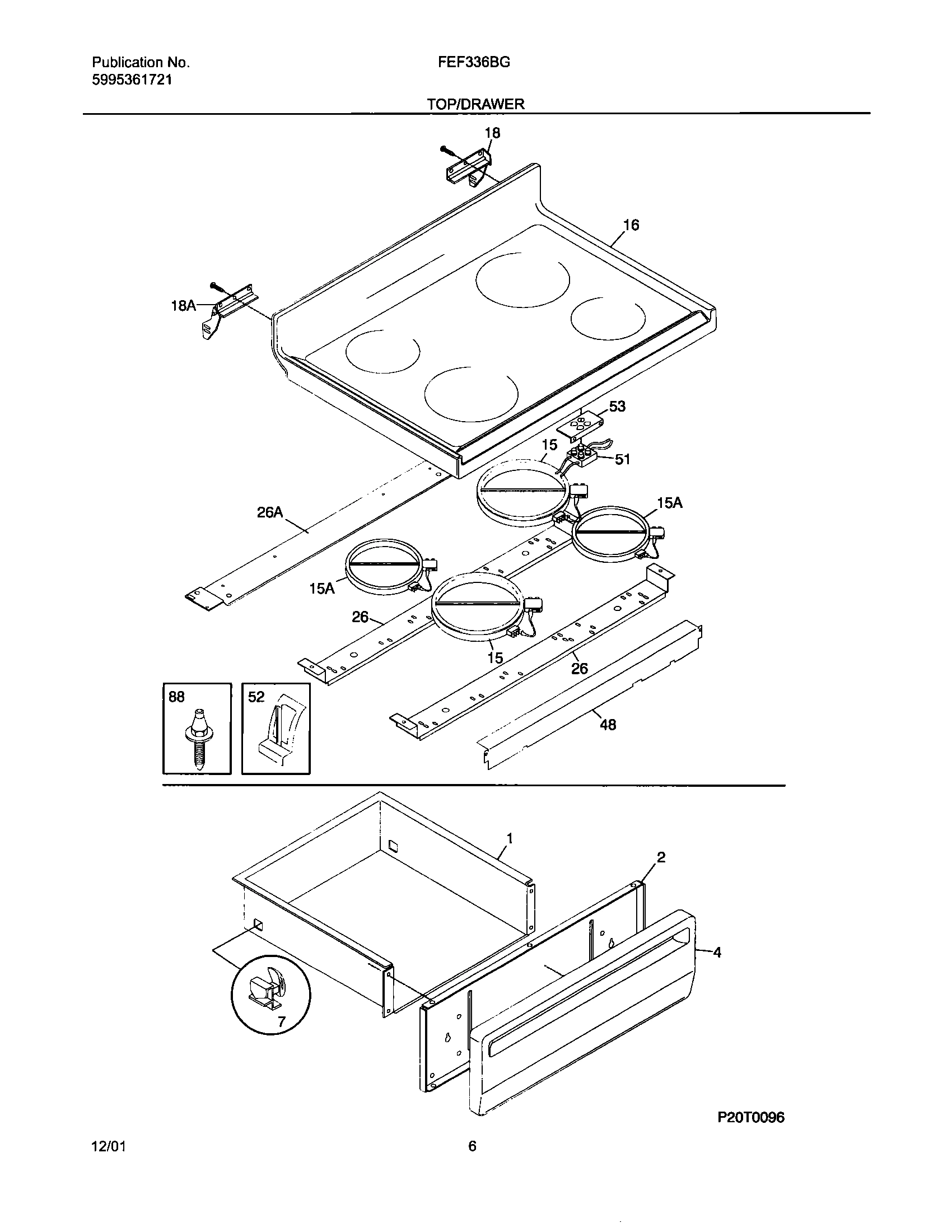

07 - TOP/DRAWER

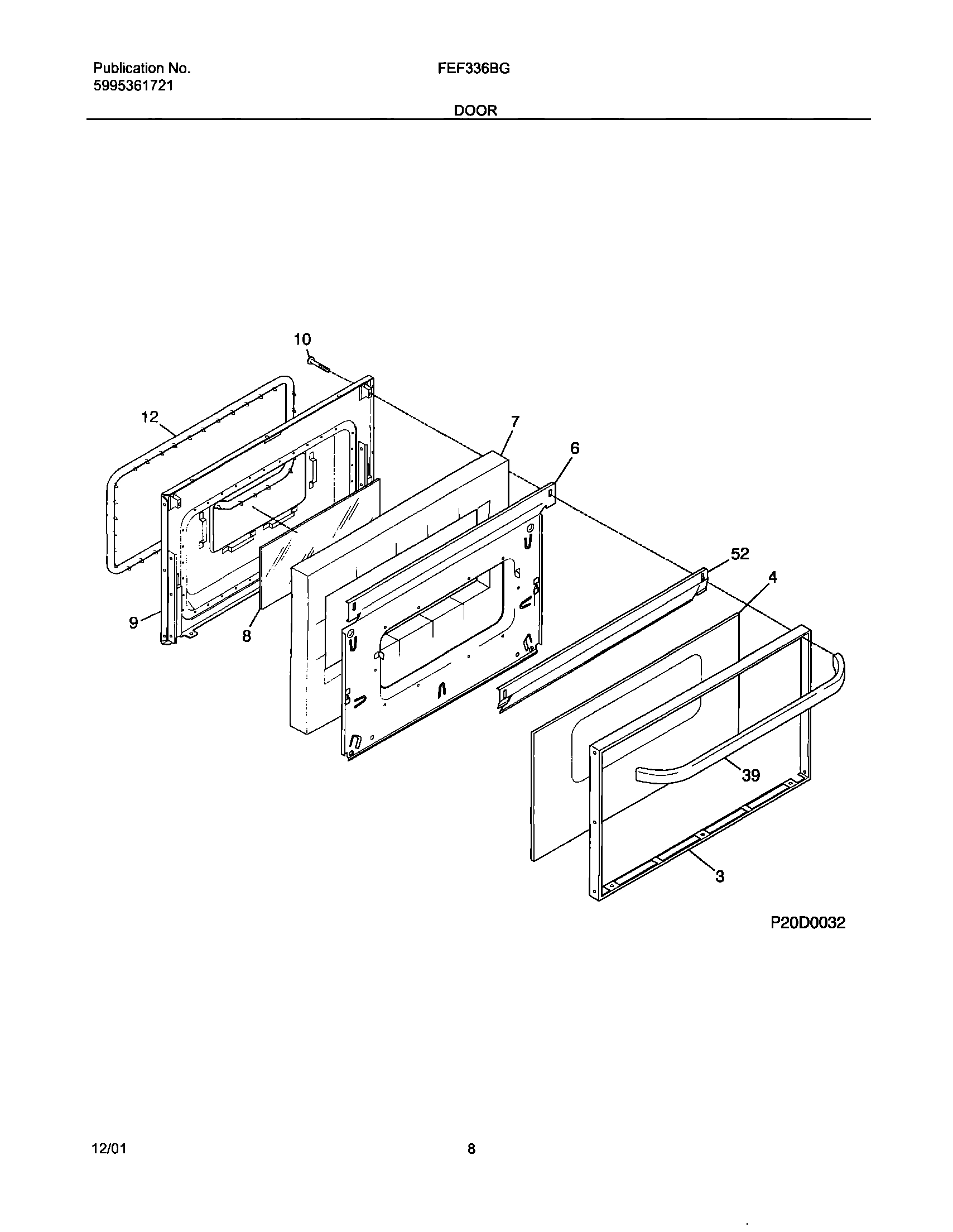

09 - DOOR

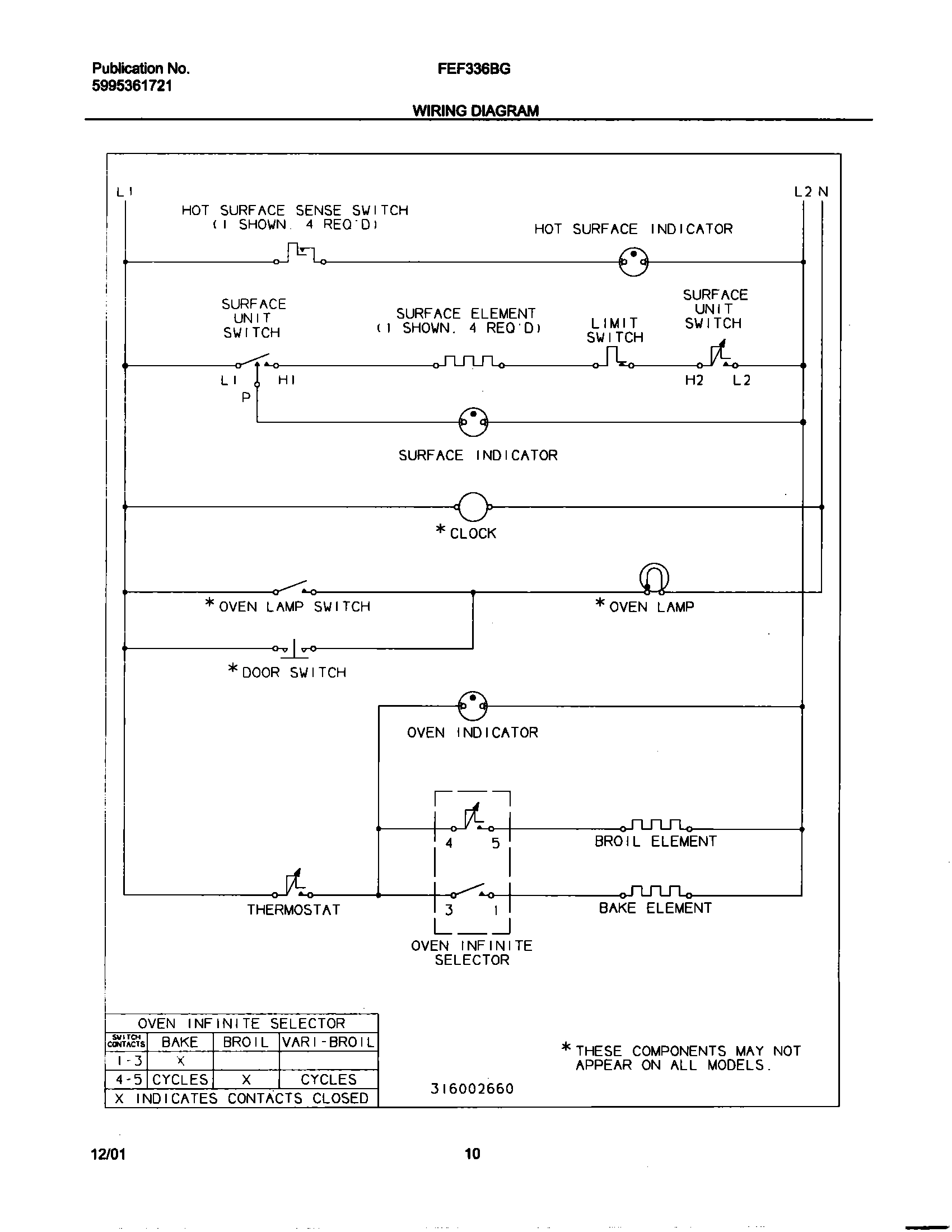

10 - WIRING DIAGRAM
Common parts from model Electrolux FEF336BGDF RANGE
1
WCI 316011503 WCI 316011503 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
13
WCI 316032500 WCI 316032500 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
31
Knob,selector ,black WCI 316109602 Contact Us For Availability
32
Knob,thermostat ,black WCI 316109600 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
Clip,element mtg WCI 316099400 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-24T x 2.00 ,handle m WCI 5303280308 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
NI
Clip,wiring harness ,green ,main top WCI 316045000 Contact Us For Availability
NI
WCI 316112101 WCI 316112101 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
× ![]()
