Model Electrolux FEF316WGTE RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

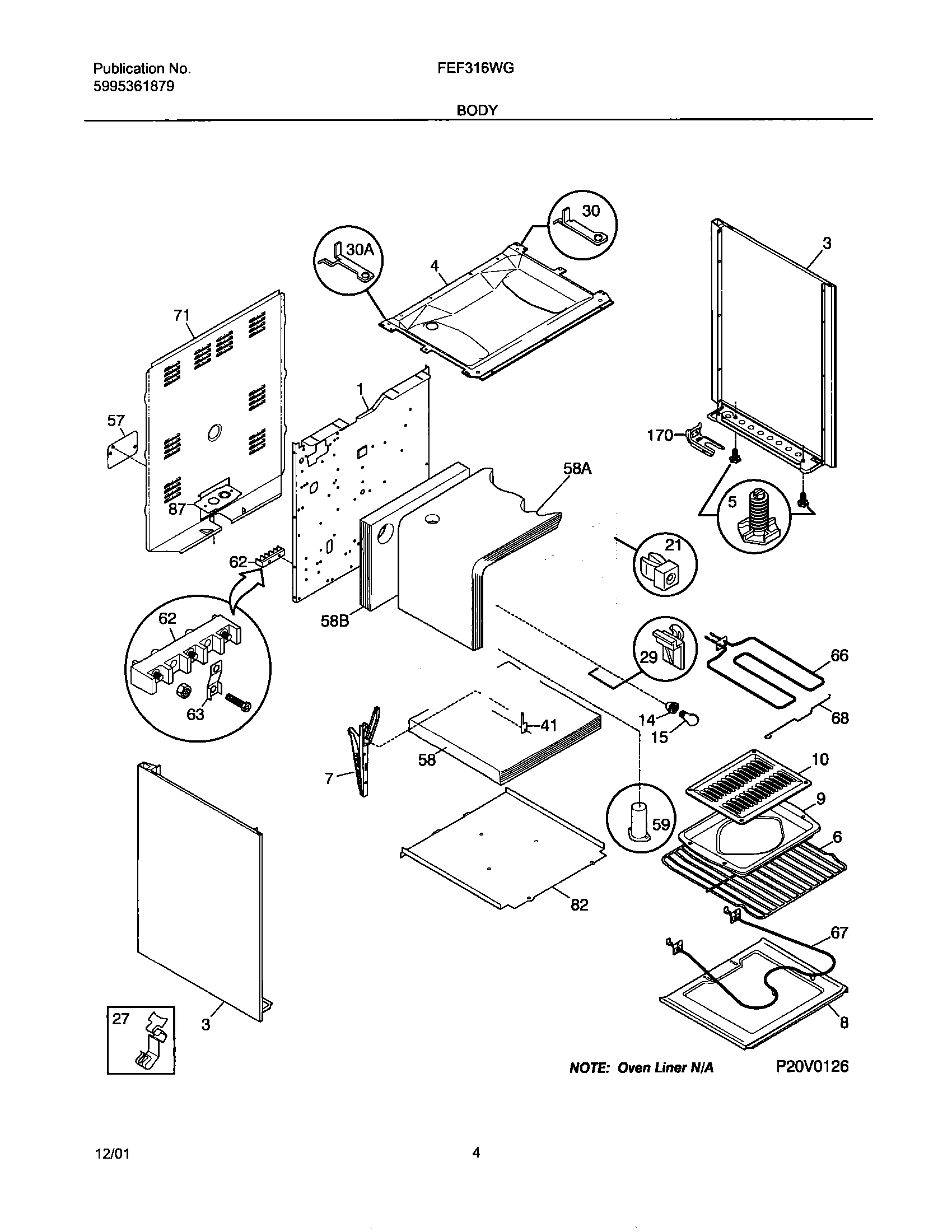

05 - BODY

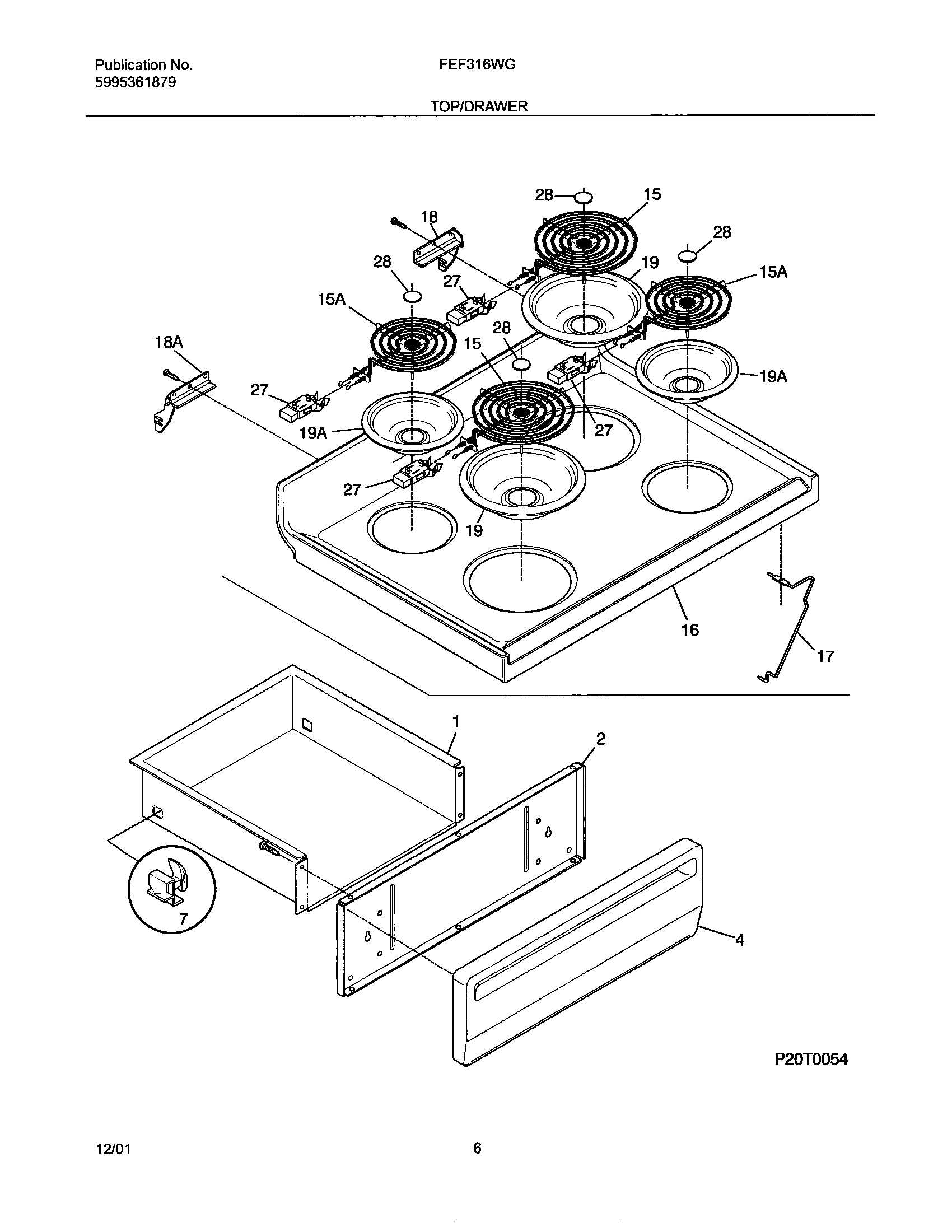

07 - TOP/DRAWER

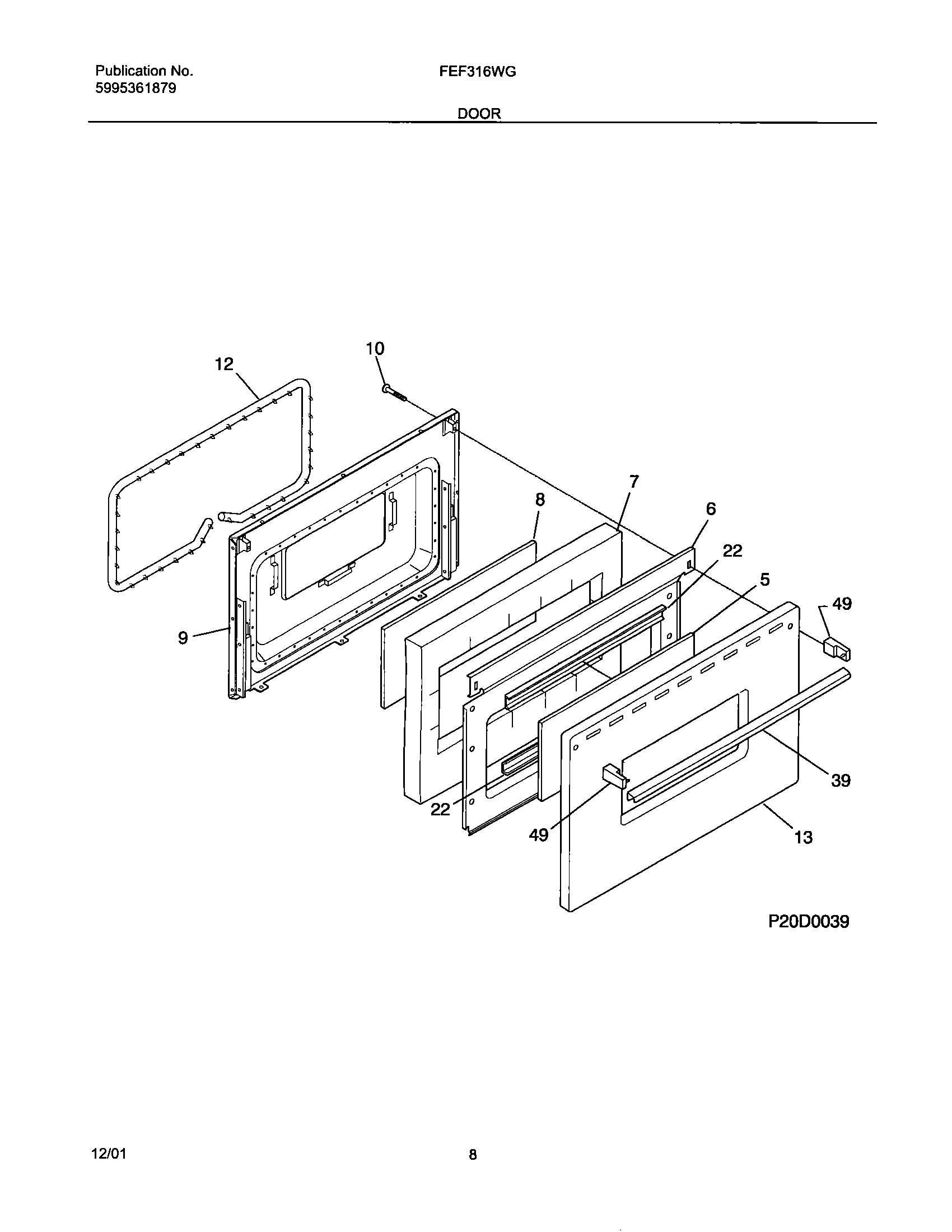

09 - DOOR

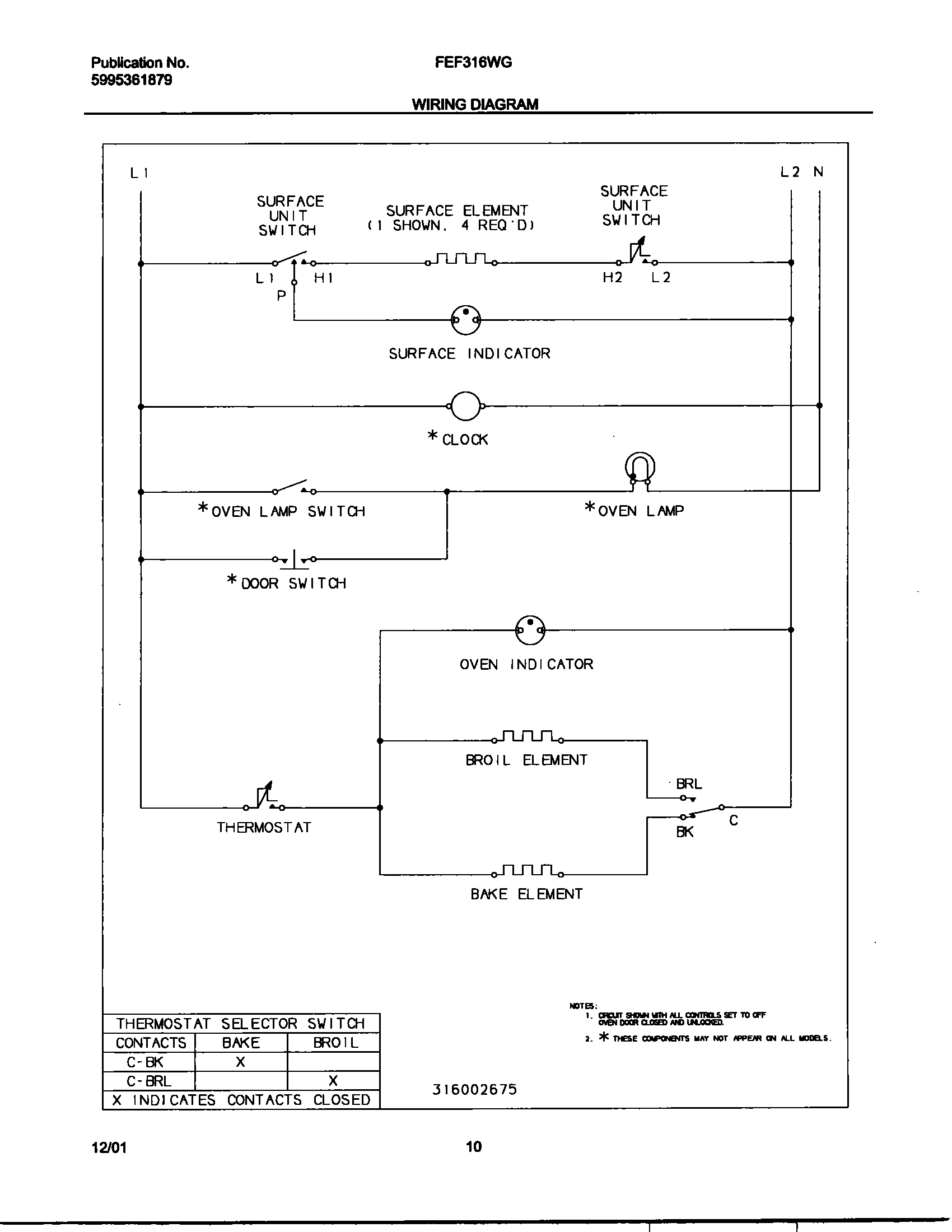

10 - WIRING DIAGRAM
Common parts from model Electrolux FEF316WGTE RANGE
1
WCI 316011503 WCI 316011503 Contact Us For Availability
1
WCI 5303289640 WCI 5303289640 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316050301 WCI 316050301 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw,wafer head ,10-24F x 3 ,handle mtg WCI 5303281378 Contact Us For Availability
13
PANEL, OVEN DOOR, ALMOND WCI 3017096 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
24
WCI 316118102 WCI 316118102 Contact Us For Availability
39
Handle,oven door ,almond WCI 316020205 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
49
WCI 316137001 WCI 316137001 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316001558 WCI 316001558 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
× ![]()
