Model Electrolux FEF316WGSC RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

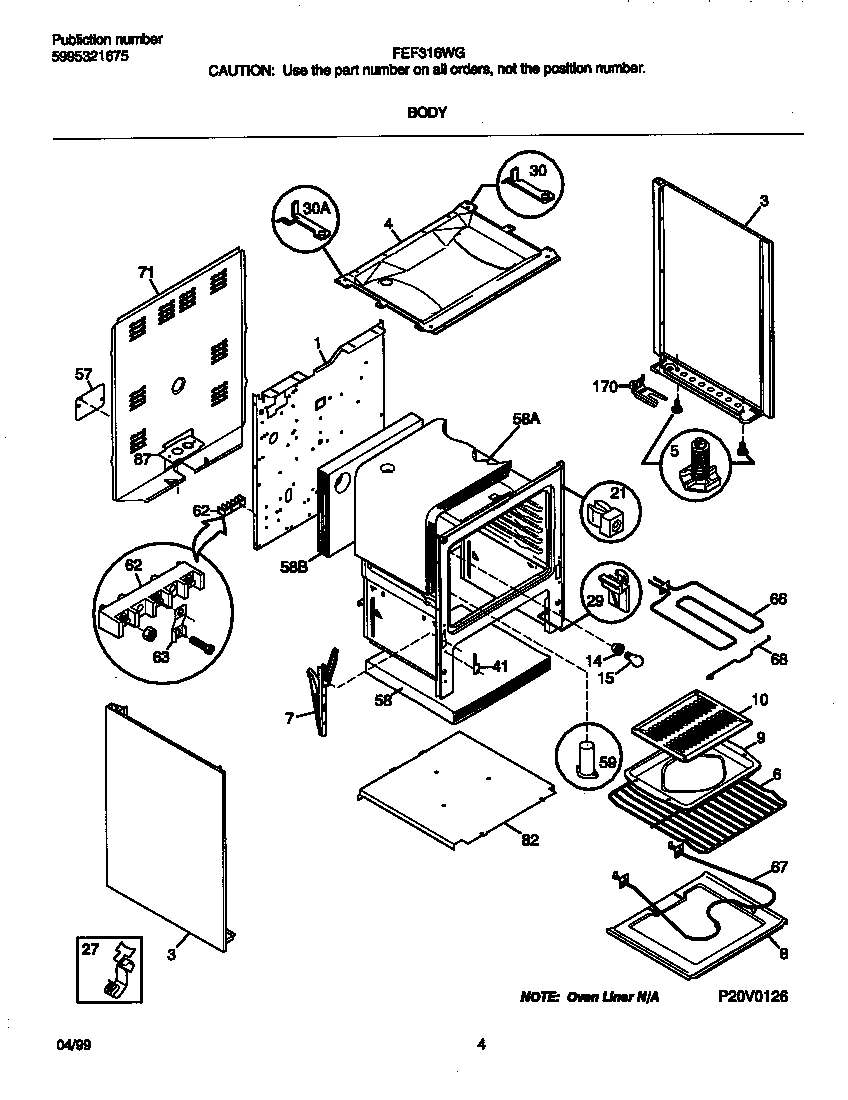

03 - BODY

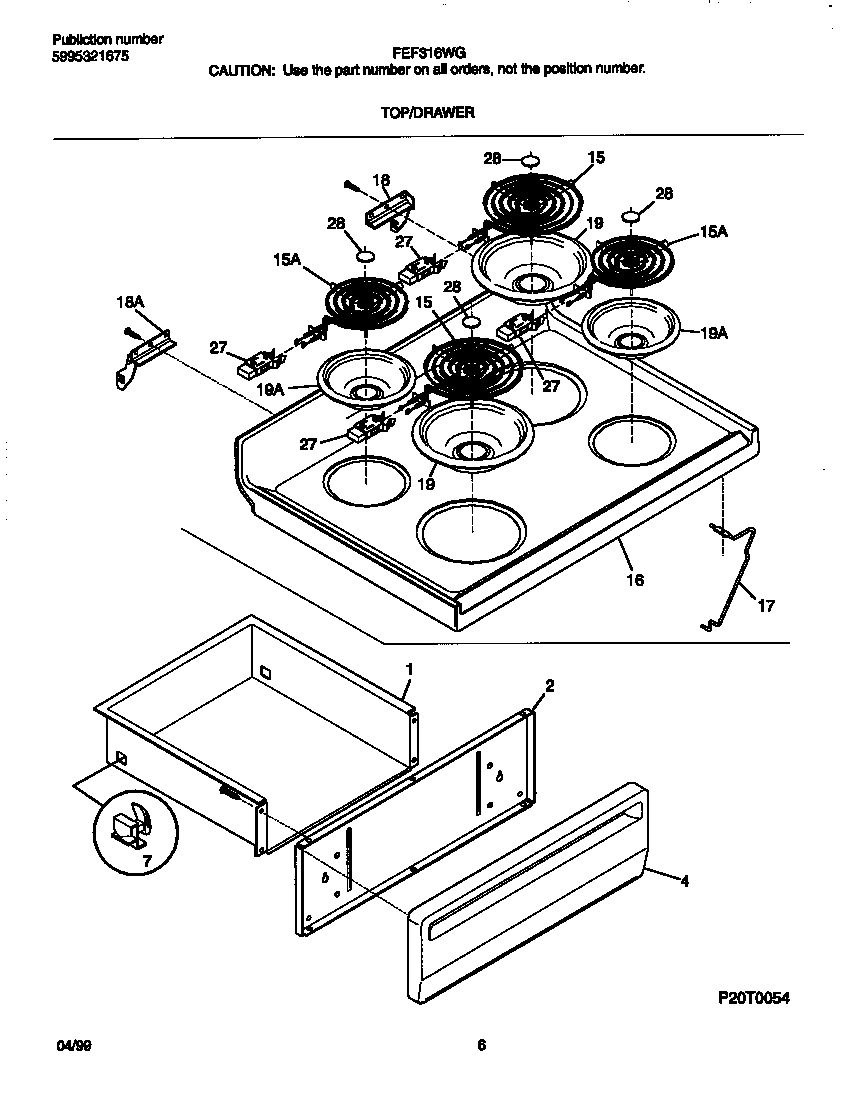

04 - TOP/DRAWER

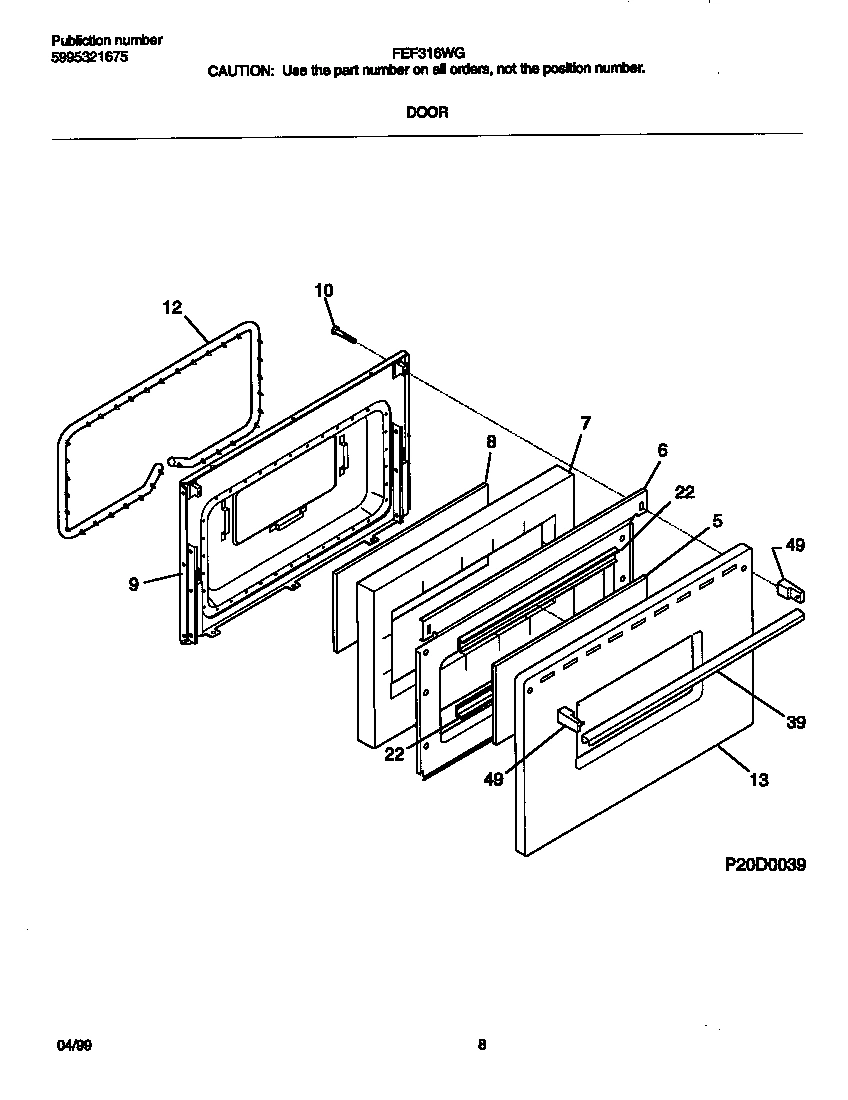

05 - DOOR

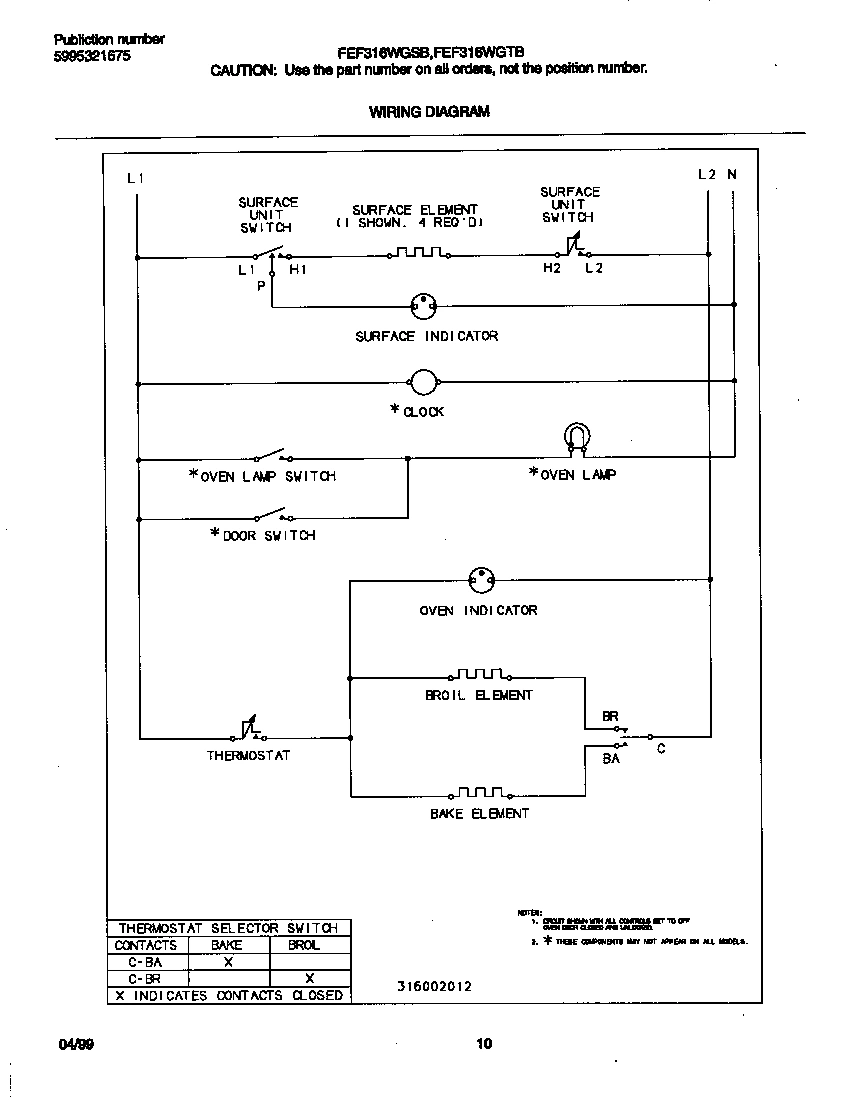

06 - WIRING DIAGRAM

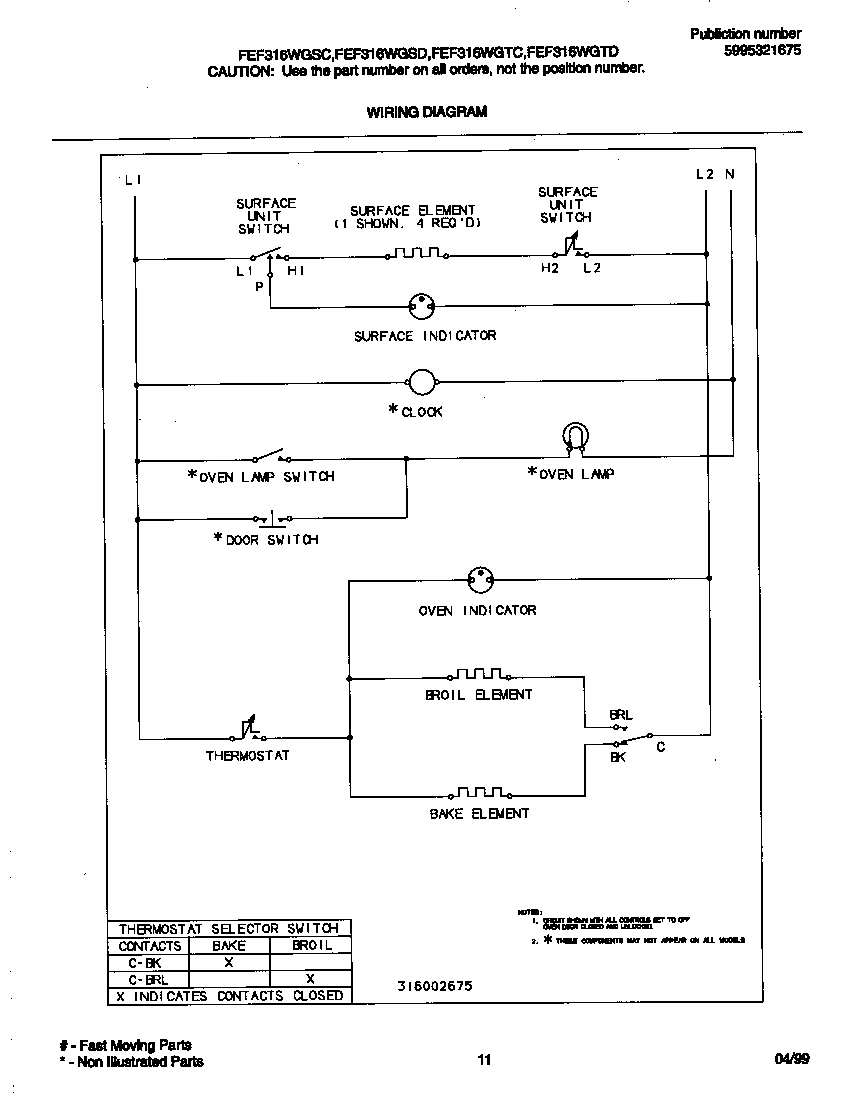

07 - WIRING DIAGRAM
Common parts from model Electrolux FEF316WGSC RANGE
*98920
HARNESS WCI 316001558 Contact Us For Availability
*98931
SCREW, CUP PT, 8-18 X 3/8, HINGE WCI 316021108 Contact Us For Availability
*98938
WCI 316089600 WCI 316089600 Contact Us For Availability
*98939
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5
Glass,oven door ,white ,outer WCI 316050300 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
12
WCI 5303212745 WCI 5303212745 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
16
WCI 5303013511 WCI 5303013511 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
49
END CAP-HANDLE, WHITE , (2) WCI 316020101 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
× ![]()
