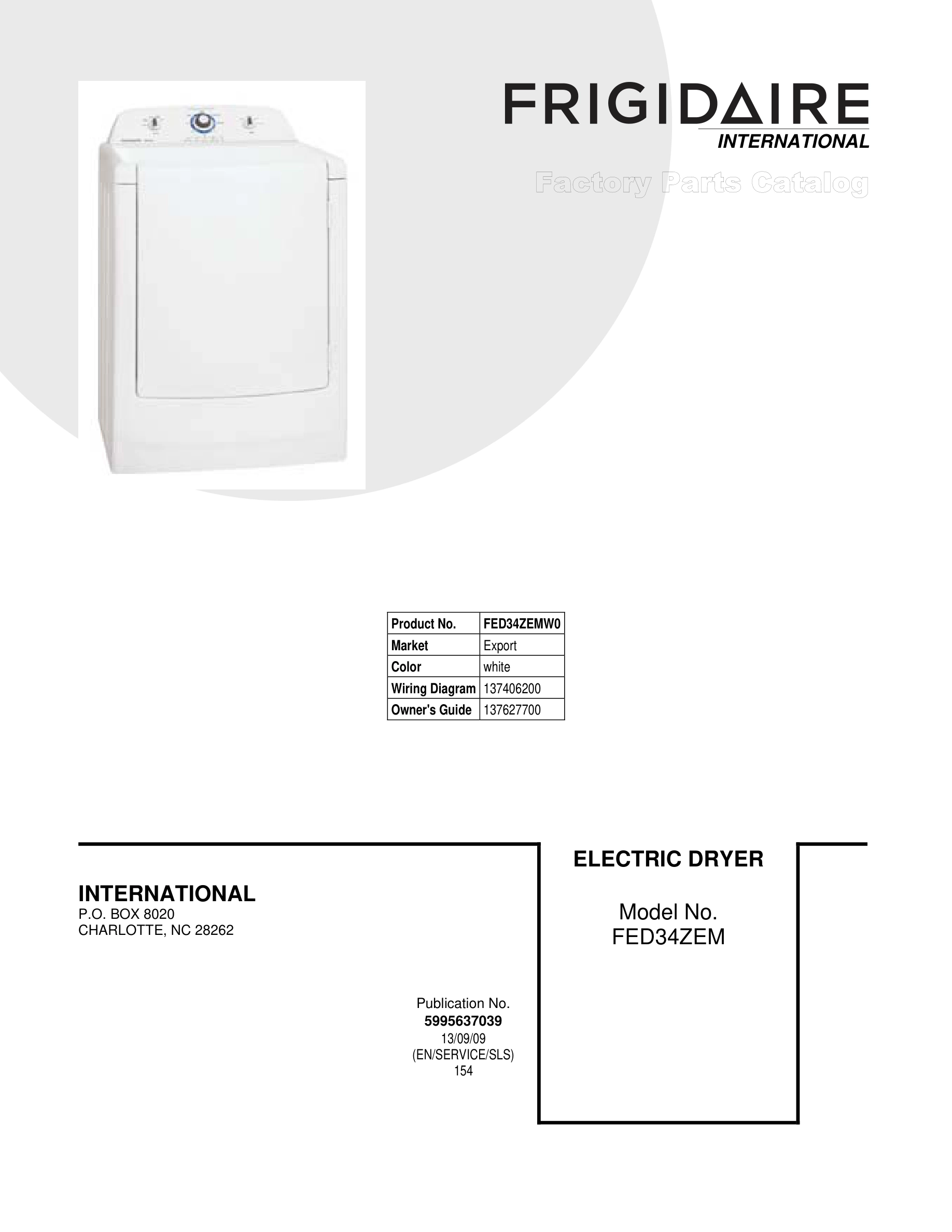

Model Frigidaire FED34ZEMW0 DRYER – Common Parts & Diagrams
01 - COVER

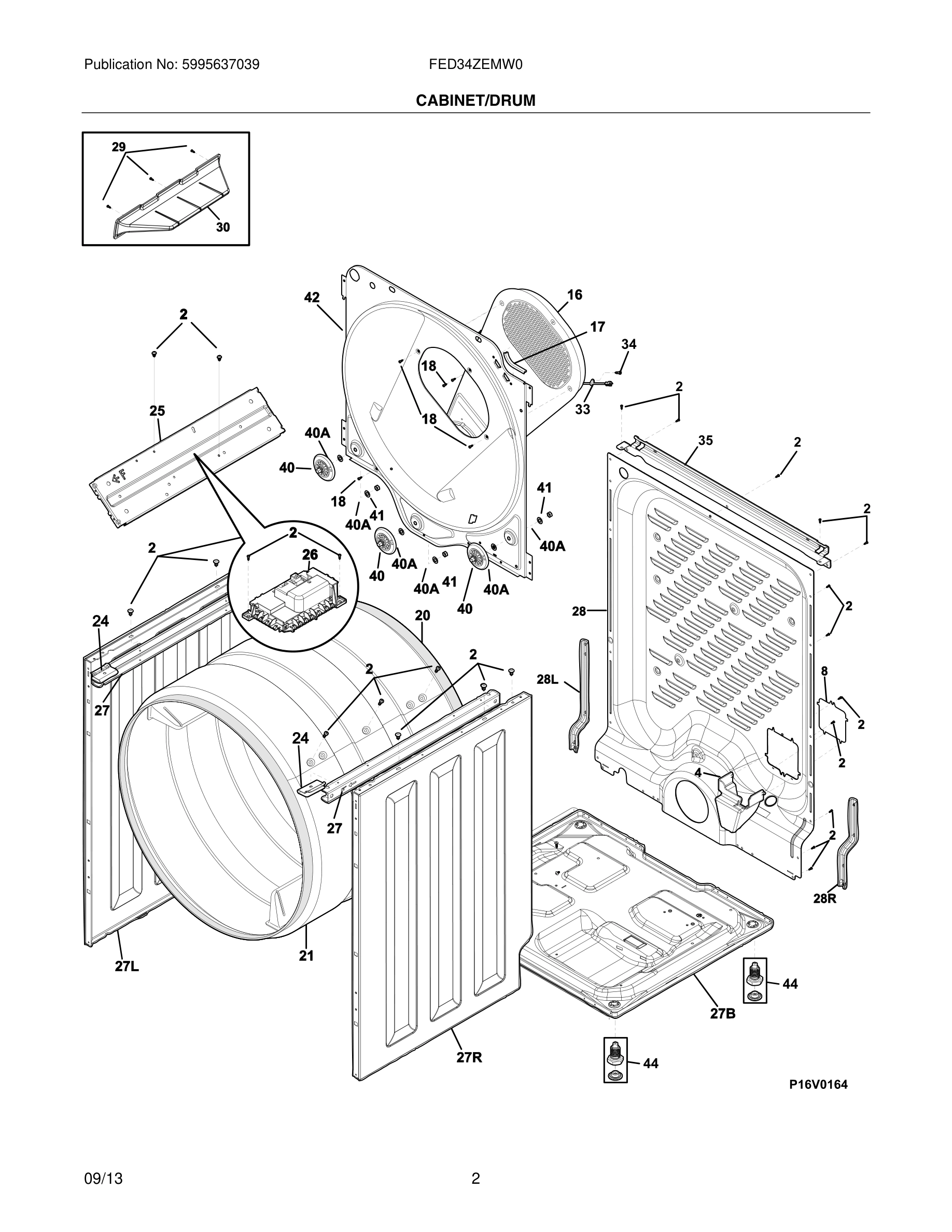

03 - CABINET/DRUM
05 - FRONT PANEL/LINT FILTER
07 - CONTROLS/TOP PANEL
09 - MOTOR
11 - BURNER
12 - WIRING DIAGRAM
Common parts from model Frigidaire FED34ZEMW0 DRYER
1
Seal, air duct WCI 137068200 Contact Us For Availability
2
Screw, pan head, 8-18B x 0.31 WCI 131168200 Contact Us For Availability
4
Lock, blower housing WCI 131435200 Contact Us For Availability
4
Bracket, mounting, terminal block WCI 134792200 Contact Us For Availability
6
Duct, air, gray WCI 134710705 Contact Us For Availability
6
Harness, upper prog sel WCI 137348800 Contact Us For Availability
8
Cover, lint housing WCI 134701320 Contact Us For Availability
8
Limiter, thermal, heater WCI 137211800 Contact Us For Availability
8#
Limiter, thermal exhaust, flush mount WCI 137515200 Contact Us For Availability
8A
Screw, #6 pan head, #8-32 X .25, quadrex WCI 134935200 Contact Us For Availability
9
Plug, white WCI 131633200 Contact Us For Availability
11
Spacer, idler WCI 131749800 Contact Us For Availability
15#
Thermistor, control WCI 134587700 Contact Us For Availability
17
Console, shell J, white WCI 137054110 Contact Us For Availability
17
Protector, edge, right top front, 85.0+/-1.5 WCI 134792900 Contact Us For Availability
18
Screw, indt pan head, 10-14 x 0.625, quadrex WCI 134430300 Contact Us For Availability
20
Seal, felt, drum WCI 137565300 Contact Us For Availability
20
Gasket, front panel WCI 137116600 Contact Us For Availability
20
Bolt, hex head, 1/4-20T x 1.25, thread cuttin WCI 131017900 Contact Us For Availability
20*
• Adhesive, high temp WCI 5308027429 Contact Us For Availability
21
Drum, Dryer, assembly 36" WCI 137623110 Contact Us For Availability
22
Spring, idler arm WCI 131601000 Contact Us For Availability
25
Door Catch, upper WCI 131658800 Contact Us For Availability
25#
Belt, "H", poly V, 5 rib WCI 134719300 Contact Us For Availability
27
Clamp, motor mtg. WCI 134242400 Contact Us For Availability
27L
Panel, left side, white WCI 134690310 Contact Us For Availability
27R
Panel, right side, white WCI 134690410 Contact Us For Availability
28
Clip, mounting, cabinet front WCI 137034500 Contact Us For Availability
33#
Thermostat, safety WCI 3204267 Contact Us For Availability
34A
Screw, pan head, #8-18x.750 WCI 137285100 Contact Us For Availability
38
Screw 8-18X0.711 Combo WCI 137361500 Contact Us For Availability
39
Screw, #8 pan head, 10-10B x 0.500, cr/sq dri WCI 131205100 Contact Us For Availability
40#
Switch, rotary, 5 pos WCI 137052700 Contact Us For Availability
40*
Retainer, roller wheel, assembly WCI 134716200 Contact Us For Availability
40A
Washer, flat WCI 134716700 Contact Us For Availability
41
Nut, 3/8-16 WCI 134716800 Contact Us For Availability
41#
Switch, rotary, 2 pos WCI 137205200 Contact Us For Availability
42*
Screw, hex washer head, 10-32 x 0.375, ground WCI 134154100 Contact Us For Availability
44
Leveling Leg, screw WCI 137029700 Contact Us For Availability
46
Bracket, motor mounting WCI 134693500 Contact Us For Availability
47
Seal, exhaust tube WCI 131633300 Contact Us For Availability
52
Screw, 10-16AB x 0.625 WCI 131202300 Contact Us For Availability
52
Pin, panel locator WCI 137362600 Contact Us For Availability
× ![]()
