Model Electrolux FEC6X9XCSD COOK-TOP – Common Parts & Diagrams
01 - COVER

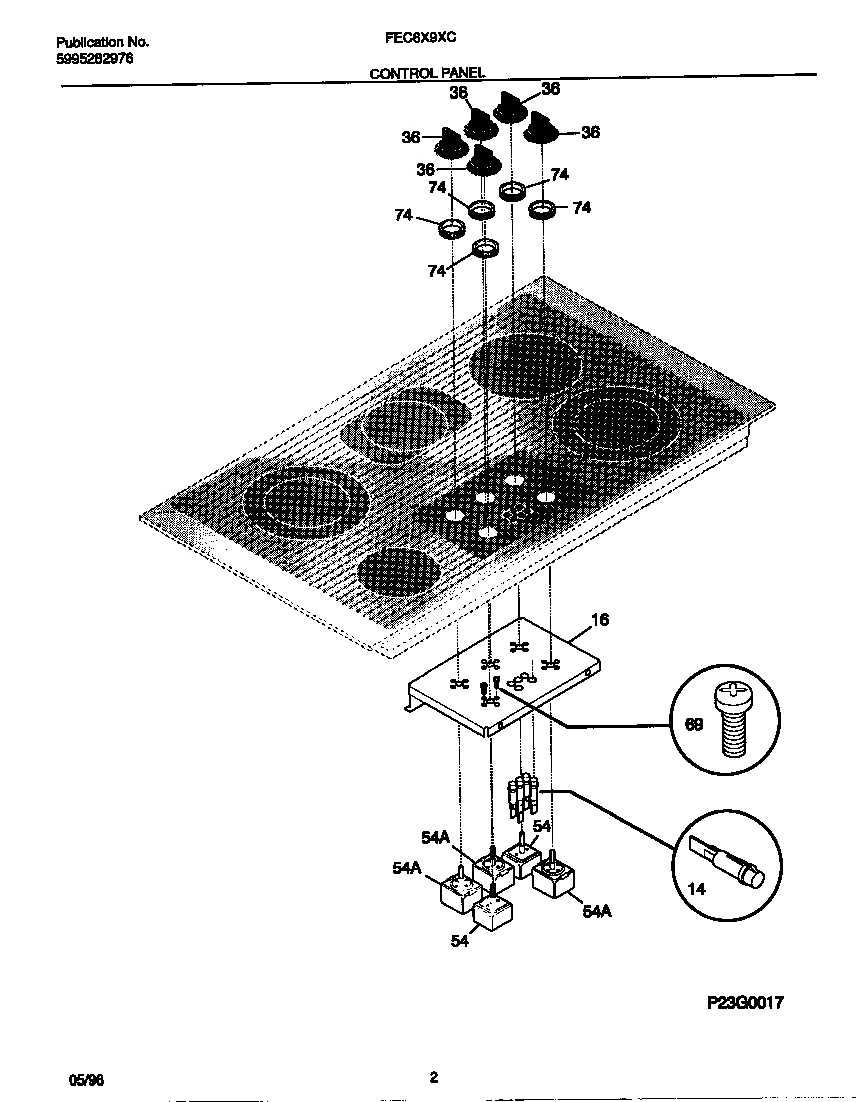

02 - CONTROL PANEL

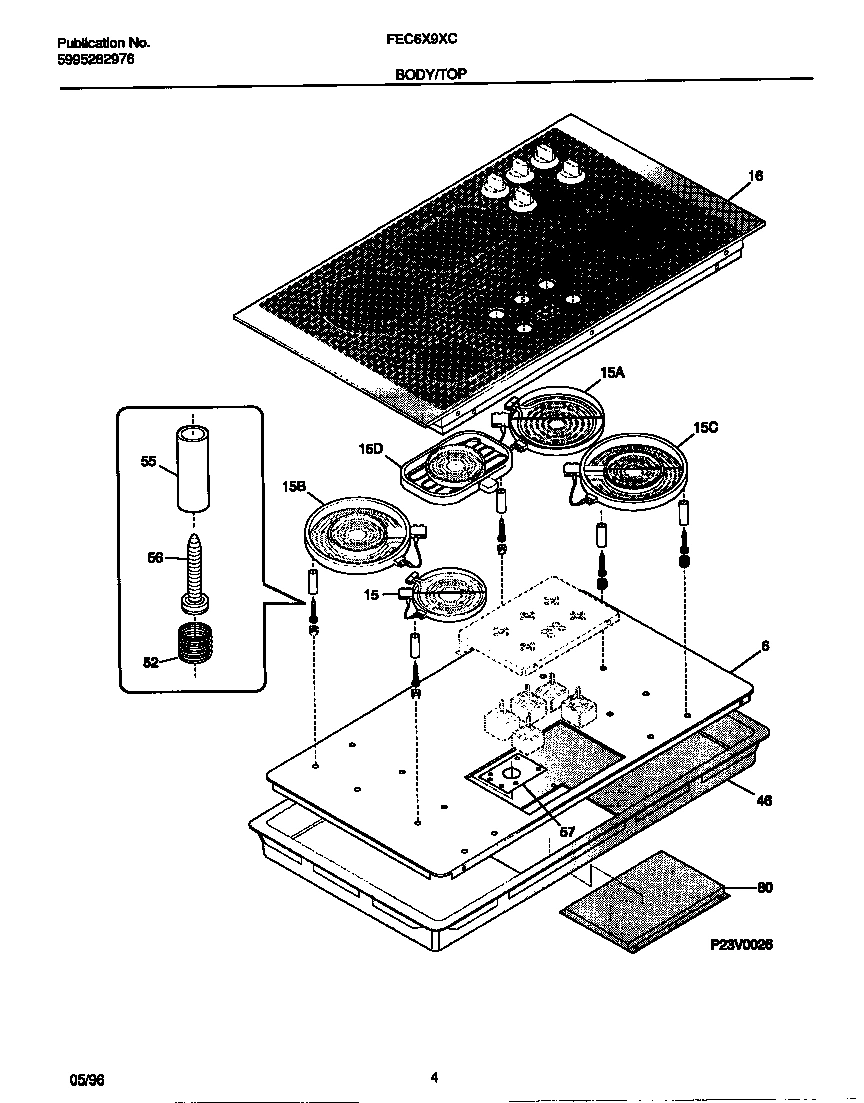

03 - BODY/TOP

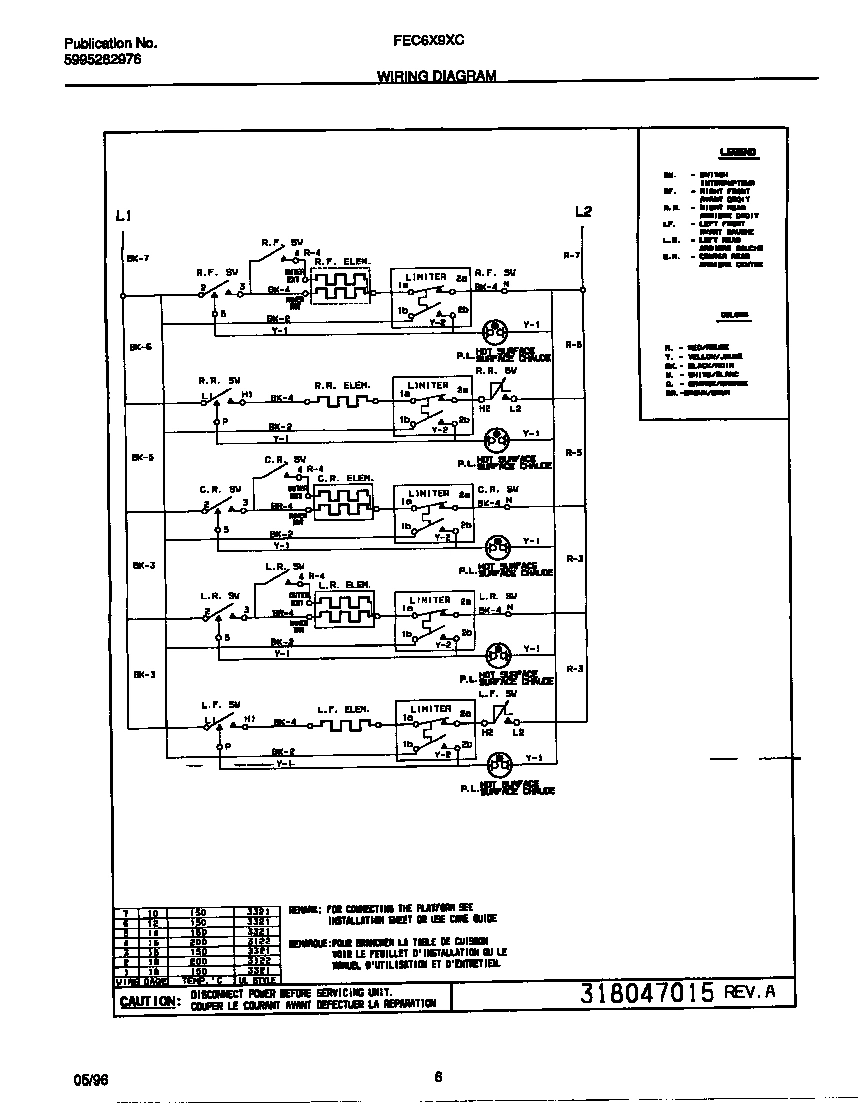

04 - WIRING DIAGRAM

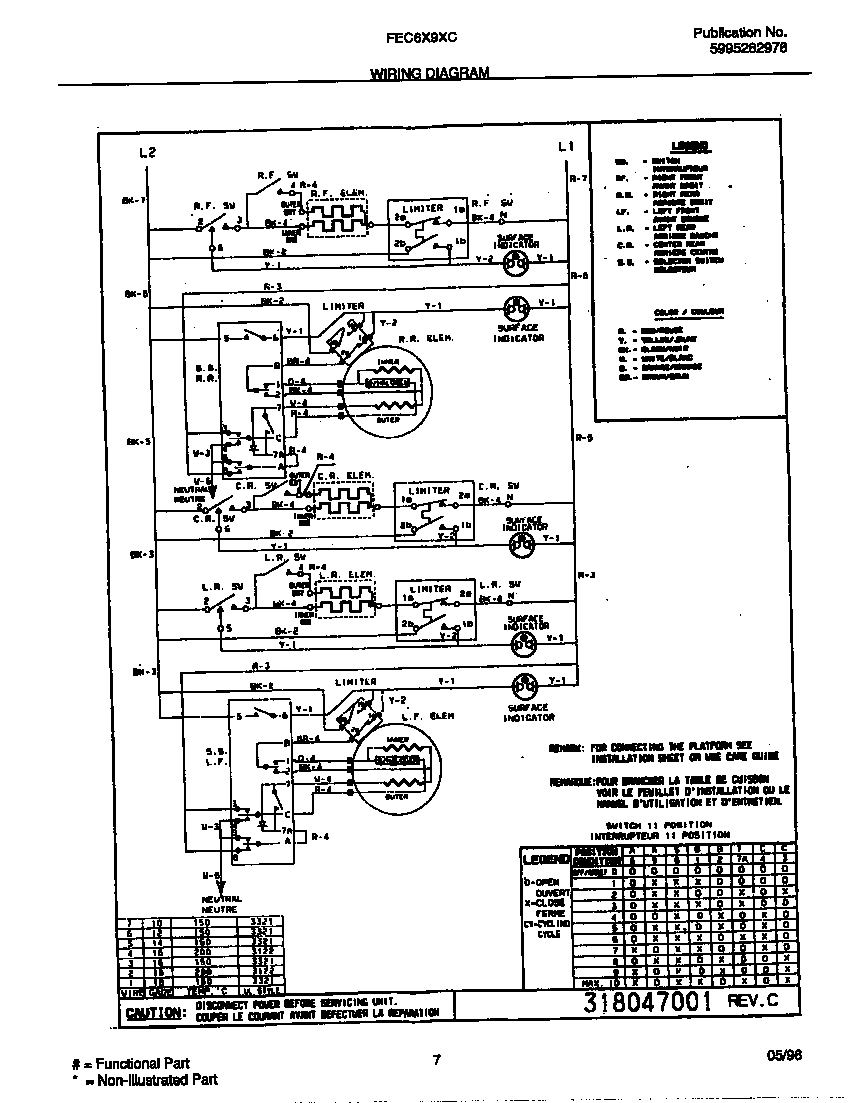

05 - WIRING DIAGRAM
Common parts from model Electrolux FEC6X9XCSD COOK-TOP
6
SUPPORT-ELEMENT WCI 5303305103 Contact Us For Availability
15
WCI 318050102 WCI 318050102 Contact Us For Availability
15
ELEMENT-SURFACE, 1900 W WCI 318050201 Contact Us For Availability
15
WCI 318050300 WCI 318050300 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, SMALL/6 INCH, W/LIM WCI 5303297142 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, LARGE/8 INCH, W/LIM WCI 5303297143 Contact Us For Availability
16
WCI 5303311334 WCI 5303311334 Contact Us For Availability
36B
KNOB-SURFACE UNIT, WHITE, (2) WCI 318016301 Contact Us For Availability
46
BURNER BOX WCI 5303305105 Contact Us For Availability
52
SPRING-ELEMENT MTG WCI 5303297478 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (2) WCI 318120505 Contact Us For Availability
54
SWITCH-SURFACE UNIT (3) WCI 318078200 Contact Us For Availability
55
SPACER-ELEMENT WCI 5303297476 Contact Us For Availability
57
PLATE-CONNECTION WCI 08014750 Contact Us For Availability
74
BUSHING, SWITCH WCI 5301316432 Contact Us For Availability
80
WCI 318100000 WCI 318100000 Contact Us For Availability
× ![]()
