Model Electrolux FEC6X8XHSA COOK-TOP – Common Parts & Diagrams

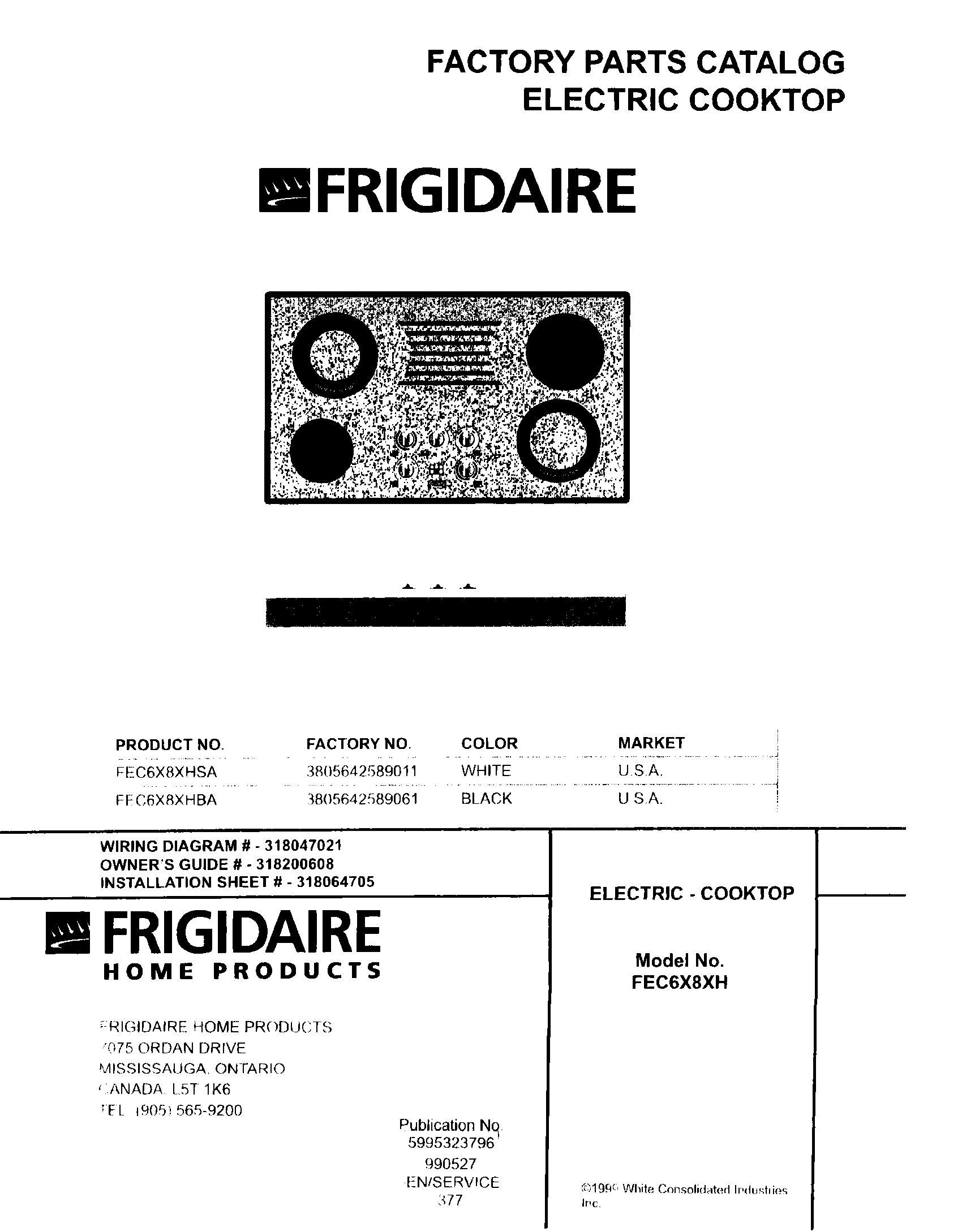

01 - COVER

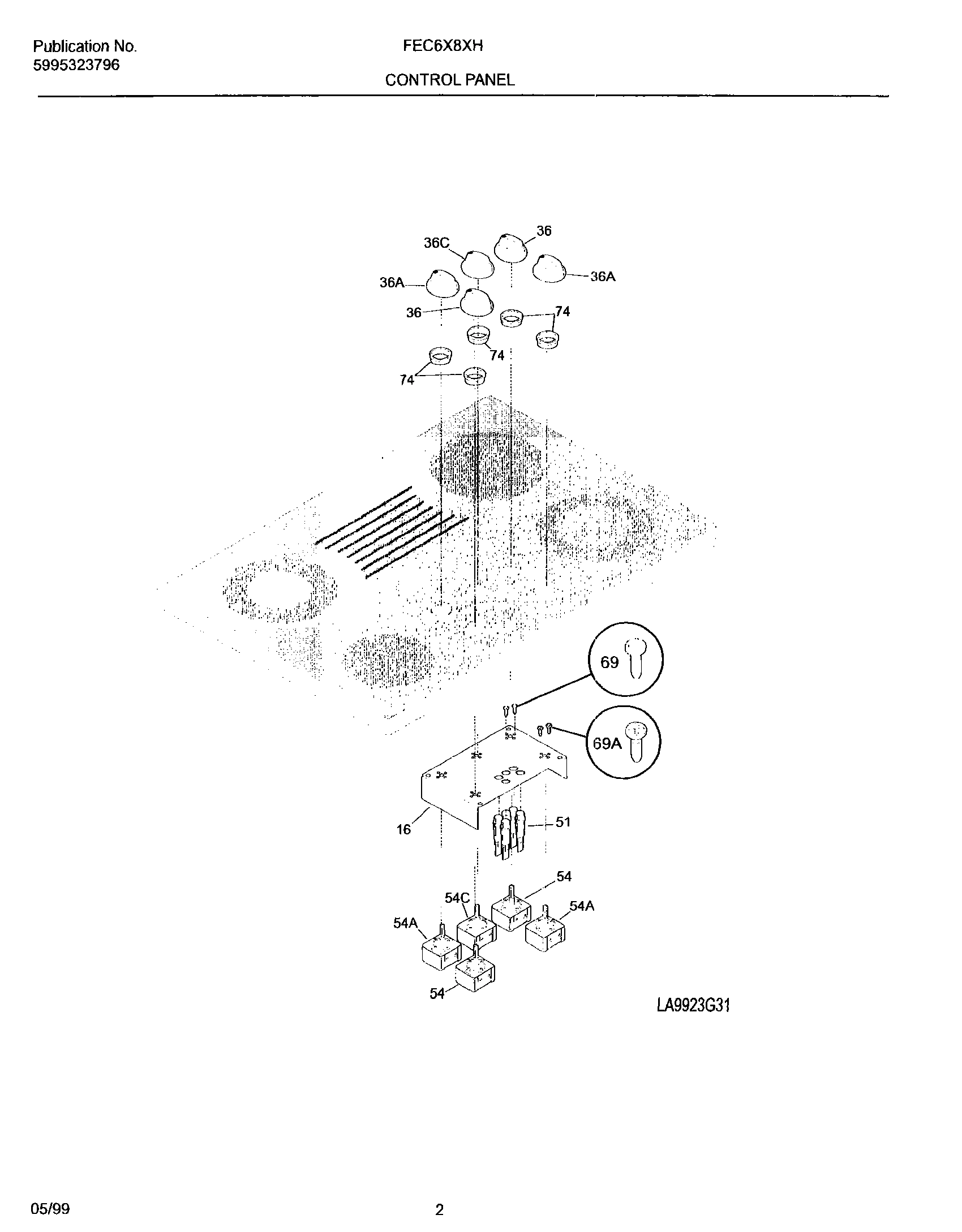

02 - CONTROL PANEL

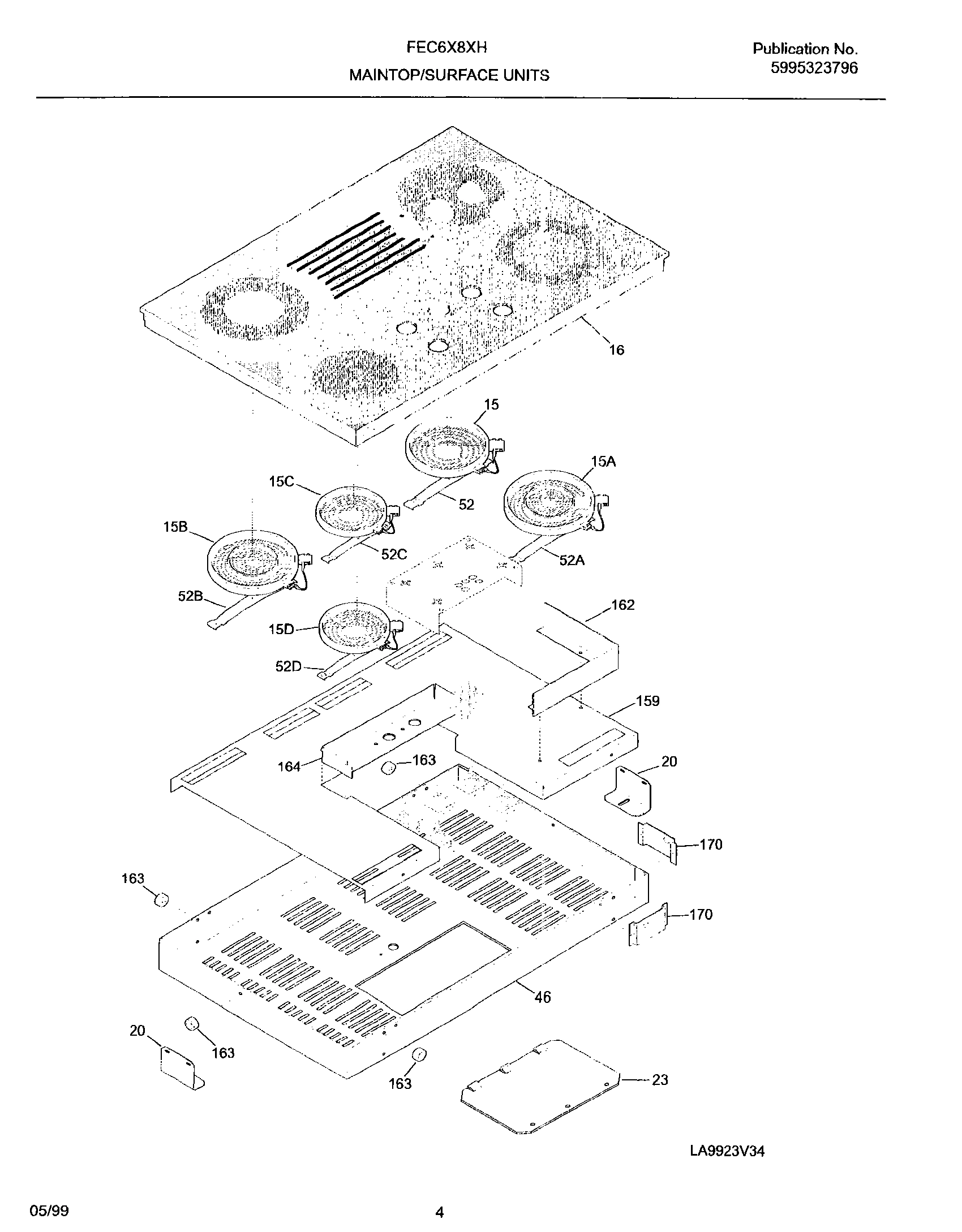

03 - MAINTOP

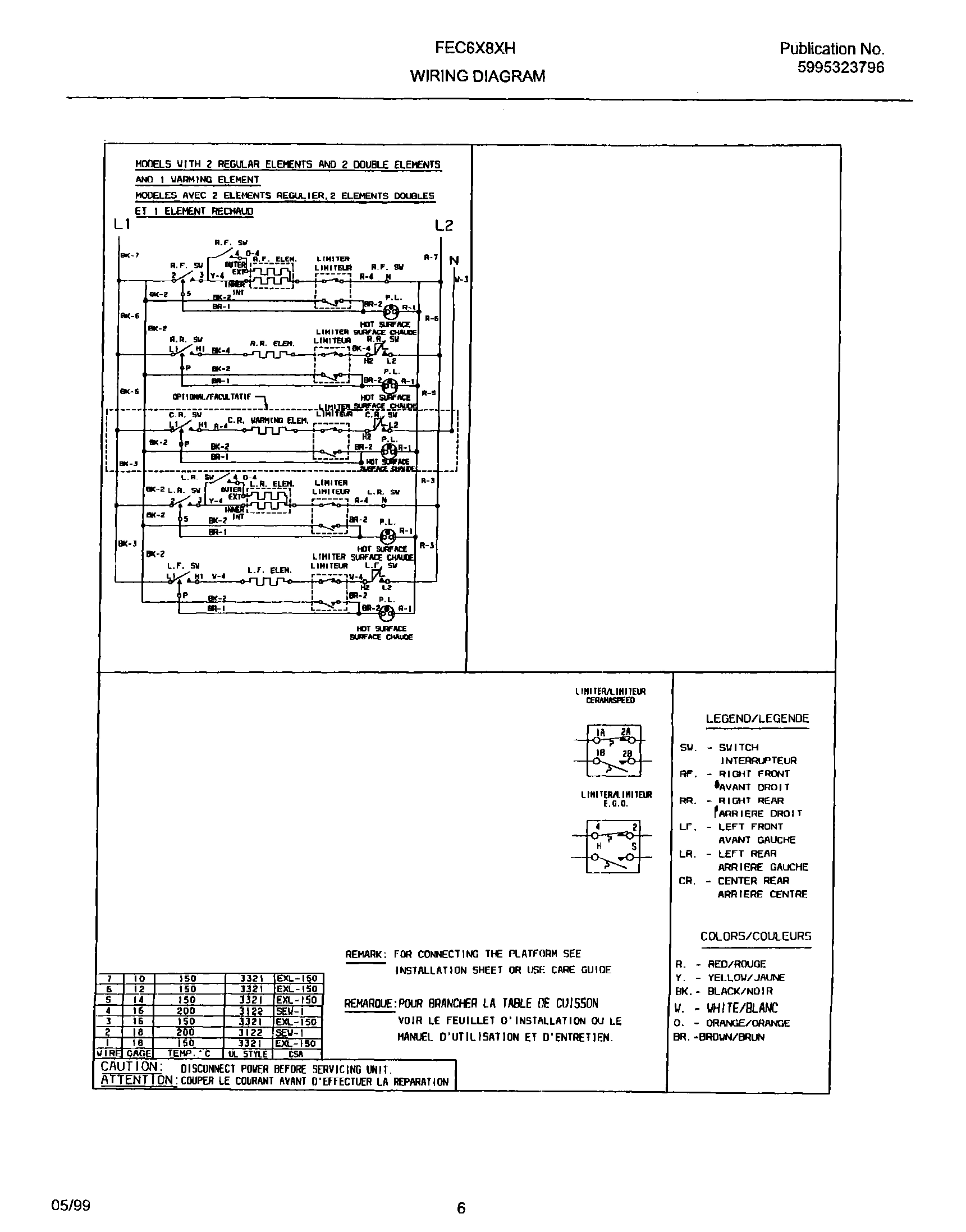

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC6X8XHSA COOK-TOP
15
ELEMENT SURFACE 1700W WCI 318178102 Contact Us For Availability
15A
ELEMENT-SURFACE, 1000W/1900W WCI 318050201 Contact Us For Availability
15B
WCI 318178000 WCI 318178000 Contact Us For Availability
15C
ELEMENT-WARMER WCI 318178103 Contact Us For Availability
16
GLASS MAINTOP & FRAME ASSY WCI 318079324 Contact Us For Availability
23
WCI 5303297401 WCI 5303297401 Contact Us For Availability
46
BURNER BOX WCI 318077221 Contact Us For Availability
52A
SPRING-ELEMENT MTG WCI 318122009 Contact Us For Availability
52B
SPRING ELEMENT MTG WCI 318122007 Contact Us For Availability
52C
SPRING-ELEMENT MTG WCI 318122004 Contact Us For Availability
54
SWITCH-SURFACE UNIT,SMALL WCI 318120505 Contact Us For Availability
54C
SWITCH-6`` ELEMENT WCI 318078801 Contact Us For Availability
159
Deflector WCI 318125121 Contact Us For Availability
162
DEFLECTOR WCI 318125200 Contact Us For Availability
163
SPACER WCI 08007817 Contact Us For Availability
164
PLATE-CONNECTION WCI 318125301 Contact Us For Availability
170
SUPPORT-THERMAL WCI 318124900 Contact Us For Availability
NI
WCI 5303323131 WCI 5303323131 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
NI
Box & wires assy WCI 318078514 Contact Us For Availability
× ![]()
