Model Electrolux FEC6X8XHBA COOK-TOP – Common Parts & Diagrams

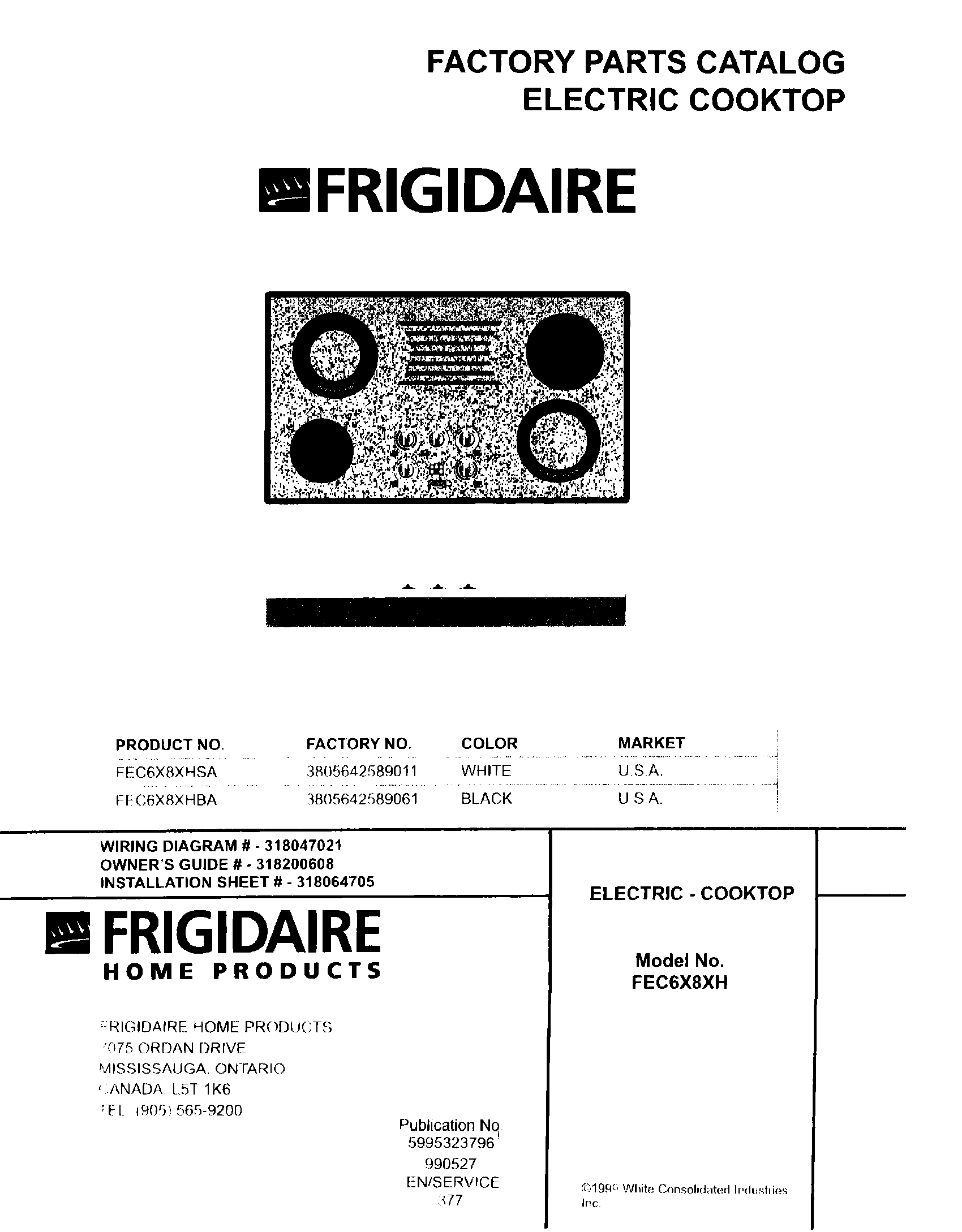

01 - COVER

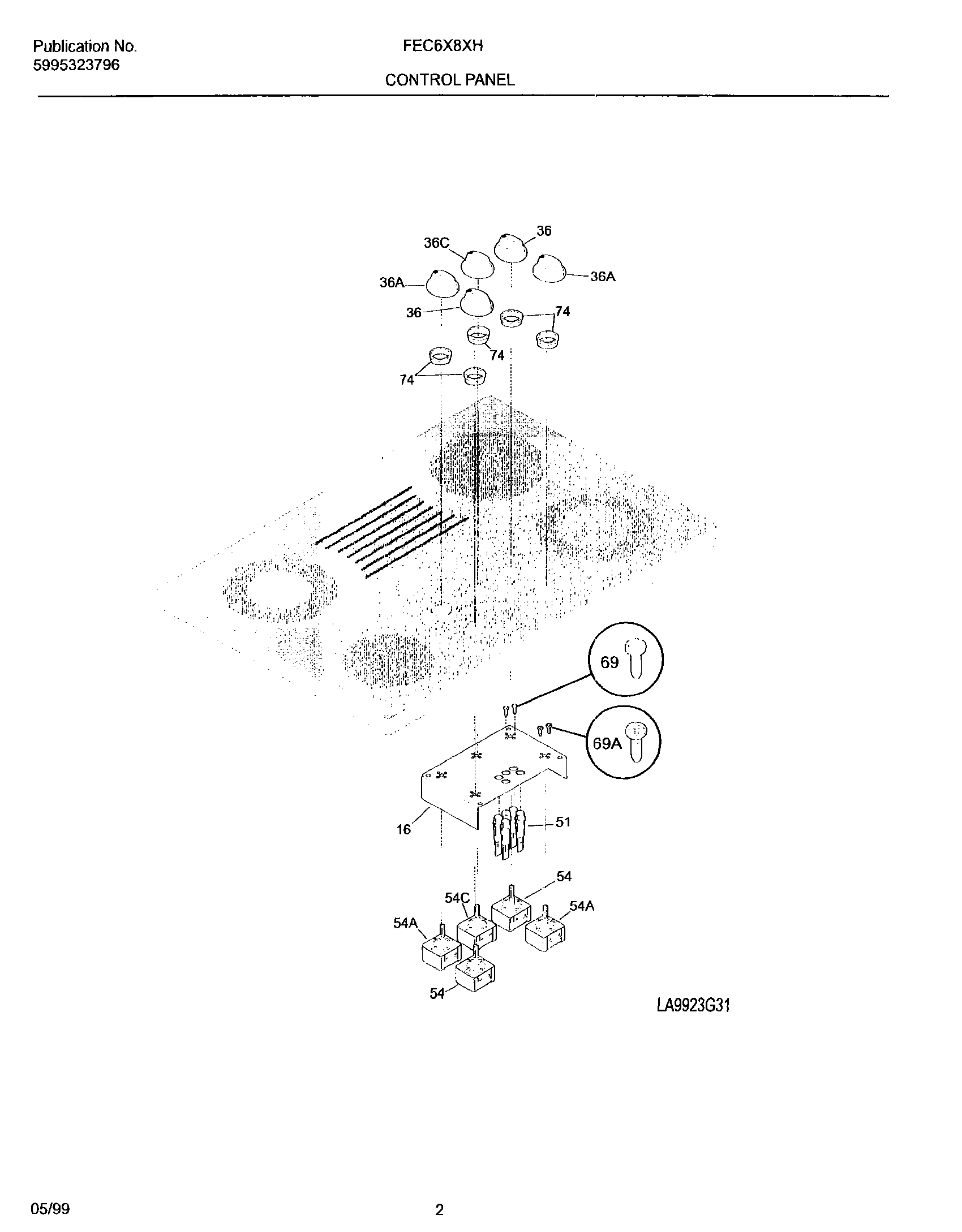

02 - CONTROL PANEL

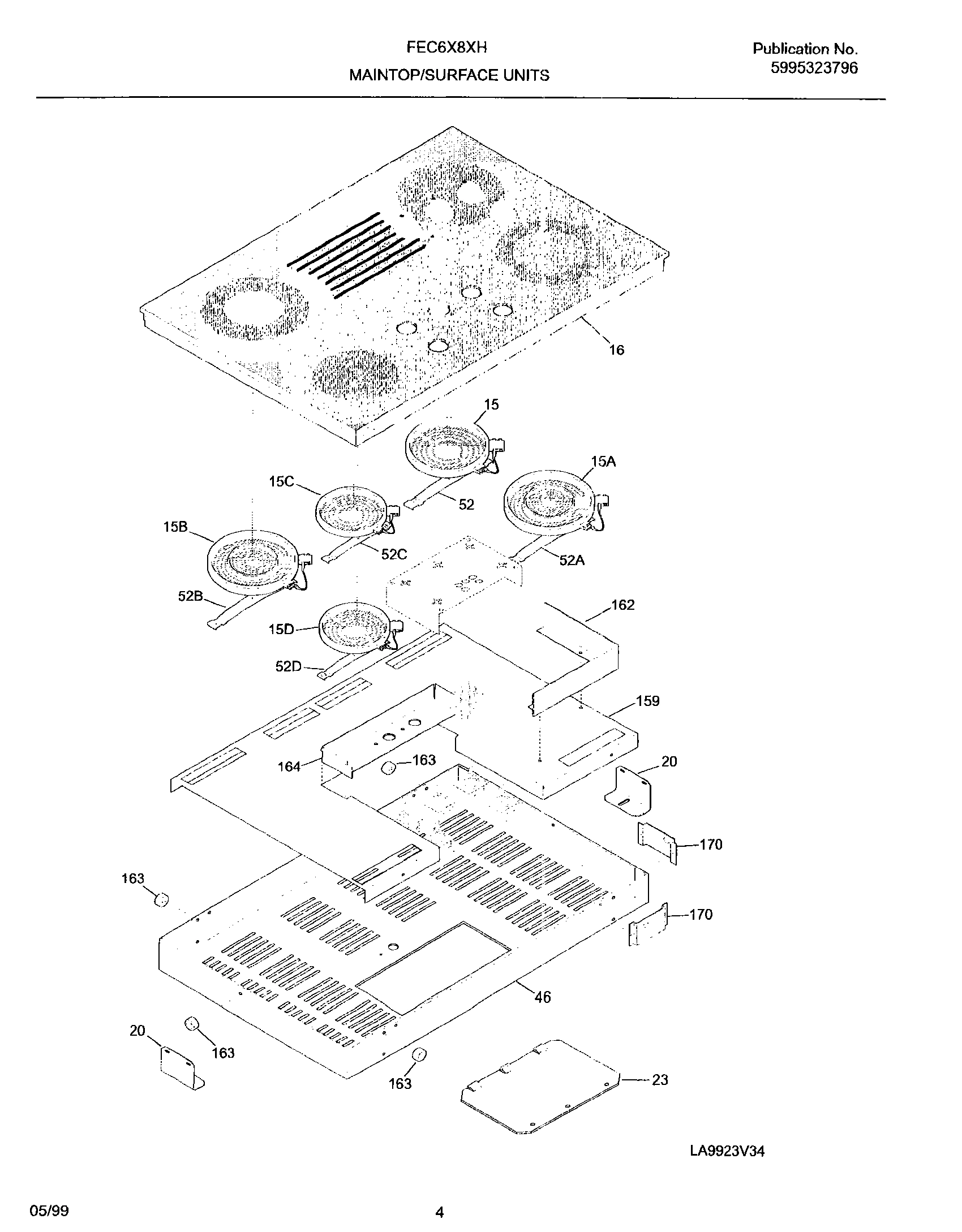

03 - MAINTOP

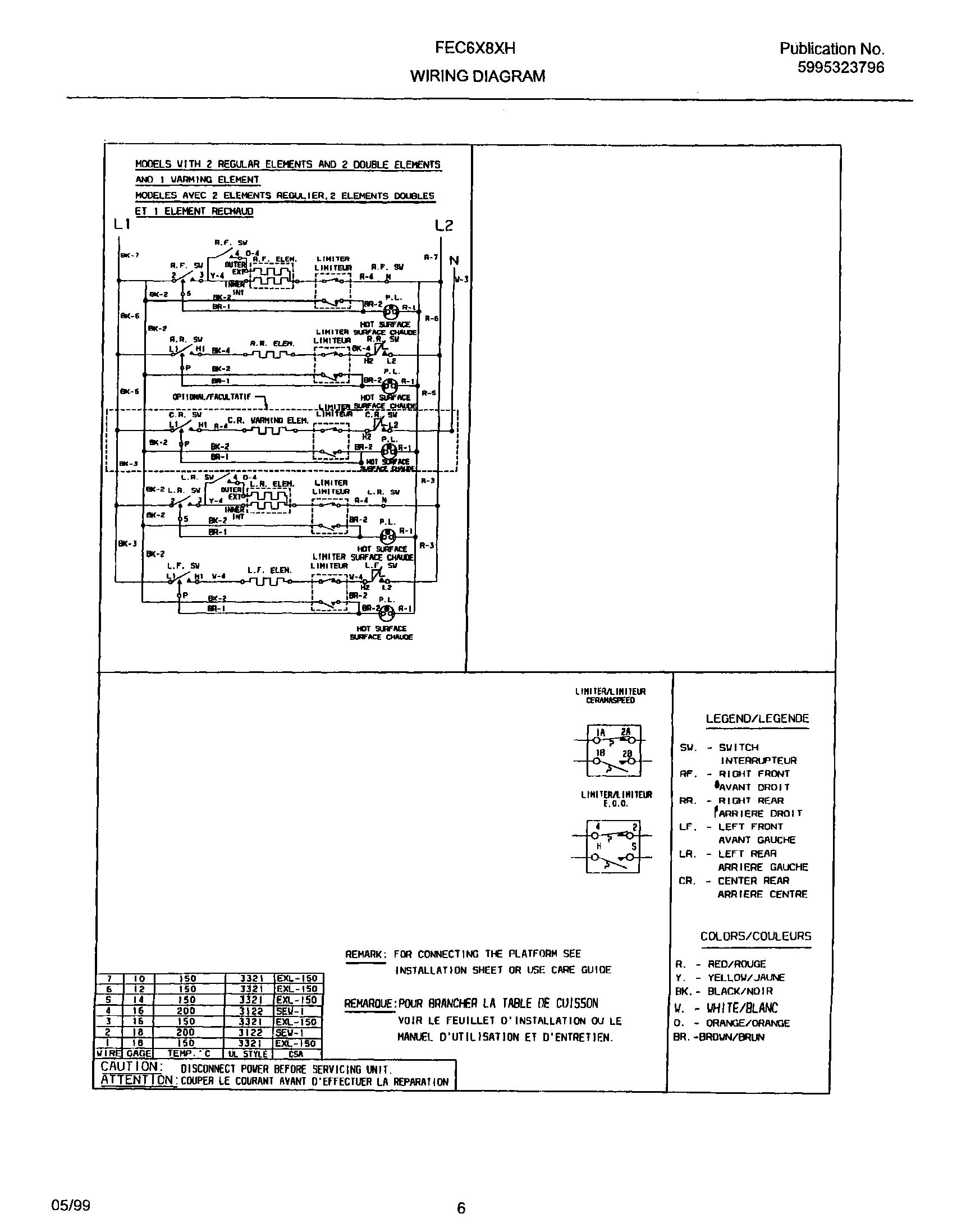

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC6X8XHBA COOK-TOP
15
ELEMENT SURFACE 1700W WCI 318178102 Contact Us For Availability
15A
ELEMENT-SURFACE, 1000W/1900W WCI 318050201 Contact Us For Availability
15B
WCI 318178000 WCI 318178000 Contact Us For Availability
15C
ELEMENT-WARMER WCI 318178103 Contact Us For Availability
16
GLASS MAINTOP & FRAME ASSY WCI 318079323 Contact Us For Availability
23
WCI 5303297401 WCI 5303297401 Contact Us For Availability
46
BURNER BOX WCI 318077221 Contact Us For Availability
52A
SPRING-ELEMENT MTG WCI 318122009 Contact Us For Availability
52B
SPRING ELEMENT MTG WCI 318122007 Contact Us For Availability
52C
SPRING-ELEMENT MTG WCI 318122004 Contact Us For Availability
54
SWITCH-SURFACE UNIT,SMALL WCI 318120505 Contact Us For Availability
54C
SWITCH-6`` ELEMENT WCI 318078801 Contact Us For Availability
159
Deflector WCI 318125121 Contact Us For Availability
162
DEFLECTOR WCI 318125200 Contact Us For Availability
164
PLATE-CONNECTION WCI 318125301 Contact Us For Availability
170
SUPPORT-THERMAL WCI 318124900 Contact Us For Availability
NI
WCI 5303323131 WCI 5303323131 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
NI
Box & wires assy WCI 318078514 Contact Us For Availability
× ![]()
