Model Electrolux FEC3X9XCTD COOK-TOP – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

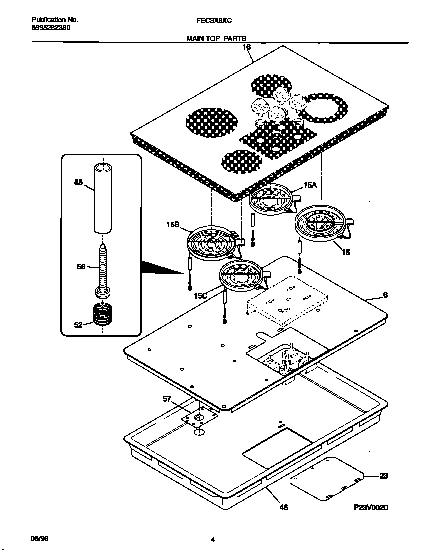

03 - MAIN TOP PARTS

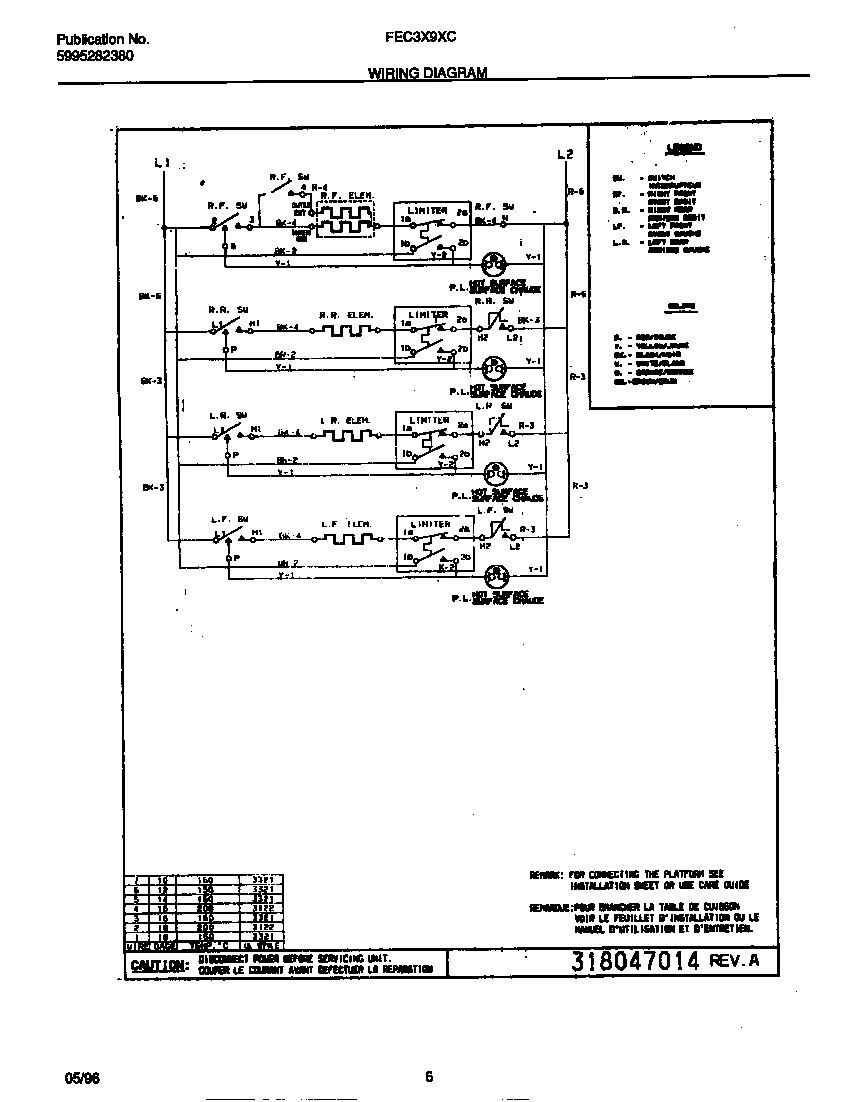

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC3X9XCTD COOK-TOP
6
SUPPORT-ELEMENT WCI 5303297479 Contact Us For Availability
15
WCI 318050200 WCI 318050200 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, SMALL/6 INCH, W/LIM WCI 5303297142 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, LARGE/8 INCH, W/LIM WCI 5303297143 Contact Us For Availability
16
MAIN TOP,ALMOND WCI 5303311363 Contact Us For Availability
16A
WCI 5303311361 WCI 5303311361 Contact Us For Availability
16B
WCI 5303311364 WCI 5303311364 Contact Us For Availability
23
WCI 318100000 WCI 318100000 Contact Us For Availability
36
KNOB-SURFACE UNIT, ALMOND, RR WCI 318016304 Contact Us For Availability
36
WCI 318016305 WCI 318016305 Contact Us For Availability
46
BOX-BURNER WCI 5303297486 Contact Us For Availability
52
SPRING-ELEMENT MTG WCI 5303297478 Contact Us For Availability
54
WCI 318120505 WCI 318120505 Contact Us For Availability
54
SWITCH-SURFACE UNIT (3) WCI 318078200 Contact Us For Availability
55
WCI 5303316771 WCI 5303316771 Contact Us For Availability
57
PLATE-CONNECTION WCI 08014750 Contact Us For Availability
74
BUSHING, SWITCH WCI 5301316432 Contact Us For Availability
× ![]()
