Model Electrolux FEC3X9XCB1 COOK-TOP – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

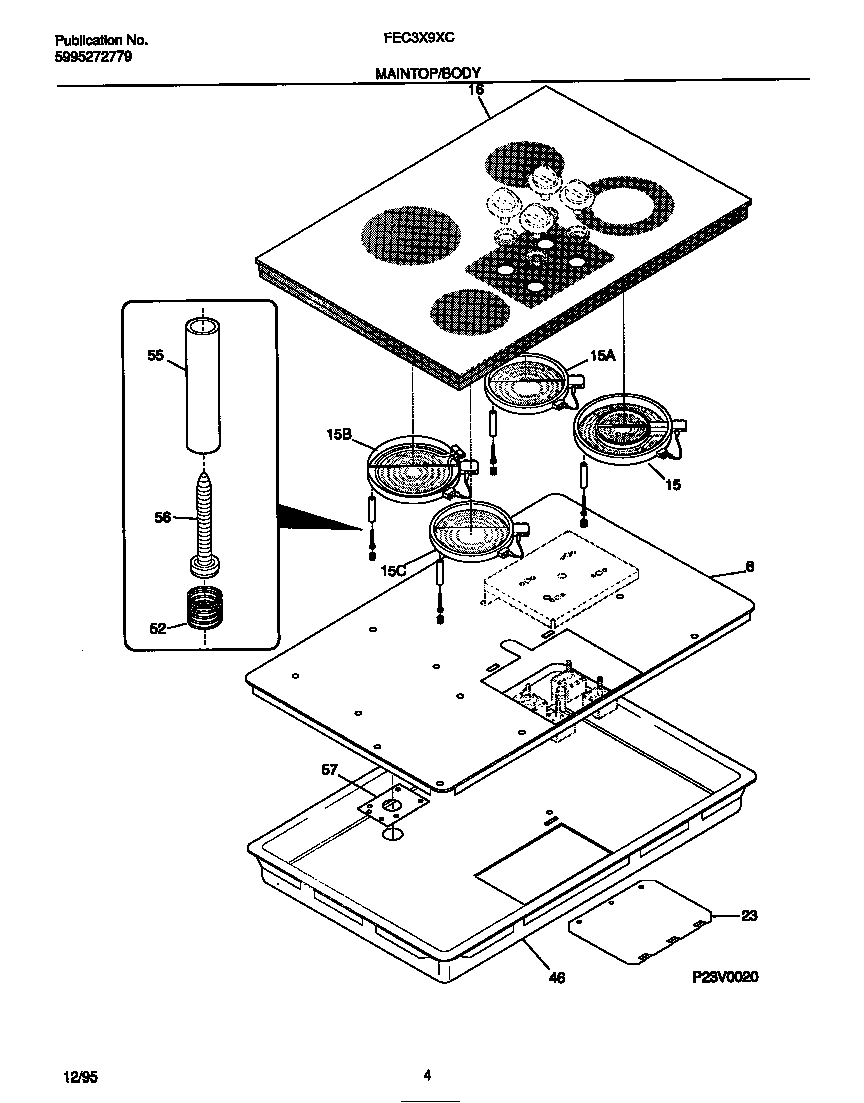

03 - MAIN TOP/BODY

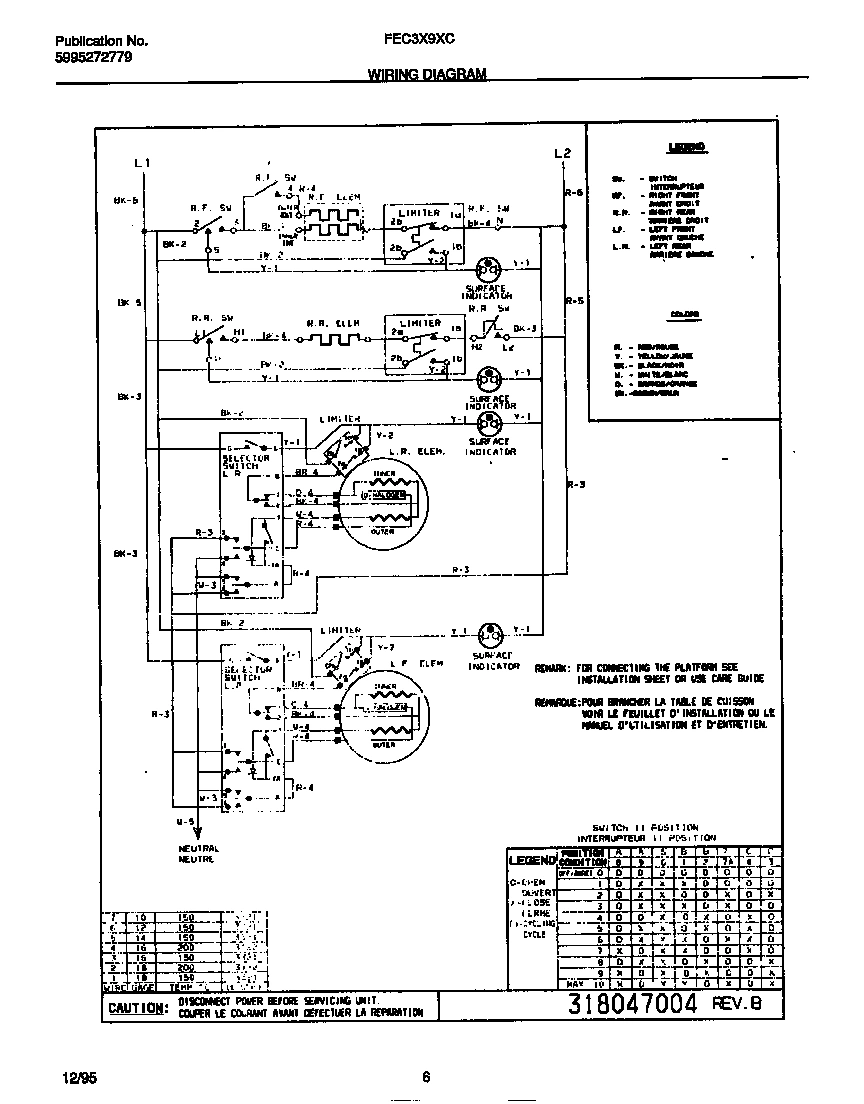

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC3X9XCB1 COOK-TOP
6
SUPPORT-ELEMENT WCI 5303297479 Contact Us For Availability
15
WCI 318050000 WCI 318050000 Contact Us For Availability
15
WCI 318050001 WCI 318050001 Contact Us For Availability
15
ELEMENT-SURFACE, 2000/1000 W WCI 5303297140 Contact Us For Availability
16
WCI 5303311362 WCI 5303311362 Contact Us For Availability
16
WCI 5303311364 WCI 5303311364 Contact Us For Availability
23
WCI 318100000 WCI 318100000 Contact Us For Availability
36
KNOB-SURFACE UNIT, RR WCI 318016308 Contact Us For Availability
36
KNOB-SURFACE UNIT, RF WCI 318016309 Contact Us For Availability
36
WCI 318016319 WCI 318016319 Contact Us For Availability
46
BOX-BURNER WCI 5303297486 Contact Us For Availability
52
SPRING-ELEMENT MTG WCI 5303297478 Contact Us For Availability
54
WCI 318078101 WCI 318078101 Contact Us For Availability
54
SWITCH-SURFACE UNIT, LR & LF WCI 318078200 Contact Us For Availability
54
SWITCH-SURFACE UNIT, 1200 W WCI 3204918 Contact Us For Availability
55
SPACER-ELEMENT WCI 5303297476 Contact Us For Availability
57
PLATE-CONNECTION WCI 08014750 Contact Us For Availability
74
BUSHING, SWITCH WCI 5301316432 Contact Us For Availability
× ![]()
