Model Electrolux FEC3X7XAS6 COOK-TOP – Common Parts & Diagrams

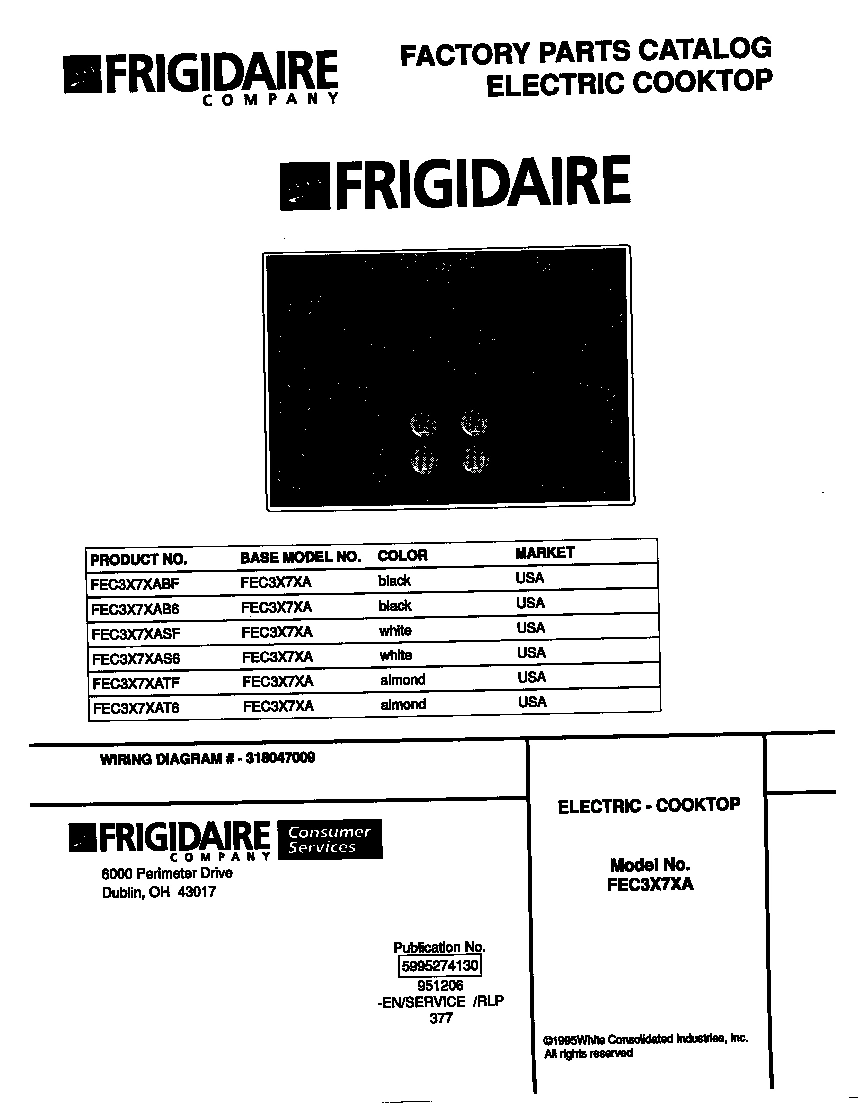

01 - COVER

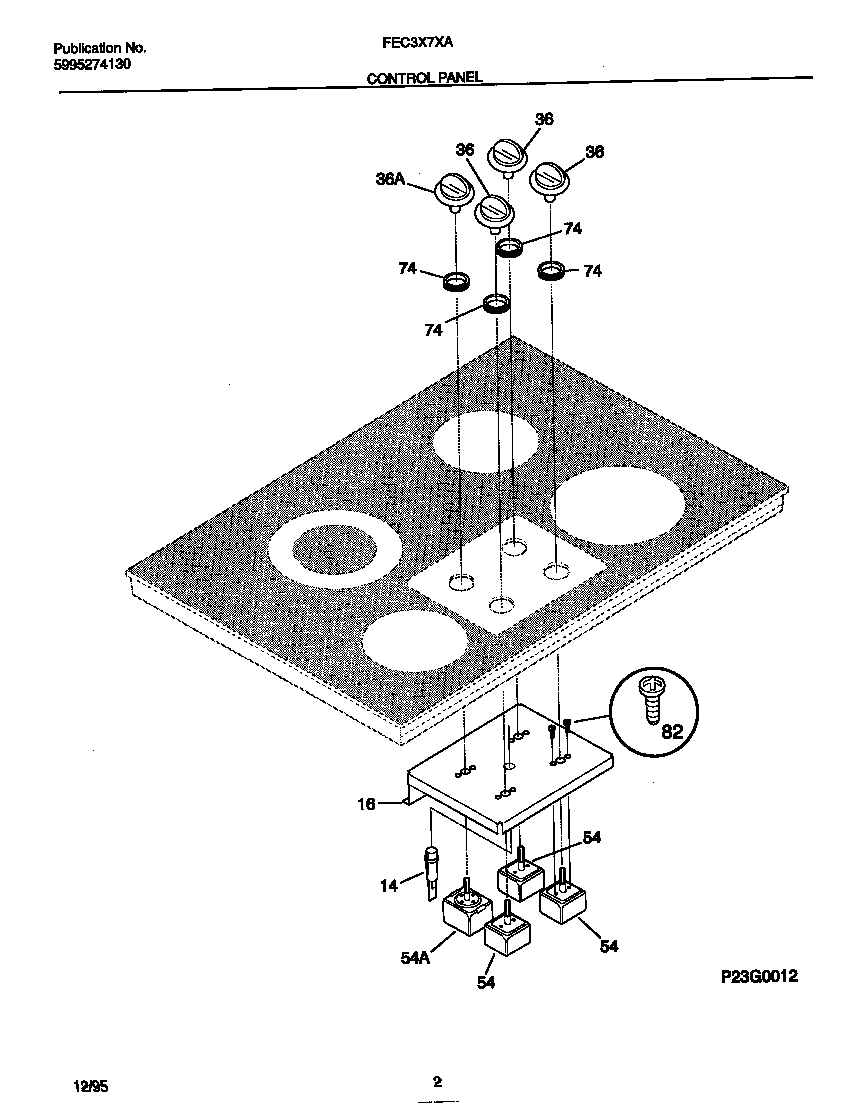

02 - CONTROL PANEL

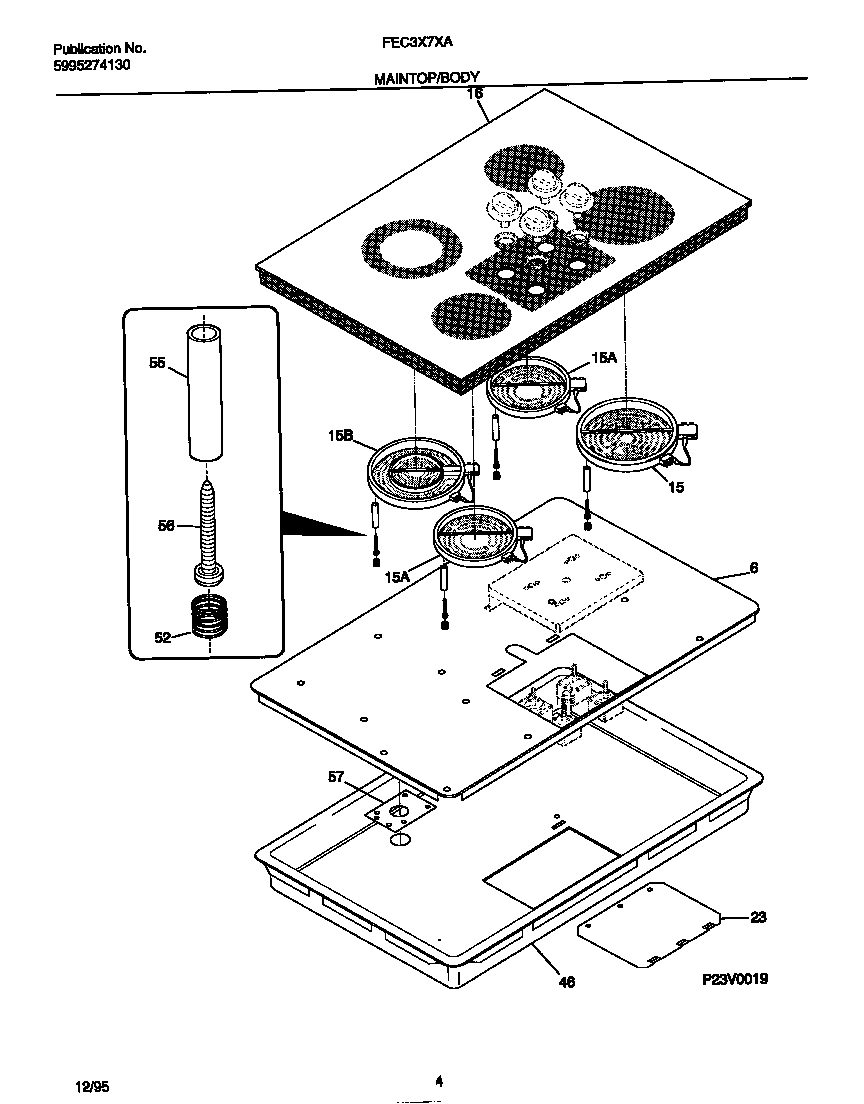

03 - MAIN TOP/BODY

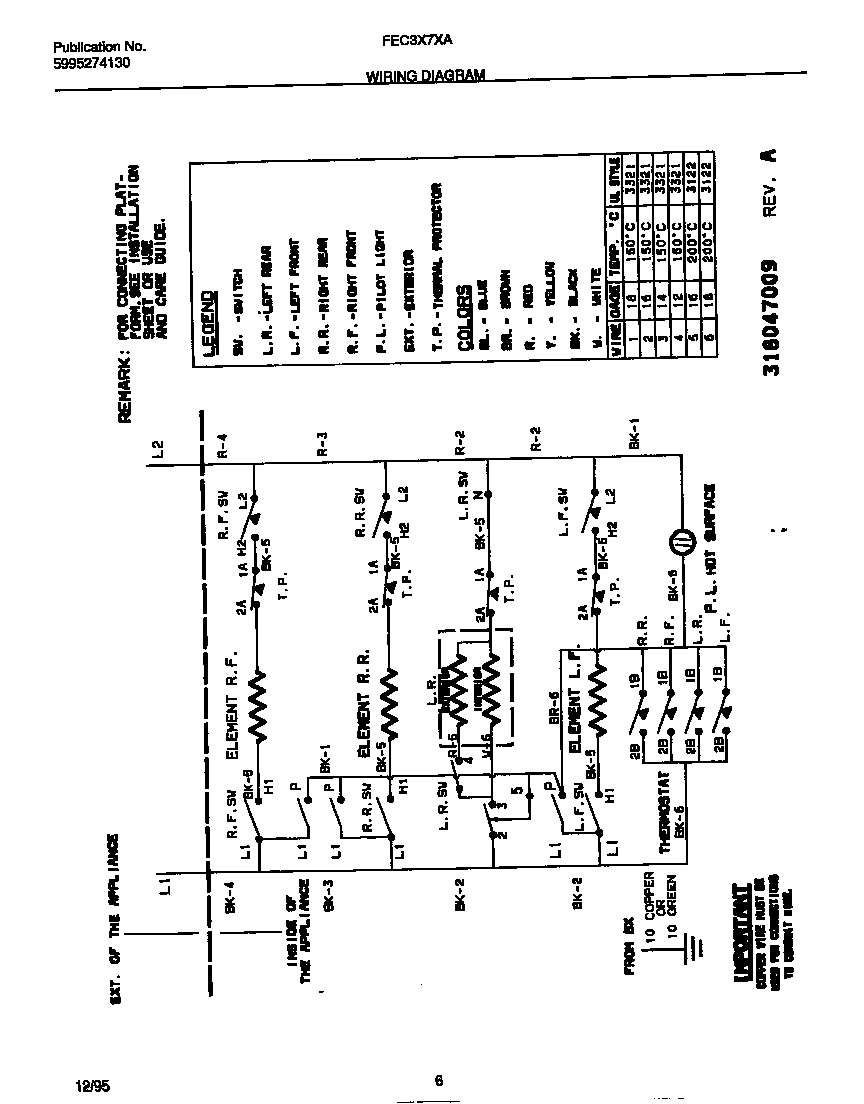

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC3X7XAS6 COOK-TOP
*41962
CLIP,PLATE CONNECTOR WCI 3205110 Contact Us For Availability
6
SUPPORT-ELEMENT WCI 5303297479 Contact Us For Availability
15
WCI 318050200 WCI 318050200 Contact Us For Availability
16
WCI 5303300029 WCI 5303300029 Contact Us For Availability
16
WCI 5303310864 WCI 5303310864 Contact Us For Availability
16
WCI 5303316770 WCI 5303316770 Contact Us For Availability
23
WCI 5303297401 WCI 5303297401 Contact Us For Availability
23
SCREW (NOT ILLUSTRATED) WCI K5104201 Contact Us For Availability
36
KNOB-SURFACE UNIT, (3) WCI 5303299751 Contact Us For Availability
36
WCI 5303304673 WCI 5303304673 Contact Us For Availability
36
WCI 5303304674 WCI 5303304674 Contact Us For Availability
36
WCI 5303310865 WCI 5303310865 Contact Us For Availability
36
WCI 5303310866 WCI 5303310866 Contact Us For Availability
36
KNOB-SURFACE UNIT WCI 5303310867 Contact Us For Availability
46
BOX-BURNER WCI 5303297486 Contact Us For Availability
52
SPRING-ELEMENT MTG WCI 5303297478 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (3) WCI 318120505 Contact Us For Availability
54
SWITCH-SURFACE UNIT WCI 318078200 Contact Us For Availability
55
WCI 5303316771 WCI 5303316771 Contact Us For Availability
57
PLATE-CONNECTION WCI 08014750 Contact Us For Availability
74
BUSHING, SWITCH WCI 5301316432 Contact Us For Availability
× ![]()
