Model Electrolux FEC36S8HSB ELCOOKTO FEC36S8HS&BB – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

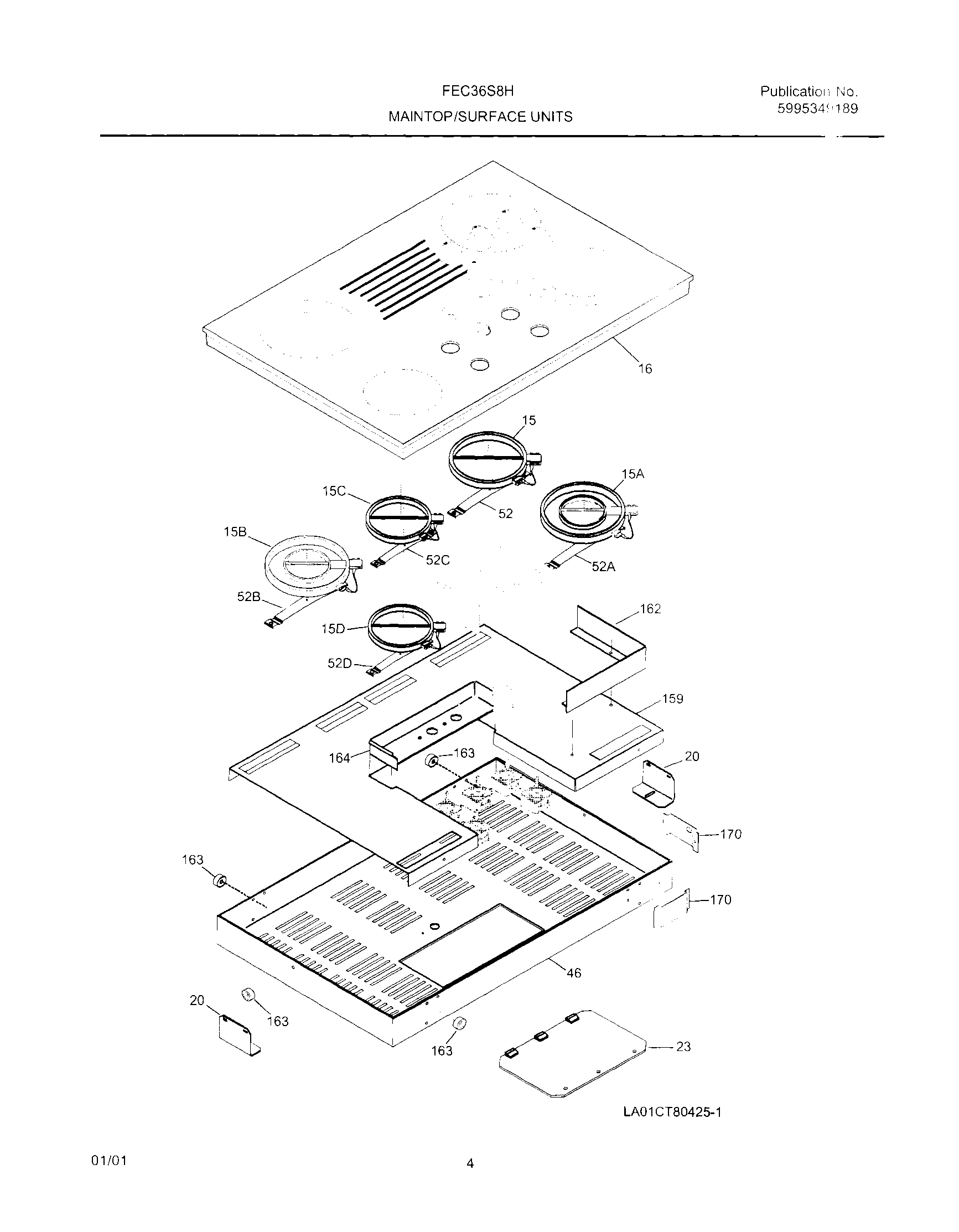

05 - MAINTOP

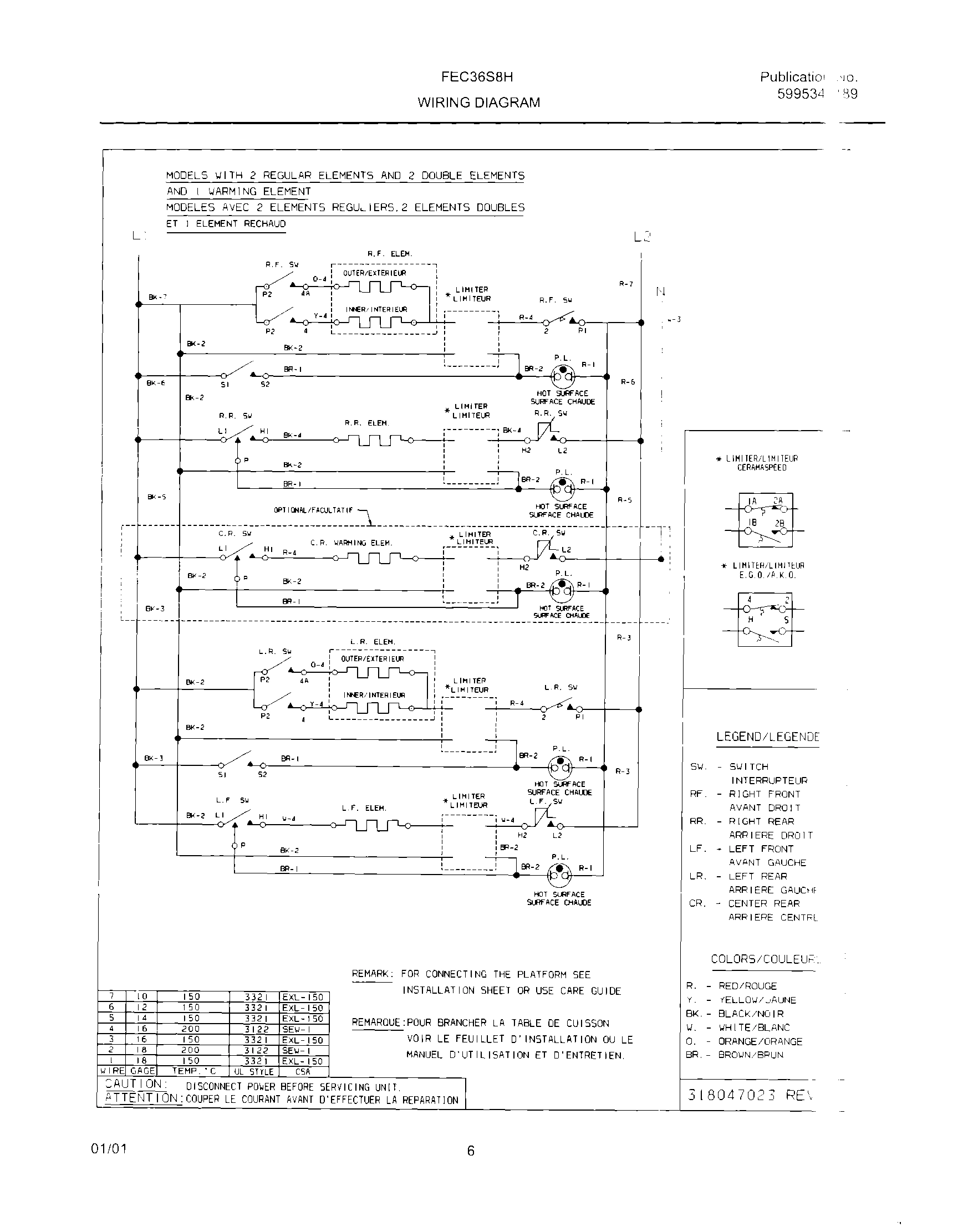

07 - WIRING DIAGRAM
Common parts from model Electrolux FEC36S8HSB ELCOOKTO FEC36S8HS&BB
15
WCI 318050202 WCI 318050202 Contact Us For Availability
15
ELEMENT-SURFACE,2100W WCI 318178000 Contact Us For Availability
15
Element ay < 1700.W > WCI 318178102 Contact Us For Availability
15
ELEMENT-SURFACE W-ZONE,120V/100W WCI 318178103 Contact Us For Availability
16
Main Top,black WCI 318079324 Contact Us For Availability
23
WCI 5303297401 WCI 5303297401 Contact Us For Availability
36
KNOB,TEMP CONTROL ,WHITE WCI 318164500 Contact Us For Availability
46
BURNER BOX WCI 318077221 Contact Us For Availability
52
WCI 318122004 WCI 318122004 Contact Us For Availability
52
SPRING-ELEMENT MTG,2100W ,LARGE WCI 318122007 Contact Us For Availability
52
Spring-element mtg,dual ,1000W/1900W WCI 318122009 Contact Us For Availability
54
SWITCH-SURFACE UNIT, SMALL/LARGE, (3) WCI 318120505 Contact Us For Availability
54
Switch-6`` element,warmer WCI 318078801 Contact Us For Availability
159
Deflector WCI 318125121 Contact Us For Availability
162
DEFLECTOR WCI 318125200 Contact Us For Availability
164
PLATE-CONNECTION WCI 318125301 Contact Us For Availability
170
SCREEN-THERMAL WCI 318124900 Contact Us For Availability
NI
WCI 5303323131 WCI 5303323131 Contact Us For Availability
NI
SCREW,TRUSS HEAD ,8-18 X 0.375 ,(4) WCI 08016432 Contact Us For Availability
NI
Box & wires assy WCI 318078514 Contact Us For Availability
× ![]()
