Model Electrolux FEC36C4HTA COOK-TOP – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

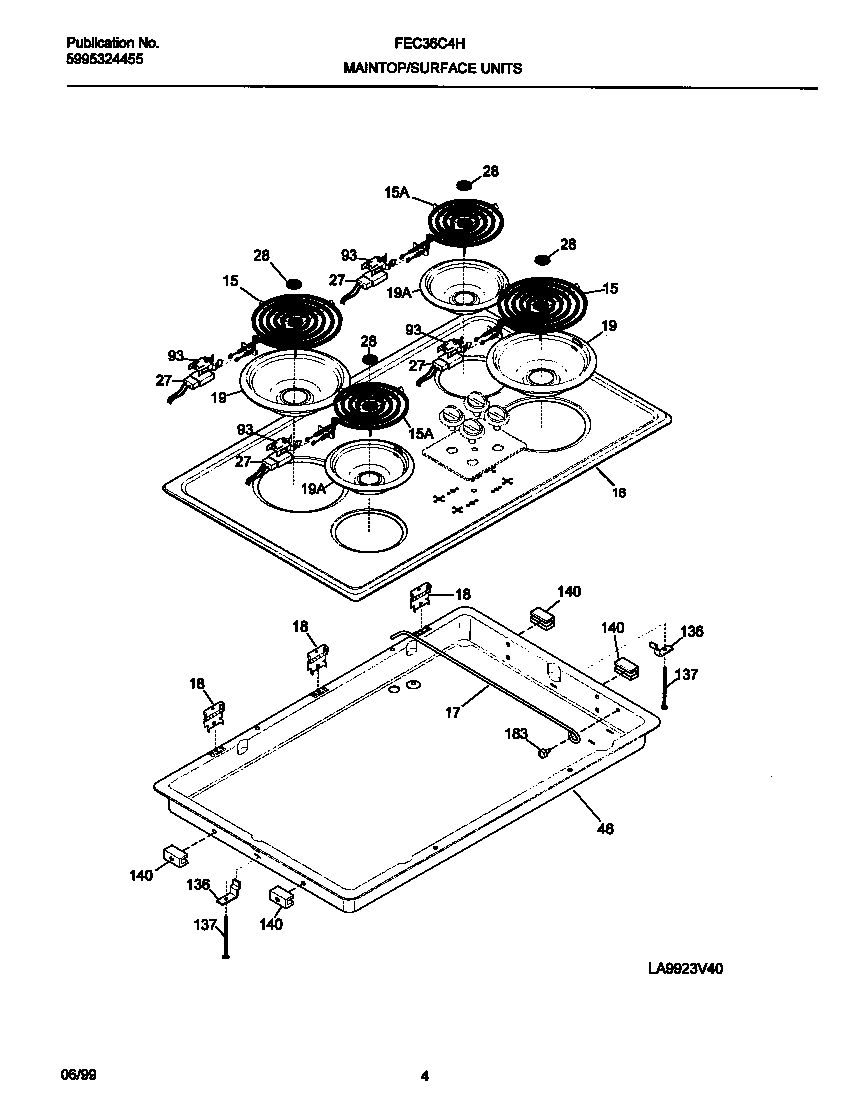

03 - MAINTOP/ELEMENTS

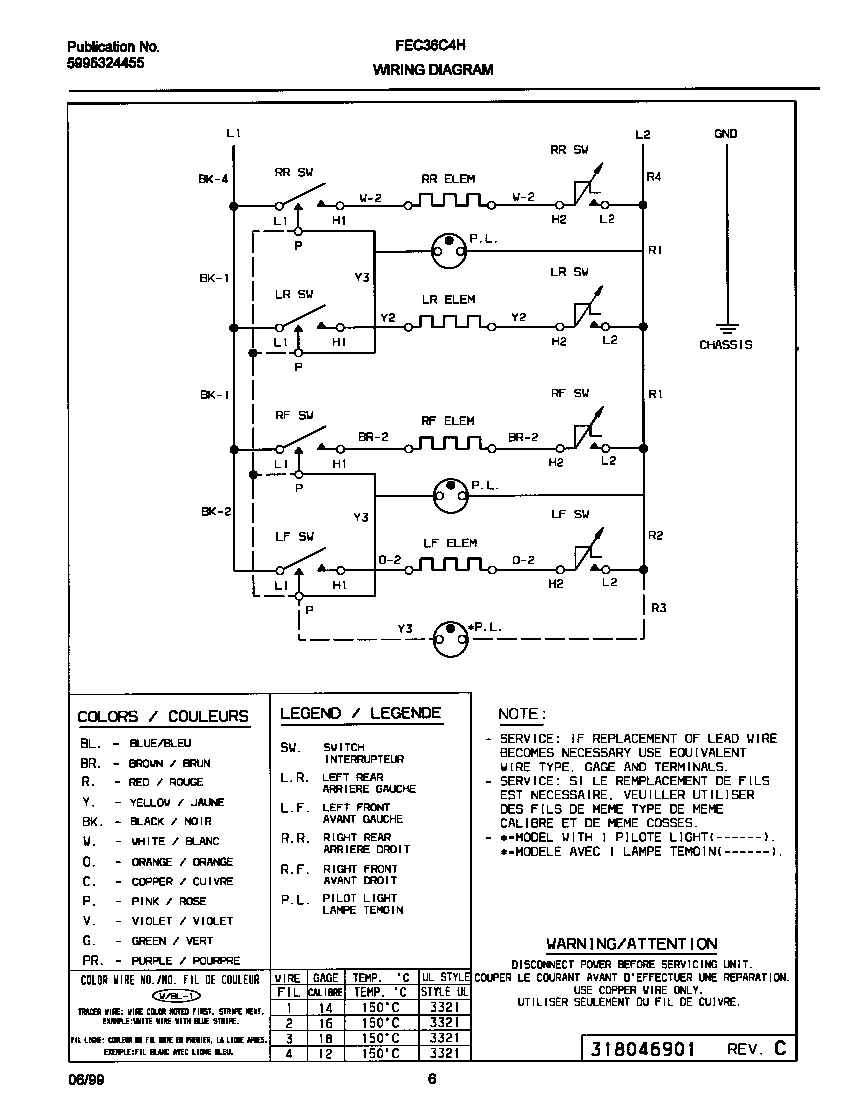

04 - WIRING DIAGRAM
Common parts from model Electrolux FEC36C4HTA COOK-TOP
*77562
WCI 5303324187 WCI 5303324187 Contact Us For Availability
*77563
BOX AND WIRES ASSEMBLY WCI 5303311366 Contact Us For Availability
*77565
WCI 5303317085 WCI 5303317085 Contact Us For Availability
*77567
NUT, 10-32 WCI 5303325982 Contact Us For Availability
15
ELEMENT-SURFACE 1250W WCI 5303299749 Contact Us For Availability
16
WCI 318159032 WCI 318159032 Contact Us For Availability
17
Rod,maintop support WCI 3016817 Contact Us For Availability
18
HINGE MAIN TOP WCI 318074310 Contact Us For Availability
19
WCI 318183501 WCI 318183501 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
36
WCI 318164503 WCI 318164503 Contact Us For Availability
46
LENS-LIGHT WCI 5303200418 Contact Us For Availability
46
WCI 318077011 WCI 318077011 Contact Us For Availability
74
BUSHING, (4) WCI 318146010 Contact Us For Availability
93
SUPPORT TERMINAL BLOCK WCI 318122500 Contact Us For Availability
136
SUPPORT WCI 5303935029 Contact Us For Availability
137
SCREW, 10-24 X 2 1/2 WCI 5303323138 Contact Us For Availability
140
SUPPORT INSTALLATION WCI 3205315 Contact Us For Availability
183
SHOULDER SCREW, 10-32 X 5/8 WCI 5304410665 Contact Us For Availability
× ![]()
