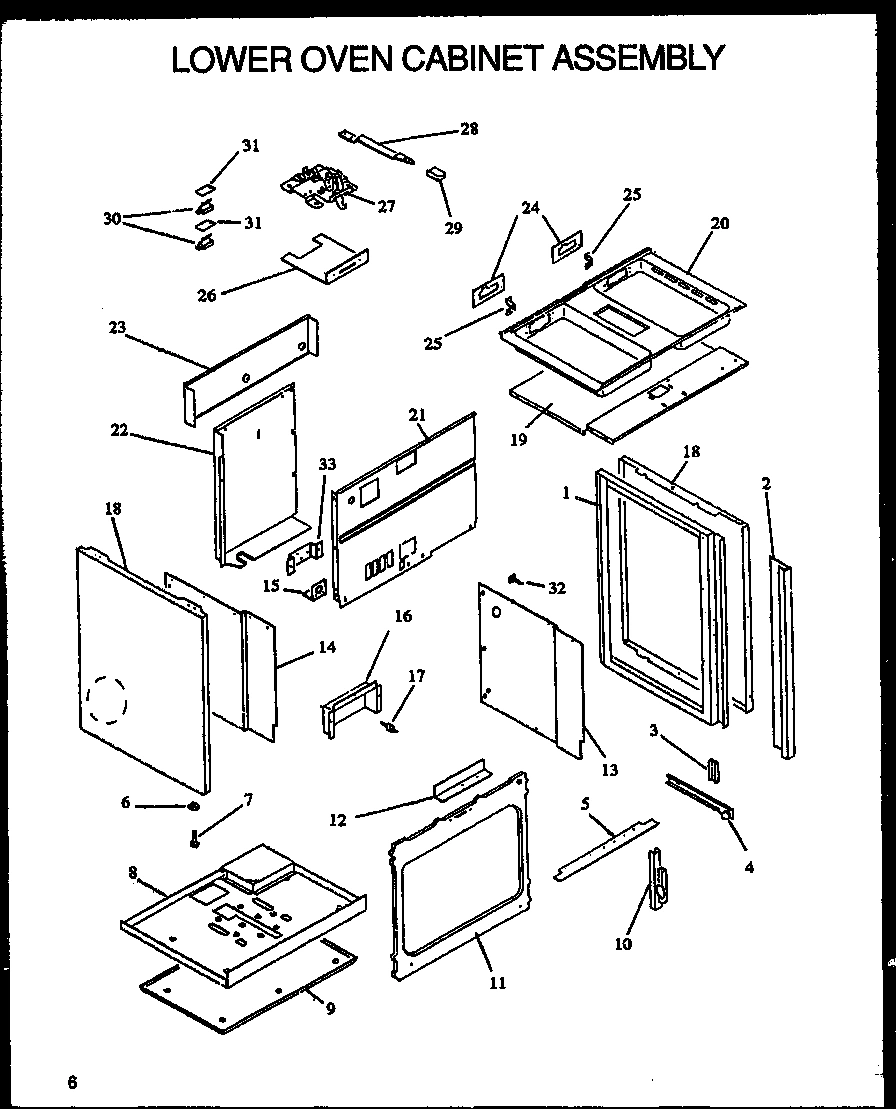

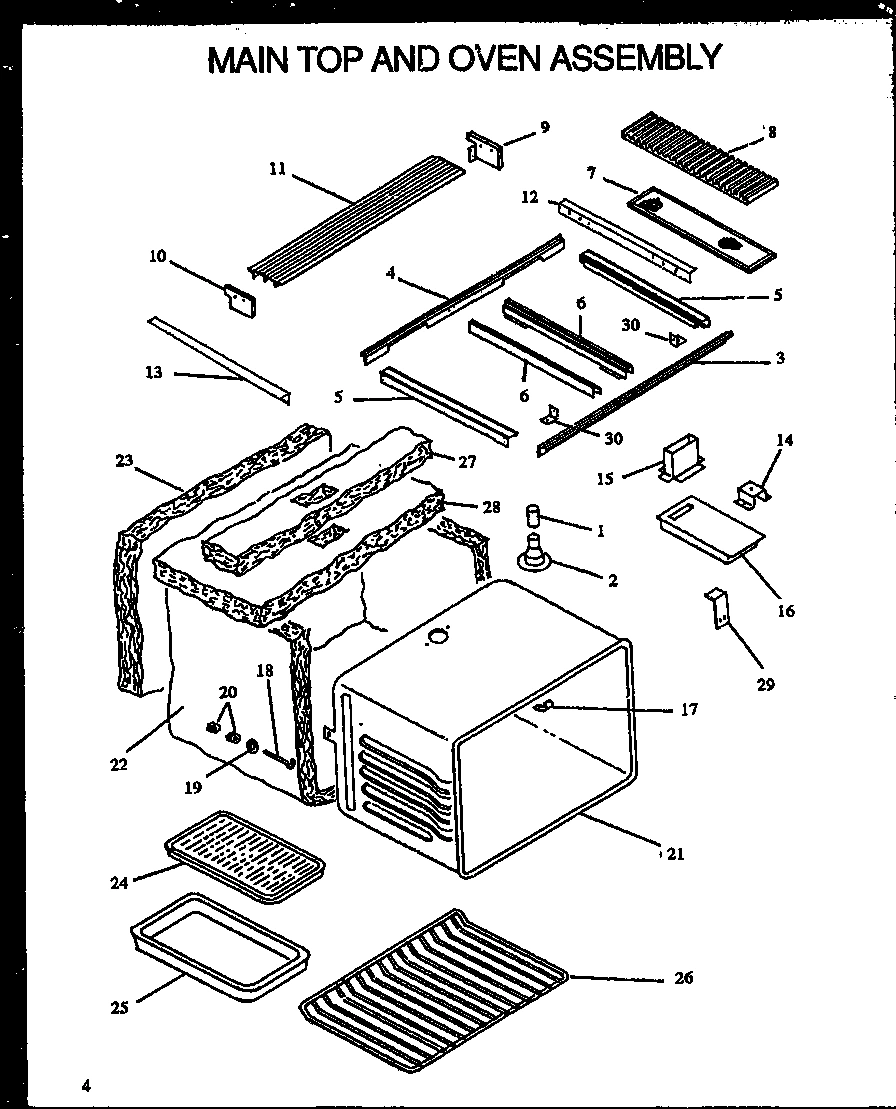

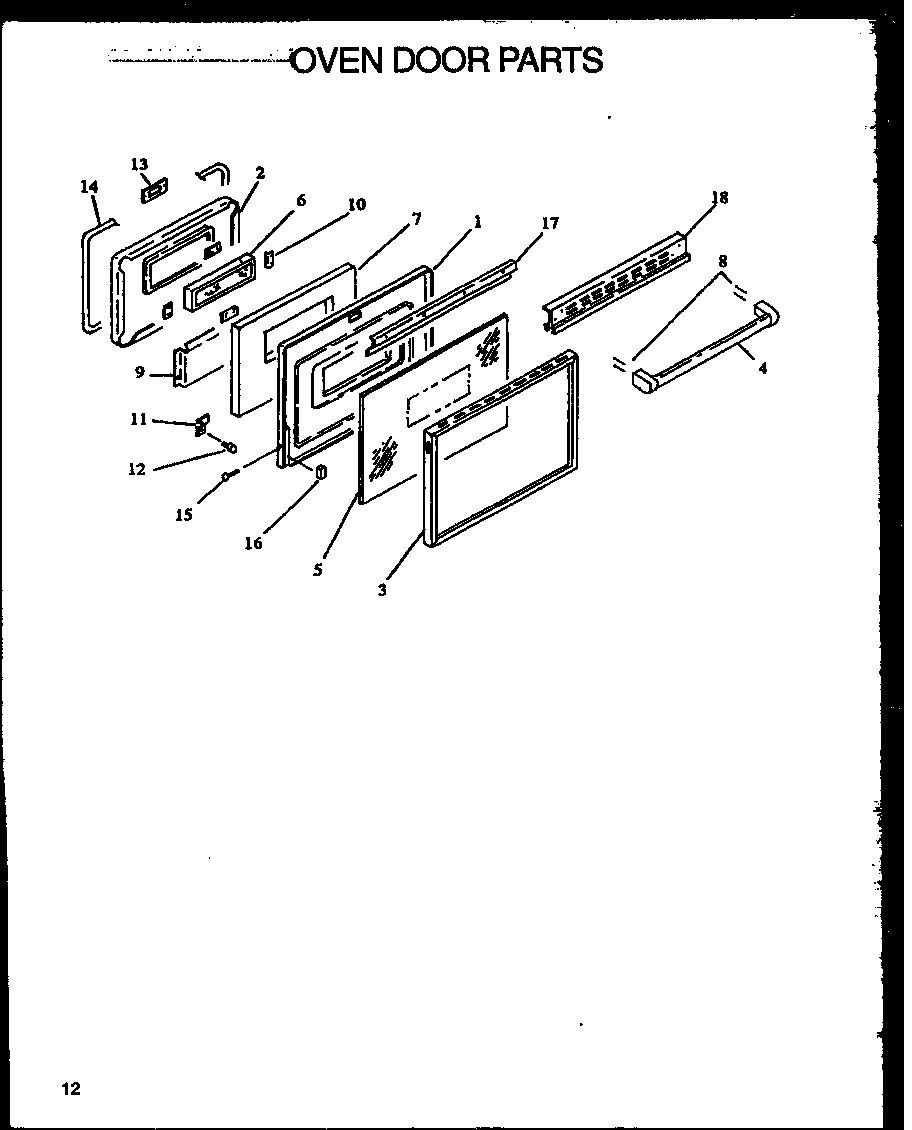

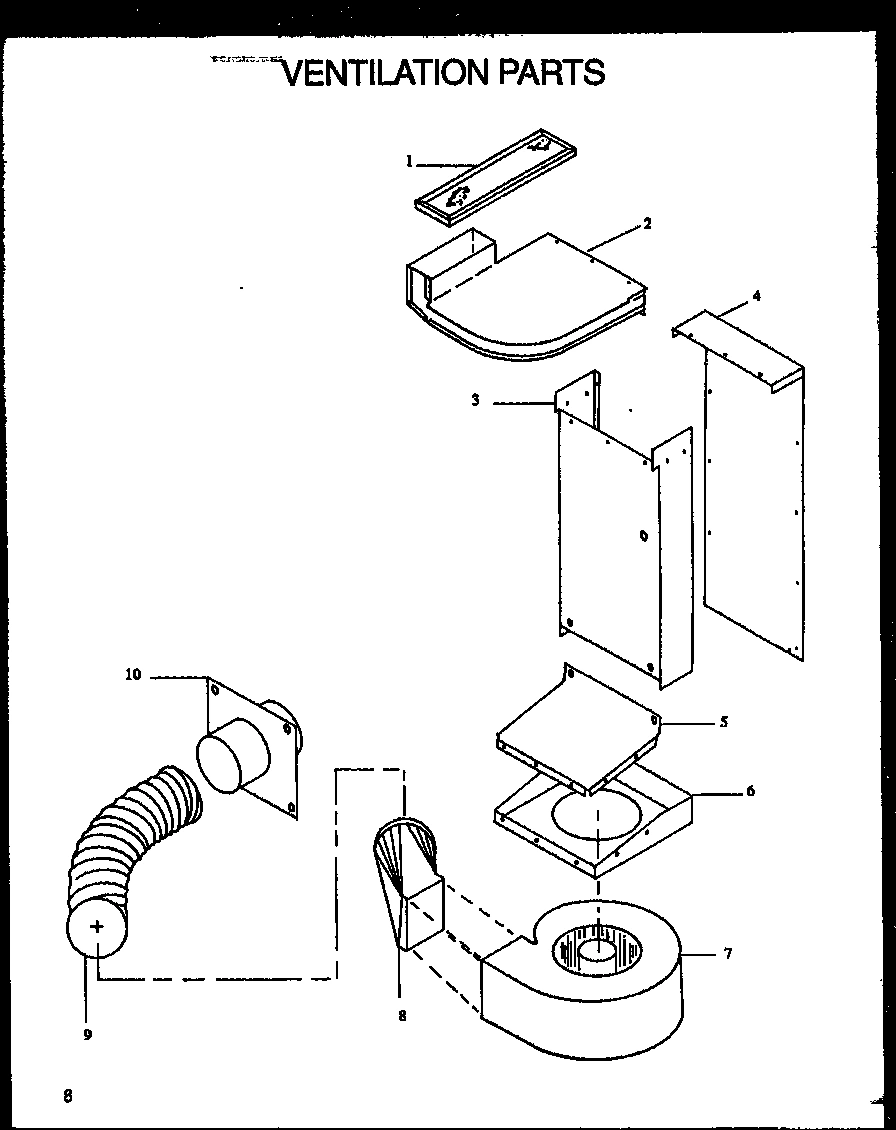

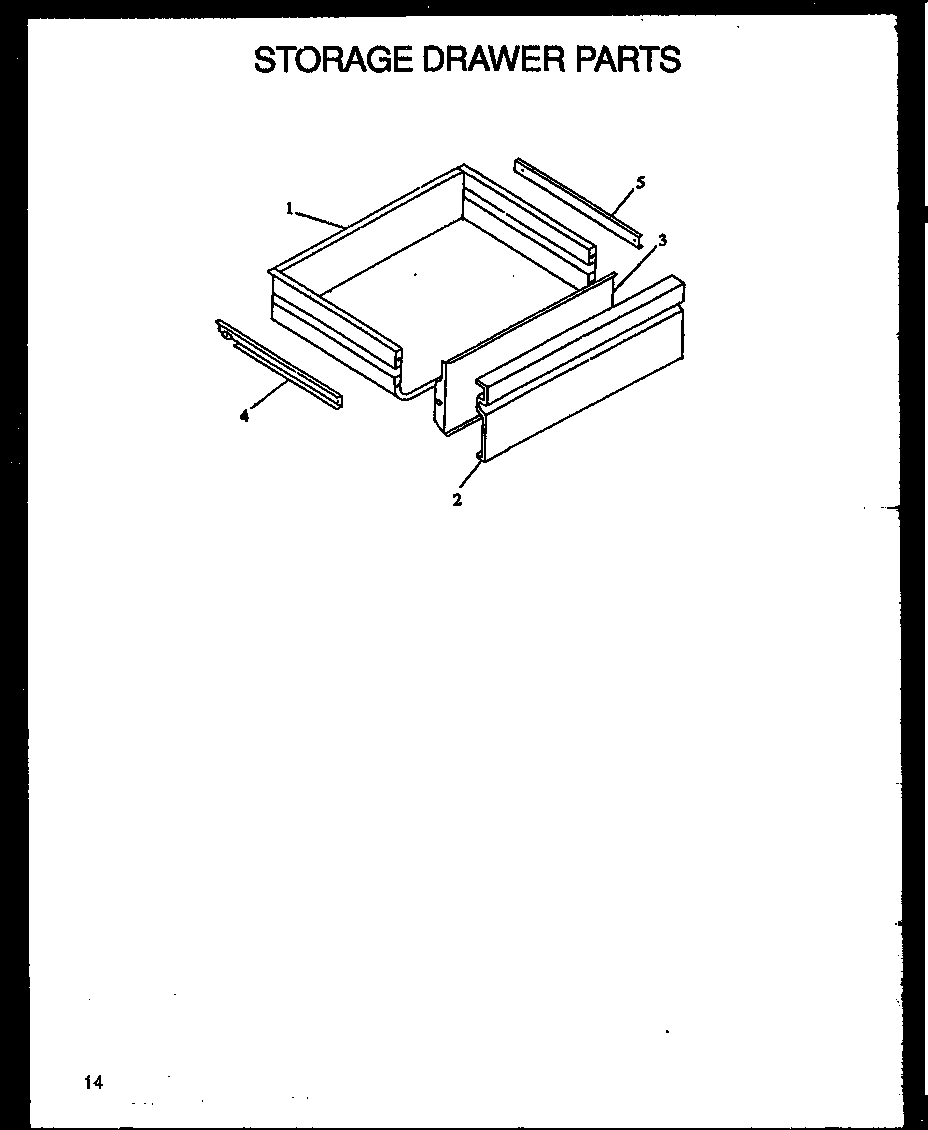

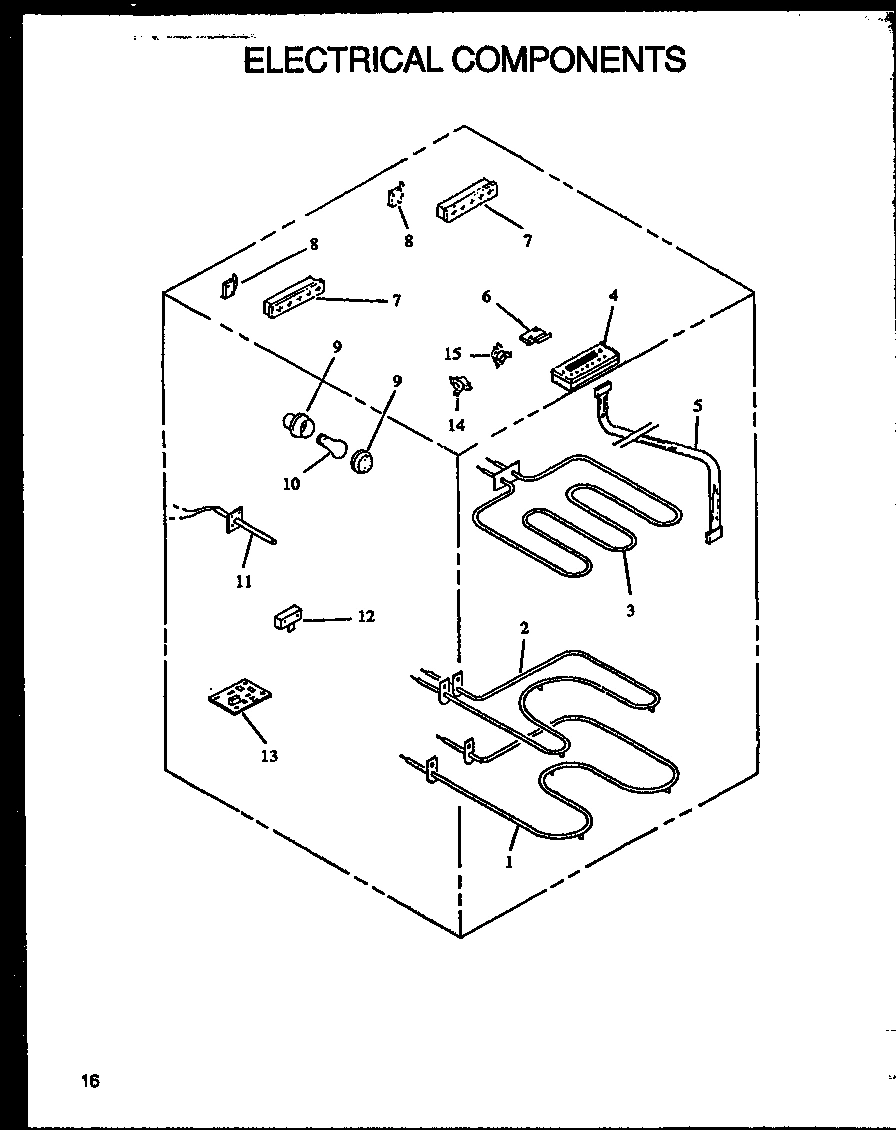

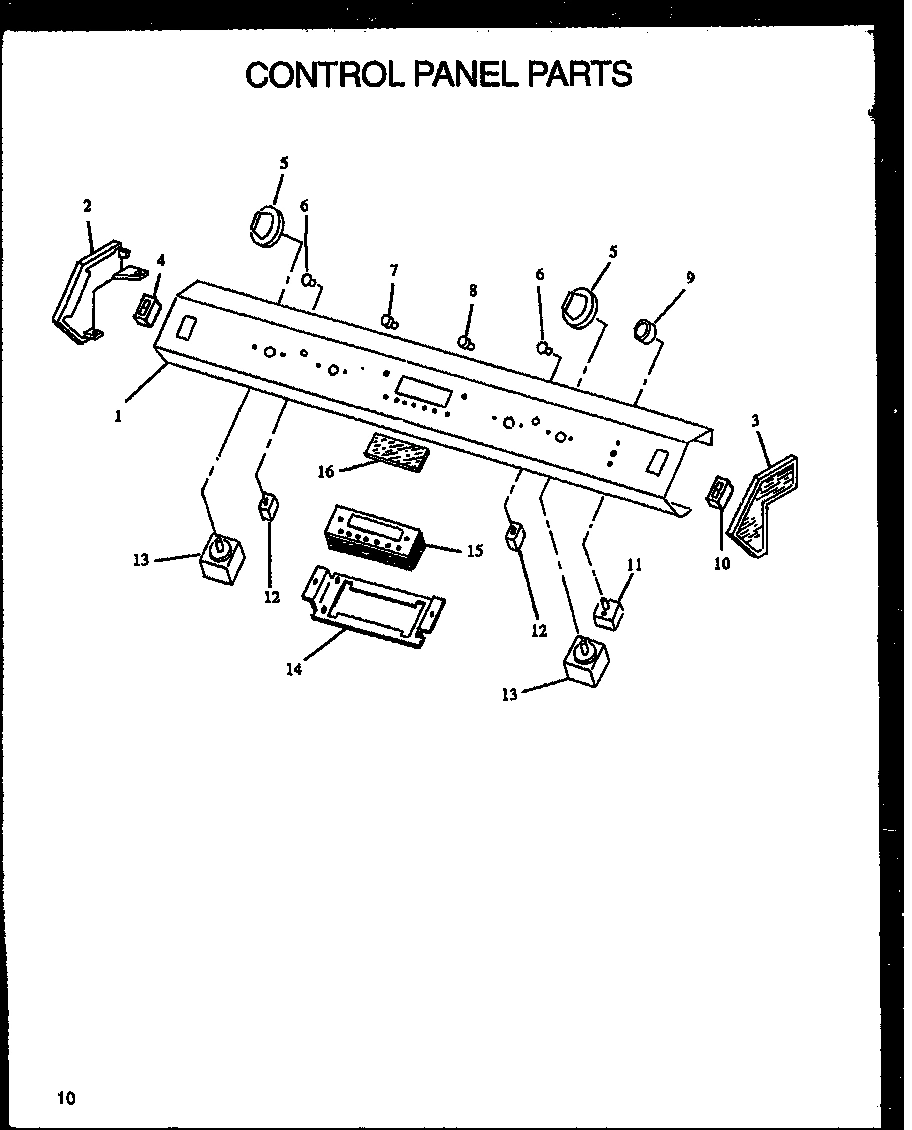

Model Whirlpool FDU1862B ELECTRIC RANGE – Common Parts &amp; Diagrams

1

PANEL, CONTROL (BLACK) WPL 307983B Contact Us For Availability

1

FRAME, SIDE PNL L.H. WPL 61230CG Contact Us For Availability

1

FRAME, SIDE PANEL RH WPL 61231CG Contact Us For Availability

1

TUBE, VENT EXTENSION WPL 0060633 Contact Us For Availability

1

DRAWER, STORAGE (BLK) WPL Y058562B Contact Us For Availability

1

DOOR BACKER, ELECTRIC (CG) WPL 302725E Contact Us For Availability

2

TOP, PLENUM WPL 58576CG Contact Us For Availability

2

END CAP, LT (BLK) WPL 308171B Contact Us For Availability

2

TRIM, SIDE PANEL (BLK) WPL 303144B Contact Us For Availability

2

SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability

2

DRAWER PANEL BLACK WPL Y063702B Contact Us For Availability

2

ELEMENT, SLO-COOK WPL Y0300539 Contact Us For Availability

2

PAD, OV DR W/WINDOW WPL 58808CG Contact Us For Availability

3

PLENUM, REAR WPL 0307100 Contact Us For Availability

3

END CAP, RT (BLK) WPL 308172B Contact Us For Availability

3

SUPPORT, STG DWR TRK WPL Y0058557 Contact Us For Availability

3

FRAME, FRONT-MAIN TOP WPL Y058528B Contact Us For Availability

3

LINER DRAWER PANEL WPL 057441G Contact Us For Availability

3

ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability

3

FRAME, GLASS DOOR (BLACK) WPL 306538B Contact Us For Availability

4

COVER, REAR PANEL WPL 0307101 Contact Us For Availability

4

SWITCH, ON-OFF WPL 0300569 Contact Us For Availability

4

CONTROL, ERC ELEC. WPL Y0308480 Contact Us For Availability

4

TRACK, DRAWER, L.H. WPL Y0058558 Contact Us For Availability

4

TRACK, DRAWER, R.H. WPL Y0058559 Contact Us For Availability

4

FRAME, REAR, MAIN TOP WPL 301815B Contact Us For Availability

4

RUNNER, DRAWER, L.H. WPL Y0058560 Contact Us For Availability

4

KIT, DR HNDL/TRIM (BLACK) WPL Y0305519 Contact Us For Availability

5

ASSY, BLOWER BOX WPL Y0307235 Contact Us For Availability

5

KNOB, TOP ELEMENT WPL 0300378 Contact Us For Availability

5

FILLER, FRONT FRAME WPL 062750G Contact Us For Availability

5

FRAME SIDE, LH WPL 303132B Contact Us For Availability

5

FRAME SIDE, RH WPL 303133B Contact Us For Availability

5

RUNNER, DRAWER, R.H. WPL Y0058561 Contact Us For Availability

5

HARNESS, WIRE (CLOCK/PCB) WPL Y0308189 Contact Us For Availability

5

GLASS, OVEN DOOR WPL Y0300784 Contact Us For Availability

6

ASSY, BLOWER BOX WPL Y0307921 Contact Us For Availability

6

LENS, INDICATOR LIGHT, RED WPL Y0301208 Contact Us For Availability

6

RETAINER NUT WPL 0076204 Contact Us For Availability

6

SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability

6

SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability

6

FRAME, CENTER MAIN TOP (BLK) WPL 300384B Contact Us For Availability

6

WINDOW ASSY WPL 0304831 Contact Us For Availability

7

FILTER (17.75``X4.0``X.375``) WPL Y0307363 Contact Us For Availability

7

ASSY, BLOWER BOX WPL Y0307500 Contact Us For Availability

7

KNOB, SET BUTTON (BLK) WPL Y0305310 Contact Us For Availability

7

LEG, LEVELING WPL Y0307594 Contact Us For Availability

7

PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability

7

INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability

8

DUCT, BLOWER WPL Y0307508 Contact Us For Availability

8

KNOB, CLOCK (BLK) WPL Y0305317 Contact Us For Availability

8

RETAINER, BOT. INSULATION WPL Y0307240 Contact Us For Availability

8

COVER, VENT (BLK) WPL Y0058902 Contact Us For Availability

8

SWITCH, FAN WPL Y0054254 Contact Us For Availability

8

SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079863 Contact Us For Availability

9

WP74011278 Whirlpool Light Backorder WPL WP74011278 $70.66

9

DUCT, FLEX WPL Y0307945 Contact Us For Availability

9

KNOB, FAN SWITCH (BLACK) WPL Y0300581 Contact Us For Availability

9

HEAT SHIELD, STORAGE DRAWER WPL Y0301706 Contact Us For Availability

9

HEAT BAFFLE, GLASS (BLACK) WPL 306449B Contact Us For Availability

THIMBLE, 6`` DUCT WPL Y0307592 Contact Us For Availability

SWITCH,OVEN LIGHT xx BLK WPL Y0300570 Contact Us For Availability

KIT, DOOR HINGE (LH-HS) WPL Y0066952 Contact Us For Availability

KIT, DOOR HINGE (RH-SS) WPL Y0066954 Contact Us For Availability

BULB, LIGHT WPL Y0042175 Contact Us For Availability

RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability

WPY0314907 Whirlpool Sensor Backorder WPL WPY0314907 $100.68

SWITCH, FAN WPL Y0300574 Contact Us For Availability

LO-BACKRAIL WPL 058523B Contact Us For Availability

SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

LIGHT INDICATOR WPL 0306895 Contact Us For Availability

HEAT SHIELD, CLOCK WPL 0061443 Contact Us For Availability

BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability

W11121639 Whirlpool Infinite Switch Backorder WPL W11121639 $76.69

RETAINER, INSUL., RH WPL Y0057443 Contact Us For Availability

TRIM, COUNTERTOP WPL Y0305204 Contact Us For Availability

CIRCUIT BOARD, ERC-ELECTRIC WPL Y0301277 Contact Us For Availability

LATCH PLATE WPL Y0052039 Contact Us For Availability

BRACKET,ERC MOUNT WPL 308085B Contact Us For Availability

RETAINER, INSUL., LH WPL 0057442 Contact Us For Availability

MTG. BRACKET, VENT WPL Y0300632 Contact Us For Availability

SWITCH, LIMIT CONT. WPL Y0308416 Contact Us For Availability

GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability

BRACKER, CONDUIT WPL Y0058556 Contact Us For Availability

FLUE BOX, REAR WPL Y0059431 Contact Us For Availability

CONTROL, FAN WPL Y0308417 Contact Us For Availability

RIVET, POP WPL Y0302648 Contact Us For Availability

GLASS, CLOCK WPL Y0308107 Contact Us For Availability

COVER, CONTROL BOARD WPL Y0308367 Contact Us For Availability

FLUE BOX WPL Y0300641 Contact Us For Availability

BUMPER, RUBBER WPL Y0060247 Contact Us For Availability

17

COVER, CHIP WPL Y0307380 Contact Us For Availability

17

BACK, HEAT BAFFLE (BLACK) WPL 306450B Contact Us For Availability

PANEL, SIDE LT (BLK) WPL 058542B Contact Us For Availability

PANEL, SIDE RT (BLK) WPL Y063260B Contact Us For Availability

HOOK BOLT WPL Y0091536 Contact Us For Availability

KIT, DR HNDL/TRIM (BLACK) WPL 306500B Contact Us For Availability

19

RETAINER INSULATION TOP x WPL Y0301560 Contact Us For Availability

19

WASHER WPL Y0071876 Contact Us For Availability

20

BOX, BURNER WPL 308742CG Contact Us For Availability

20

HEX NUT No.10-32 NICKEL WPL 0041847 Contact Us For Availability

21

PANEL, REAR WPL 0308186 Contact Us For Availability

21

OVEN SHELL WPL 303913E Contact Us For Availability

22

COVER, REAR - WIRE WPL Y0058543 Contact Us For Availability

22

INSULATION, WRAPPER WPL Y0301713 Contact Us For Availability

23

SHIELD, REAR WPL Y058544 Contact Us For Availability

23

INSULATION, BACK WPL 0301712 Contact Us For Availability

24

PLATE MTG. PLUG BLOCK WPL Y0300498 Contact Us For Availability

25

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

25

PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability

26

WP314763J Whirlpool Oven Rack Backorder WPL WP314763J $40.26

26

BRACKET, LATCH MOUNTING WPL 0068101 Contact Us For Availability

27

LATCH, OVEN DOOR WPL Y0300327 Contact Us For Availability

27

INSULATION, LATCH WPL 0058319 Contact Us For Availability

28

HANDLE, LATCH (BLACK) WPL 063141B Contact Us For Availability

28

INSULATION, TOP WPL 0301711 Contact Us For Availability

29

KNOB, LATCH - BLACK WPL Y0067844 Contact Us For Availability

29

BRACKET, VENT SUPPORT WPL Y0300943 Contact Us For Availability

30

BRACKET, FRAME TRIM WPL Y0301154 Contact Us For Availability

31

INSULATION, ESM WPL Y0091523 Contact Us For Availability

33

BRKT., MOUNTING WPL Y0307664 Contact Us For Availability

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.75

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.45

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

CAPACITOR WPL D6711804 Contact Us For Availability

CLAMP, WORM GEAR WPL Y0307680 Contact Us For Availability

SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability

SUPPORT WPL Y0300662 Contact Us For Availability

COVER PLATE, LATCH WPL 0302483 Contact Us For Availability

SCREW 6 32X5/16 PH FH WPL Y0041769 Contact Us For Availability

SCREW, 4-40 X 1.00`` WPL Y0058806 Contact Us For Availability

BRACKET, SWITCH MOUNTING WPL Y0068091 Contact Us For Availability

SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability

SCREW 4-40X1 WPL Y0092365 Contact Us For Availability

BRACKET WPL Y0301028 Contact Us For Availability

CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability

TRIM, MAINTOP WPL Y0305024 Contact Us For Availability

RIVET, POP WPL Y0076357 Contact Us For Availability

POP RIVET 1/8`` DIAMETER WPL Y0096342 Contact Us For Availability

HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability

ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability

POWER CORD (RANGE) WPL Y0087705 Contact Us For Availability

HARNESS, WIRE (PC BRD 23``) WPL Y0308192 Contact Us For Availability

LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability

SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability

SHIELD, DR GLASS HEAT WPL Y0306782 Contact Us For Availability

SUPPORT, DOOR GLASS WPL Y0307910 Contact Us For Availability
