Model Electrolux FDR251RBR0 DISHWASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - CAM

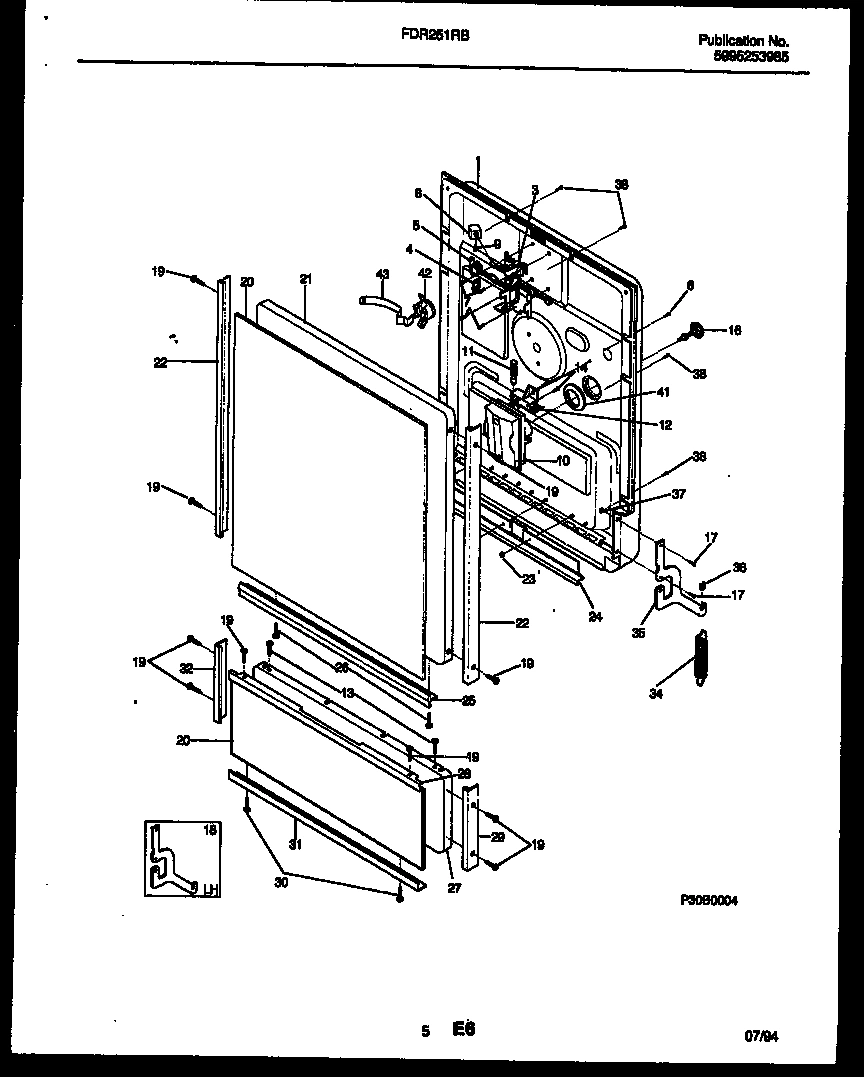

04 - DOOR PARTS

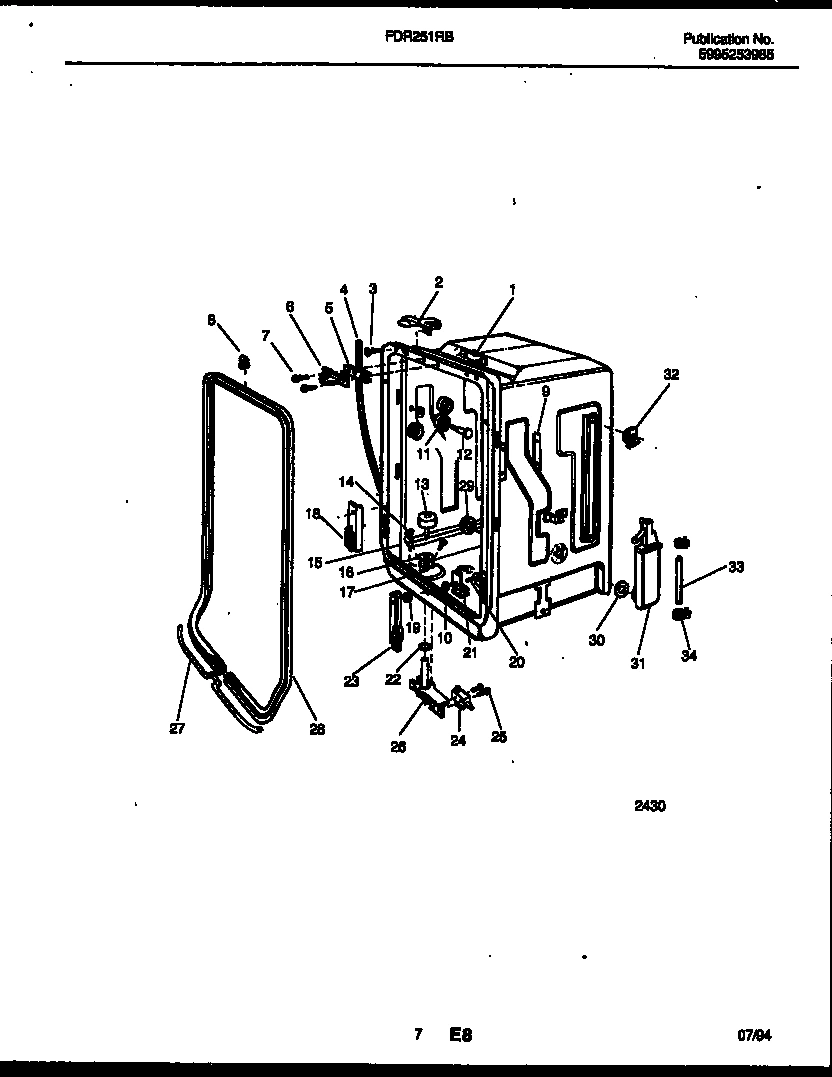

05 - TUB AND FRAME PARTS

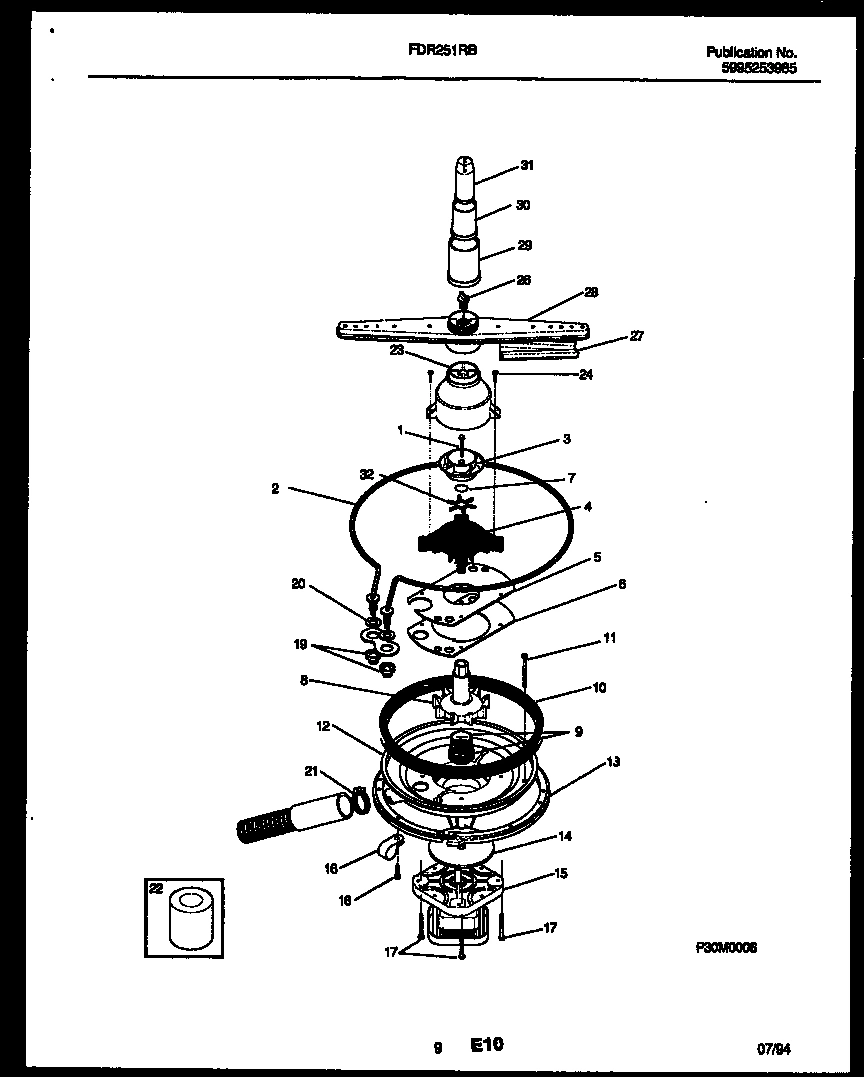

06 - MOTOR PUMP PARTS

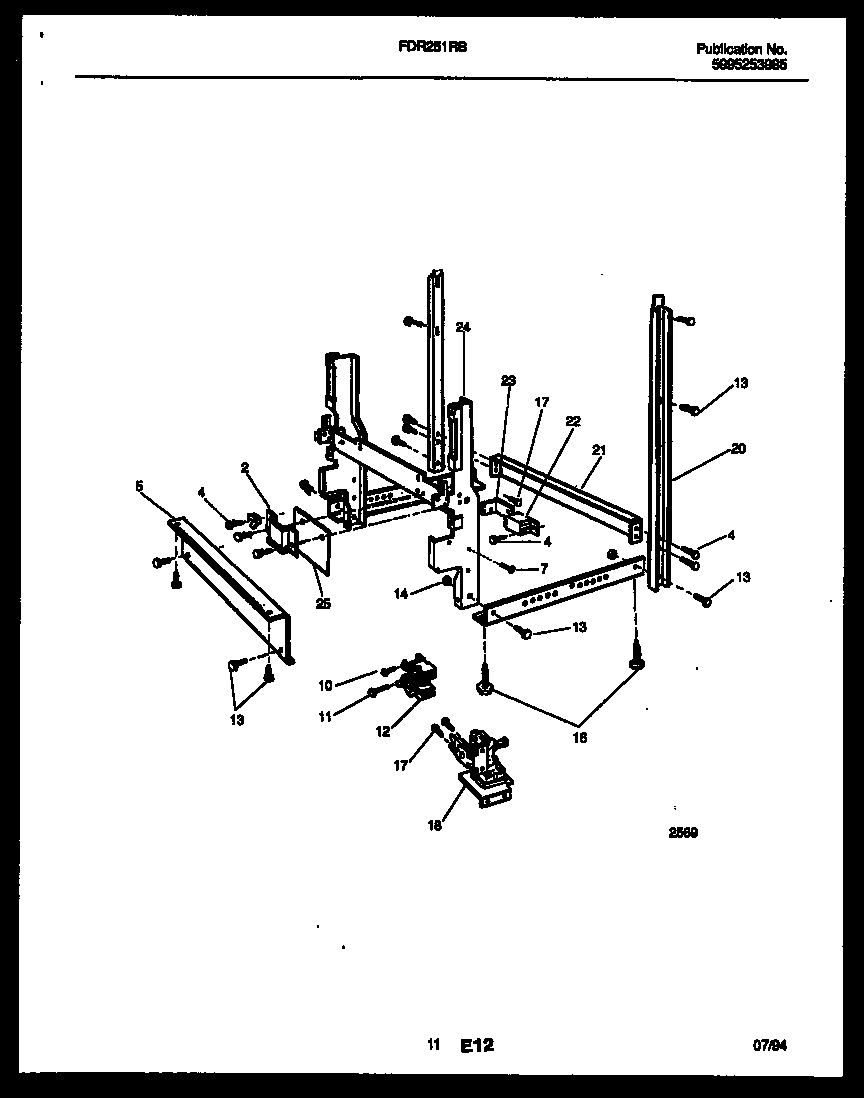

07 - POWER DRY AND MOTOR PARTS

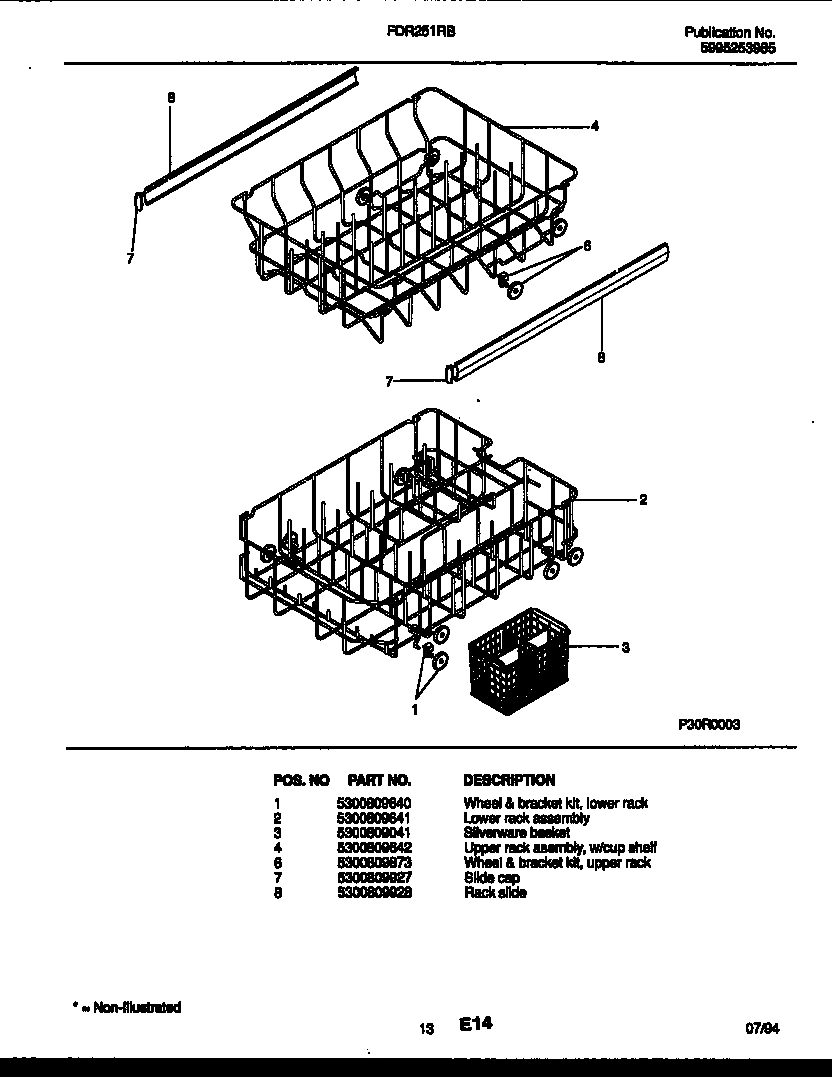

08 - RACKS AND TRAYS
Common parts from model Electrolux FDR251RBR0 DISHWASHER
1
SCREW-NO 10-32 X 2 1/4`` WCI 5300806353 Contact Us For Availability
1
DOOR ASSEMBLY WCI 5300809635 Contact Us For Availability
1
WCI 5300808868 WCI 5300808868 Contact Us For Availability
1A
WCI 5303292255 WCI 5303292255 Contact Us For Availability
2
ATTACH CLIP WCI 5300809677 Contact Us For Availability
2
WCI 5303943077 WCI 5303943077 Contact Us For Availability
2
WCI 5300806723 WCI 5300806723 Contact Us For Availability
2
WCI 5300809641 WCI 5300809641 Contact Us For Availability
3
LATCH ASSEMBLY WCI 5300809832 Contact Us For Availability
3
SCREW NO. 8 X 5/16`` LG. C.R. TRUSS HD. ST. S WCI 5300806894 Contact Us For Availability
3
WCI 5300809041 WCI 5300809041 Contact Us For Availability
4
WCI 5300807450 WCI 5300807450 Contact Us For Availability
4
WCI 5300809921 WCI 5300809921 Contact Us For Availability
4
WCI 5300809642 WCI 5300809642 Contact Us For Availability
5
WCI 154183301 WCI 154183301 Contact Us For Availability
5
WCI 5300807043 WCI 5300807043 Contact Us For Availability
5
WCI 5300809214 WCI 5300809214 Contact Us For Availability
5
WCI 5300807884 WCI 5300807884 Contact Us For Availability
5
WCI 5300807559 WCI 5300807559 Contact Us For Availability
6
WCI 5300807015 WCI 5300807015 Contact Us For Availability
6
SCREW NO. 8A X 5/8`` LG. C.R. TRUSS HD. CAD. WCI 5300809029 Contact Us For Availability
6
WHEEL & BRACKET KIT - UPPER RACK WCI 5300809873 Contact Us For Availability
7
SCREW NO. 6-32 X 1`` LG. HEX HD. CAD. PL. WCI 5300808618 Contact Us For Availability
7
WCI 5300809711 WCI 5300809711 Contact Us For Availability
8
PUMP IMPELLER KIT WCI 5300809909 Contact Us For Availability
8
WCI 5300808712 WCI 5300808712 Contact Us For Availability
8
TUB GASKET CLIP KIT (INCLUDES KEY NO. 21) WCI 5300805763 Contact Us For Availability
8
RACK SLIDE WCI 5300809928 Contact Us For Availability
9
WCI 5300803903 WCI 5300803903 Contact Us For Availability
9
SCREW NO. 8-32 X 5/16`` LG. 1/4`` HEX WASHER WCI 5300808715 Contact Us For Availability
9
TAPPING PLATE WCI 5300807038 Contact Us For Availability
10
BODY ASSEMBLY WCI 5300806753 Contact Us For Availability
10
WCI 5300809008 WCI 5300809008 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
SCREW NO. 8-32 X 1/4`` LG. C.R. PAN HD. CAD. WCI 3018140 Contact Us For Availability
11
WCI 5300809898 WCI 5300809898 Contact Us For Availability
11
SCREW-NO. 10 X 1`` LG. HEX WASHER HD. ST. WCI 5300807268 Contact Us For Availability
11
SCREW NO. 8-32 X 1 14`` LG. C.R. OVAL HD. CAD WCI 5300804672 Contact Us For Availability
12
BI-METAL ASSEMBLY WCI 5300809782 Contact Us For Availability
12
WCI 5300809048 WCI 5300809048 Contact Us For Availability
12
WCI 5300809919 WCI 5300809919 Contact Us For Availability
12
WCI 5303351059 WCI 5303351059 Contact Us For Availability
12A
WCI 154109801 WCI 154109801 Contact Us For Availability
13
WCI 5300809861 WCI 5300809861 Contact Us For Availability
13
WCI 5300807712 WCI 5300807712 Contact Us For Availability
13
SCREW NO. 1/4-20 X 1/2`` LG. HEX WASHER SLOTT WCI 5300807001 Contact Us For Availability
14
WATERSHIELD ASSEMBLY WCI 5300809366 Contact Us For Availability
14
SCREW NO. 10 X 1 LG. HEX WASHER HD. ST. ST. WCI 154103701 Contact Us For Availability
14
NUT WCI 5300804619 Contact Us For Availability
15
TUB & GASKET ASSEMBLY WCI 5300809716 Contact Us For Availability
15
MOTOR ASSEMBLY WCI 5300809984 Contact Us For Availability
16
DISPENSER FILL PLUG WCI 5300809916 Contact Us For Availability
16
WCI 5300808064 WCI 5300808064 Contact Us For Availability
16
WCI 5300809422 WCI 5300809422 Contact Us For Availability
17
WCI 5300808063 WCI 5300808063 Contact Us For Availability
17
SCREW NO. 8 X 3/8`` LG. ROUND WAFER HD. CHR. WCI 5300803311 Contact Us For Availability
17
SCREW NO. 10 X 1`` LG. HEX WASHER HD. CAD. PL WCI 5300809022 Contact Us For Availability
17
WCI 5300807950 WCI 5300807950 Contact Us For Availability
18
COUNTERBALANCE ARM ASSEMBLY-LH WCI 5300807539 Contact Us For Availability
18
COUNTERBALANCE ARM GUIDE-LH WCI 5300807599 Contact Us For Availability
18
SCREEN WCI 5300807270 Contact Us For Availability
18
WCI 154195201 WCI 154195201 Contact Us For Availability
19
WCI 5300803346 WCI 5300803346 Contact Us For Availability
19
SIDE BASE ANGLE KIT WCI 5300807564 Contact Us For Availability
20
HEATER GROMMET WCI 5300806833 Contact Us For Availability
20
DOOR & ACCESS PANEL INSERTS-BLACK/ALMOND WCI 5300808923 Contact Us For Availability
20
SCREW NO. 8-32 X 1/2`` LG. C.R. TRUSS HD. ST. WCI 5300803319 Contact Us For Availability
20
SUPPORT CHANNEL WCI 5300808670 Contact Us For Availability
21
WCI 5300808298 WCI 5300808298 Contact Us For Availability
21
WCI 5300808115 WCI 5300808115 Contact Us For Availability
21
WCI 5300808186 WCI 5300808186 Contact Us For Availability
21
REAR BRACE WCI 3018150 Contact Us For Availability
22
DOOR PANEL TRIM-RH/LH KIT WCI 5303943080 Contact Us For Availability
22
WCI 5300807759 WCI 5300807759 Contact Us For Availability
22
WCI 5300803923 WCI 5300803923 Contact Us For Availability
22
WCI 08057593 WCI 08057593 Contact Us For Availability
23
WCI 5300809026 WCI 5300809026 Contact Us For Availability
23
COUNTERBALANCE ARM GUIDE-RH WCI 5300807600 Contact Us For Availability
23
HOUSING DIFFUSER WCI 5300809953 Contact Us For Availability
23
WCI 5300807019 WCI 5300807019 Contact Us For Availability
24
WCI 5300809863 WCI 5300809863 Contact Us For Availability
24
WCI 5300809636 WCI 5300809636 Contact Us For Availability
24
SCREW NO. 10 X 1 3/4`` LG. HEX HD. ST. ST. WCI 5300807359 Contact Us For Availability
24
HINGE WELD ASSEMBLY WCI 5300809212 Contact Us For Availability
25
WCI 5303303652 WCI 5303303652 Contact Us For Availability
25
SCREW NO. 4-24 X 5/8`` LG. PAN HD. PHILLIPS L WCI 5300809864 Contact Us For Availability
25
WIRE SHIELD WCI 5300809144 Contact Us For Availability
26
SCREW NO. 8 X 1/2`` LG. C.R. TRUSS HD. CHROME WCI 5300807501 Contact Us For Availability
26
WCI 5300809859 WCI 5300809859 Contact Us For Availability
26
WCI 5300809018 WCI 5300809018 Contact Us For Availability
27
ACCESS PANEL, WHITE WCI 5300808304 Contact Us For Availability
27
WCI 154059402 WCI 154059402 Contact Us For Availability
27
SPRAY ARM SHIELD WCI 3015604 Contact Us For Availability
28
TUB GASKET & WIRE ASSEMBLY (INCLUDES KEY NOS. WCI 5300809633 Contact Us For Availability
28
ACCESS PANELTOP TRIM WCI 5300808471 Contact Us For Availability
28
WCI 5303943076 WCI 5303943076 Contact Us For Availability
29
WCI 154122502 WCI 154122502 Contact Us For Availability
29
ACCESS PANEL TRIM-RH WCI 5300809914 Contact Us For Availability
29
WCI 5300805669 WCI 5300805669 Contact Us For Availability
30
WCI 154122601 WCI 154122601 Contact Us For Availability
30
SCREW NO. 8 X 5/8`` LG. C.R. TRUSS HD. ST. ST WCI 5300808749 Contact Us For Availability
30
WCI 154053601 WCI 154053601 Contact Us For Availability
31
WCI 154043802 WCI 154043802 Contact Us For Availability
31
WATER INLET ASSEMBLY WCI 5300806470 Contact Us For Availability
31
WCI 154122702 WCI 154122702 Contact Us For Availability
32
ACCESS PANEL TRIM-LH WCI 5300809915 Contact Us For Availability
32
CAGE NUT WCI 5300806291 Contact Us For Availability
33
WATER INLET TUBING (INCLUDES KEY NO. 34) WCI 5300807891 Contact Us For Availability
34
VALVE, CHECK WCI 5300809937 Contact Us For Availability
34
CLAMP WCI 5300807813 Contact Us For Availability
35
COUNTERBALANCE ARM ASSEMBLY-RH WCI 5300807538 Contact Us For Availability
36
WCI 5300805884 WCI 5300805884 Contact Us For Availability
38
SCREW NO. 8 X 7/16`` LG C.R. TRUSS HD. ST. ST WCI 5300809055 Contact Us For Availability
41
WCI 5300805631 WCI 5300805631 Contact Us For Availability
42
WCI 5300808956 WCI 5300808956 Contact Us For Availability
43
RETAINER-THERMOSTAT WCI 5300809097 Contact Us For Availability
× ![]()
