Model Electrolux FDHP4336AS0A DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL

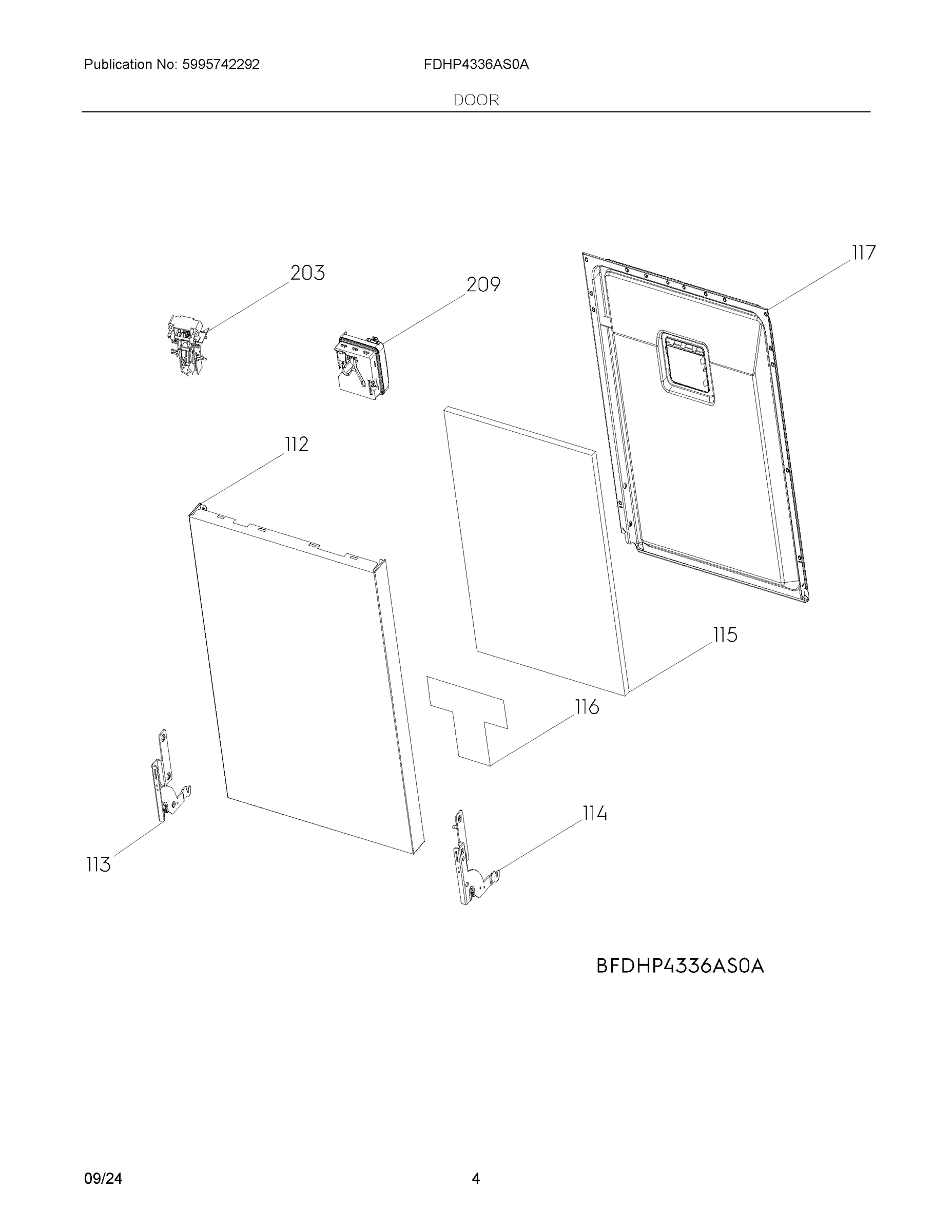

03 - DOOR

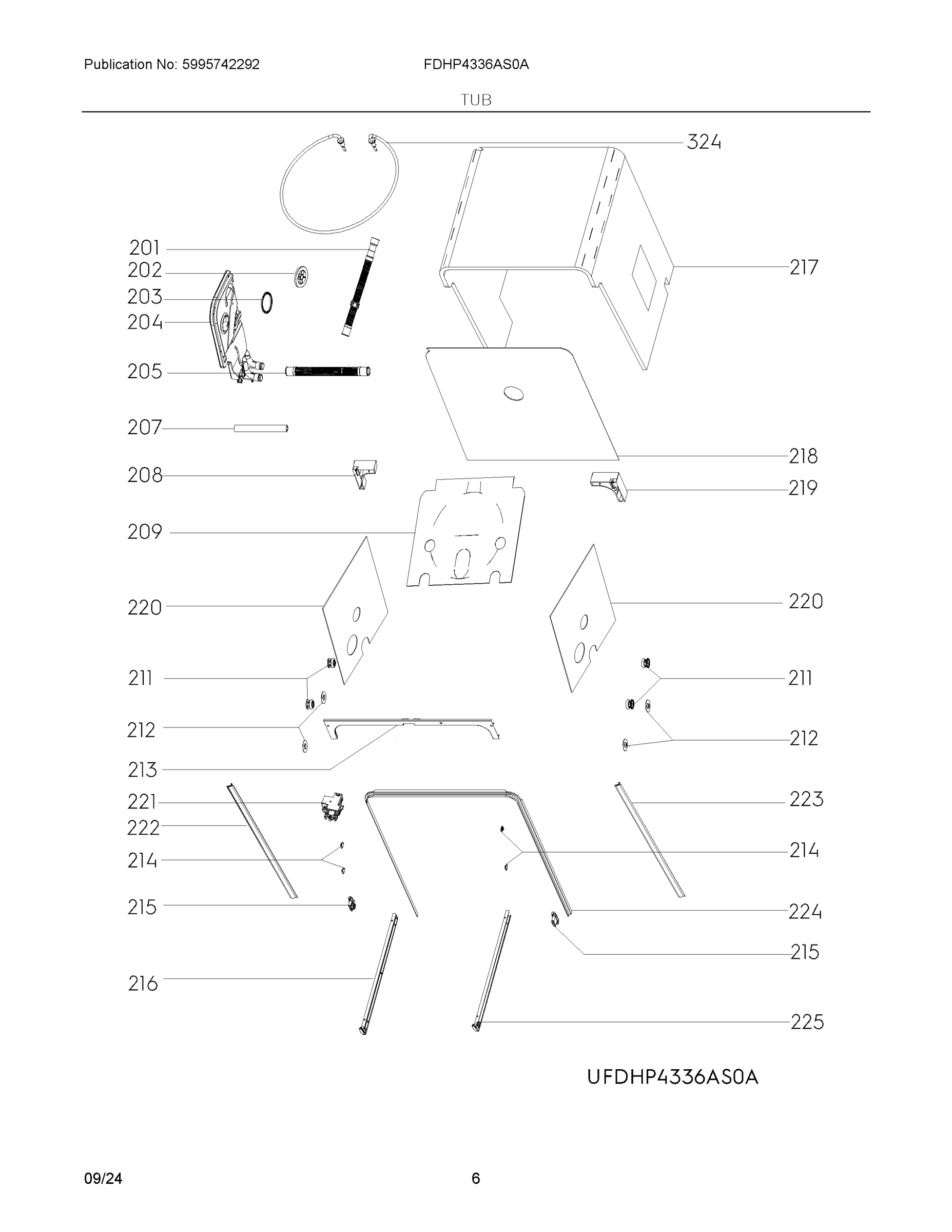

04 - TUB

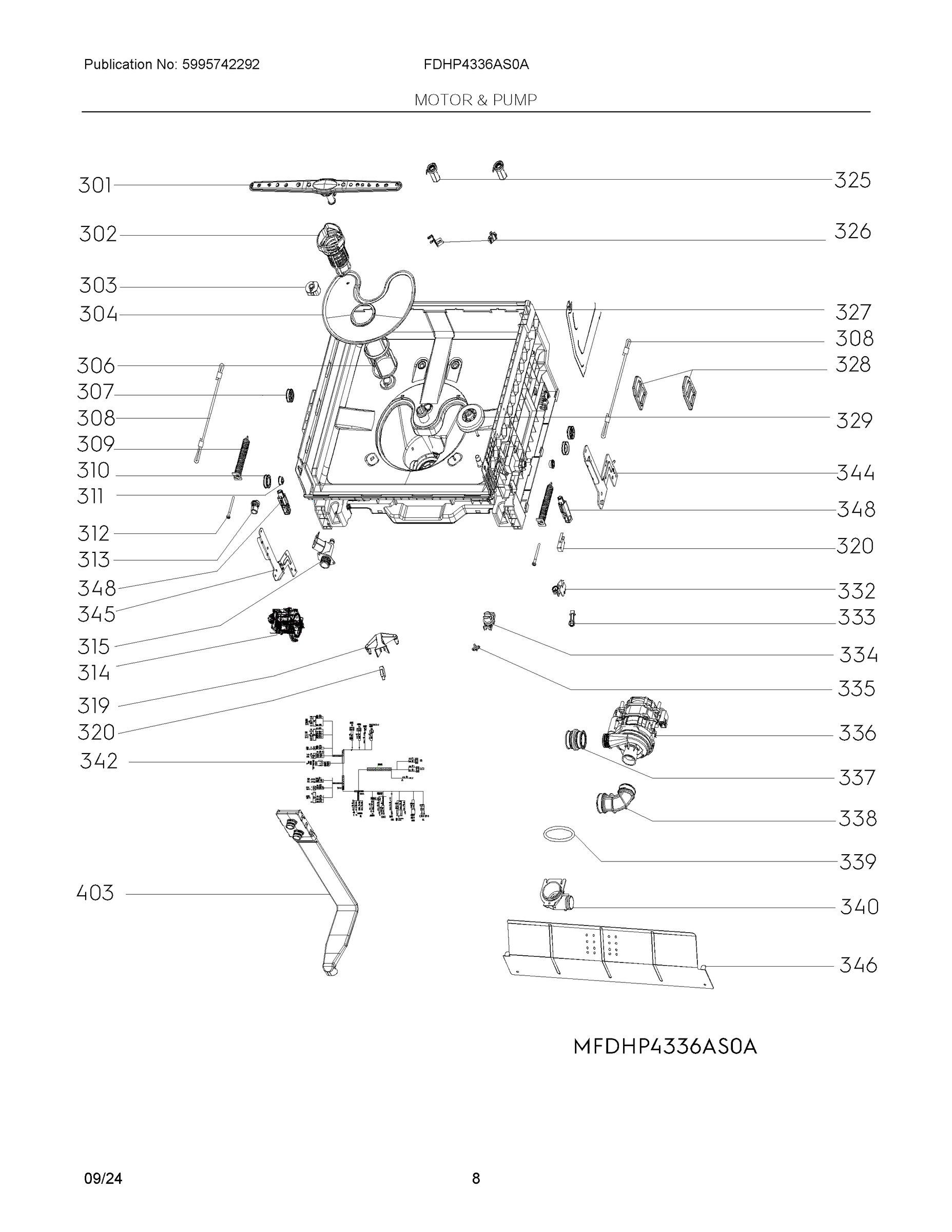

05 - MOTOR & PUMP

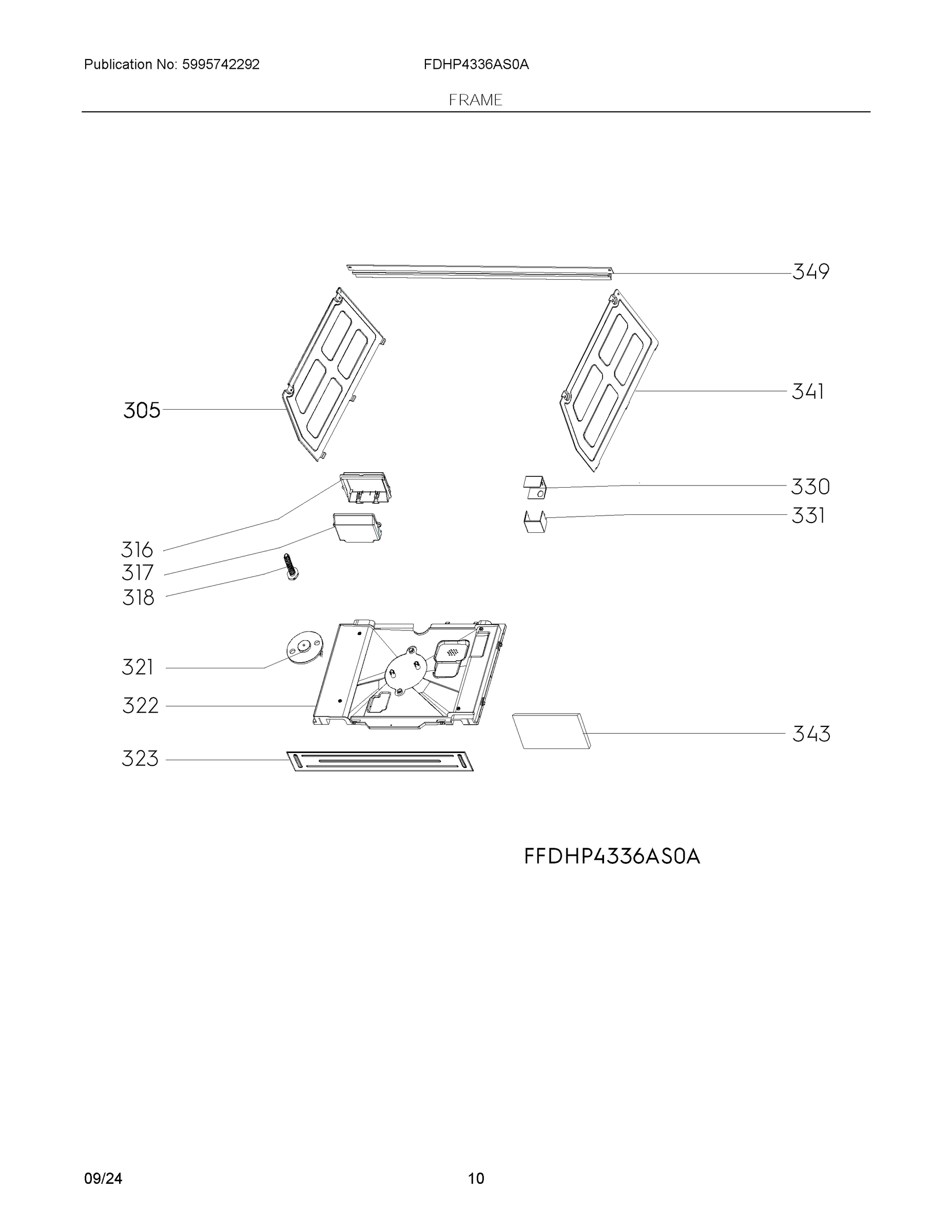

06 - FRAME

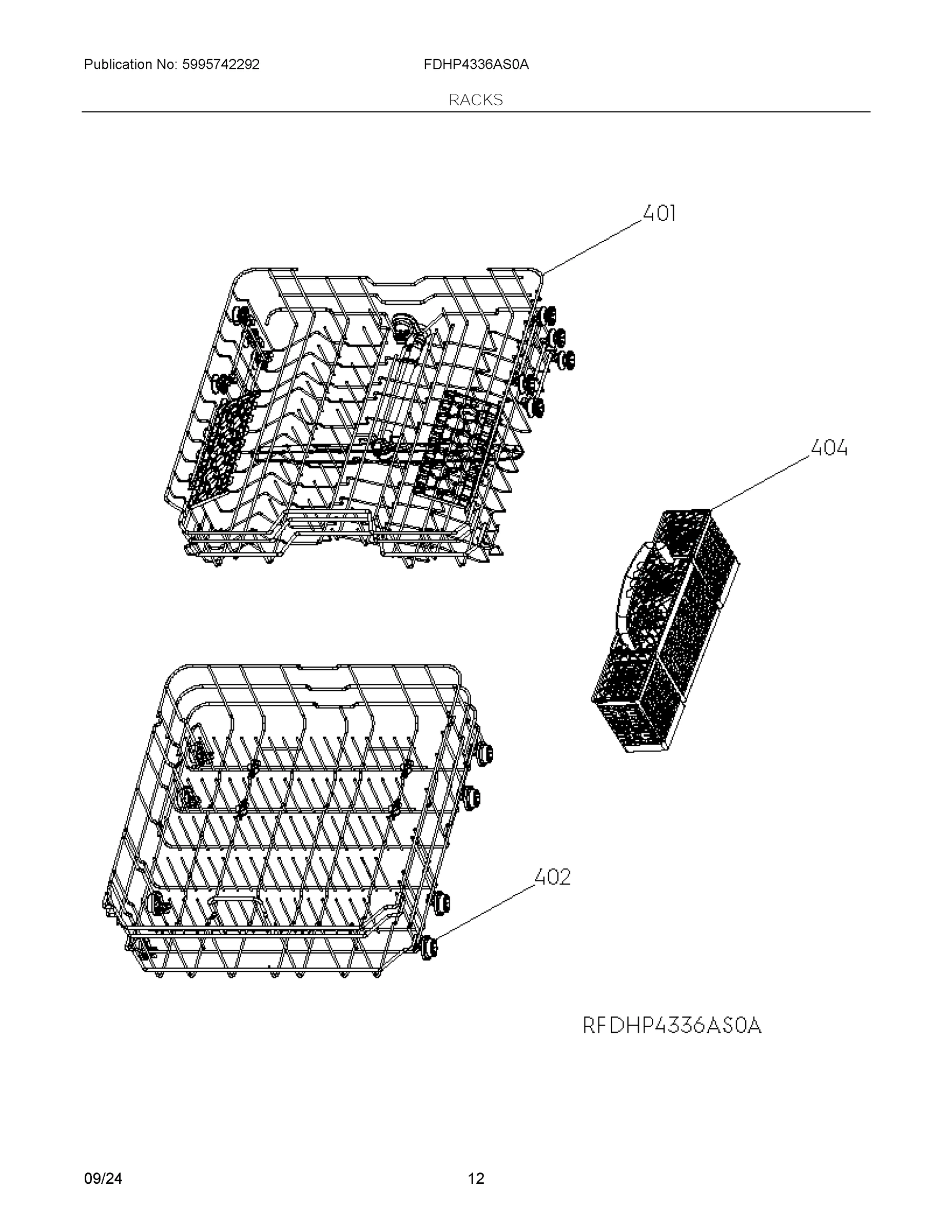

07 - RACKS

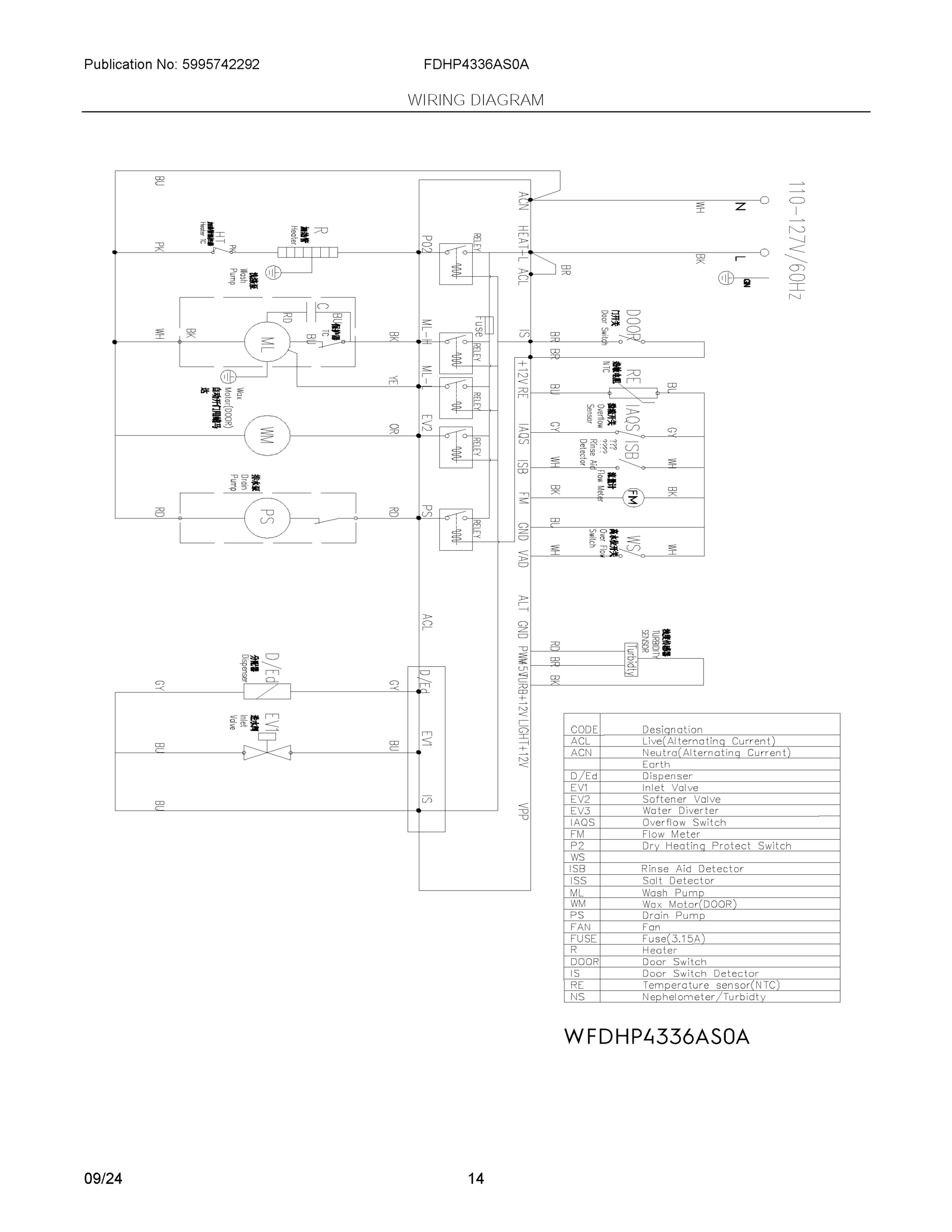

08 - WIRING DIAGRAM
Common parts from model Electrolux FDHP4336AS0A DISHWASHER, BUILT-IN, 24 INCH
103
SEALING GASKET WCI 5304537598 Contact Us For Availability
106
LIGHT CONDUCTOR WCI 5304538333 Contact Us For Availability
107
INSERT ADHESIVE WCI 5304538122 Contact Us For Availability
108
METAL INSERT WCI 5304538123 Contact Us For Availability
110
HANDLE BOX WCI 5304538334 Contact Us For Availability
112
OUTER DOOR WCI 5304537600 Contact Us For Availability
113
HINGE ASSEMBLY, DOOR, LEFT WCI 5304519225 Contact Us For Availability
114
RIGHT HINGE, ASSEMBLY WCI 5304537601 Contact Us For Availability
115
ABSORBENT COTTON WCI 5304537602 Contact Us For Availability
116
DAMP WCI 5304537603 Contact Us For Availability
117
INNER DOOR, ASSEMBLY WCI 5304537604 Contact Us For Availability
202
NUT WCI 5304537606 Contact Us For Availability
204
AIR BREATHER, ASSEMBLY WCI 5304537607 Contact Us For Availability
205
DRAIN HOSE WCI 5304537608 Contact Us For Availability
208
UPPER BACK, SUPPORT, LEFT WCI 5304537610 Contact Us For Availability
209
DAMP WCI 5304537611 Contact Us For Availability
213
ANGLE PLATE WCI 5304537613 Contact Us For Availability
214
CAP WCI 5304537614 Contact Us For Availability
215
STOPPER WCI 5304537615 Contact Us For Availability
216
UPPER BASKET, GUIDER, LEFT WCI 5304537616 Contact Us For Availability
217
ABSORBENT COTTON WCI 5304537617 Contact Us For Availability
218
DAMP WCI 5304537618 Contact Us For Availability
219
UPPER BACK, SUPPORT WCI 5304537619 Contact Us For Availability
220
DAMP WCI 5304537620 Contact Us For Availability
221
DOOR LOCK, OPENER WCI 5304537621 Contact Us For Availability
222
DOOR PROTECTION STRIP, LEFT WCI 5304537622 Contact Us For Availability
223
DOOR PROTECTION STRIP, RIGHT WCI 5304537623 Contact Us For Availability
224
SEAL WCI 5304537624 Contact Us For Availability
225
UPPER BASKET GUIDER, RIGHT WCI 5304537625 Contact Us For Availability
302
FILTER HANDLE WCI 5304537626 Contact Us For Availability
303
THERMOSTAT WCI 5304537627 Contact Us For Availability
304
FILTER ASSEMBLY, PLANE WCI 5304516678 Contact Us For Availability
305
SIDE PANEL, LEFT WCI 5304537628 Contact Us For Availability
306
FILTER, CYLINDRICAL WCI 5304516676 Contact Us For Availability
307
ROPE PULLEY WCI 5304537629 Contact Us For Availability
308
DOOR ROPE WCI 5304538124 Contact Us For Availability
309
SPRING ASSEMBLY, DOOR HINGE WCI 5304519262 Contact Us For Availability
310
WHEEL WCI 5304537630 Contact Us For Availability
311
PIN WCI 5304537631 Contact Us For Availability
313
CHECK VALVE SEAT, ASSEMBLY WCI 5304537632 Contact Us For Availability
314
DRAIN PUMP WCI 5304537633 Contact Us For Availability
315
INLET VALVE WCI 5304537634 Contact Us For Availability
316
PCB BOX WCI 5304537635 Contact Us For Availability
317
PCB BOX WCI 5304537636 Contact Us For Availability
319
FLOAT SEAT WCI 5304537637 Contact Us For Availability
322
BASE TRAY COVER WCI 5304537638 Contact Us For Availability
323
ADJUSTABLE BASEBOARD WCI 5304537639 Contact Us For Availability
324
HEATING ELEMENTS WCI 5304537640 Contact Us For Availability
325
PLASTIC SLEEVE WCI 5304537641 Contact Us For Availability
326
BRACKET WCI 5304537642 Contact Us For Availability
327
BASE WCI 5304537643 Contact Us For Availability
328
WASH PUMP HOLDER WCI 5304537644 Contact Us For Availability
329
FLOATER WCI 5304537645 Contact Us For Availability
330
BOX, JUNCTION A WCI 5304516657 Contact Us For Availability
332
FLOAT SEAT WCI 5304537646 Contact Us For Availability
333
FLOAT SHRAPNEL WCI 5304537647 Contact Us For Availability
335
THERMISTOR WCI 5304537648 Contact Us For Availability
337
TUBE, CONNECTOR, PUMP OUTLET WCI 5304522083 Contact Us For Availability
338
INLET PIPE WCI 5304537650 Contact Us For Availability
339
RING, O TYPE, SEALING WCI 5304537651 Contact Us For Availability
340
SHUNT COVER, CHAMBER, VALVE WCI 5304537652 Contact Us For Availability
341
PANEL, SIDE, RH WCI 5304519238 Contact Us For Availability
342
MAIN WIRE HARNESS WCI 5304538125 Contact Us For Availability
344
HINGE HOLDER, LEFT WCI 5304537653 Contact Us For Availability
345
HINGE HOLDER, RIGHT WCI 5304537654 Contact Us For Availability
348
SUPPORT WCI 5304537655 Contact Us For Availability
349
PROTECTIVE STRIP WCI 5304537656 Contact Us For Availability
401
BASKET, UPPER, ASSEMBLY WCI 5304538127 Contact Us For Availability
402
BASKET, LOWER, ASSEMBLY WCI 5304537657 Contact Us For Availability
403
INNER PIPE, ASSEMBLY WCI 5304537658 Contact Us For Availability
404
CURTLEY BASKET WCI 5304537659 Contact Us For Availability
NI
INSTALLATION KIT WCI 5304538351 Contact Us For Availability
× ![]()
