Model Electrolux FDG436RBT2 DRYER – Common Parts & Diagrams
01 - COVER
02 - CABINET/DRUM

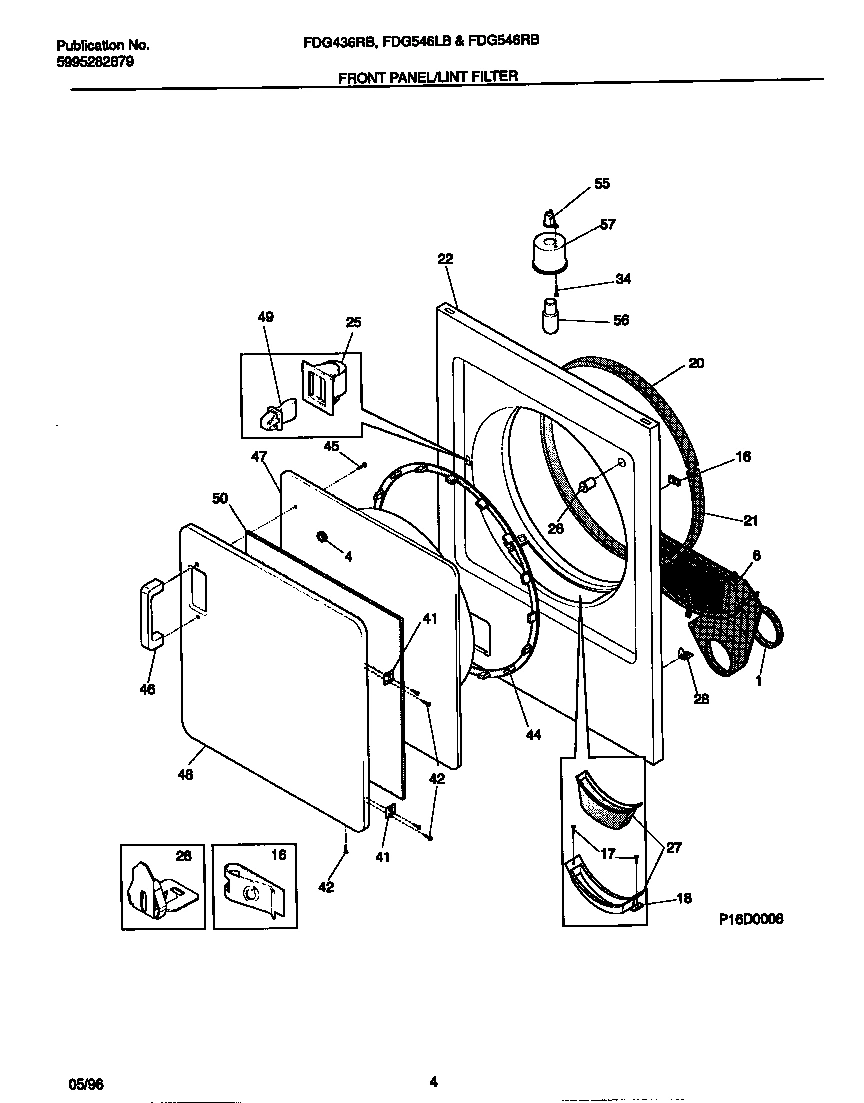

03 - FRONT PANEL/LINT FILTER

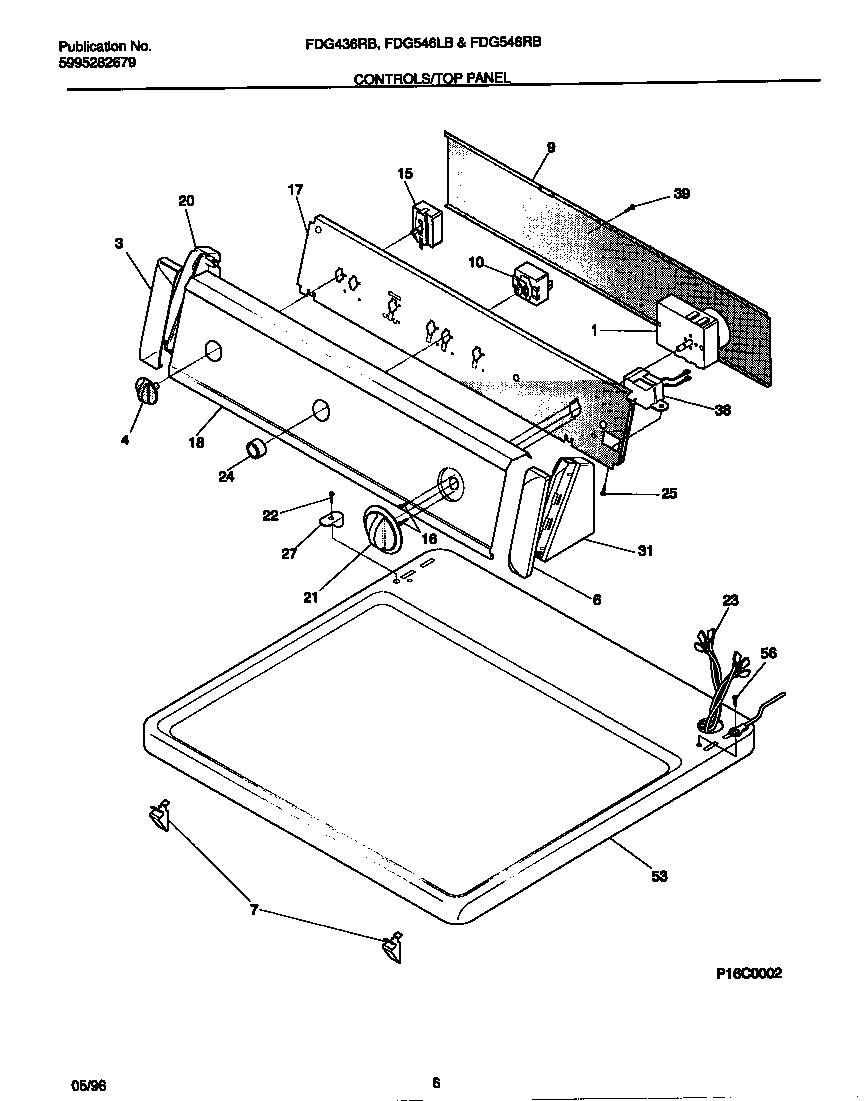

04 - CONTROLS/TOP PANEL

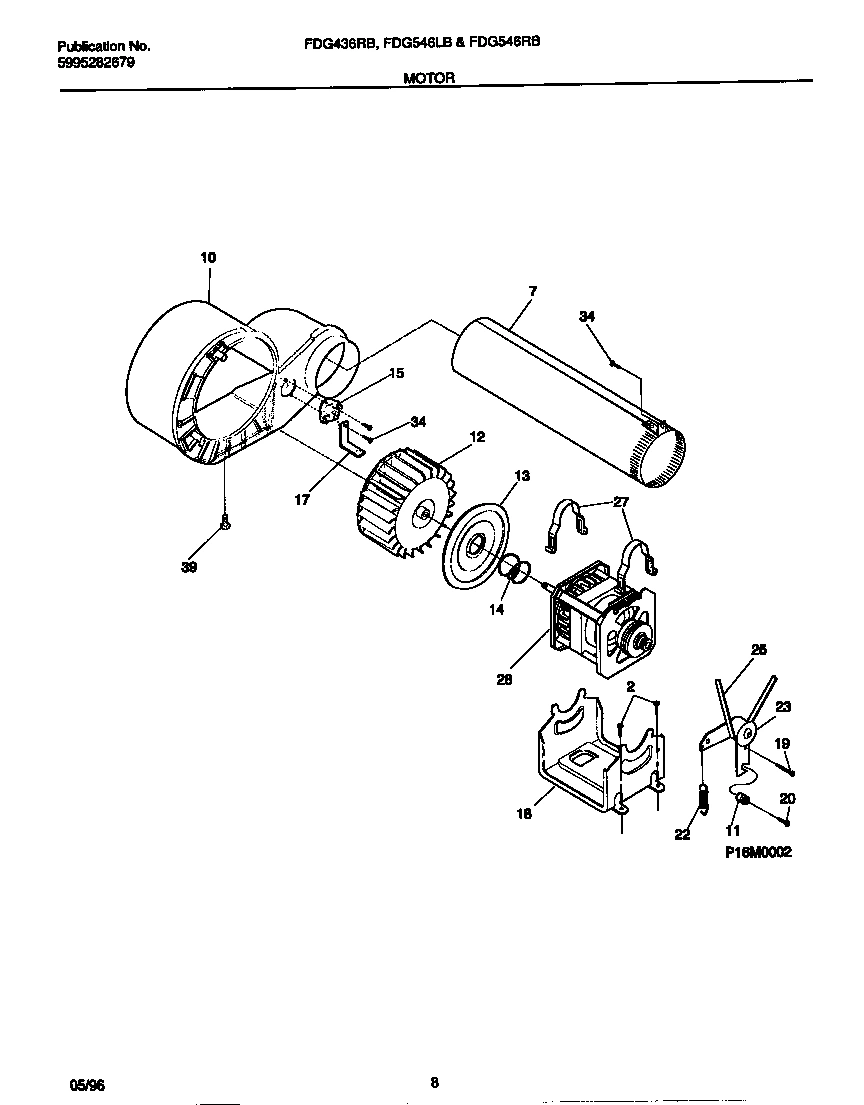

05 - MOTOR

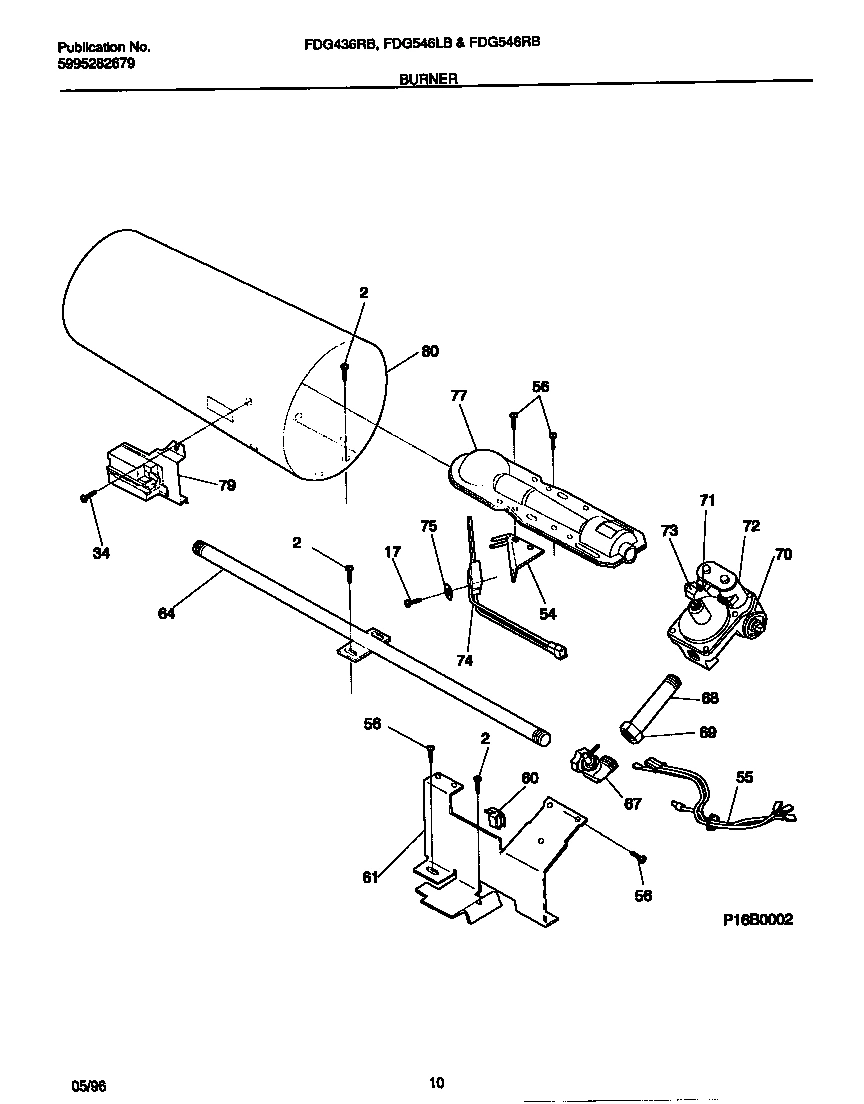

06 - BURNER

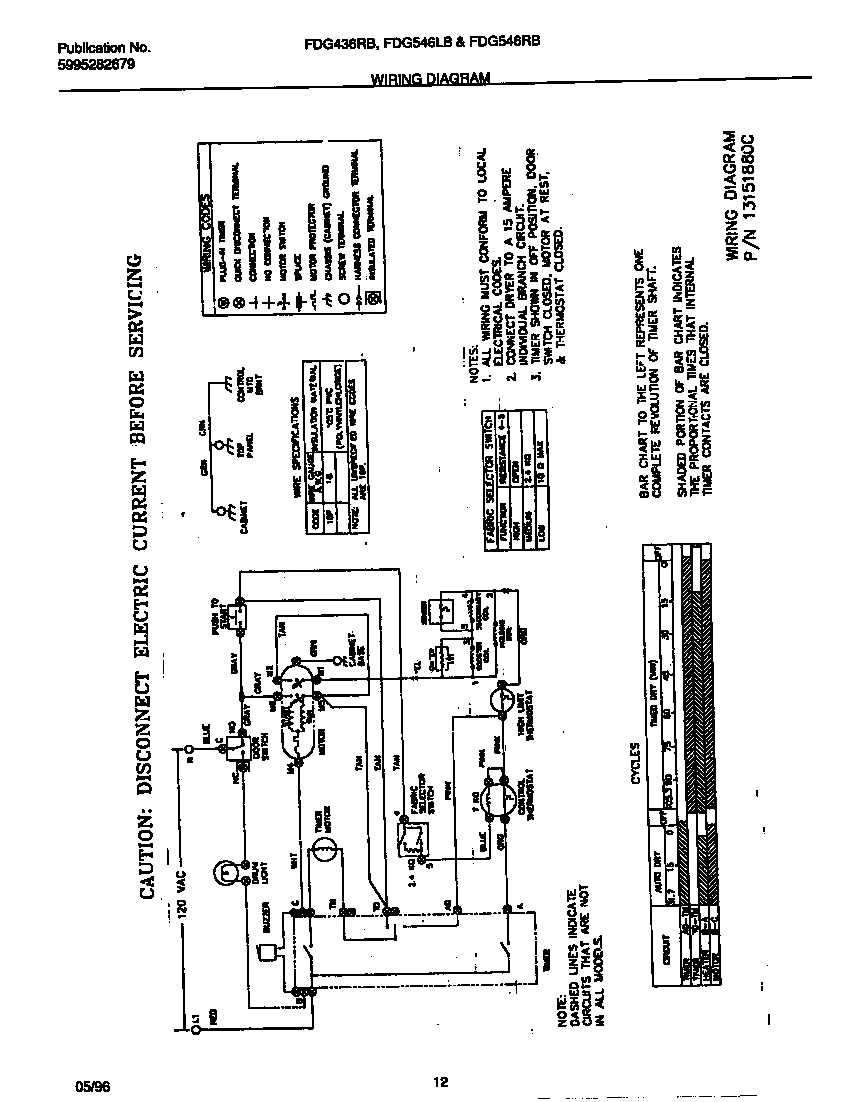

07 - WIRING DIAGRAM

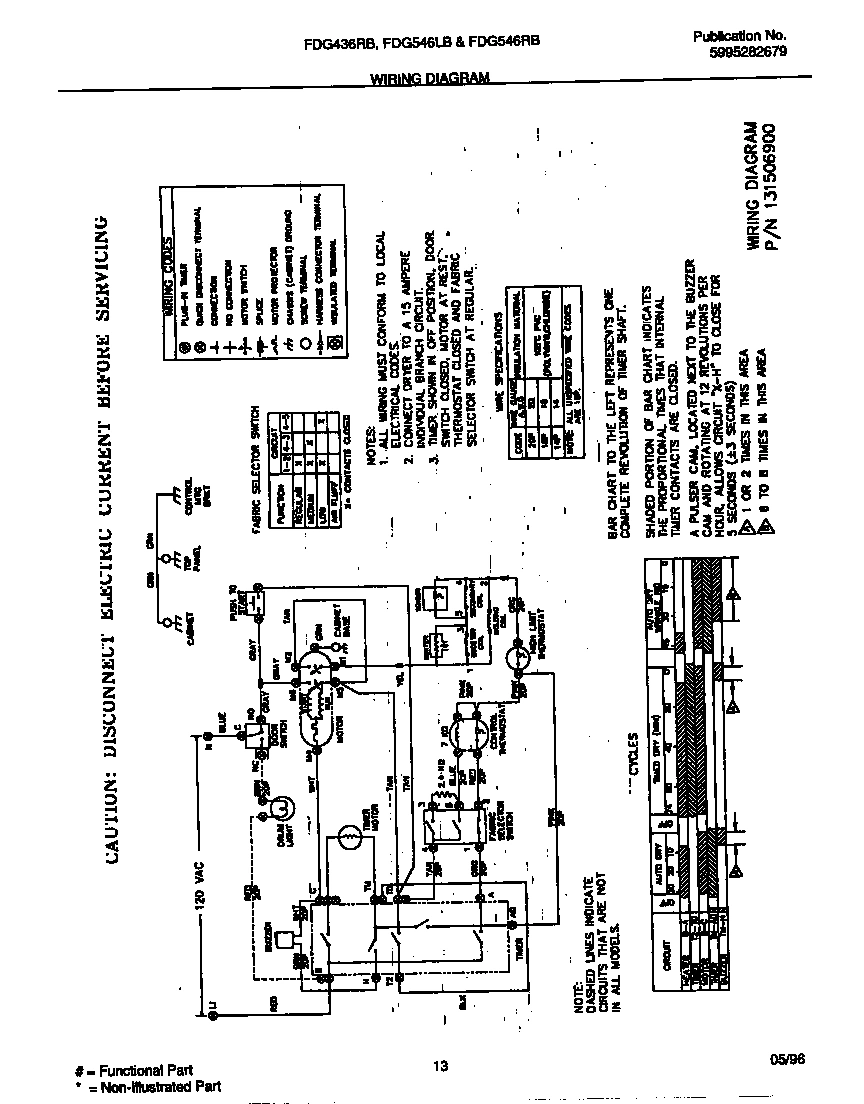

08 - WIRING DIAGRAM
Common parts from model Electrolux FDG436RBT2 DRYER
*03723
LP GAS CONV KIT WCI 131411100 Contact Us For Availability
1
WCI 5303297139 WCI 5303297139 Contact Us For Availability
2
SCREW, PPH B ST/Z, 8-18 X .31 WCI 131168200 Contact Us For Availability
5
WCI 5303281019 WCI 5303281019 Contact Us For Availability
6
WCI 5303281020 WCI 5303281020 Contact Us For Availability
7
WCI 3205821 WCI 3205821 Contact Us For Availability
7
TUBE-EXHAUST WCI 5303269973 Contact Us For Availability
10
WCI 5303270858 WCI 5303270858 Contact Us For Availability
11
SPACER-IDLER ARM WCI 5303281076 Contact Us For Availability
12
WCI 5303281079 WCI 5303281079 Contact Us For Availability
13
WCI 5303307784 WCI 5303307784 Contact Us For Availability
14
WCI 131205400 WCI 131205400 Contact Us For Availability
14
SPRING-FAN COVER WCI 5303281083 Contact Us For Availability
15
THERMOSTAT-CONTROL WCI 131298400 Contact Us For Availability
15
WCI 131288900 WCI 131288900 Contact Us For Availability
16
WCI 131063700 WCI 131063700 Contact Us For Availability
17
WCI 5303269972 WCI 5303269972 Contact Us For Availability
18
WCI 131367101 WCI 131367101 Contact Us For Availability
20
WCI 131017900 WCI 131017900 Contact Us For Availability
20
END CAP, ALMOND, LH WCI 131122712 Contact Us For Availability
21
SEAL-BASKET, LOWER WCI 5303281049 Contact Us For Availability
21
WCI 131141002 WCI 131141002 Contact Us For Availability
22
WCI 5303281085 WCI 5303281085 Contact Us For Availability
22
WCI 131266300 WCI 131266300 Contact Us For Availability
23
WCI 131569500 WCI 131569500 Contact Us For Availability
24
WCI 131111504 WCI 131111504 Contact Us For Availability
25
SCREW WCI 5303015671 Contact Us For Availability
27
WCI 131197000 WCI 131197000 Contact Us For Availability
27
WCI 5303212834 WCI 5303212834 Contact Us For Availability
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
28
WCI 131572300 WCI 131572300 Contact Us For Availability
29
WCI 131382300 WCI 131382300 Contact Us For Availability
31
END CAP, ALMOND, RH WCI 131122702 Contact Us For Availability
33
WCI 5308015399 WCI 5308015399 Contact Us For Availability
34
SCREW, PAN HEAD, 8-18AB X 0.375, CR/SQ DRIVE WCI 131243700 Contact Us For Availability
38
WCI 5303210285 WCI 5303210285 Contact Us For Availability
39
Screw,No.8 pan head ,10-10B x 0.50 ,cr/sq dri WCI 131205100 Contact Us For Availability
42
SCREW, 10-16 X .75 WCI 131205300 Contact Us For Availability
45
WCI 131346400 WCI 131346400 Contact Us For Availability
45
SCREW-HANDLE, CR 2 OVAL HEAD, 8-18 X 0.75, SP WCI 5303281051 Contact Us For Availability
46
HANDLE-DOOR-ALMOND WCI 131192302 Contact Us For Availability
53
WCI 131130404 WCI 131130404 Contact Us For Availability
54
WCI 5303281149 WCI 5303281149 Contact Us For Availability
55
WCI 5303281137 WCI 5303281137 Contact Us For Availability
56
SCREW, PAN HD LOCKING, 8-32CA X 0.375, CR/SQ WCI 131243800 Contact Us For Availability
60
WCI 3281126 WCI 3281126 Contact Us For Availability
61
BRACKET-BURNER WCI 5303281145 Contact Us For Availability
64
WCI 08015271 WCI 08015271 Contact Us For Availability
67
VALVE-SHUT OFF WCI 131498500 Contact Us For Availability
68
UNION, MALE CONNECTOR, BRASS WCI 5303212837 Contact Us For Availability
69
WCI 08015194 WCI 08015194 Contact Us For Availability
70
VALVE - GAS WCI 5303281147 Contact Us For Availability
73
ORFICE, NATURAL GAS WCI 3201241 Contact Us For Availability
79
WCI 5303281135 WCI 5303281135 Contact Us For Availability
80
WCI 3201240 WCI 3201240 Contact Us For Availability
× ![]()
