Model Electrolux FDE847GCT0 DRYER – Common Parts & Diagrams

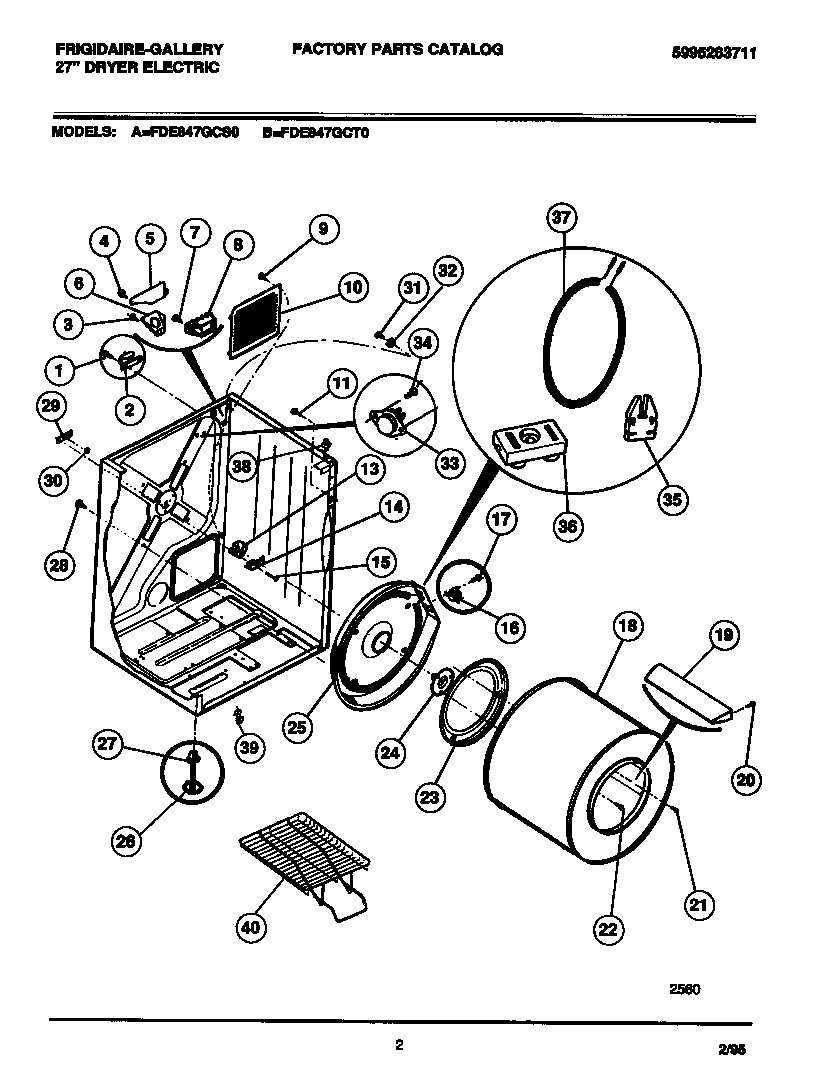

02 - CABINET, DRUM, HEATER ASSEMBLY

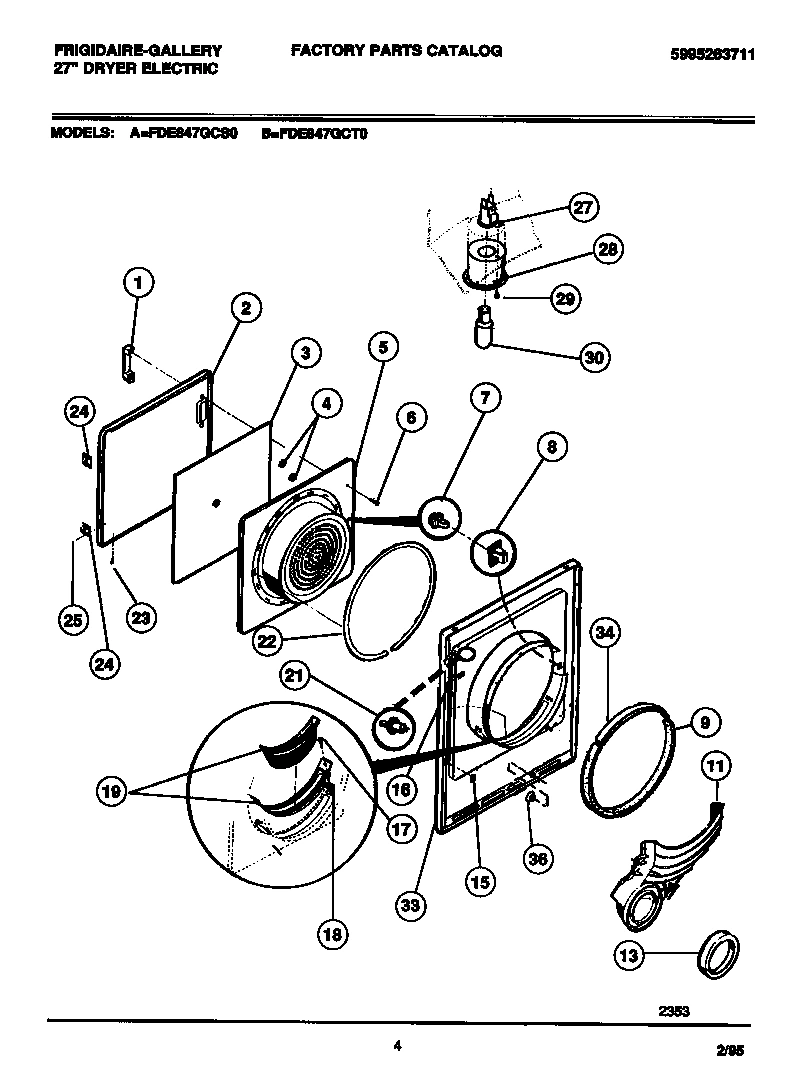

03 - DOOR, FRONT PANEL, LINT FILTER
04 - CONSOLE, CONTROLS, TOP PANEL
05 - MOTOR, FAN HOUSING, EXHAUST DUCT
Common parts from model Electrolux FDE847GCT0 DRYER
*04881
HARNESS - BUZZER WCI 3201616 Contact Us For Availability
*04882
SWITCH, MOTOR WCI 5303299316 Contact Us For Availability
1
WCI 131192302 WCI 131192302 Contact Us For Availability
1
BACKSHEET WCI 131141701 Contact Us For Availability
1
WCI 5303270858 WCI 5303270858 Contact Us For Availability
2
WCI 3205243 WCI 3205243 Contact Us For Availability
4
WCI 131062600 WCI 131062600 Contact Us For Availability
4
WCI 5303269972 WCI 5303269972 Contact Us For Availability
5
COVER, TERMINAL BLOCK WCI 5303211428 Contact Us For Availability
5
DOOR - INNER - ALMOND WCI 3201207 Contact Us For Availability
5
WCI 131048000 WCI 131048000 Contact Us For Availability
6
WCI 5303281051 WCI 5303281051 Contact Us For Availability
6
WCI 131048200 WCI 131048200 Contact Us For Availability
7
WCI 131141505 WCI 131141505 Contact Us For Availability
8
WCI 131122702 WCI 131122702 Contact Us For Availability
9
WCI 5303281049 WCI 5303281049 Contact Us For Availability
9
WCI 5303269973 WCI 5303269973 Contact Us For Availability
10
PUSHBUTTON-ALMD (4) WCI 131141202 Contact Us For Availability
10
WCI 131089400 WCI 131089400 Contact Us For Availability
11
WCI 5303300403 WCI 5303300403 Contact Us For Availability
11
WCI 5303307784 WCI 5303307784 Contact Us For Availability
12
WCI 5303212834 WCI 5303212834 Contact Us For Availability
12
WCI 131141106 WCI 131141106 Contact Us For Availability
13
WCI 131048300 WCI 131048300 Contact Us For Availability
13
WCI 131198400 WCI 131198400 Contact Us For Availability
15
CLIP GUIDE (4) WCI 5303281074 Contact Us For Availability
15
WCI 131297302 WCI 131297302 Contact Us For Availability
15
WCI 131062205 WCI 131062205 Contact Us For Availability
16
WCI 5303281113 WCI 5303281113 Contact Us For Availability
16
CLIP (4) WCI 131063700 Contact Us For Availability
17
WCI 131122712 WCI 131122712 Contact Us For Availability
18
WCI 3281061 WCI 3281061 Contact Us For Availability
18
WCI 5303289526 WCI 5303289526 Contact Us For Availability
18
WCI 131131501 WCI 131131501 Contact Us For Availability
19
FRAME & LINT TRAP WCI 131390300 Contact Us For Availability
20
CLIP WCI 131197000 Contact Us For Availability
21
WCI 08006623 WCI 08006623 Contact Us For Availability
22
GASKET, DOOR WCI 5303201210 Contact Us For Availability
23
WCI 131141004 WCI 131141004 Contact Us For Availability
23
WCI 131367101 WCI 131367101 Contact Us For Availability
24
HINGE, DOOR (2) WCI 5303281050 Contact Us For Availability
24
WCI 5303281083 WCI 5303281083 Contact Us For Availability
25
WCI 131380600 WCI 131380600 Contact Us For Availability
26
WCI 131236300 WCI 131236300 Contact Us For Availability
27
WCI 5308015210 WCI 5308015210 Contact Us For Availability
28
HOLDER, LIGHT WCI 5308015259 Contact Us For Availability
28
PANEL, TOP, ALMOND WCI 131130304 Contact Us For Availability
29
SCREW WCI 5303281035 Contact Us For Availability
30
WCI 5308027430 WCI 5308027430 Contact Us For Availability
30
WCI 131122602 WCI 131122602 Contact Us For Availability
31
WCI 131122612 WCI 131122612 Contact Us For Availability
32
WCI 131089800 WCI 131089800 Contact Us For Availability
33
PANEL, FRONT, ALMOND WCI 131003413 Contact Us For Availability
33
WCI 131072000 WCI 131072000 Contact Us For Availability
36
PLUG, ALMOND WCI 131397001 Contact Us For Availability
38
WCI 131346400 WCI 131346400 Contact Us For Availability
× ![]()
