Model Electrolux FDE847GCS0 DRYER – Common Parts & Diagrams
02 - CABINET, DRUM, HEATER ASSEMBLY
03 - DOOR, FRONT PANEL, LINT FILTER

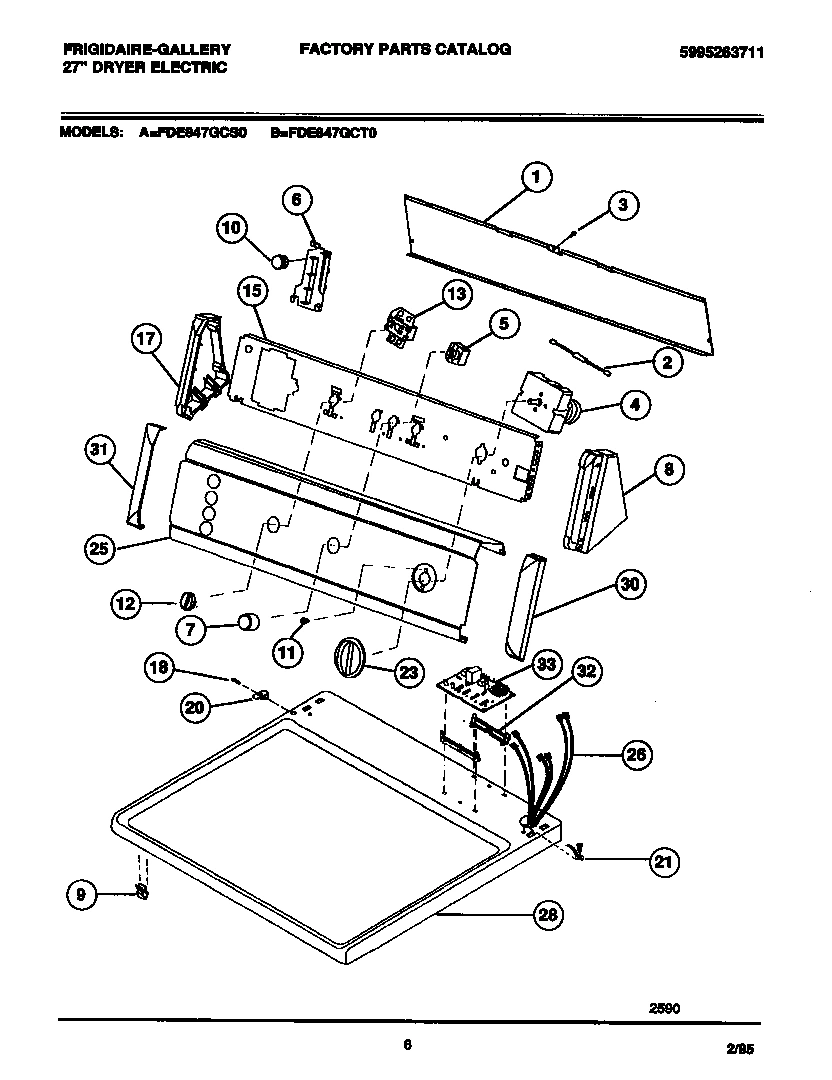

04 - CONSOLE, CONTROLS, TOP PANEL

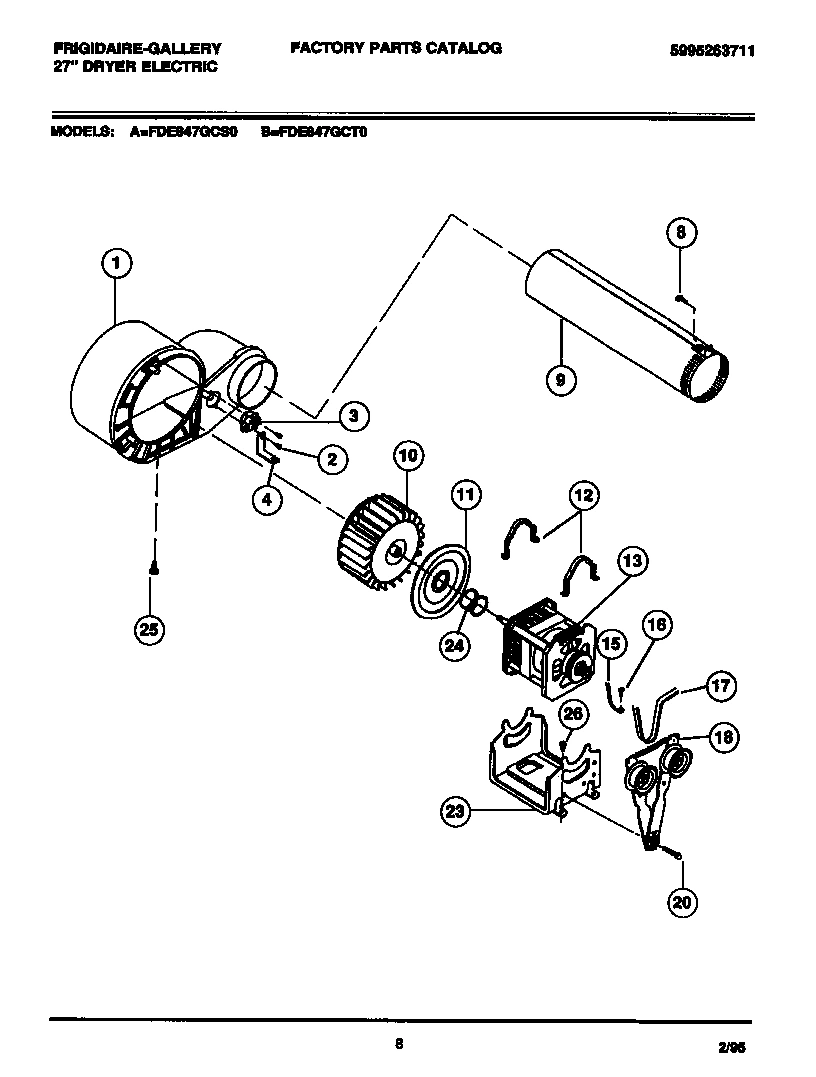

05 - MOTOR, FAN HOUSING, EXHAUST DUCT
Common parts from model Electrolux FDE847GCS0 DRYER
*04882
SWITCH, MOTOR WCI 5303299316 Contact Us For Availability
1
WCI 131192301 WCI 131192301 Contact Us For Availability
1
WCI 5303270858 WCI 5303270858 Contact Us For Availability
2
SCREW WCI 131243700 Contact Us For Availability
3
WCI 131298300 WCI 131298300 Contact Us For Availability
4
WCI 5303269972 WCI 5303269972 Contact Us For Availability
5
COVER, TERMINAL BLOCK WCI 5303211428 Contact Us For Availability
6
WCI 5303281051 WCI 5303281051 Contact Us For Availability
7
SCREW (2) WCI 131205300 Contact Us For Availability
7
PUSHBUTTON, WHITE WCI 131111501 Contact Us For Availability
8
END CAP-R.H.-WHITE WCI 131122701 Contact Us For Availability
8
SCREW WCI 5303015671 Contact Us For Availability
9
WCI 5303281049 WCI 5303281049 Contact Us For Availability
9
SPRING CATCH WCI 3205821 Contact Us For Availability
9
WCI 5303269973 WCI 5303269973 Contact Us For Availability
10
PUSHBUTTON-WHITE (4) WCI 131141201 Contact Us For Availability
10
WCI 131089400 WCI 131089400 Contact Us For Availability
11
WCI 5303307784 WCI 5303307784 Contact Us For Availability
12
WCI 5303212834 WCI 5303212834 Contact Us For Availability
13
WCI 131048300 WCI 131048300 Contact Us For Availability
13
WCI 131198400 WCI 131198400 Contact Us For Availability
15
CLIP GUIDE (4) WCI 5303281074 Contact Us For Availability
15
SCREW (2) (PARTS CONTAINED IN REAR BEARING K WCI 131205400 Contact Us For Availability
15
WCI 131297302 WCI 131297302 Contact Us For Availability
15
WCI 131062205 WCI 131062205 Contact Us For Availability
16
WCI 5303281113 WCI 5303281113 Contact Us For Availability
16
CLIP (4) WCI 131063700 Contact Us For Availability
17
END CAP-L.H.-WHITE WCI 131122711 Contact Us For Availability
18
WCI 5303289526 WCI 5303289526 Contact Us For Availability
18
WCI 131131501 WCI 131131501 Contact Us For Availability
20
SCREW WCI 131017900 Contact Us For Availability
20
CLIP WCI 131197000 Contact Us For Availability
21
SCREW WCI 131243800 Contact Us For Availability
23
BAFFLE WCI 3204254 Contact Us For Availability
23
WCI 131141003 WCI 131141003 Contact Us For Availability
23
WCI 131367101 WCI 131367101 Contact Us For Availability
24
WCI 5303281083 WCI 5303281083 Contact Us For Availability
25
SCREW (4) WCI 131205100 Contact Us For Availability
25
WCI 131376100 WCI 131376100 Contact Us For Availability
26
SCREW WCI 131168200 Contact Us For Availability
26
WCI 131236300 WCI 131236300 Contact Us For Availability
28
WCI 131130402 WCI 131130402 Contact Us For Availability
29
NUT-FLAT (PARTS CONTAINED IN REAR BEARING KIT WCI 5303281020 Contact Us For Availability
30
BALL (PARTS CONTAINED IN REAR BEARING KIT.) WCI 5303281019 Contact Us For Availability
30
COVER-CAP-RH-WHITE WCI 131122601 Contact Us For Availability
30
WCI 5308027430 WCI 5308027430 Contact Us For Availability
31
COVER-CAP-LH-WHITE WCI 131122611 Contact Us For Availability
32
WCI 131089800 WCI 131089800 Contact Us For Availability
33
WCI 131072000 WCI 131072000 Contact Us For Availability
36
BLOCK, TERMINAL WCI 3202786 Contact Us For Availability
36
PLUG, WHITE WCI 131397000 Contact Us For Availability
37
COIL ONLY WCI 5300622034 Contact Us For Availability
38
WCI 131346400 WCI 131346400 Contact Us For Availability
× ![]()
