Model Electrolux FDE546NBT1 DRYER – Common Parts & Diagrams

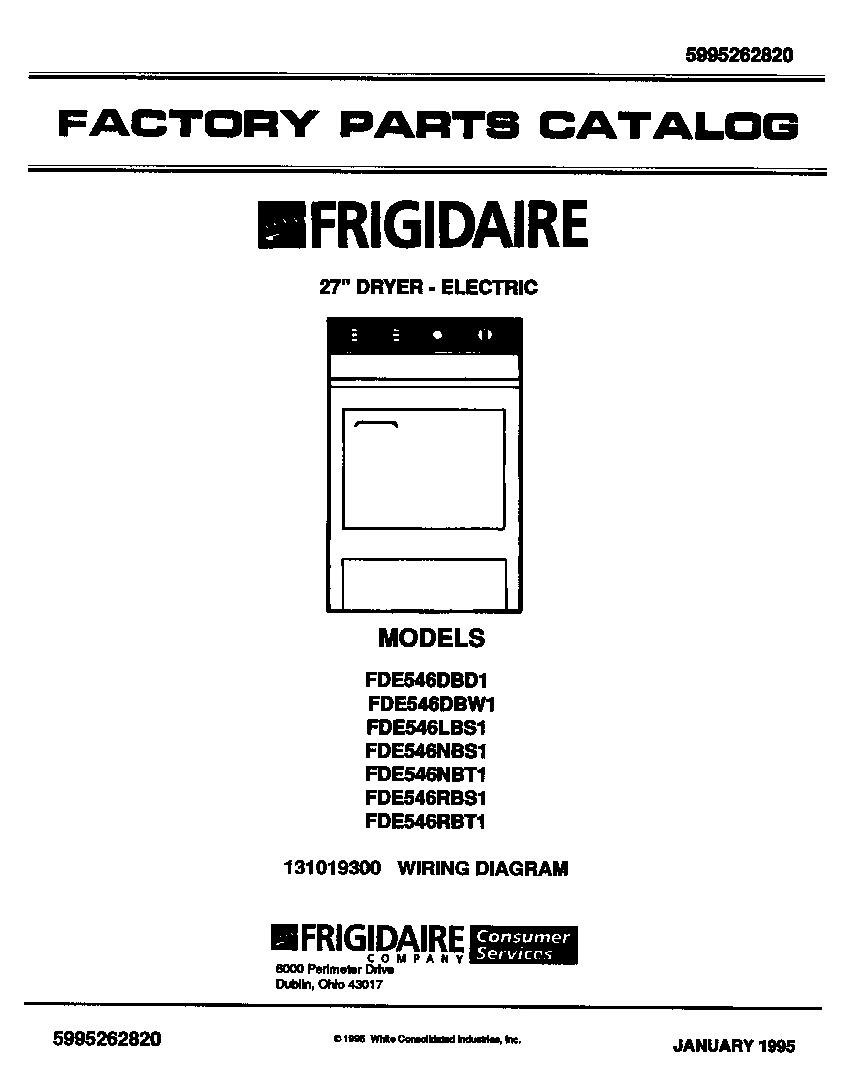

01 - COVER

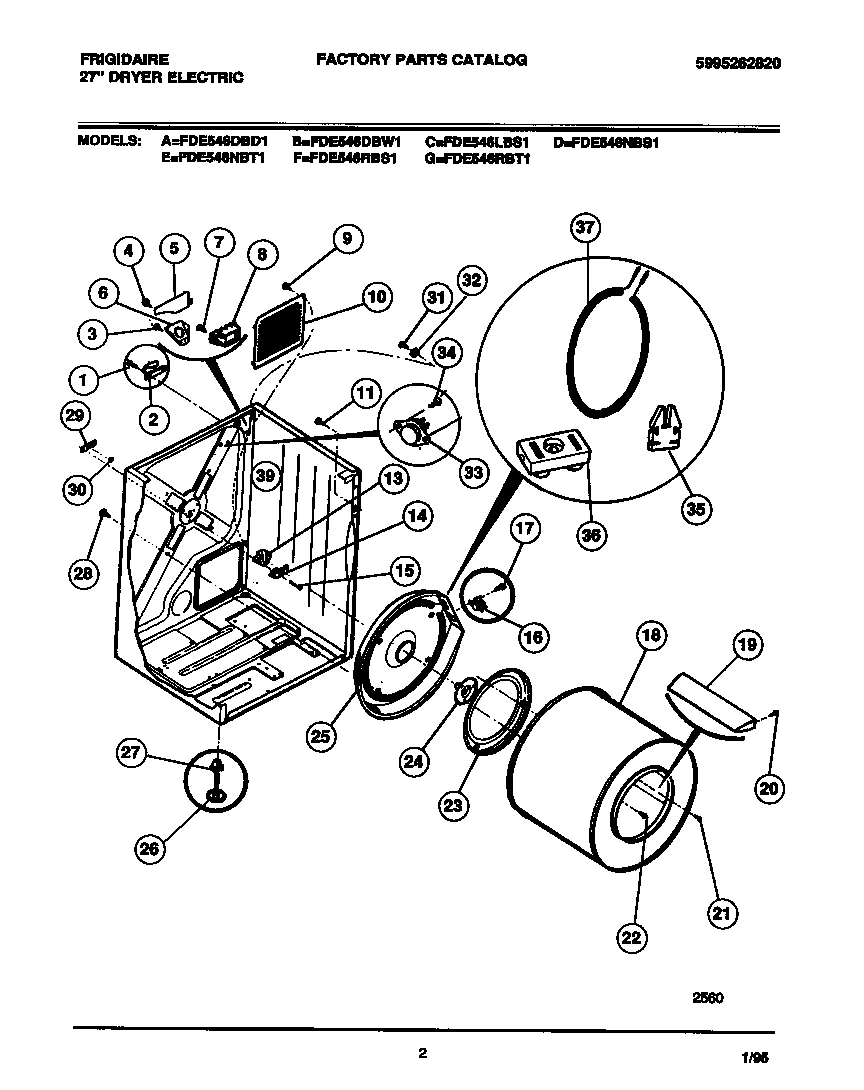

02 - CABINET, DRUM, HEATER ASMY.

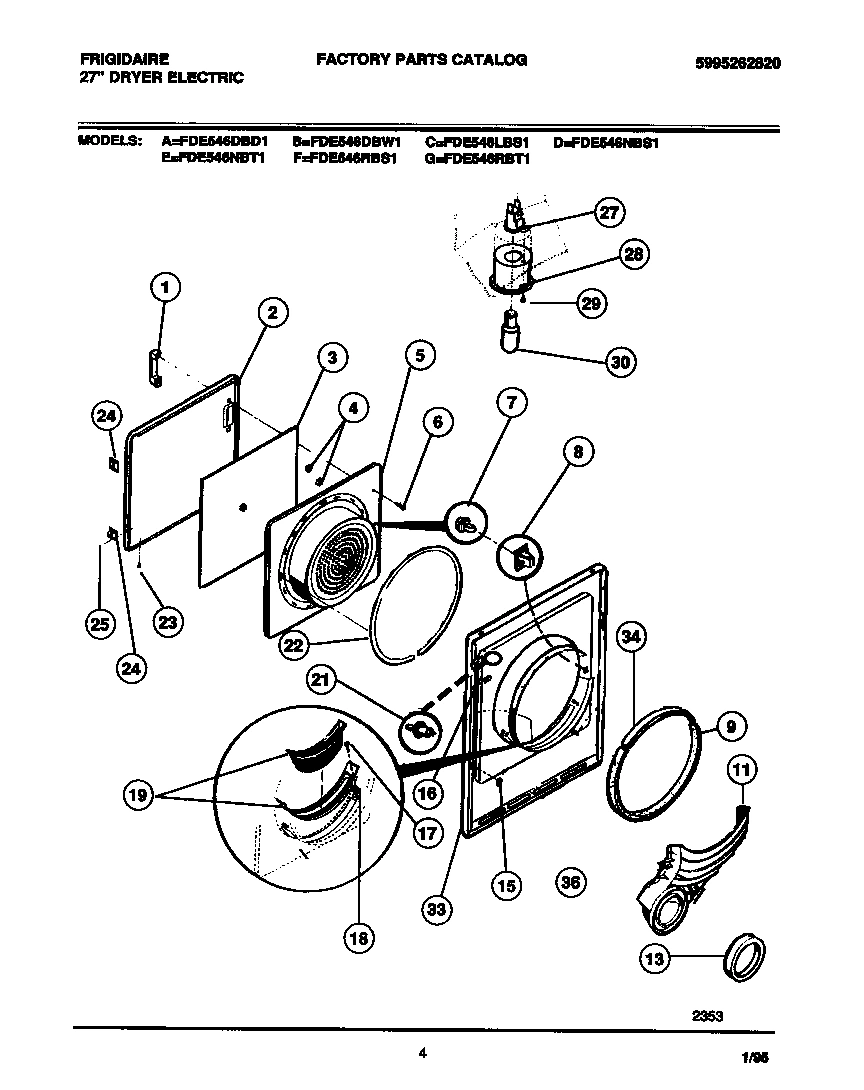

03 - DOOR, FRONT PANEL, LINT FILTER

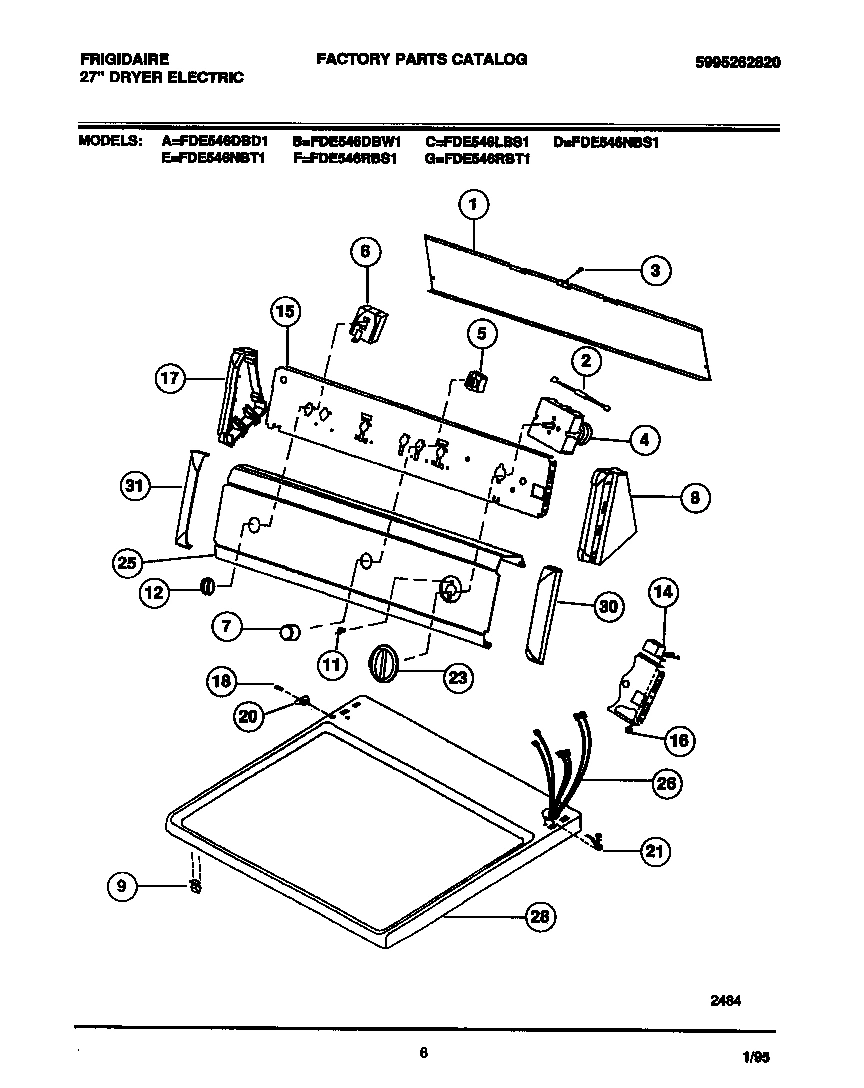

04 - CONSOLE, CONTROLS, TOP PANEL

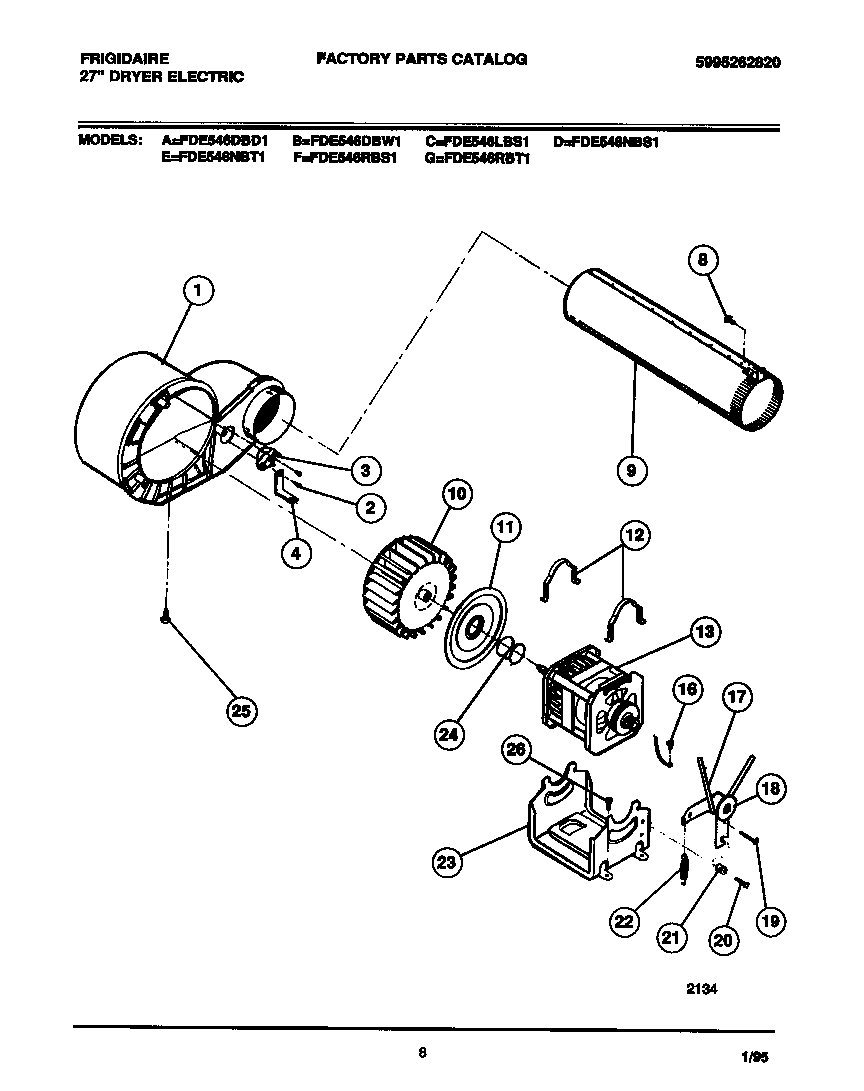

05 - MOTOR, FAN HSG., EXHAUST DUCT
Common parts from model Electrolux FDE546NBT1 DRYER
1
HANDLE-DOOR-ALMOND WCI 131192302 Contact Us For Availability
1
BACKSHEET WCI 131141701 Contact Us For Availability
1
WCI 5303270858 WCI 5303270858 Contact Us For Availability
2
WCI 5303299162 WCI 5303299162 Contact Us For Availability
2
WCI 3205243 WCI 3205243 Contact Us For Availability
2
SCREW WCI 3261048 Contact Us For Availability
3
SHIELD, HEAT WCI 5303281067 Contact Us For Availability
4
SPACER (2) WCI 3201205 Contact Us For Availability
4
WCI 5303269972 WCI 5303269972 Contact Us For Availability
5
COVER, TERMINAL BLOCK WCI 5303211428 No Longer Available
5
DOOR-INNER WCI 3201206 Contact Us For Availability
5
WCI 131048000 WCI 131048000 Contact Us For Availability
6
WCI 5303281051 WCI 5303281051 Contact Us For Availability
6
WCI 131048100 WCI 131048100 Contact Us For Availability
7
WCI 131141302 WCI 131141302 Contact Us For Availability
8
WCI 131122702 WCI 131122702 Contact Us For Availability
9
WCI 5303281049 No Longer Available
9
WCI 5303269973 WCI 5303269973 Contact Us For Availability
10
WCI 5303281079 No Longer Available
11
WCI 5303937116 WCI 5303937116 Contact Us For Availability
11
WCI 5303281080 WCI 5303281080 Contact Us For Availability
12
WCI 5303212834 WCI 5303212834 Contact Us For Availability
12
WCI 131141102 WCI 131141102 Contact Us For Availability
13
WCI 5303283470 WCI 5303283470 Contact Us For Availability
14
WCI 5303210285 WCI 5303210285 Contact Us For Availability
15
CLIP GUIDE (4) WCI 5303281074 Contact Us For Availability
15
WCI 131297306 WCI 131297306 Contact Us For Availability
16
WCI 5303281113 No Longer Available
16
CLIP (4) WCI 131063700 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
17
WCI 131122712 WCI 131122712 Contact Us For Availability
18
WCI 5303212849 WCI 5303212849 Contact Us For Availability
18
WCI 3281061 WCI 3281061 Contact Us For Availability
18
WCI 5303289526 WCI 5303289526 Contact Us For Availability
19
FRAME LINT TRAP WCI 5303270382 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
CLIP WCI 131197000 Contact Us For Availability
21
WCI 5303281076 WCI 5303281076 Contact Us For Availability
21
WCI 08006623 WCI 08006623 Contact Us For Availability
22
GASKET, DOOR WCI 5303201210 Contact Us For Availability
23
SCREW (2) WCI 5303161187 Contact Us For Availability
23
WCI 131141002 WCI 131141002 Contact Us For Availability
23
WCI 131367101 WCI 131367101 Contact Us For Availability
24
HINGE, DOOR (2) WCI 5303281050 Contact Us For Availability
24
WCI 5303281083 WCI 5303281083 Contact Us For Availability
25
WCI 131288600 WCI 131288600 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 131235400 WCI 131235400 Contact Us For Availability
27
WCI 5308015210 WCI 5308015210 Contact Us For Availability
28
HOLDER, LIGHT WCI 5308015259 Contact Us For Availability
28
WCI 5303931763 WCI 5303931763 Contact Us For Availability
30
WCI 5308027430 WCI 5308027430 Contact Us For Availability
30
WCI 131122602 WCI 131122602 Contact Us For Availability
31
WCI 131122612 WCI 131122612 Contact Us For Availability
33
PANEL, FRONT, ALMOND WCI 131003413 Contact Us For Availability
× ![]()
