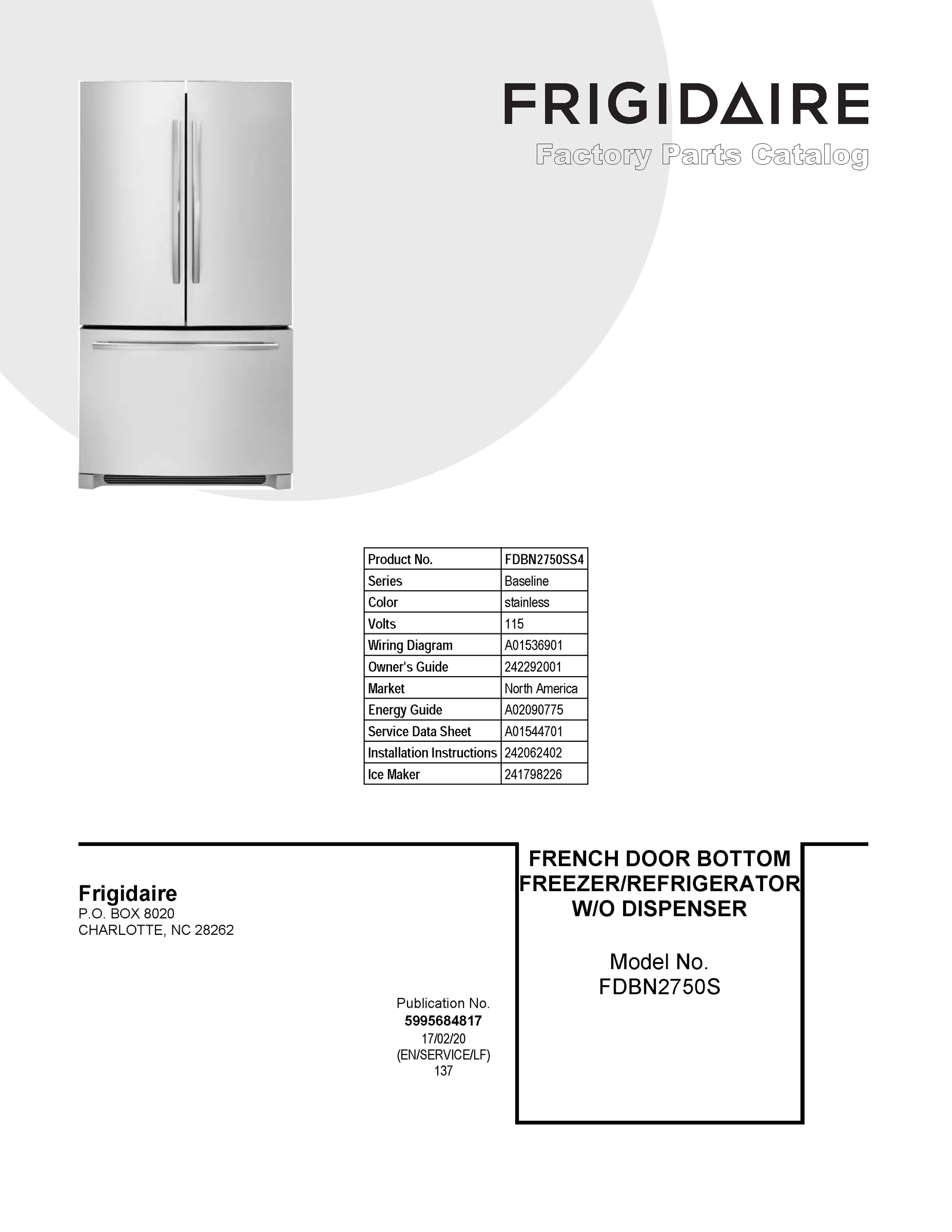

Model Electrolux FDBN2750SS4 REFRIGERATOR, FRENCH DOOR, W/O DISPENSER – Common Parts &amp; Diagrams

1

5304503130 Frigidaire Refrigerator Cover Backorder WCI 5304503130 $45.55

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

1

TUBE-WATER INLET, VALVE TO I.M. WCI 218976804 Contact Us For Availability

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

10

COVER-AIR DUCT WCI 242072002 No Longer Available

10A

241860402 Frigidaire Refrigerator Evaporator In Stock WCI 241860402 $78.78

11

DRAWER, STAINLESS, FREEZER WCI 241987941 Contact Us For Availability

11

DOOR-REFR, STAINLESS, LH WCI 242185628 Contact Us For Availability

12

5304506270 Frigidaire Refrigerator Air Duct I Backorder WCI 5304506270 $14.48

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $11.78

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.44

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $11.78

14

242060202 Frigidaire Refrigerator Light Switc In Stock WCI 242060202 $25.81

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

15

242044501 Frigidaire Refrigerator Evaporator Backorder WCI 242044501 $113.83

15

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $37.65

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $19.45

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $30.79

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

17

241928201 Frigidaire Refrigerator Air Duct Ga In Stock WCI 241928201 $11.33

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.32

18

HANDLE-DOOR, STAINLESS WCI 241972501 Contact Us For Availability

18

HANDLE-FRZR DRAWER, STAINLESS WCI 242029101 Contact Us For Availability

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $28.53

20

242072201 Frigidaire Refrigerator Cover In Stock WCI 242072201 $58.31

20

808137001 Frigidaire Refrigerator Thermistor In Stock WCI 808137001 $20.82

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $9.95

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $27.92

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl Backorder WCI 242075602 $14.92

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

5304501541 Frigidaire Refrigerator Gasket Backorder WCI 5304501541 $10.41

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

242068717 Frigidaire Refrigerator Shelf Backorder WCI 242068717 $104.66

24

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $123.76

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $12.20

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

26

241801802 Frigidaire Refrigerator Crisper Pan In Stock WCI 241801802 $122.78

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $80.76

29

5303918411 Frigidaire Refrigerator Compressor Backorder WCI 5303918411 $626.22

30

241577505 Frigidaire Refrigerator Inverter In Stock WCI 241577505 $222.22

30

241778701 Frigidaire Refrigerator Anti-Tip Br In Stock WCI 241778701 $15.86

34

241868301 Frigidaire Refrigerator Washer Asse In Stock WCI 241868301 $19.91

35

241767211 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767211 $60.50

35A

241767212 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767212 $61.38

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $31.69

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $14.03

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $6.32

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C

USER INTERFACE, ASSEMBLY WCI 242048218 Contact Us For Availability

40

COVER-UPPER HINGE, GRAY, RH WCI 242099809 Contact Us For Availability

40A

242099810 Frigidaire Refrigerator Upper Hinge Backorder WCI 242099810 $36.15

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $14.48

42A

242067801 Frigidaire Refrigerator Door Suppor In Stock WCI 242067801 $28.07

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $64.07

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $55.34

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $50.66

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $63.85

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $42.57

49

5304525892 Frigidaire Refrigerator Freezer Ba Backorder WCI 5304525892 $108.95

49A

BASKET-FRZR, UPPER WCI 241780810 Contact Us For Availability

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $49.31

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $9.95

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $82.43

51

5303918727 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918727 $140.70

51A

5304508096 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508096 $80.67

52

5303918726 Frigidaire Refrigerator Assembly S Backorder WCI 5303918726 $141.15

52A

5304508097 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508097 $82.41

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $7.69

54

SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

PAN-DELI WCI 242096802 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

70

242041701 Frigidaire Refrigerator Ice Maker B Backorder WCI 242041701 $44.80

72

242054804 Frigidaire Refrigerator Kickplate G Backorder WCI 242054804 $52.87

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $13.59

74

5304504277 Frigidaire Refrigerator Ice Contai Backorder WCI 5304504277 $81.14

79

218755401 Frigidaire Refrigerator Screw Set In Stock WCI 218755401 $14.94

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $74.84

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $21.74

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.75

85

242036303 Frigidaire Mullion Heater Assembly In Stock WCI 242036303 $125.46

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $54.24

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $22.06

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $28.53

87

TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability

89

5304509676 Frigidaire Refrigerator Bracket In Stock WCI 5304509676 $45.72

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $44.58

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

90

BAR-TIMING WCI 242136901 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $81.10

96

242048006 Frigidaire Air Filter-Door Trim Backorder WCI 242048006 $9.95

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.23

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $11.32

107

241963102 Frigidaire Refrigerator Air Duct Backorder WCI 241963102 $21.74

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $47.66

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $4.97

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $72.59

136

DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability

139

BASE-WATER FILTER In Stock WCI 242009604 $20.15

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $46.16

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $48.83

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $37.45

154

SUPPORT WCI 242082401 Contact Us For Availability

157

BEAM-CRISPER COVER WCI 241872201 No Longer Available

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $47.49

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $12.22

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $19.91

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $46.63

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $14.48

212

242236801 Frigidaire Refrigerator Roller Asse In Stock WCI 242236801 $13.13

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $59.15

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.60

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79

5303918445 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918445 $260.79

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.67

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $2.72

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $3.61

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $9.06

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $23.11

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

5304521778 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521778 $68.13

807999001 Frigidaire Refrigerator Harness Backorder WCI 807999001 $88.95

NIAA

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

NIAB

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

NIB

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

NIB

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

NIB

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $25.07

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $11.76
