Model Electrolux FDB765RBT0 DISHWASHER – Common Parts & Diagrams

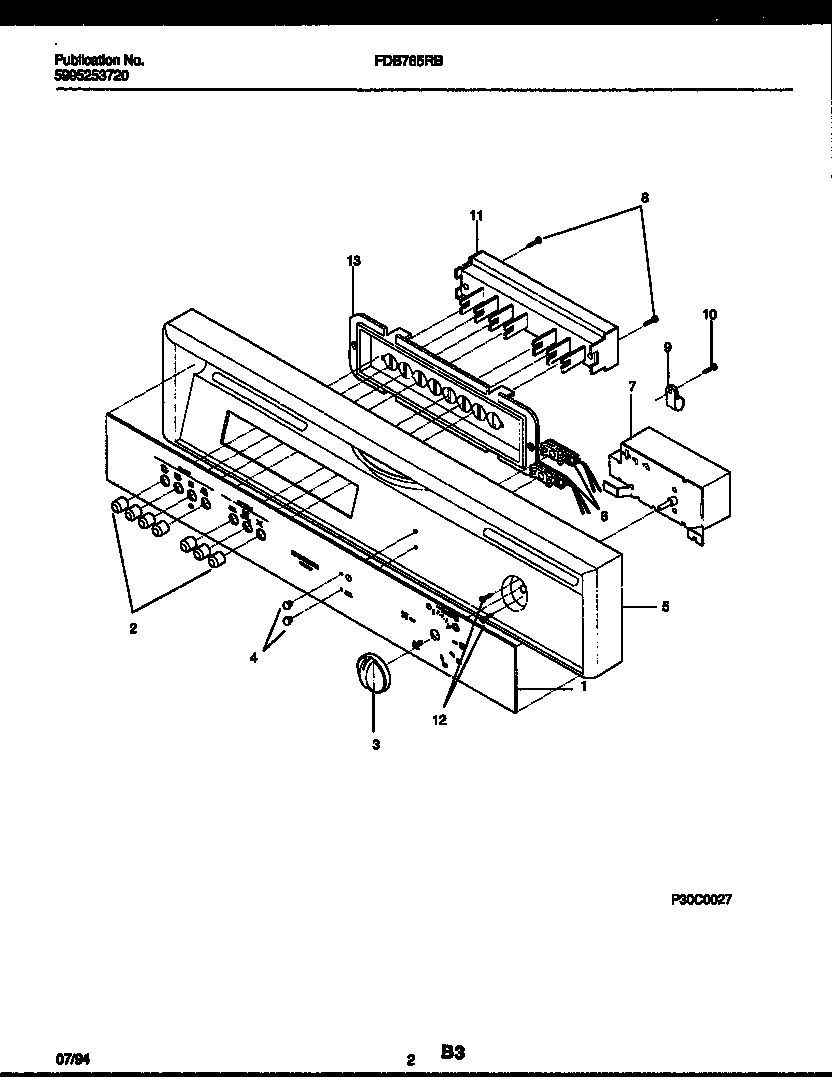

02 - CONSOLE AND CONTROL PARTS

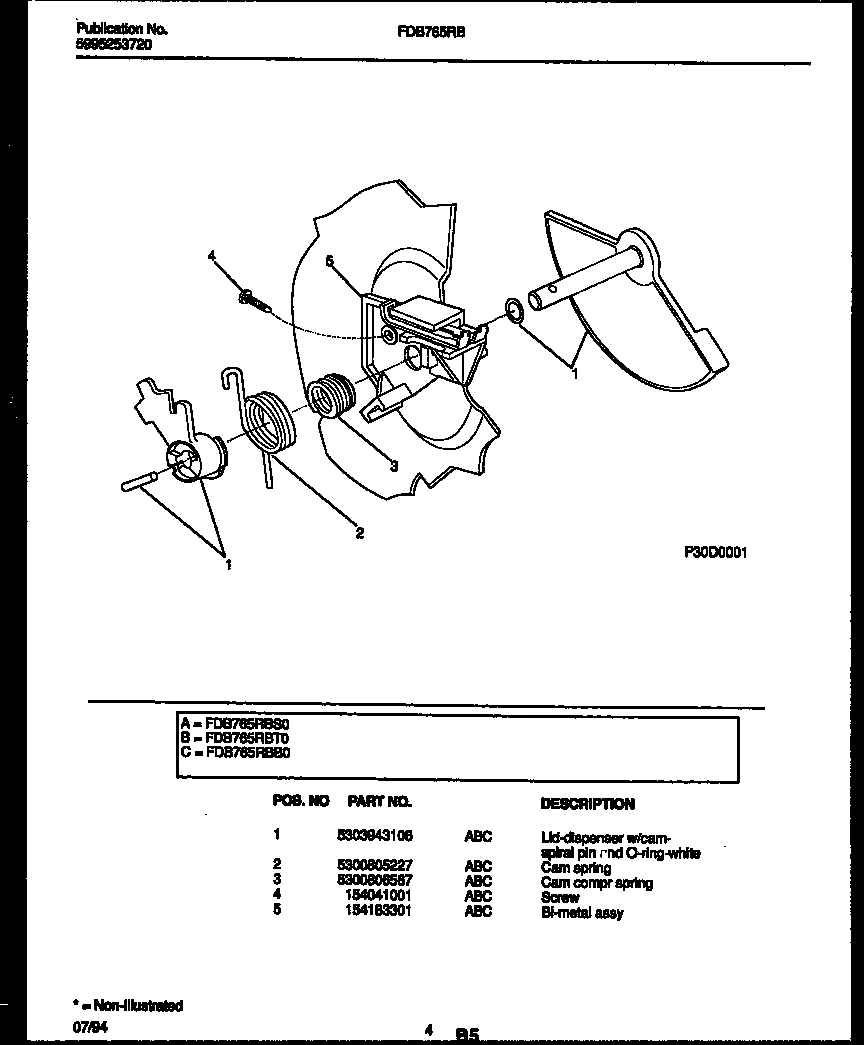

03 - CAM

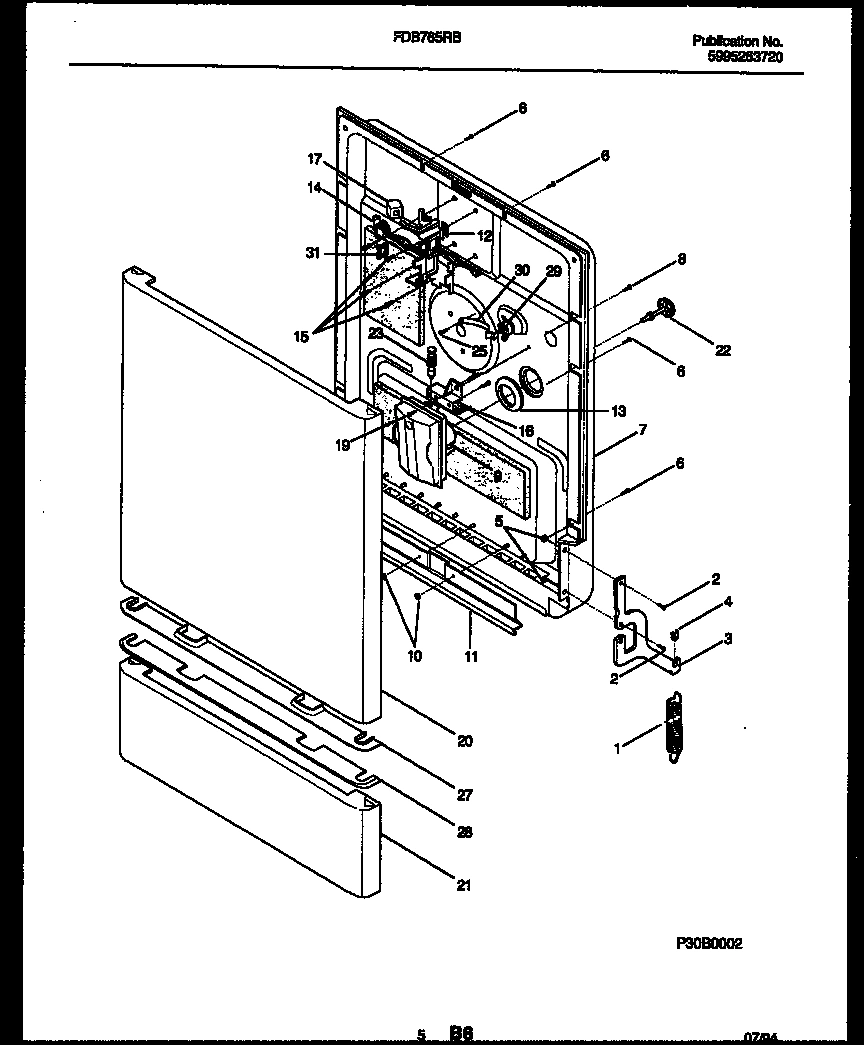

04 - DOOR PARTS

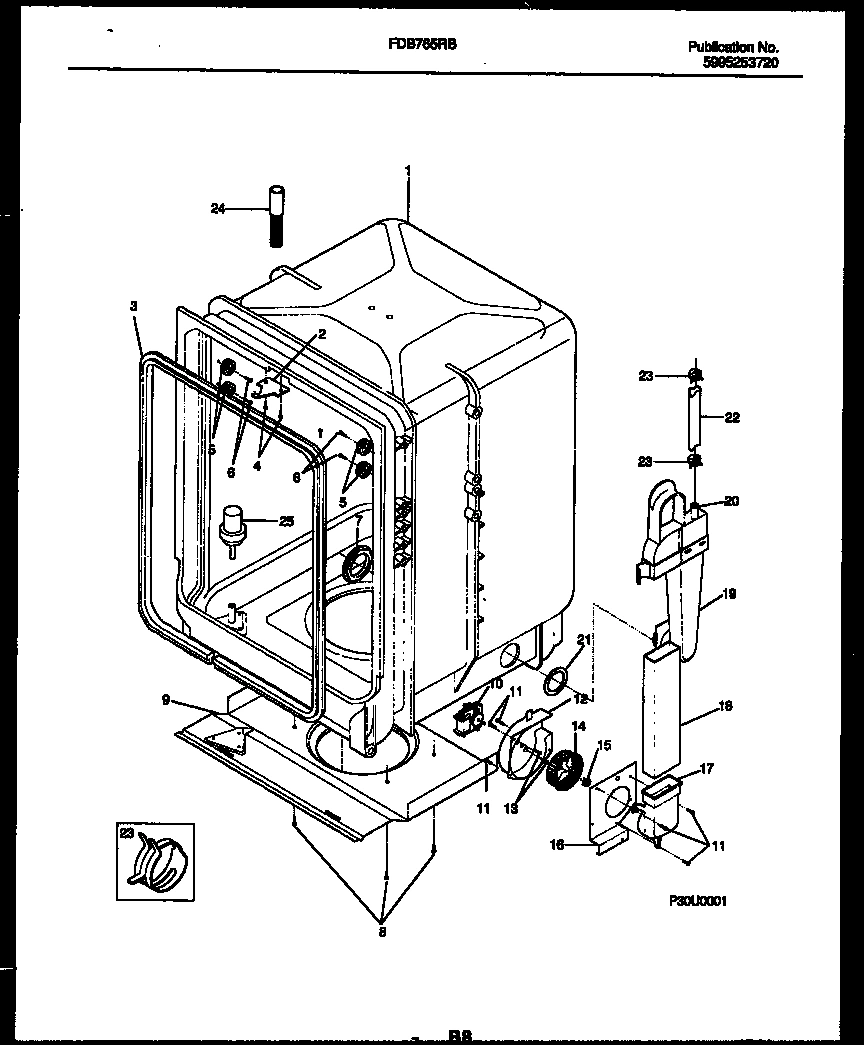

05 - TUB AND FRAME PARTS

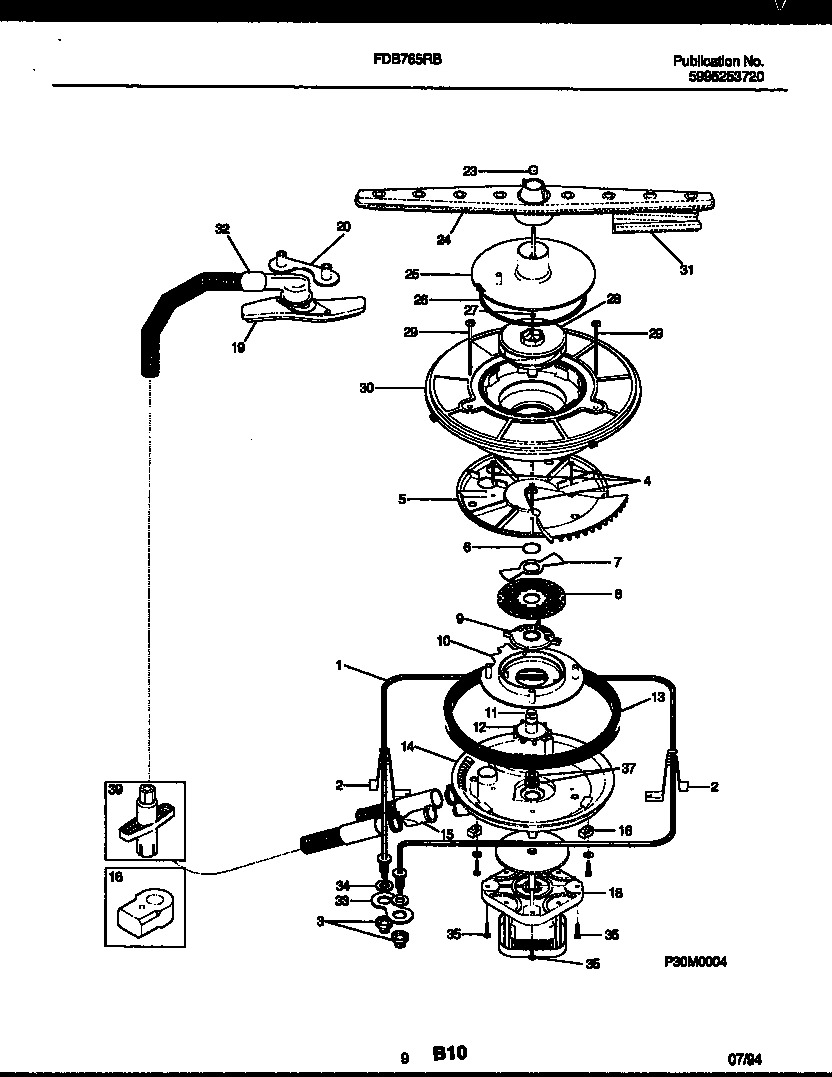

06 - TRANSMISSION PARTS

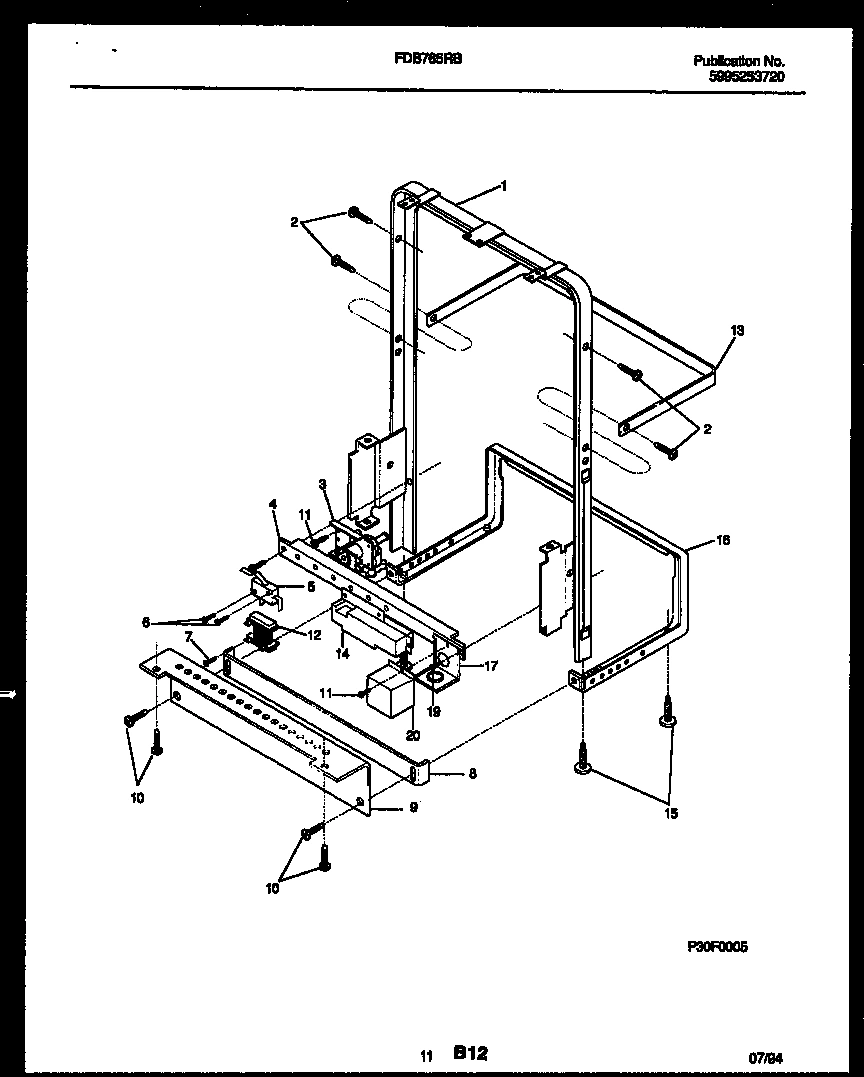

07 - POWER DRY AND MOTOR PARTS

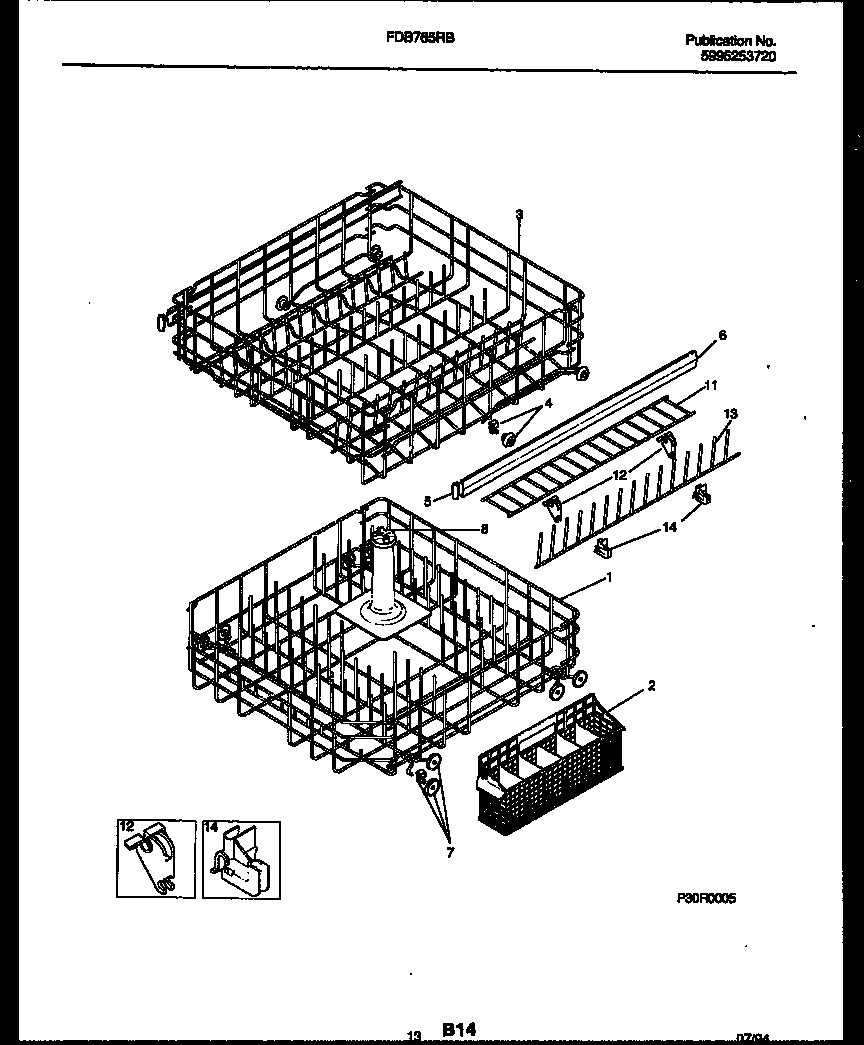

08 - RACKS AND TRAYS
Common parts from model Electrolux FDB765RBT0 DISHWASHER
*10671
INSULATION-TUB WCI 5303212479 Contact Us For Availability
1
TUB ASSY W/GASKET WCI 5303943090 Contact Us For Availability
1
WCI 5300809584 WCI 5300809584 Contact Us For Availability
1
WCI 5300809972 WCI 5300809972 Contact Us For Availability
1
WCI 154159002 WCI 154159002 Contact Us For Availability
2
STRIKE DOOR WCI 5300809610 Contact Us For Availability
2
WCI 5300809585 WCI 5300809585 Contact Us For Availability
2
WCI 154025901 WCI 154025901 Contact Us For Availability
2A
WCI 5300810094 WCI 5300810094 Contact Us For Availability
3
GASKET TUB WCI 5300809611 Contact Us For Availability
3
ARM ASSEMBLY (2) WCI 5303270031 Contact Us For Availability
3
WCI 5303297420 WCI 5303297420 Contact Us For Availability
3
WCI 5303943045 WCI 5303943045 Contact Us For Availability
4
WCI 154151901 WCI 154151901 Contact Us For Availability
4
WCI 154086301 WCI 154086301 Contact Us For Availability
4
WCI 5303286368 WCI 5303286368 Contact Us For Availability
5
WCI 154183301 WCI 154183301 Contact Us For Availability
5
WCI 154084701 WCI 154084701 Contact Us For Availability
5
WCI 154144601 WCI 154144601 Contact Us For Availability
6
WCI 154085201 WCI 154085201 Contact Us For Availability
6
SCREW(2) WCI 5300804594 Contact Us For Availability
6
RACK SLIDE (2) WCI 5300809941 Contact Us For Availability
7
WCI 154169101 WCI 154169101 Contact Us For Availability
7
WCI 154196902 WCI 154196902 Contact Us For Availability
7
WCI 5300809724 WCI 5300809724 Contact Us For Availability
7
WCI 154085001 WCI 154085001 Contact Us For Availability
7
SCREW-8-32 X 1/4`` WCI 5300804672 Contact Us For Availability
8
WCI 154156901 WCI 154156901 Contact Us For Availability
8
WCI 154084901 WCI 154084901 Contact Us For Availability
8
WCI 5300809303 WCI 5300809303 Contact Us For Availability
9
BODY-DISPENSER WCI 5300806753 Contact Us For Availability
9
PAN-BOTTOM WCI 5300809614 Contact Us For Availability
9
WCI 154085101 WCI 154085101 Contact Us For Availability
9
WCI 5300809765 WCI 5300809765 Contact Us For Availability
10
WCI 154184601 WCI 154184601 Contact Us For Availability
10
WCI 154084601 WCI 154084601 Contact Us For Availability
11
WCI 154102801 WCI 154102801 Contact Us For Availability
11
WCI 5303351052 WCI 5303351052 Contact Us For Availability
11
SCREW-8-32 X 1 1/4`` WCI 5300807004 Contact Us For Availability
11
SHELF - CUP WCI 154039805 Contact Us For Availability
12
WCI 154160101 WCI 154160101 Contact Us For Availability
12
WCI 154085401 WCI 154085401 Contact Us For Availability
12
WCI 154192701 WCI 154192701 Contact Us For Availability
12
BRACKET - SHELF CUP WCI 5303282005 Contact Us For Availability
13
GROMMET-RINSE AGENT WCI 5300805631 Contact Us For Availability
13
SCREW-8-32 X 3/8``(2) WCI 5300809731 Contact Us For Availability
13
WCI 154085501 WCI 154085501 Contact Us For Availability
13
WCI 154145501 WCI 154145501 Contact Us For Availability
13
WCI 154038503 WCI 154038503 Contact Us For Availability
14
WCI 154105301 WCI 154105301 Contact Us For Availability
14
BLADE-BLOWER WCI 08016015 Contact Us For Availability
14
WCI 154084501 WCI 154084501 Contact Us For Availability
14
WCI 154089301 WCI 154089301 Contact Us For Availability
14
BRACKET - FENCE WCI 5300809582 Contact Us For Availability
15
WCI 5300809937 WCI 5300809937 Contact Us For Availability
15
WCI 5300809728 WCI 5300809728 Contact Us For Availability
15
LEVELER(4) WCI 154026101 Contact Us For Availability
16
BI-METAL RINSE DISPENSER WCI 5300809782 Contact Us For Availability
16
WCI 154158701 WCI 154158701 Contact Us For Availability
16
WCI 154084801 WCI 154084801 Contact Us For Availability
16
WCI 5303211181 WCI 5303211181 Contact Us For Availability
16A
WCI 154089101 WCI 154089101 Contact Us For Availability
17
VENT - POWER DRY WCI 5300809729 Contact Us For Availability
17
WCI 154112901 WCI 154112901 Contact Us For Availability
18
WCI 154161701 WCI 154161701 Contact Us For Availability
18
WCI 154086902 WCI 154086902 Contact Us For Availability
19
WCI 5300809616 WCI 5300809616 Contact Us For Availability
19
WCI 154119401 WCI 154119401 Contact Us For Availability
19
WCI 5300807951 WCI 5300807951 Contact Us For Availability
20
DOOR-PANEL-ALMOND WCI 154087602 Contact Us For Availability
20
WCI 5300809730 WCI 5300809730 Contact Us For Availability
20
PLATE-UPPER SPRAY ARM MOUNTING WCI 154126401 Contact Us For Availability
20
WCI 154128301 WCI 154128301 Contact Us For Availability
21
ACCESS-PANEL-ALMOND WCI 154087702 Contact Us For Availability
21
GASKET BLOWER WCI 5300809618 Contact Us For Availability
22
WCI 5303943094 WCI 5303943094 Contact Us For Availability
22
TUBING-WATER INLET WCI 5300809619 Contact Us For Availability
23
WCI 5300809898 WCI 5300809898 Contact Us For Availability
23
WCI 5300807813 WCI 5300807813 Contact Us For Availability
23
SPRAY ARM NUT WCI 154190401 Contact Us For Availability
24
LOWER SPRAY ARM ASSY WCI 154156601 Contact Us For Availability
25
WCI 154157401 WCI 154157401 Contact Us For Availability
25
WCI 154144301 WCI 154144301 Contact Us For Availability
26
WCI 154086001 WCI 154086001 Contact Us For Availability
27
WCI 154189402 WCI 154189402 Contact Us For Availability
27
SCREW 10-32 HEXAGONAL WCI 154089201 Contact Us For Availability
28
TRIM-ACCESS TOP-ALMOND WCI 154087802 Contact Us For Availability
28A
CLIP-ATTACH (4) (NON-ILLUSTRATED) WCI 154144401 Contact Us For Availability
29
WCI 5303297402 WCI 5303297402 Contact Us For Availability
29
WCI 154086201 WCI 154086201 Contact Us For Availability
30
WCI 154086101 WCI 154086101 Contact Us For Availability
30
RETAINER-THERMOSTAT WCI 5300809097 Contact Us For Availability
31
WCI 154142901 WCI 154142901 Contact Us For Availability
31
SPRAY ARM SHIELD (2) WCI 5300809938 Contact Us For Availability
32
WCI 154119301 WCI 154119301 Contact Us For Availability
33
WASHER - HEATER (2) WCI 5300809587 Contact Us For Availability
34
WCI 154064901 WCI 154064901 Contact Us For Availability
35
SCREW-MOTOR MTG (4) WCI 5300809022 Contact Us For Availability
37
WCI 5303943099 WCI 5303943099 Contact Us For Availability
39
TOOL - 4 IN 1 WCI 154154801 Contact Us For Availability
× ![]()
